Product Advantages
Powerful Lifting CapacityMax rated lifting capacity up to 60 tons, matched with optimized multi-section main boom design. It maintains stable lifting performance under medium and long boom conditions, covering multiple working radii and meeting diverse heavy hoisting demands.
Smooth & Efficient Hydraulic SystemAdopts advanced integrated hydraulic technology, with sensitive response and stable action in boom telescoping, luffing, slewing and winch lifting. Precise micro-operation makes positioning accurate and improves overall construction efficiency.
Energy Saving & Eco-friendly PowerEquipped with high-power environmental protection engine, conforming to Euro VI emission standard. It features sufficient power reserve, low fuel consumption and low noise, suitable for long-time continuous operation in various working sites.
High Safety & StabilityAdopts H-type four outrigger structure with large support span, uniform force bearing and strong anti-rollover capability. Built-in intelligent load moment limiter and multiple safety alarm devices to effectively avoid overload and misoperation.
Excellent TrafficabilityIntegrated chassis layout with reasonable overall size, flexible steering and good passing performance. It can smoothly pass urban roads, bridges, tunnels and mountain narrow roads, convenient for cross-site transfer.
Long Service Life & Easy MaintenanceKey structural parts adopt high-strength steel plate and optimized welding technology, with strong fatigue resistance and durability. Standardized general components are easy to inspect, repair and replace, reducing later operation and maintenance cost.
Technical Specifications
Item | Unit | Specification |

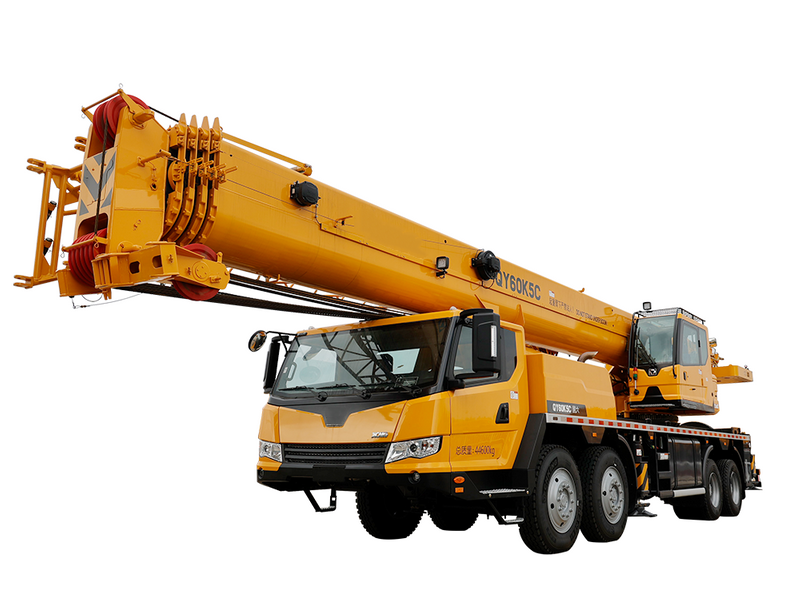

Model | — | QY60K5C |
Max. Rated Lifting Capacity | t | 60 |
Main Boom Sections | — | 5 |
Max. Main Boom Length | m | 45 |
Max. Lifting Height (With Jib) | m | 54 |
Overall Length | mm | 14200 |
Overall Width | mm | 2750 |
Overall Height | mm | 3550 |
Drive Type | — | 8×4 |
Emission Standard | — | Euro VI |
Max. Travel Speed | km/h | 85 |
Max. Gradeability | % | 42 |
Outrigger Type | — | H-type 4 Outriggers |
Product Applications
This 60-ton truck crane is suitable for all kinds of large and medium hoisting operations.
It is widely used in high-rise building construction, bridge erection, maintenance and reconstruction, road and railway engineering construction, municipal pipeline laying, street lamp and billboard installation.
It also fits for factory equipment handling, installation and relocation, port and yard heavy cargo hoisting, auxiliary wind power construction, as well as rural and industrial infrastructure engineering hoisting works.
Product Operation Guide
Pre-operation Inspection
Check the liquid level of engine oil, coolant, hydraulic oil, fuel and urea. Inspect main boom, steel wire rope, outriggers and connecting parts for abrasion, leakage and looseness. Ensure all safety protection devices and alarm systems are in normal working state.
Site Preparation
Park the crane on flat, solid and stable ground, keep a safe distance from high-voltage lines and obstacles. Fully extend the four H-type outriggers, place backing plates evenly, and adjust the body to horizontal level.
Start and No-load Test
Start the engine and keep idling for warm-up. Conduct no-load test on boom telescoping, luffing, slewing and winch lifting to confirm all hydraulic actions are smooth and sensitive.
Standard Hoisting Operation
Operate strictly in accordance with the lifting performance chart. Overload lifting, inclined pulling and side pulling are prohibited. Operate the control lever gently and steadily, avoid sudden start, sudden stop and sharp rotation. Keep safe distance between lifted goods and surrounding personnel.
Post-operation Management
Land the load steadily, retract the steel wire rope, fold the main boom in place, and fully retract the outriggers. Park the machine in a safe area, shut down the engine, cut off the power supply, clean the whole equipment and complete daily maintenance.
Questions & Answers
Q1: What is the maximum rated lifting capacity of QY60K5C?
A1: The maximum rated lifting capacity is 60 tons.
Q2: How many sections does the main boom of QY60K5C have?
A2: It is equipped with 5 sections telescopic main boom.
Q3: What emission standard does QY60K5C comply with?
A3: It meets Euro VI environmental emission standard.
Q4: What is the drive mode of QY60K5C truck crane?
A4: It adopts 8×4 drive type with strong trafficability.
Q5: What kind of outrigger structure does this crane use?
A5: Adopts H-type four outriggers with large supporting span for high stability.
Q6: What working scenarios is QY60K5C mainly suitable for?
A6: It is widely used in building construction, bridge engineering, municipal works, factory equipment handling, port cargo lifting and large infrastructure projects.
