XG1412HA-Li Product Manual
Product Introduction

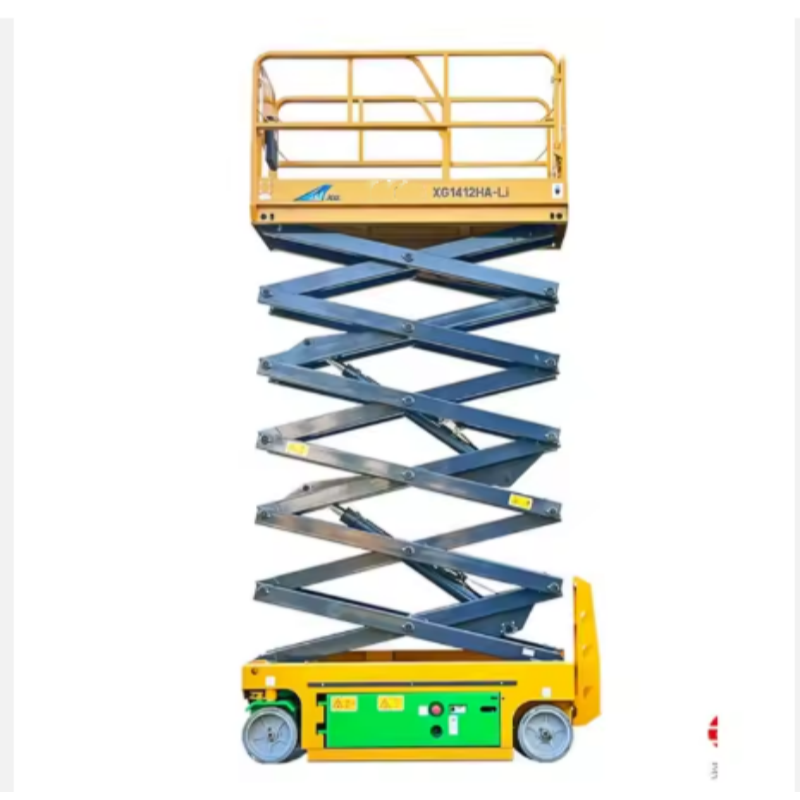

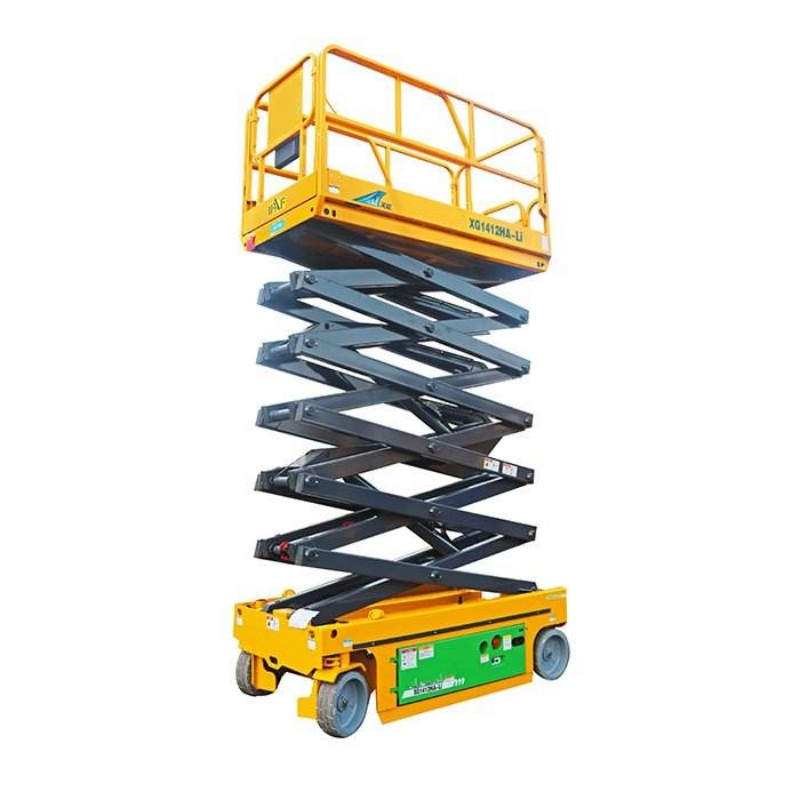

XG1412HA-Li is a self-propelled high-reach scissor lift equipped with an AC and lithium hybrid power system. It features a maximum working height of 15.8m and a rated load of 320kg. Adopting a reinforced steel structure and heavy-duty solid tires, the equipment boasts excellent stability and strong adaptability, fitting for indoor and mild outdoor operations. With fast charging speed, long working duration and low maintenance costs, this CE-certified device is a premium solution for high-altitude operations in construction, warehouse logistics, commercial venues and municipal maintenance fields.
Product Advantages
Dual Power System: Integrates AC power and lithium battery to realize flexible power supply and extend continuous working hours.
High Reach & Large Load: A maximum working height of 15.8m and a rated load of 320kg fully meet diverse high-altitude and heavy-duty operation requirements.
Heavy-duty Structure: Thickened steel frame and reinforced scissor arms deliver high structural rigidity and prolonged service life.
Advanced Lithium Battery: Supports fast charging and over 1000 charge-discharge cycles, featuring outstanding durability.
Low Maintenance: Eliminates the need for electrolyte inspection, cutting daily maintenance time and operational costs.
Good Terrain Adaptability: Wear-resistant solid tires ensure stable driving on flat and slightly uneven ground surfaces.
Flexible Maneuverability: Compact body size and flexible steering enable easy passage through doors, elevators and narrow aisles.
Full Safety Protection: Fitted with overload protection, tilt alarm, emergency stop function, automatic pothole protection and anti-slip working platform.
Extendable Platform: The 0.9m extendable deck enlarges the working area and effectively boosts operational efficiency.
Eco-friendly & Quiet: Full electric drive achieves zero emissions and low noise, ideal for long-duration continuous operation.
Product Specification Table
Item | Specification |
Model | XG1412HA-Li |
Max. Working Height | 15.8 m |
Max. Platform Height | 13.8 m |
Rated Load Capacity | 320 kg |
Extended Platform Load | 120 kg |
Platform Dimension (L × W) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (Folded, L×W×H) | 2850 × 810 × 2520 mm |
Total Weight | 2210 kg |
Outer Turning Radius | 1.8 m |
Ground Clearance (Raised / Stowed) | 22 mm / 72 mm |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 28 ~ 48 s |
Lowering Time | 35 ~ 48 s |
Power Type | AC + Lithium Battery |
Charging Time | 2 ~ 3 h |
Continuous Working Time | 8 ~ 10 h |
Certification | CE |
Application Scenarios

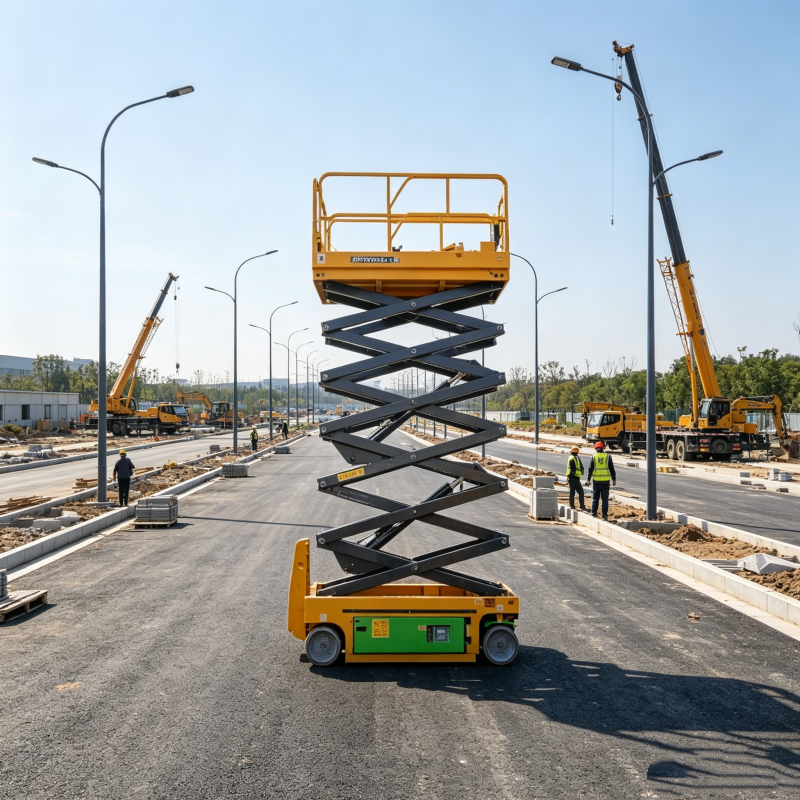

Construction Sites: Indoor and outdoor decoration, wall painting, electrical wiring and pipeline installation work.
Warehouse & Logistics: High shelf maintenance, inventory inspection and lighting system repair work.
Commercial Venues: Ceiling cleaning, lamp replacement and billboard installation in shopping malls, hotels and exhibition halls.
Building Maintenance: Daily inspection and maintenance of high-rise office buildings, residential buildings and public facilities.
Municipal Works: Street lamp maintenance, traffic sign installation and landscape pruning operations.
Event Arrangement: Stage erection, banner hanging and equipment installation for large exhibitions and activities.
Operation Guide
1 Pre-operation Inspection
Check the AC connection, battery power level, tire status and hydraulic oil volume.
Inspect safety railings, extendable platform and locking pins to confirm firm and intact installation.
Test the emergency stop, tilt alarm and pothole protection devices to ensure normal operation.
Clear on-site obstacles and verify the ground is flat, solid and within the 25% slope limit.
2 Driving Operation
Turn the key switch to ON position to start the equipment.
Control forward and backward movement via the joystick; the travel speed will be automatically limited when the platform is elevated.
Steer gently during operation. Avoid sharp turns or driving on slopes over 25% during high-altitude working states.
3 Lifting & Lowering
Press the lift button to raise the platform and release the button to stop lifting.
Press the lower button to descend the platform; ensure no personnel or obstacles exist in the lower area.
Extend the auxiliary platform only after the main platform is fully lifted. Never exceed the specified rated load.
4 Safety Regulations
Overloading is strictly prohibited: 320kg for the main platform and 120kg for the extended platform.
Do not drive on slopes exceeding 25% while the platform is raised.
Operators must wear safety harnesses when conducting high-altitude operations.
Fully lower and retract the platform before moving the scissor lift.
5 Shutdown & Maintenance
Completely lower the platform and retract the extended deck.
Turn off the key switch and disconnect the power supply.
Clean the equipment and check for loose parts or component damage.
Charge the battery in a timely manner after use. Maintain battery power at about 80% for long-term storage.
Store the equipment in a dry and well-ventilated environment.
FAQ
Q1: What is the maximum working height?
A: The maximum working height reaches 15.8m, and the maximum platform height is 13.8m.
Q2: What power system does this model adopt?
A: It adopts a dual power system combining AC power and lithium battery for flexible application.
Q3: Can this lift be used outdoors?
A: Yes, it is applicable to mild outdoor work on flat or slightly uneven ground. Please avoid operating in heavy rain, strong wind and rugged terrain.
Q4: What is the load limit of the extended platform?
A: The extended platform has a maximum load capacity of 120kg. Overload operation is forbidden.
Q5: How many people can work on the platform?
A: A maximum of 2 people can work on the platform, with a total weight not exceeding 320kg.
Q6: How long can it work continuously after full charge?
A: It supports 8 to 10 hours of continuous work after a full charge, depending on actual load and working conditions.
