XC6-3006K
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

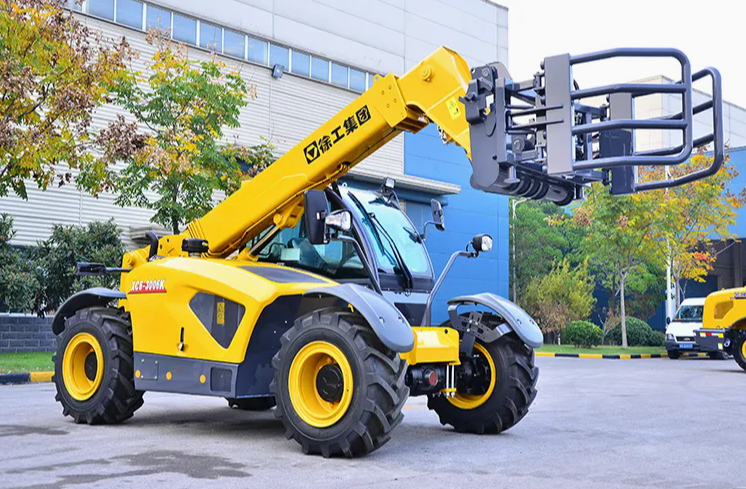

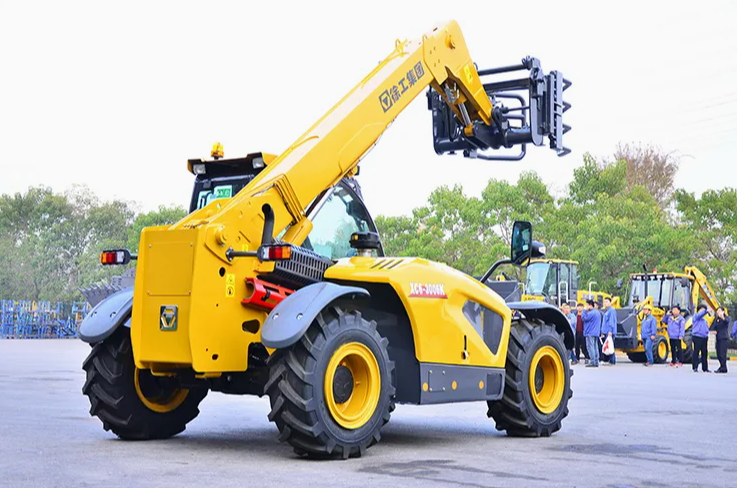

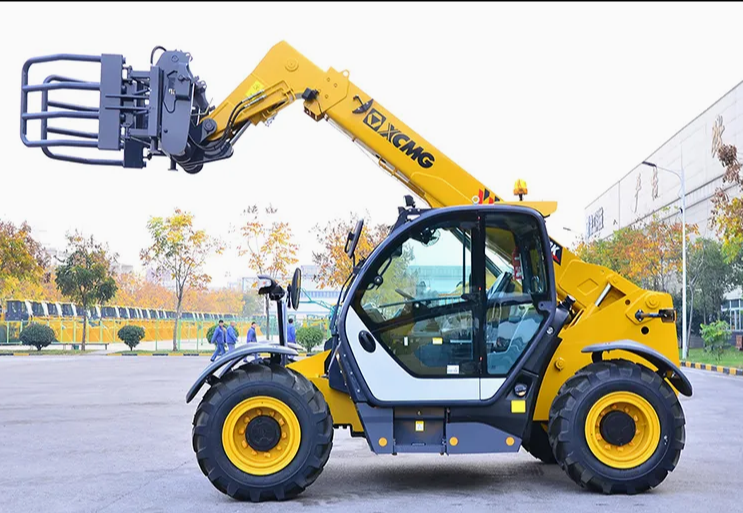

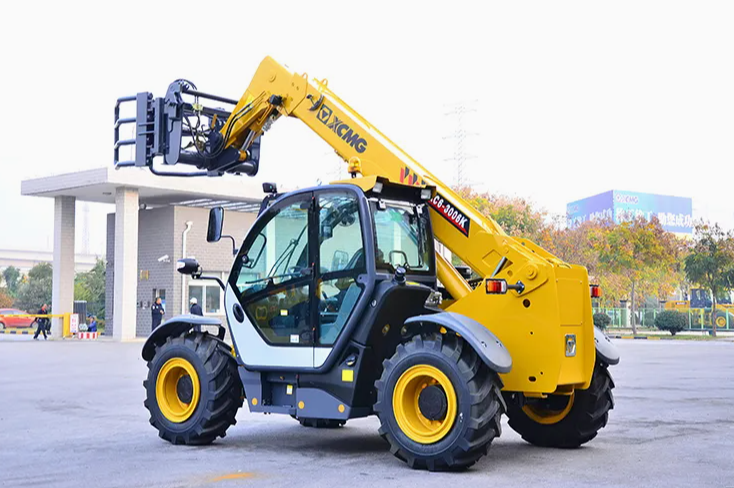

The XC6-3006K is a 3-tonne telescopic boom forklift truck with an overall weight of 7250kg. Equipped with a 90kW power unit, it boasts a rated load capacity of 3000kg and a maximum lifting height of 6200mm. Featuring electronically controlled hydrostatic continuously variable transmission, four-wheel drive with multi-mode steering, and a short wheelbase design for enhanced manoeuvrability. Electro-hydraulic proportional control ensures precision operation, incorporating overload protection and micro-inching for safe, efficient work. The panoramic cab provides excellent visibility, while the intelligent independent cooling system guarantees stable reliability. Compatible with attachments such as aerial platforms, buckets, and clamps, it serves multiple scenarios including construction sites, warehousing, logistics, and municipal works, delivering versatile functionality.
Product Advantage
Heavy-duty efficiency: With a 3-tonne rated load capacity, it excels in lifting, forklift and stacking operations, delivering outstanding work efficiency.
Flexible reach: Achieving a maximum lifting height exceeding 6 metres, it handles high-level material retrieval, multi-tier stacking and long-distance loading/unloading with ease.
Precise control: Electro-hydraulic proportional control ensures excellent micro-movement performance, smooth operation and high work precision.
Superior Manoeuvrability: Four-wheel drive + multi-mode steering ensures strong site adaptability, enabling agile operation even in confined spaces.
Multi-Functional: Quickly interchangeable attachments including forks, buckets, and aerial platforms cover diverse operational requirements.
Safety and Comfort: Features overload protection, a spacious cab with unobstructed visibility, ensuring safer and more comfortable extended working hours.
| Description | Unit | Parameter value |
| Gross weight | kg | 6990 |
| Engine power | kW | 90 |
| Rated load | kg | 3000 |
| Effective load at maximum forward reach | kg | 1250 |
| Maximum lifting height | mm | 6200 |
| Maximum forward reach | mm | 2990 |
| Center distance of load | mm | 500 |
| Luffing angle | ° | -3~65 |
| Fork angle | ° | -90~18 |
| Maximum traction force | kN | ≥55 |
| Gradeability | ° | ≥25 |
| Maximum traveling speed | km/h | 40* |
| Turning radius | mm | ≤4020 |
| Braking distance | m | ≤8 |
| Overall length | mm | 4620 |
| Overall width | mm | 2355 |
| Overall height | mm | 2415 |
| Wheelbase | mm | 2850 |
| Wheel tread | mm | 1920 |
| Fork length | mm | 1000 |
| Bale clamp diameter | mm | 800-1800 |
Product Uses
Construction sites: Building material handling, elevated material conveyance, formwork and reinforcement transport, confined-space lifting operations.
Warehousing and logistics: Multi-tier warehouse stacking, container loading/unloading, efficient transfer of oversized cargo.
Municipal Landscaping: Transplanting nursery stock, hoisting landscape stones, installing and maintaining street lighting and horticultural facilities.
Factory Workshops: Equipment positioning, heavy component handling, elevated work and maintenance support.
Agricultural and Livestock Farms: Feed transportation, fodder stacking, shed construction and equipment installation.
Port Terminals: Bulk cargo handling, large-item transhipment, versatile multi-condition operations, replacing forklifts and cranes.
Product Operate Guide
Prior to operation, inspect the vehicle's exterior, tyres, hydraulic system, safety devices, and the reliability of attachment connections. Confirm the ground is firm and level. After starting, allow the engine to idle for preheating, observing that gauges, pressures, and brake air pressure are normal. During operation, strictly adhere to rated load capacity; overloading or uneven loading is strictly prohibited. Ensure the telescopic boom's lifting, extension, and rotation movements are performed at a steady, uniform speed, avoiding abrupt stops or sudden movements. When travelling, lower the boom height to maintain centre of gravity stability, remaining vigilant of surrounding personnel and obstacles. Follow instructions and maintain safe working distances. Upon task completion, fully retract the telescopic boom to its secure position, engage the parking brake, switch off the ignition, and perform equipment cleaning and inspection documentation. Adhere to standard operating procedures to ensure personnel and machinery safety.
FAQ
A: This is a core issue.
In simple terms:
• Forklifts: They focus on precise handling and stacking on flat surfaces within warehouses, are highly maneuverable and flexible, but have relatively poor traction and passability.
• Loader: It focuses on the loading, excavation and short-distance transfer of bulk materials in outdoor sites. It has extremely strong traction, lifting force and passability, but is not suitable for fine handling and high-altitude stacking.
• Forklift machine: It is a combination of the two. The XC6-3006K is a forklift truck. It features powerful performance similar to that of a loader, a heavy-duty frame and large tires, and has strong passability. It is also equipped with a mast and forks (or clamps), enabling vertical handling and stacking operations like a forklift. It is specially designed for heavy-duty and harsh working conditions such as stone and building materials.
A: Yes. The XC6-3006K typically adopts a quick-change device and is compatible with various attachments to adapt to different working conditions.
Common optional attachments include:
• Stone clamping arm (wood clamping device) : It is used for clamping cylindrical and irregular heavy objects such as stone blocks, wood, and cement pipes.
• Side shifter: It allows the forks to be fine-tuned left and right, facilitating quick alignment with the cargo position. It is an essential practical accessory.
• Rotator: It can rotate the goods 360 degrees and is used to adjust the Angle of the materials.
• Boom: Used for simple hoisting operations.
A: Fuel consumption depends on various factors such as working conditions, load, and operating habits, and there is no fixed value. Under average operating conditions, its fuel consumption level is comparable to that of loaders of the same power grade. Good operating habits (such as avoiding sudden acceleration and braking) can effectively reduce fuel consumption.
A: This is the key to safety!
• Soft ground: Drive at a low speed, avoid sharp turns and prevent the vehicle from getting stuck.
Always pay attention to the ground's load-bearing capacity.
• Slope: It must be going up and down the slope. Turning on the slope is strictly prohibited. When carrying goods uphill, move forward; when going downhill, reverse. Always keep the goods on the upper side of the slope to prevent them from overturning.
