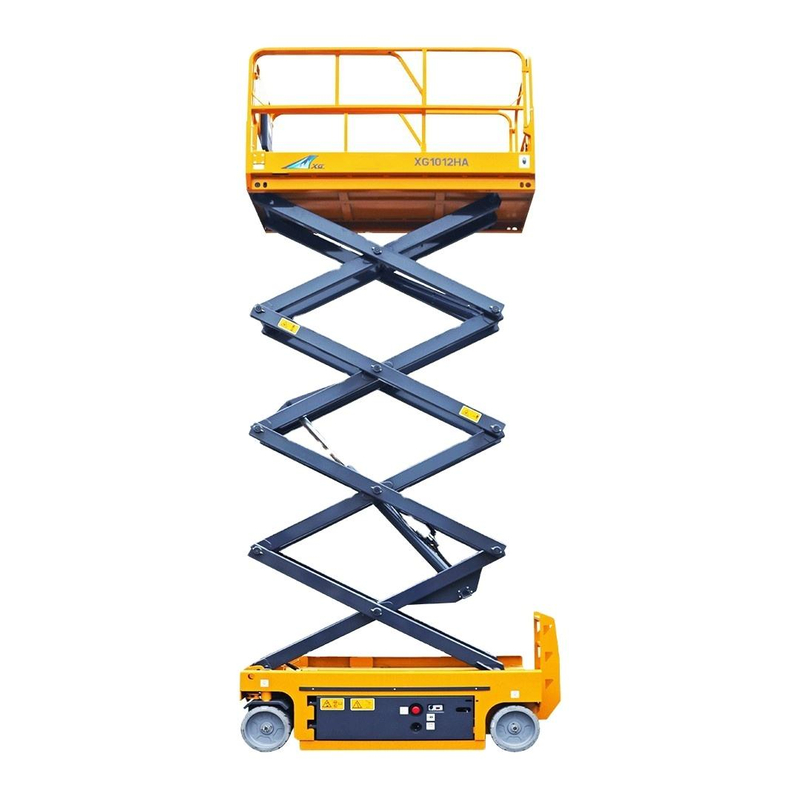

XG1012HA/XG1012HA-Li
| Availability: | |
|---|---|
| Quantity: | |
XG1012HA and XG1012HA-Li are high-load self-driving electric scissor lifts with a maximum working height of 11.8m and a 320kg rated bearing capacity. Both units adopt reinforced steel scissor frameworks and heavy-duty solid tires, delivering outstanding stability and adaptability for indoor and mild outdoor aerial assignments.
The XG1012HA is fitted with a stable AC power system paired with lead-acid batteries, supplying consistent power output with cost-saving advantages. The upgraded XG1012HA-Li comes with lithium battery backup, enabling quicker charging cycles, extended continuous working hours and minimal maintenance workload. Equipped with full-range safety configurations and CE certification, they serve as ideal equipment for construction jobs, warehouse logistics, commercial venue services and municipal maintenance projects.
1.High Working Height & Large Bearing Capacity: 11.8m peak working height and 320kg rated load satisfy various medium and high-altitude operational demands.
2.Heavy-Duty Reinforced Framework: Thickened steel frames and reinforced scissor arms boost structural rigidity and extend overall service lifespan.
3.Strong Ground Adaptability: Abrasion-resistant solid tires ensure steady traveling on flat floors and slightly bumpy ground surfaces.
4.Agile Maneuverability: Compact overall layout and responsive steering allow smooth passage through standard doors, elevators and narrow aisle zones.
5.Complete Safety Gear Set: Factory standard with overload safeguard, tilt alert, emergency stop button, automatic anti-pothole device and anti-slip work platform.
6.Expandable Working Deck: 0.9m stretchable platform enlarges operating space and lifts overall work flexibility.
7.Eco-Friendly Low-Noise Design: Full electric drive generates zero exhaust emissions, fit for uninterrupted long-hour operation.
1.Stable AC Power Supply: Delivers continuous reliable power, perfectly suited for prolonged indoor aerial tasks.
2.Cost-Effective Matching Parts: Mature lead-acid battery assembly cuts initial purchase expense and daily upkeep cost.
1.Dual Power Matching Structure: Main AC power plus lithium auxiliary battery supports more flexible working modes.
2.Rapid Charging Function: Short charging cycle greatly improves daily working efficiency.
3.Extended Continuous Runtime: Longer single-shift operation time compared to the lead-acid variant.
4.Long Service Cycle Life: Over 1000 charge-discharge cycles for longer total service life.
5.Virtually Maintenance-Free: No regular electrolyte inspection needed, saving daily maintenance labor.
Item | XG1012HA | XG1012HA-Li |
|---|---|---|
Model | XG1012HA | XG1012HA-Li |
Max. Working Height | 11.8 m | 11.8 m |
Max. Platform Height | 9.8 m | 9.8 m |
Rated Load Capacity | 320 kg | 320 kg |
Extended Platform Load | 120 kg | 120 kg |
Platform Size (L × W) | 1870 × 800 mm | 1870 × 800 mm |
Extended Platform Length | 0.9 m | 0.9 m |
Overall Dimension (L×W×H, Folded) | 2450 × 810 × 2380 mm | 2450 × 810 × 2380 mm |
Total Weight | 1930 kg | 1810 kg |
Outer Turning Radius | 1.8 m | 1.8 m |
Ground Clearance | 22 mm (Raised) / 72 mm (Stowed) | 22 mm (Raised) / 72 mm (Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h | 4.5 km/h / 0.8 km/h |
Gradeability | 25% | 25% |
Lifting Time | 22 ~ 40 s | 22 ~ 40 s |
Lowering Time | 30 ~ 42 s | 30 ~ 42 s |
Power Configuration | AC + Lead-acid Battery | AC + Lithium Battery |
Charging Time | 8 ~ 10 h | 2 ~ 3 h |
Continuous Working Time | 4 ~ 6 h | 8 ~ 10 h |
Certification | CE | CE |
1.Construction Sites: Indoor and exterior finishing, wall painting, circuit wiring and pipeline installation works.
2.Warehouse & Logistics: High shelf maintenance, stock inspection and indoor lighting repair in large storage warehouses.
3.Commercial Venues: Ceiling cleaning, lamp replacement and billboard mounting inside malls, hotels and exhibition centers.
4.Building Maintenance: Routine upkeep for high-rise office buildings, residential apartments and public service facilities.
5.Municipal Works: Street lamp servicing, traffic sign installation and green plant pruning tasks.
6.Event Layout: Stage assembly, banner hanging and equipment setup for large-scale exhibitions and conferences.
Check AC power connection state, battery residual power, tire surface condition and hydraulic oil capacity.
Examine safety railings, stretchable platform and lock pins to guarantee tight assembly.
Test emergency stop, tilt alarm and anti-pothole device to confirm normal functional output.
Clear all site barriers and verify the ground is flat, solid and within safe slope range.
Shift the key switch to ON gear to activate the lifting machine.
Control forward and backward travel via joystick; running speed will be restricted once the platform rises.
Steer the unit gently. Avoid sharp turns or traveling on slopes steeper than 25° during aerial working status.
Hold the lift button to raise the platform; release the button to halt lifting motion.
Press the descending button to lower the platform. Keep the underneath zone free of staff and obstacles.
Extend the auxiliary platform only after the main platform reaches full lifting height. Never surpass the rated load limit.
Overloading operation is strictly banned: 320kg for main platform, 120kg for extended deck.
Do not travel on slopes over 25 degrees when the platform is lifted.
Operators must wear safety harnesses during all high-altitude working procedures.
Fully lower and retract the stretchable platform before moving the lift equipment.
Completely lower the platform and fold back the extended deck.
Turn off the key switch and disconnect the power supply.
Clean the whole machine and check loose fittings or component damage.
Charge the battery promptly after finishing work.
Store the equipment inside dry and ventilated spaces. Keep lithium batteries at roughly 80% power for long-term storage.
Q1: What is the maximum working height of these two models?
A: Both variants reach a maximum working height of 11.8m, with a max platform height of 9.8m.
Q2: What core differences exist between the two machines?
A: XG1012HA adopts AC power plus lead-acid batteries with lower purchase cost yet longer charging hours. XG1012HA-Li matches AC power with lithium batteries, featuring fast charging, longer single-charge runtime, lighter body weight and less routine maintenance.
Q3: Are the two lifts applicable for outdoor work?
A: They support mild outdoor operations on flat or slightly uneven ground. Avoid usage under heavy rain, strong wind and rugged terrain.
Q4: What weight limit does the extended platform carry?
A: The stretchable platform bears a maximum of 120kg; overloading is prohibited.
Q5: What safety components come as standard fitment?
A: Overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip working platform.
Q6: How long can each model operate continuously after a full charge?
A: XG1012HA runs 4–6 hours continuously; XG1012HA-Li works 8–10 hours, subject to real load and site working conditions.
