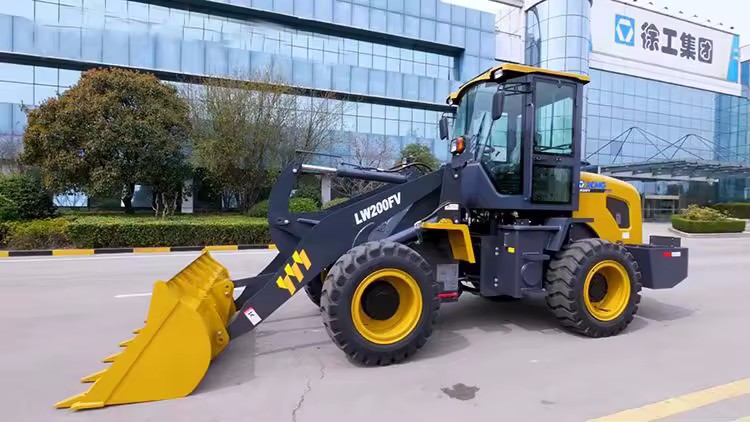

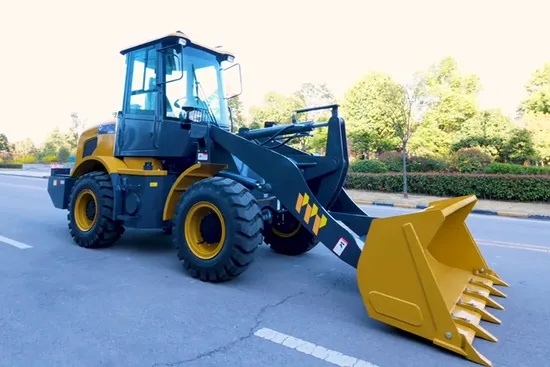

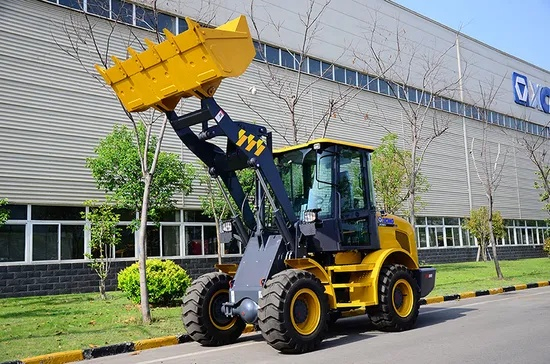

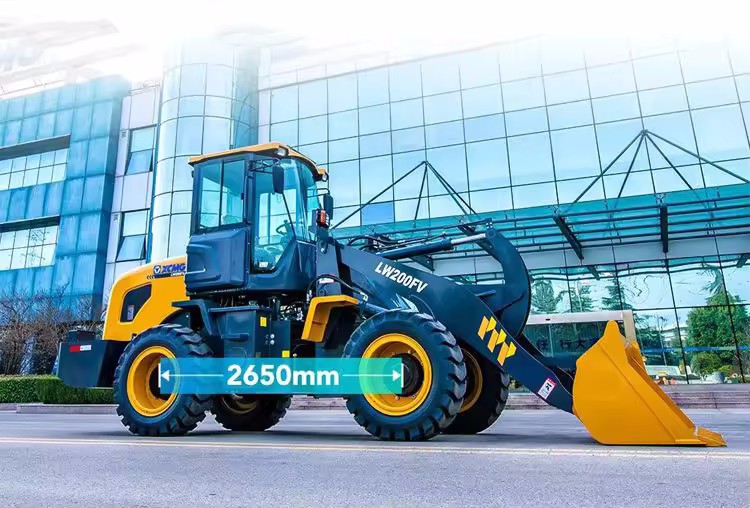

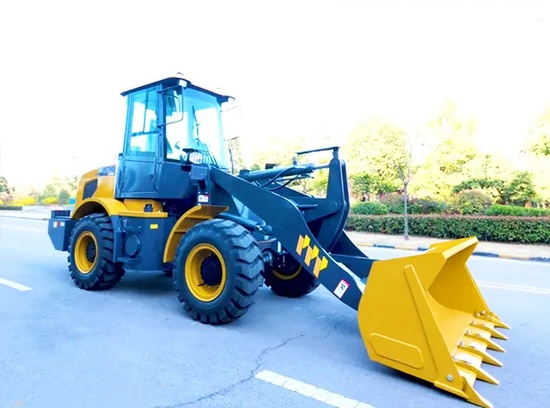

LW200FV
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
Tonnage positioning: 6-ton class, filling the market gap between 5-ton and 8-ton classes, combining flexibility and efficiency.
Core advantages: Based on the energy-saving and reliable genes of the "FV" series, it offers superior operational efficiency and control experience.
Target users: Seeking medium and large-sized sand and gravel yards, commercial concrete mixing stations, construction site contractors, etc. that are more efficient than 5-ton equipment, more flexible than 8-ton equipment, and have a better purchase cost.
Product Advantage
Power and Energy Conservation: Low-speed high-torque engine + constant and variable hydraulic system, strong power and low overall fuel consumption.
Work efficiency: Short working time, strong lifting force, and high work efficiency.
Comfortable operation: Pilot control system, spacious cab, humanized configuration, low driving fatigue.
Reliable and durable: Reinforced structure, electronically controlled fixed-axis gearbox, high reliability and strong adaptability.
Easy maintenance: Large-opening machine cover and centralized lubrication points make daily maintenance time-saving and labor-saving.
Safety Assurance: ROPS/FOPS cab, triple braking, ensuring safety.
Technical Parameters
| Item | Unit | Parameter | ||
| Overall working quality | kg | 6400 | 6340 | 6800 |
| Rated bucket capacity | m³ | 1.2 | 1 | 2.1(Grain bucket) |
| Rated working load | kg | 1700 | 1600 | 1500 |
| Unloading height | mm | 3480 | 3960 | 3480/3960/4500 |
| Unloading distance | mm | 670 | 750 | 1100 |
| Trinity and time | s | 11 | 12.5 | 12.5 |
| Engine rated power/speed | kW/r/min | 65/2200 | ||
| Tire specifications | / | 16/70-24 | ||
| Max.speed | km/h | 28 | ||
| Overall dimensions | mm | 6800×2170×3110 | 6890×2060×3110 | 7650×2260×3110 |
| Min.turning radius | mm | 4950 | ||
Product Uses
The most typical application scenarios of LW200FV. Be responsible for loading, unloading and transporting construction materials such as sand, gravel and pebbles, and perform feeding operations for the mixers in the commercial concrete station. It is used at construction sites of highway, railway, water conservancy and other projects for earthwork excavation, filling, site leveling, as well as the transportation and stacking of building materials.
Product Operate Guide
Ready to get on the vehicle: Make sure all joysticks are in the middle position (N position) and locked. After sitting on the seat, fasten your seat belt immediately.
To START the engine: Rotate the key to "ON" to power on, wait for a few seconds for the monitoring system to self-check. After confirming there is no alarm, continue to rotate to "Start" to start the engine.
Idle preheating: After starting, let the engine run at medium to low idle speed (about 1000 rpm) for 5 to 10 minutes. It is strictly prohibited to operate at high speed or put it into heavy-load operation immediately after startup. Preheating can protect the engine and hydraulic system, which is particularly crucial in cold weather.
