LW1100KV
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

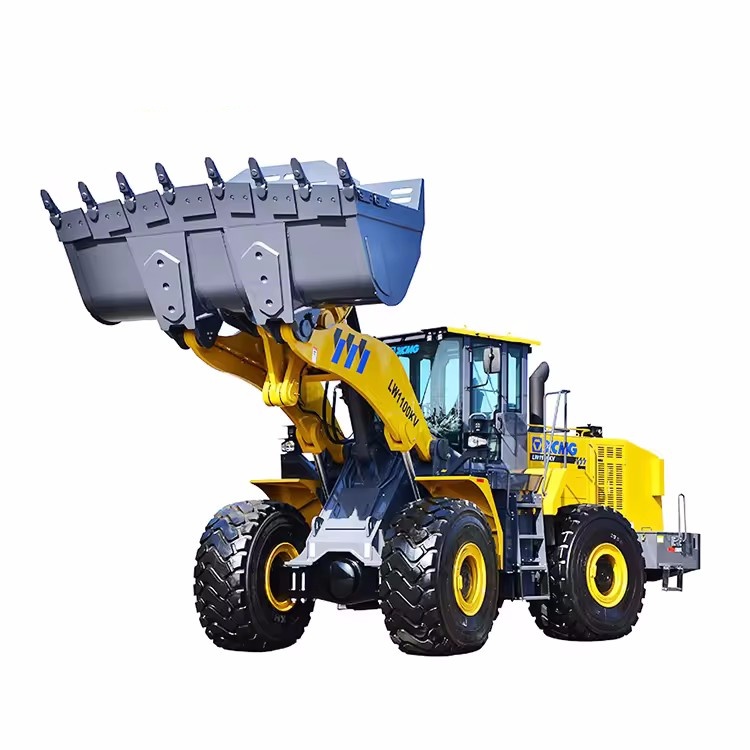

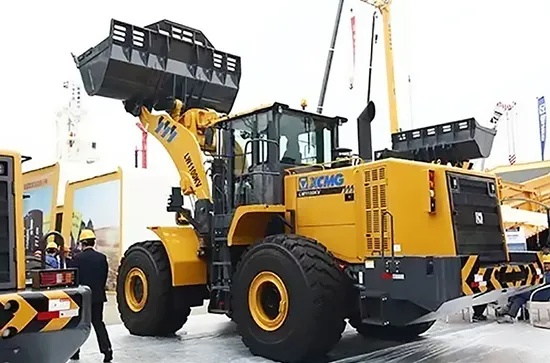

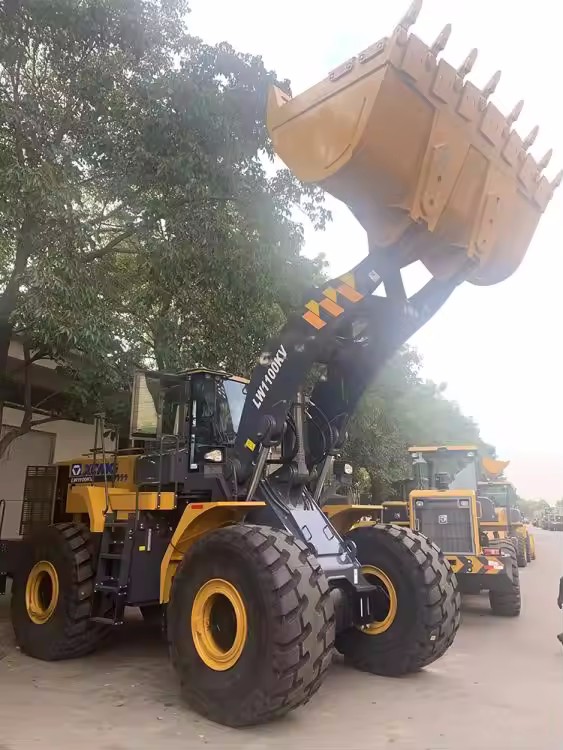

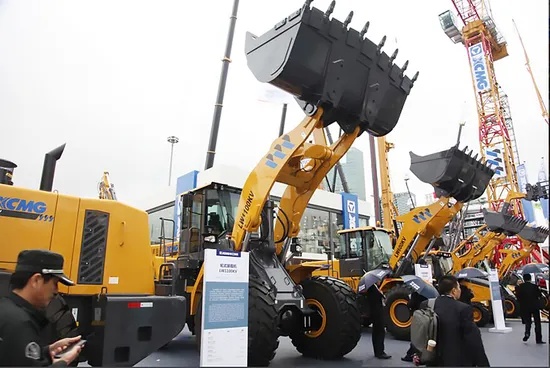

The LW1100Kv is a large wheel loader with mature technology and outstanding performance. It integrates a powerful power system, a sturdy body structure, efficient hydraulic transmission and a humanized driving design, making it a "sharp tool" for heavy loading and unloading conditions. Its outstanding reliability, operational efficiency and relatively low operating costs make it a cost-effective choice favored by large-scale mining and port users, fully demonstrating the technical strength of XG as a leading brand in China's construction machinery industry.
Product Advantage
High efficiency and energy saving：
The engine and the transmission system are perfectly matched to achieve the best power output.
Constant and variable hydraulic systems provide flow as needed, effectively reducing hydraulic loss and fuel consumption.
Reliable and durable：
Designed specifically for harsh mining conditions, structural components, transmission parts, tires, etc. all adopt reinforced configurations, featuring low failure rates and high availability.
Key components (such as engines, gearboxes, and drive axles) all adopt internationally renowned brands, ensuring the reliability and lifespan of the entire machine.
Comfort and Intelligence：
The application of technologies such as pilot control and electronic gear shifting makes the operation extremely light and precise.
The ergonomically designed cab greatly improves the working environment for drivers and reduces fatigue.
An optional intelligent management system can be installed to achieve functions such as vehicle positioning, work timing, fuel consumption monitoring, and fault diagnosis, facilitating fleet management.
Convenient maintenance：
The centralized maintenance and repair points can be accessed by opening the rear hood to reach most of the daily inspection points.
The electronic intelligent early warning system provides early alerts for maintenance and potential faults, facilitating planned repairs.
Technical Parameters
| Description | Specification | Unit | |
| Rated operating load | 11000 | kg | |
| Bucket capacity | 5.5-6.1 | m³ | |
| Machine weight | 34000-35000 | kg | |
| Dump clearance at maximum lift | 3450 | mm | |
| Reach at maximum lift | 1494 | mm | |
| Wheel base | 3700 | mm | |
| Tread | 2450 | mm | |
| Max.breakout force | 290 | kN | |
| Hydraulic cycle time-raise | 6.6 | s | |
| Total hydraulic cycle time | 11.9 | s | |
| Min. turning radius over tyres | 6306 | mm | |
| Articulation angle | 40 | ° | |
| Gradeability | 25 | ° | |
| Tyre size | 29.5R25 | ||
| Overall machine dimension L×W×H | 10139*3639*3950 | mm | |
| Model | QSX15 | ||
| Rated Power/Speed | 291/2000 | kw/rpm | |
| Travel speed | 1-gear(F/R) | 6.2/6.2 | km/h |
| 2-gear(F/R) | 11.5/11.5 | km/h | |
| 3-gear(F/R) | 17.5/24.8 | km/h | |
| 4-gear(F/R) | 35.7/- | km/h | |
Product Uses

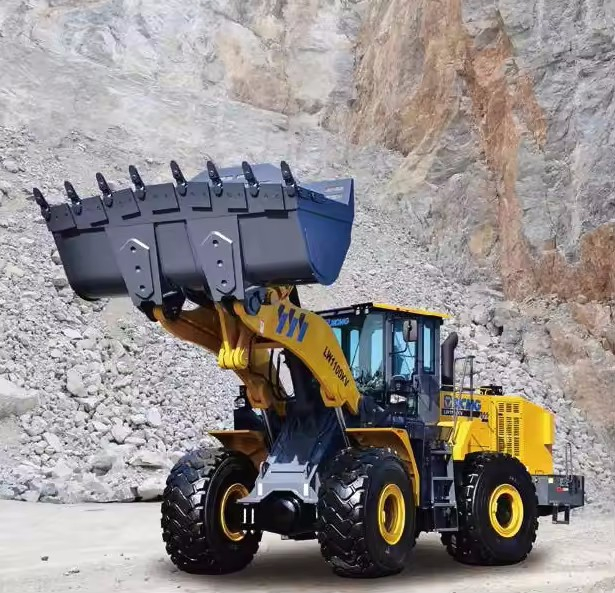

Ore loading and stripping earthwork operations in large open-pit coal mines and metal mines.
The transshipment and loading operations of large bulk cargo (such as coal, iron ore, sand and gravel) at ports and docks.
Earthwork and stonework operations for large-scale water conservancy and infrastructure projects.
Raw material stacking and retrieval operations in steel mills and coking plants.
Product Operate Guide
tart the engine：
Turn on the main power switch.
Insert the key, rotate it to the "ON" position, and wait for a few seconds for the system to self-check (the fault light will briefly come on and then go out).
After confirming that there are no abnormal alarms, step on the foot brake pedal and turn the key to the "START" position to start the engine. The startup time should not exceed 15 seconds.
After starting, let the engine idle for 3 to 5 minutes (about 700 rpm) to warm up, especially in cold weather.
Turn off the engine：
Lay the bucket flat on the ground.
Let the engine idle for 3 to 5 minutes to cool down, especially after high-load operation.
Shift the transmission gear to "neutral" (N) and apply the parking brake (handbrake).
Turn the key to the "OFF" position to turn off the engine and then remove the key.
Turn off the main power switch (if equipped).
