34m Xgs34K Self-Propelled Straight Boom Aerial Work Platform Price

Product Introduction

The stepless speed regulation is applied to achieve higher operating comfort. The overall height is controlled within 3m to ease the transport. Featuring high convenience, efficiency, safety, and reliability, this machine can meet the needs of the industry users, including building construction, bridge and equipment maintenance, shipyard, petrochemical, and leasing industries.

Product Advantage

1. The 300kg/460kg double high-load design meets the working needs under diversified working conditions.

2. The boom gravity lowering technology and load-sensing system are applied to achieve higher energy-saving.

3. The four-wheel drive achieves 45% gradeability and super-wide off-road foam filled tires realize powerful ground adaptability.

4. The stepless speed regulation is applied to realize better operating comfort.

5. The electronically controlled four-wheel steering control technology can realize four steering modes, namely front/rear axle independent steering mode, all-wheel steering mode, and crabwalk steering mode, featuring flexible steering mobility.

6. The axle balance control system can meet the driving needs on rugged roads.

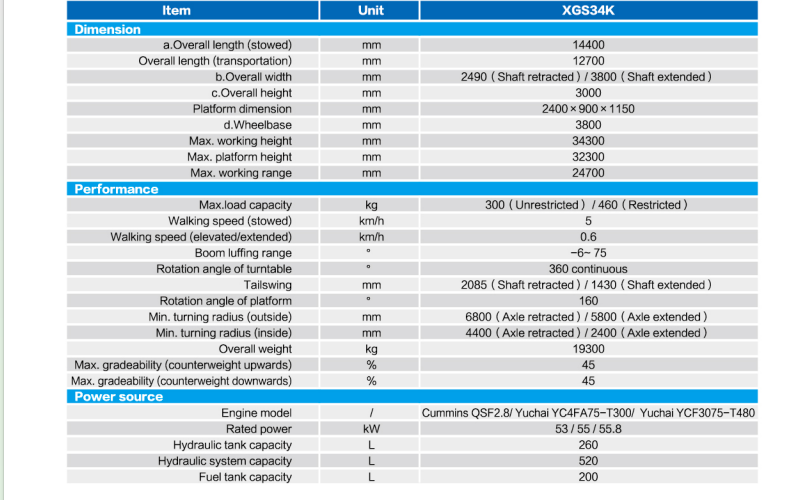

Technical Parameters

Product Uses

1.Construction and maintenance of large venues

2. Bridge construction and maintenance

3. Installation and maintenance of industrial equipment

4. Maintenance of power facilities

5. Shipbuilding and Maintenance

Product Operate Guide

The operation of the XGS34K aerial work platform requires a special equipment operation certificate. Before starting the operation, check the ground load-bearing capacity, environmental wind speed and obstacles, and confirm that the diesel oil level and hydraulic system are normal. Overloading is strictly prohibited during operation. Pay attention to controlling the lifting speed. For heights above 20 meters, two people are required to operate. The automatic leveling system should be activated for inclined ground. Operations should be immediately halted when the wind speed exceeds 12.5m/s. Daily equipment maintenance and inspection are required. Filter elements should be replaced and sensors calibrated regularly. Use the emergency descent system in case of emergency

FAQ

1.What power system does the equipment adopt?

A: It adopts a diesel engine that meets the National III emission standards, with a rated power of 55kW, and is equipped with a four-wheel drive system, with a climbing ability of up to 45%.

2.What safety protection devices does the equipment have?

A: Equipped with multiple safety systems

• Tilt protection system (Automatic alarm when the tilt Angle exceeds 3°)

Emergency descent system

• Anti-collision system

• Wind speed monitoring system (automatic alarm when wind speed exceeds 12.5m/s)

3.What should be noted during daily maintenance?

A: Before daily work, it is necessary to check

1. Diesel oil level and engine oil

2. Hydraulic system pressure (28-32MPa)

3. Emergency stop button function

4. Structural component connecting bolts

4.What is the maintenance cycle of the equipment?

A: Suggestion

• Replace the hydraulic oil filter element every 50 hours

• Every 100 hours: Calibrate the level sensor

• Every 500 hours: Structural stress detection

• Annual: Comprehensive and systematic maintenance

5.What should be done if the equipment suddenly loses power or the engine stalls during operation?

A: The equipment is equipped with an emergency descent device (usually a manual pump).

In emergency:

Keep calm.

2. Press the emergency stop button.

3. Open the emergency descent valve and lower the platform to the ground smoothly through the manual pump.

All operators must repeatedly practice this process before going on the machine.
