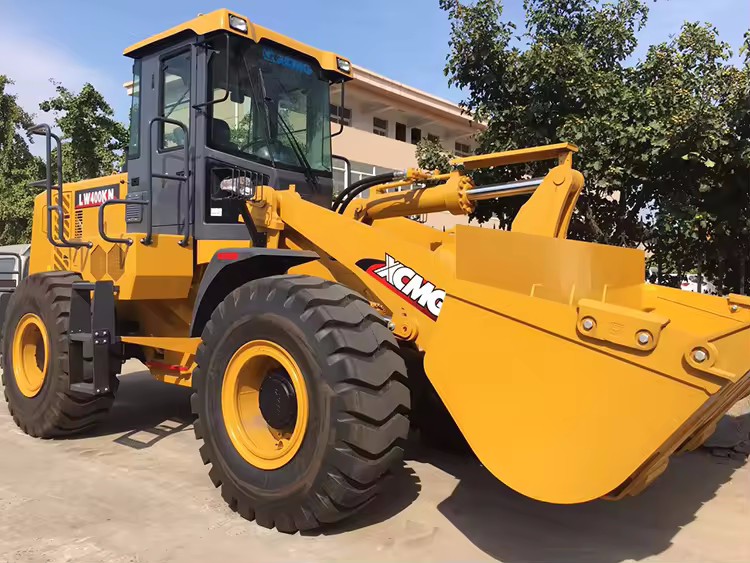

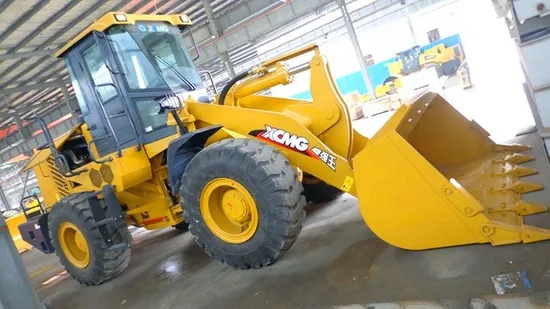

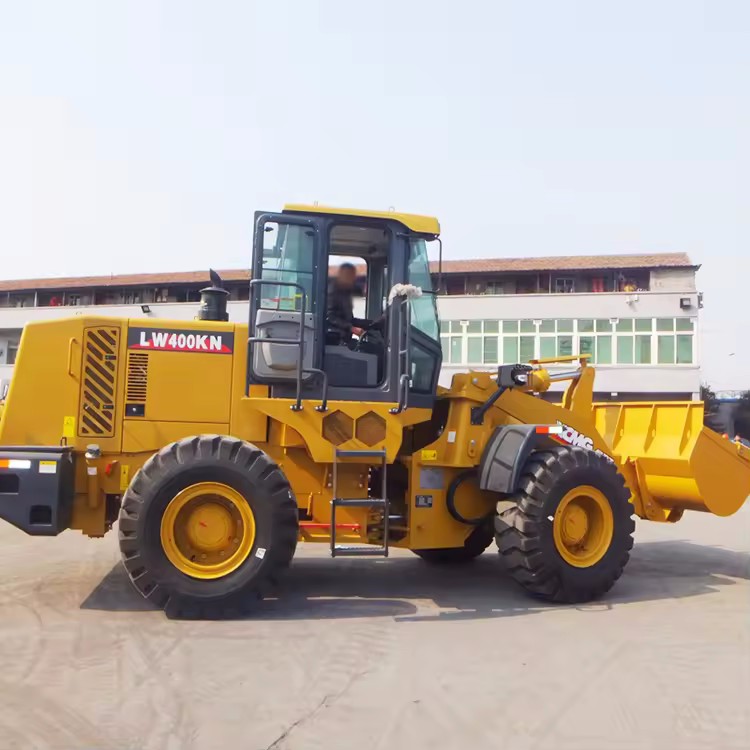

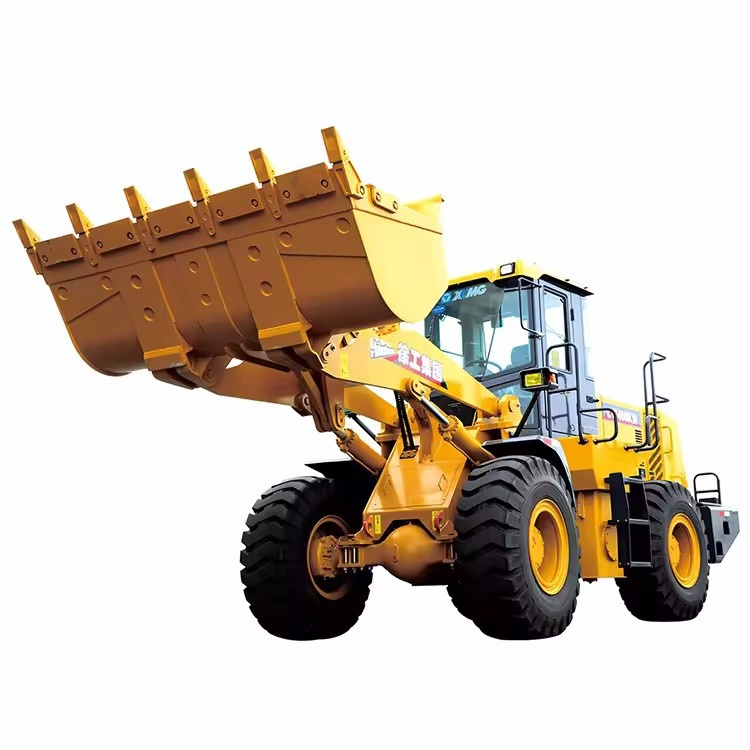

LW400KN
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

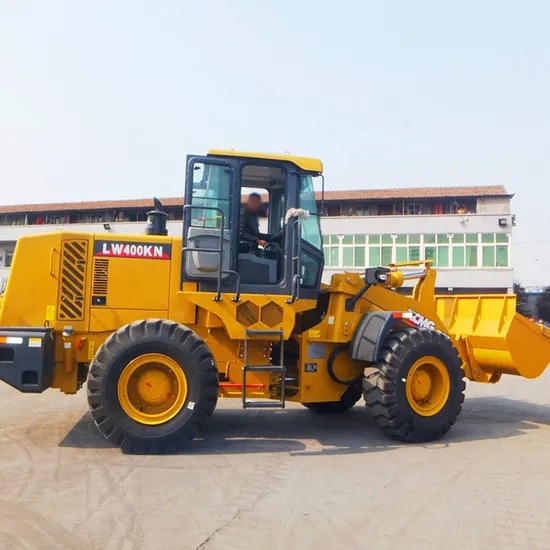

The LW400KN is a 4-ton class loader specially designed for heavy-duty and high-intensity operations. It inherits the "robust and durable" gene of the K series and has been strengthened in terms of power, structure and reliability. Its target users are mines, large stone quarrying plants and heavy infrastructure users who have extremely high requirements for equipment availability, durability and maintenance costs.
Product Advantage
Ultimate reliability: Solid materials, sturdy structure, extremely low failure rate, capable of adapting to the harshest working conditions.
Powerful heavy-load capacity: It boasts top-notch lifting force and structural strength in its class, making it effortless to handle heavy tasks.
Low maintenance cost: Mature technology, simple structure, convenient maintenance, abundant supply of spare parts and low cost.
Astonishing attendance rate: Ensuring continuous high-intensity operation to create maximum operation benefits for users.
Technical Parameters
| Item | Unit | Parameter value |
| Rated bucket capacity | m3 | 2.4 |
| Rated load | kg | 4000 |
| Operating weight | kg | 14500+200 |
| Max.traction force | kN | 123 |
| Max.breakout force | kN | 120 |
| Tyre center (Min. turn radius) | mm | 5946 |
| Boom lifting time | s | 5.5 |
| Total cycling time | s | 10.5 |
| Tipping load | kg | 8300 |
| Model | SC80D | |
| Rated power | kw | 125 |
| Rated rotary speed | r/min | 2200 |
| Forward I Gear | km/h | 0~11 |
| Forward II Gear | km/h | 0~35 |
| Backward | km/h | 0~15 |
Product Uses
The main loading and unloading equipment for various types of mining: iron ore, copper ore, gold ore, coal ore, granite ore, etc.
Large-scale sand and gravel aggregate plants: Feeding or processing large pieces of stone at the head break.
Heavy infrastructure construction: Heavy material handling in large-scale water conservancy hubs, high-grade highways, and railway projects.
Steel mills and cement plants: High-intensity stacking and reloading operations in raw material yards.
Port terminals: Transshipment of heavy bulk cargo.
Product Operate Guide
Start the engine:
Make sure the transmission lever is in neutral (N) position.
Confirm that the parking brake (handbrake) has been engaged.
Turn the key to the "ON" position to power on, wait for a few seconds (system self-check), observe that there are no abnormal alarms on the instrument panel, and then continue to turn it to "START" to start. Release the key immediately after starting.
After a successful start, let the engine idle at about 700 rpm for 3 to 5 minutes to warm up, especially in cold weather. Observe whether the instruments (such as water temperature and oil pressure) quickly enter the normal range.
Shut down the engine:
Lay the bucket flat on the ground.
Let the engine idle for 3 to 5 minutes to allow components such as the turbocharger to gradually cool down.
Turn the key back to the "OFF" position to turn off the engine.
Pull the handbrake tight and place wooden blocks under the wheels if necessary. When parking on a slope, wooden blocks must be placed.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
