Product Introduction

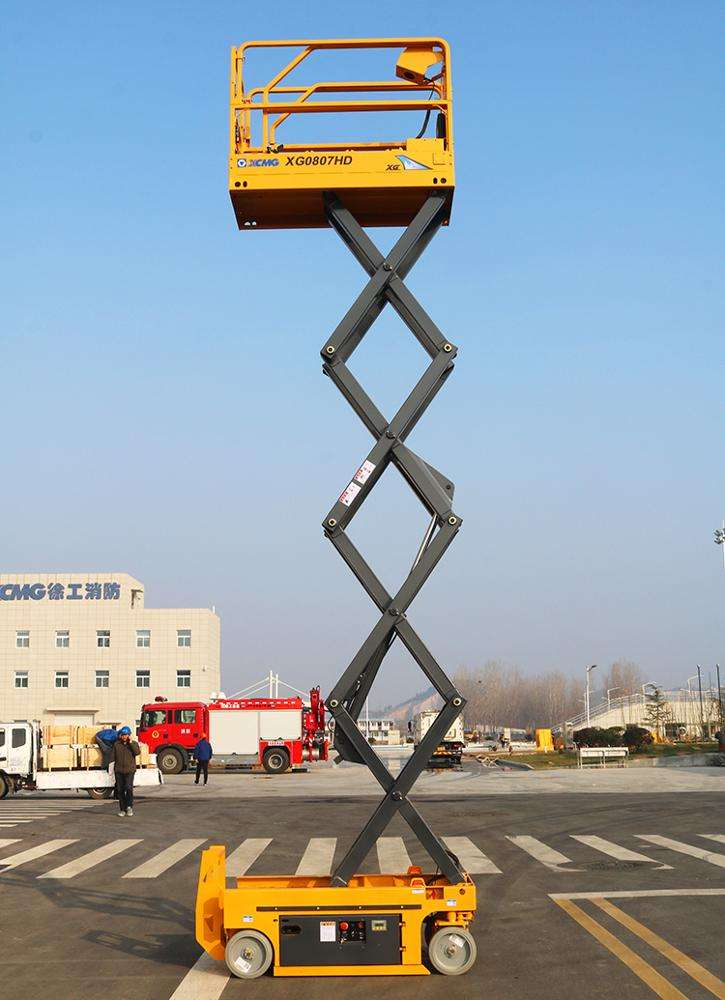

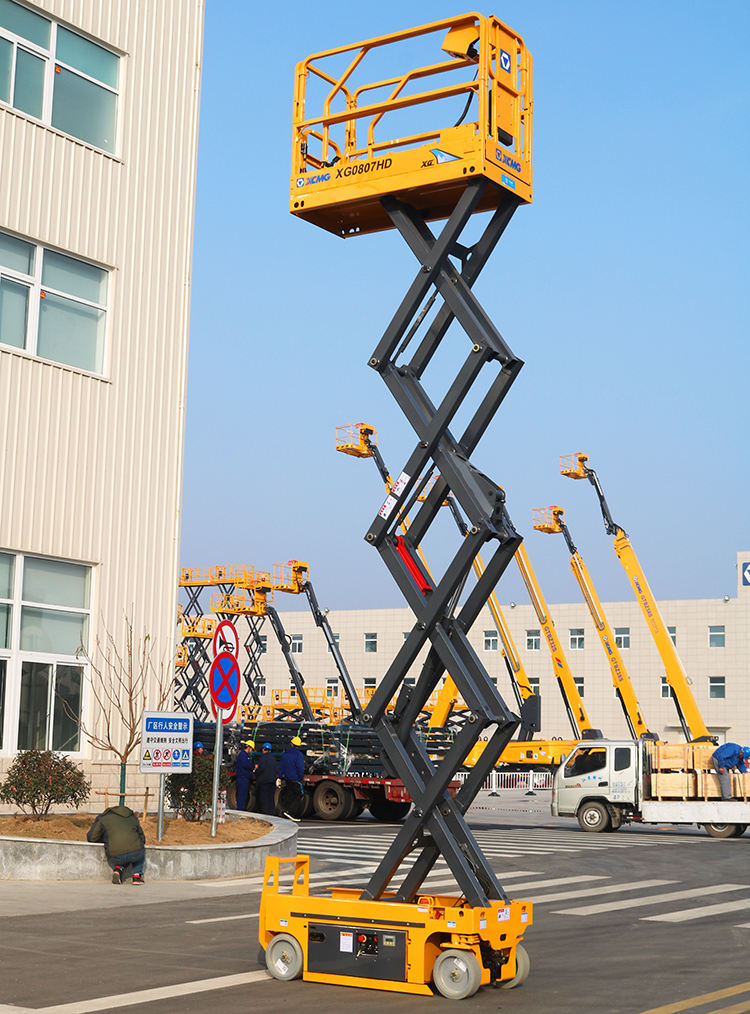

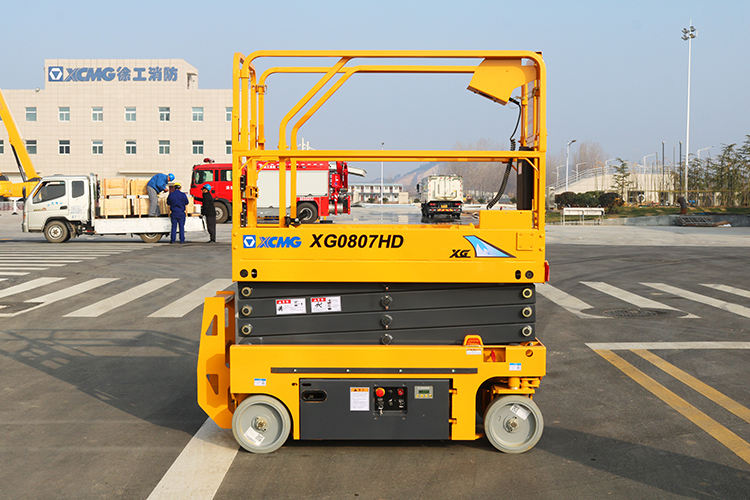

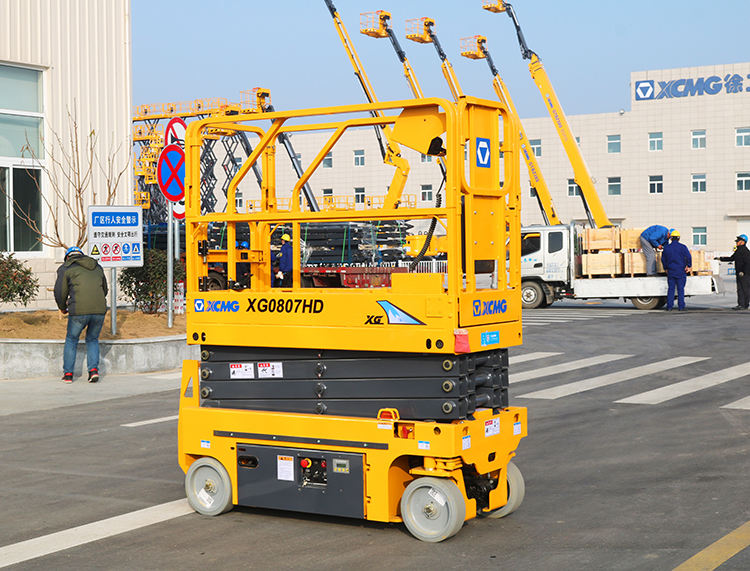

The XG0807HD is a truly "heavy-duty powerhouse". It may not have the ultra-long battery life of lithium batteries, but its unparalleled carrying capacity, rock-solid reliability and excellent cost performance constitute its core competitive advantages. It is highly suitable for industrial users with high work intensity and extremely strict load requirements, and is a reliable partner for completing heavy operation tasks.
Product Advantage
* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.
* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier
* "Zero Turning Radius "is unique and enable machine to corner in narrow room.
* Max. payload at 230kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.
Technical Parameters
| Item | Unit | Parameter |
| Dimension of machine | Length (without ladder) | mm | 1900(1680) |
| Width | mm | 780 |
| Height(platform folded) | mm | 2160(1830) |
| Wheelbase | mm | 1360 |
| Wheel track | mm | 660 |
| Min. ground clearance (Pit protector ascending/descending) | mm | 70/20 |
| Dimension of working platform | Length | mm | 1670 |
| Width | mm | 740 |
| Height | mm | 1235 |
| Extension length of the auxiliary platform | mm | 900 |
| Centroid position of machine | Horizontal distance to front shaft | mm | 750 |
| Height of centroid | mm | 570 |
| Total mass of machine | kg | 1550 |
| Max. height of platform | m | 5.8 |
| Min. height of platform | m | 1.05 |
| Max. working height | m | 7.8 |
| Minimum turning radius (inner wheel/outer wheel) | m | 0/1.75 |
| Rated load | kg | 230 |
| Payload of extended platform | kg | 115 |
| Lifting time | s | 13-30 |
| Lowering time | s | 25-35 |
| Drive speed(lowered) | km/h | 3.9 |
| Drive speed(elevated) | km/h | 0.8 |
| Max. gradeability | % | 25 |
| Tilt warning angle (side/forward and backward) | ° | 1.5/3 |
| Lifting /traveling motor | Model | - | - |
| Rated power | kW | 3.3 |
| Manufacturer | - | - |
| Battery | Model | - | T105/DT106/3-EV-225 |
| Voltage | v | 24 |
| Capacity | Ah | 225 |
| Manufacturer | - | Trojan/Leoch |
| Tire models | - | Traceless and solid/323×100 |
Product Uses
• Heavy industrial plants: Installation and maintenance of large-scale mechanical equipment and production lines.
• Warehousing and logistics center: High-position storage and retrieval of heavy goods, maintenance of warehouse structure.
• Large-scale venue construction: steel structure construction, ventilation duct installation, and fire protection facility installation.
• Any medium and high-altitude operation scenarios that require frequent heavy loads.
Product Operate Guide
1.Turn on the main power switch
2. Release all emergency stop buttons
3. Select the platform or ground control mode
4. Operate the control handle smoothly for lifting and moving
5. After the assignment is completed, lower the platform to the lowest position
6. Turn off the main power switch
FAQ
1.On what kind of ground can the equipment operate?
A: Operations must be carried out on solid and flat ground (concrete or asphalt ground is preferred). It is strictly prohibited to use on soft, uneven or sloping ground exceeding 3 degrees.
2.What are the requirements when the equipment is in operation?
A: When driving, the platform must be lowered to the lowest position. The driving speed must not exceed 4.5km/h. Special attention should be paid when passing through narrow areas.
3.What daily checks are needed?
A: Before daily homework, it is necessary to check:
• Battery power and electrode connection
Whether the hydraulic system is leaking
• Tire wear condition
• Emergency stop button function
• Safety warning device
4.How to maintain a pool?
A: To use lead-acid batteries, the following are required:
Check the electrolyte level every day
• Regularly clean the electrode joints
When the battery level drops below 20%, it should be charged in time
• Fully charge before long-term parking
5.What safety protection devices does the equipment have?
A: Equipped with multiple safety protections
Tilt alarm system
Overload protection device
• Emergency descent system
• Anti-pinch hand design
Pothole protection system
6.How to deal with an emergency?
A: Press the emergency stop button immediately, and the platform can be slowly lowered by the manual pump. When the equipment malfunctions, please stop using it immediately and contact professional maintenance personnel.
