Product Introduction

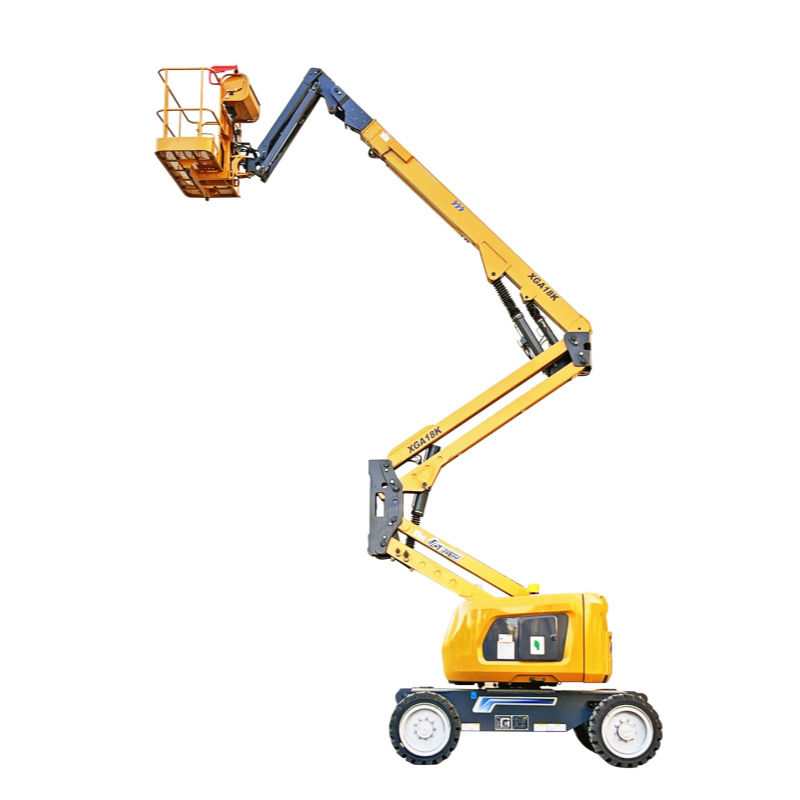

XGA18K is a rugged diesel-powered self-propelled articulated boom lift designed for outdoor high-altitude operations. It delivers a maximum working height of 18.01m and a maximum horizontal outreach of 10.26m, with dual load capacities of 256kg (unrestricted) and 350kg (limited). Equipped with 4-wheel drive and flexible multi-joint boom structure, this machine features excellent terrain adaptability and outstanding maneuverability. Built with compact layout and independent emergency power unit, it is reliable and easy to transport, ideal for construction, municipal engineering, industrial maintenance and other complex outdoor job sites.
Product Advantages
Dual Load Design: 256kg standard load and 350kg heavy load modes to meet diverse personnel and tool carrying demands.
Flexible Articulated Boom: Multi-section boom easily bypasses obstacles and adapts to complicated working angles.
4WD & Strong Trafficability: 45% gradeability enables stable travel on sloped, muddy and gravel roads.
Reliable Diesel Power: Continuous long-hour operation without frequent recharging, suitable for intensive outdoor work.
Full-range Rotation: 360° continuous turntable rotation for flexible positioning with no blind spots.
Smooth Hydraulic Control: Stepless speed regulation ensures stable boom movement and comfortable operation.
Complete Safety System: Integrated overload protection, tilt alarm and emergency lowering device for full operational safety.
Emergency Power Support: Independent emergency power source guarantees safe retraction in case of power failure.
Compact Structure: Space-saving overall size fits container transportation to cut logistics costs.
Product Specifications
Item | Unit | XGA18K |
Max. Working Height | m | 18.01 |
Max. Platform Height | m | 16.01 |
Max. Horizontal Outreach | m | 10.26 |
Rated Load Capacity | kg | 256 (Unlimited) / 350 (Limited) |
Platform Dimension | mm | 1420 × 720 × 1100 |
Overall Dimension (Stowed) | mm | 7640 × 2300 × 2380 |
Total Weight | kg | 8700 |
Power Source | - | Diesel Engine |
Travel Speed (Stowed / Extended) | km/h | 5.5 / 0.8 |
Max. Gradeability | % | 45 |
Turntable Rotation Angle | ° | 360° Continuous |
Platform Swing Angle | ° | 180 |
Ground Clearance | mm | 200 |
Application Scenarios
Building Construction: Exterior wall renovation, steel structure installation and overhead construction work.
Municipal Engineering: Street lamp maintenance, traffic facility repair and landscape trimming.
Industrial Plants: Production equipment inspection, pipeline maintenance and high-level cleaning.
Large Venues: Exterior maintenance and electromechanical installation for stadiums, airports and exhibition centers.
Rental Business & General Projects: Versatile aerial equipment for various temporary outdoor engineering tasks.
5. Operation Guide
Pre-operation Inspection
Check diesel fuel, engine oil and hydraulic oil levels, and confirm no liquid leakage.
Inspect tire condition, pressure and tightness of all wheel bolts.
Examine safety guardrails, platform door, limit switches and emergency stop button.
Test alarm system and emergency power unit to ensure normal function.
Operating Steps
Start the diesel engine and wait for system self-check and stable idling.
Drive the machine to a firm and flat area, then engage the parking brake.
Operate control levers slowly to lift, extend and rotate the boom to the target position.
Adjust platform angle for precise positioning; strictly comply with load limits.
After work, fully retract and lower the boom, then shut down the engine.
Safety Regulations
Do not exceed the rated load; select proper load mode according to working needs.
Operate only on solid ground. The ground slope shall not exceed 5 degrees during operation.
Stop all operations immediately when wind speed exceeds 12.5m/s.
Operators must wear safety helmets and safety harnesses at all heights.
Perform regular inspection on safety components and hydraulic parts.
FAQ
Q1: What is the difference between 256kg and 350kg load modes?
A: 256kg is the unrestricted mode allowing full outreach. 350kg is the heavy-load mode with shortened outreach for safety. Choose the mode based on your actual working requirements.
Q2: What is the fuel consumption?
A: The average fuel consumption is about 7 to 9 liters per hour under normal working conditions. The large fuel tank supports long-time continuous operation.
Q3: Can it work on rough and sloped terrain?
A: Yes. Equipped with 4-wheel drive and 45% gradeability, it runs stably on muddy, gravel and sloped outdoor roads.
Q4: What safety features does it have?
A: It is fitted with overload protection, tilt alarm, emergency stop, emergency lowering system and independent emergency power unit to ensure maximum safety.
Q5: Is transportation convenient?
A: The compact stowed dimension is compatible with standard trucks and containers, making transportation easy and cost-effective.
Q6: What is the warranty policy?
A: The whole machine is warranted for 12 months or 2000 working hours, whichever comes first. Global after-sales service and technical support are available.
