XG1008HD/XG1008HD-Li Self-Driving Electric Scissor Lift Product Manual

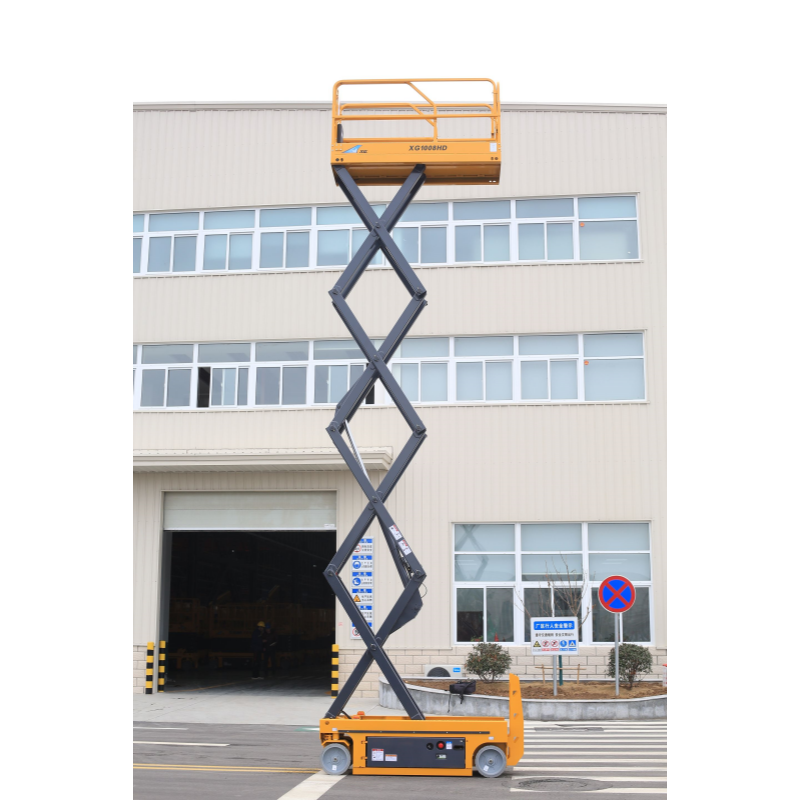

The XG1008HD and XG1008HD-Li are heavy-duty autonomous electric scissor lifting equipment, designed with a maximum working height of 9.8 meters and a standard rated load of 230 kilograms. Fitted with reinforced steel structural frames and high-quality wear-resistant solid tires, both models deliver superior operational stability and excellent environmental adaptability. They are applicable to indoor aerial work scenarios and light-duty outdoor high-altitude operations on slightly rugged grounds, covering diverse industrial and commercial working demands.
The XG1008HD version is configured with mature lead-acid battery packs, featuring prominent cost-effectiveness and hassle-free daily maintenance. As an upgraded iteration, the XG1008HD-Li adopts high-performance lithium battery units, enabling prolonged continuous operation and ultra-fast charging efficiency. Equipped with a full set of professional safety protection systems and compliant with CE certification standards, the two scissor lifts are ideal high-efficiency solutions for engineering construction, equipment maintenance, logistics handling and commercial aerial operation projects.
1. Heavy-Duty Reinforced Structure: Optimized thickened scissor arm structure and integrated thickened body frame greatly enhance overall structural rigidity and impact resistance, effectively extending equipment service life and ensuring long-term stable and durable operation.
2. Excellent Environmental Adaptability: High-traction solid tires deliver stable walking performance on flat ground and slightly bumpy terrains, adapting to complex on-site working conditions and meeting multi-scenario operation requirements.
3. Flexible and Agile Maneuverability: Adopting streamlined compact body design and high-sensitivity steering system, the equipment can freely pass through standard doors, passenger and freight elevators, and narrow warehouse passages, with strong site accessibility.
4. Comprehensive Safety Protection System: Built with multiple safety mechanisms including load overload protection, tilt angle monitoring and warning, emergency stop cutoff, automatic terrain pothole protection and anti-slip working platform, fully eliminating potential operational risks.
5. Expandable Working Platform: Equipped with a retractable auxiliary extension platform, which effectively expands the effective working area and improves operational flexibility and construction efficiency for large-scale tasks.
6. Green and Low-Noise Operation: Pure electric drive mode achieves zero exhaust emissions and ultra-low operating noise, meeting environmental protection standards and supporting long-time uninterrupted continuous operation.
1. Ultra-High Cost Performance: Adopts mature and stable lead-acid battery technology, with low equipment procurement cost and low later-stage component replacement and maintenance cost, suitable for cost-sensitive long-term fixed-scenario use.
2. Stable and Reliable Power Supply: Features continuous and stable power output, verified by long-term market application, with reliable technical maturity and convenient and accessible global after-sales service support.
1. Ultra-Fast Charging Capability: Greatly shortened full charging cycle effectively improves daily equipment turnover rate and overall construction operational efficiency.
2. Prolonged Continuous Operation Time: Compared with traditional lead-acid battery models, it realizes doubled continuous working duration, adapting to high-intensity and long-shift operation scenarios.
3. Long Service Life: The lithium battery pack supports more than 1000 charge-discharge cycles, significantly extending the overall service life of the equipment and reducing long-term replacement costs.
4. Maintenance-Free Design: No regular electrolyte inspection, replenishment and maintenance are required, saving manual maintenance time and daily operation costs.
5. Lightweight Body Configuration: The lightweight lithium battery pack reduces the overall dead weight of the equipment, optimizing walking flexibility and terrain adaptability.
Specification Item | XG1008HD | XG1008HD-Li |
|---|---|---|
Equipment Model | XG1008HD | XG1008HD-Li |
Maximum Working Height | 9.8 m | 9.8 m |
Maximum Platform Height | 7.8 m | 7.8 m |
Rated Full Load Capacity | 230 kg | 230 kg |
Extended Platform Load Capacity | 115 kg | 115 kg |
Main Platform Dimension (L × W) | 1670 × 740 mm | 1670 × 740 mm |
Auxiliary Platform Extended Length | 0.9 m | 0.9 m |
Overall Dimension (Folded, L×W×H) | 2120 × 810 × 2250 mm | 2120 × 810 × 2250 mm |
Overall Equipment Weight | 1720 kg | 1610 kg |
Outer Turning Radius | 1.75 m | 1.75 m |
Ground Clearance | 20 mm (Platform Raised) / 70 mm (Platform Stowed) | 20 mm (Platform Raised) / 70 mm (Platform Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h | 4.5 km/h / 0.8 km/h |
Maximum Gradeability | 25% | 25% |
Platform Lifting Time | 18 ~ 35 s | 18 ~ 35 s |
Platform Lowering Time | 28 ~ 38 s | 28 ~ 38 s |
Battery Configuration | 24V Lead-Acid Battery | Lithium Battery |
Full Charging Duration | 8 ~ 10 h | 2 ~ 3 h |
Continuous Working Duration | 4 ~ 6 h | 8 ~ 10 h |
Certification Standard | CE Certified | CE Certified |
1. Construction Sites: Widely used for indoor renovation, wall painting and finishing, circuit wiring construction, pipeline installation and interior decoration high-altitude operations.
2. Warehouse & Logistics Industry: Suitable for inventory counting, storage shelf assembly, internal lighting and ventilation equipment maintenance in narrow warehouse passages, improving logistics operation efficiency.
3. Commercial Venues: Applicable to lamp replacement, billboard installation, ceiling cleaning and indoor space layout adjustment in shopping malls, hotels, exhibition centers and other commercial places.
4. Building Daily Maintenance: Used for routine inspection, repair and maintenance operations of office buildings, residential communities and public service facilities.
5. Light Outdoor Operations: Capable of outdoor work such as building exterior wall maintenance, street lamp repair and municipal engineering construction on flat or slightly undulating ground.
6. Event & Exhibition Layout: Ideal for rapid stage assembly, banner hanging and on-site equipment installation for various conferences, exhibitions and cultural activities.
Check the remaining battery power, tire wear condition and hydraulic oil storage capacity of the equipment regularly. For the lead-acid battery model, manually inspect the electrolyte liquid level to ensure it is within the standard range.
Check the firmness of safety guardrails, telescopic auxiliary platform and locking pins to ensure all structural parts are installed stably and reliably without looseness.
Test the emergency stop device, tilt alarm system and automatic pothole protection mechanism one by one to confirm all safety functions work normally.
Clean up obstacles on the operation site, and confirm the working ground is flat, solid and stable to meet equipment operation conditions.
Turn the key switch to the ON gear to activate the equipment power system and complete self-inspection.
Control the equipment’s forward and backward movement through the operating joystick. The system will automatically limit the driving speed when the platform is raised to ensure operation safety.
Adopt gentle steering operation during movement. It is forbidden to make sharp turns or drive on slopes with a gradient exceeding 25% when the platform is in the elevated working state.
Press the lift control button to raise the platform; release the button to immediately stop the lifting action.
Press the lowering button to descend the platform. During the lowering process, ensure no personnel or obstacles exist in the lower working area to avoid safety accidents.
The auxiliary telescopic platform can only be extended after the main platform is completely lifted. Strictly abide by the load limit standard and prohibit overload use.
Overload operation is strictly prohibited: the main platform is limited to 230kg rated load, and the extended auxiliary platform is limited to 115kg load.
Do not drive or operate the equipment on slopes with a gradient over 25° when the platform is elevated.
Operators must wear qualified safety harnesses throughout the whole high-altitude operation process.
Before moving the equipment, fully lower the platform and retract the auxiliary extension board to restore the folded state.
After completing the operation, fully lower the working platform and retract the extended auxiliary board.
Turn off the key switch and cut off the equipment main power supply.
Clean the surface dust and stains of the equipment, and inspect all parts for looseness, damage or abnormal wear.
Charge the equipment in a timely manner after daily operation to avoid long-term power loss storage.
Store the equipment in a dry and ventilated indoor environment. For long-term storage of the lithium battery model, maintain the battery power at about 80% to prolong battery service life.
Q1: What is the maximum working height of the two scissor lift models?
A: Both equipment models support a maximum working height of 9.8 meters, with a maximum platform vertical height of 7.8 meters.
Q2: What are the core differences between XG1008HD and XG1008HD-Li?
A: The XG1008HD is equipped with lead-acid batteries, featuring low overall cost and simple maintenance, but with long charging time. The upgraded XG1008HD-Li adopts lithium battery configuration, with prominent advantages of fast charging speed, longer continuous working time, lighter whole-machine weight and almost zero daily maintenance.
Q3: Are the two devices available for outdoor operation?
A: Yes. Both models can meet light-duty outdoor aerial work demands on flat or slightly uneven ground. Operation in heavy rain, strong wind weather and severely rugged terrain is prohibited.
Q4: What is the maximum load of the extended auxiliary platform?
A: The retractable auxiliary platform has a maximum bearing capacity of 115kg, and any overload operation is strictly forbidden.
Q5: How long does it take to fully charge the equipment battery?
A: The XG1008HD lead-acid version takes 8 to 10 hours to be fully charged; the XG1008HD-Li lithium battery version only needs 2 to 3 hours for full charging.
Q6: What is the maximum number of simultaneous operators on the platform?
A: The working platform allows a maximum of 2 operators to work simultaneously, and the total load of personnel and tools shall not exceed the rated 230kg limit.
