Product Introduction

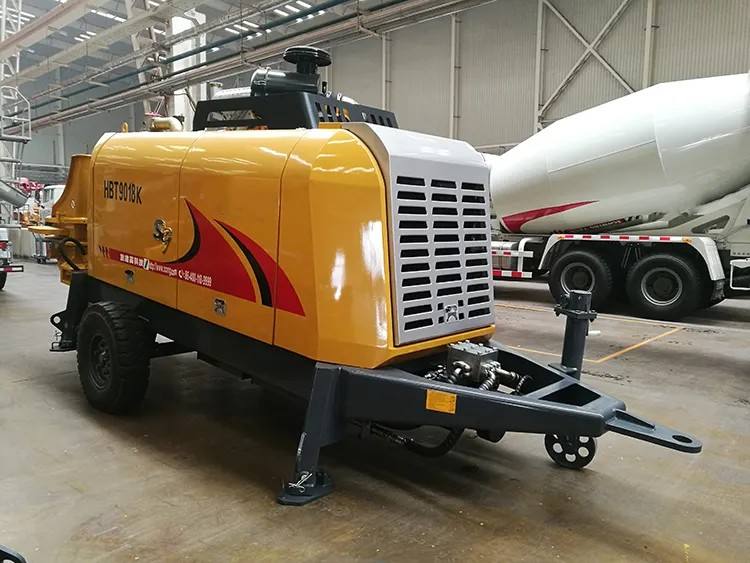

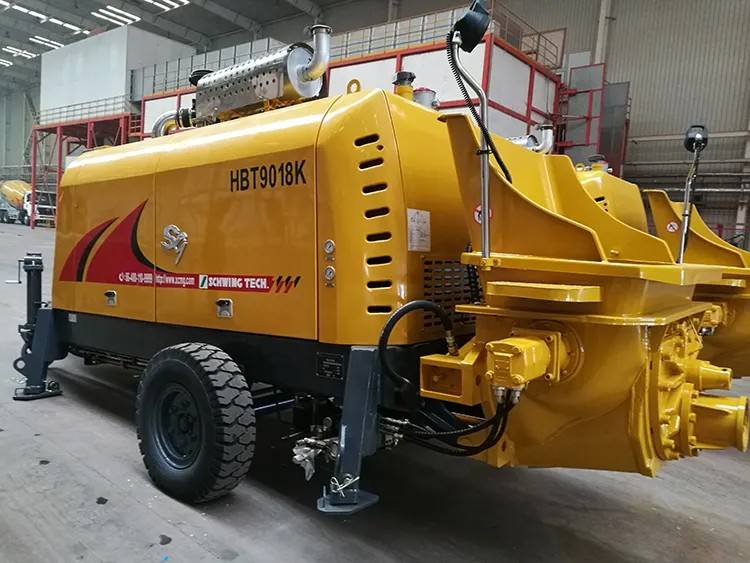

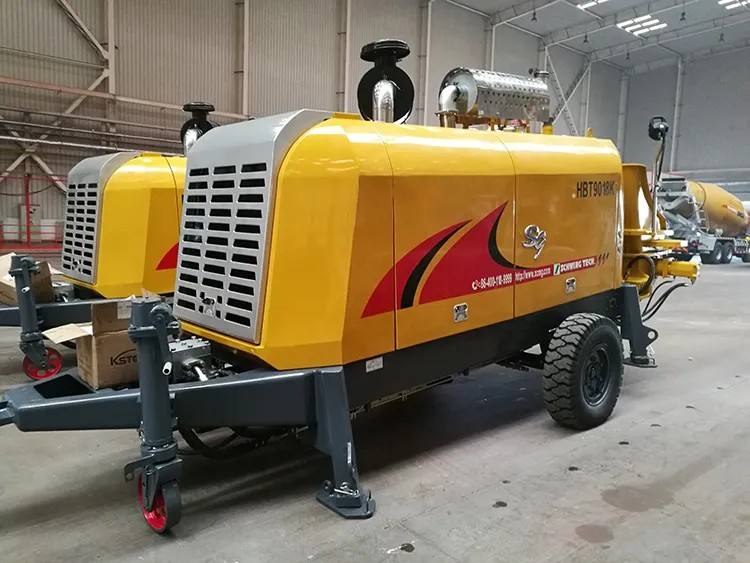

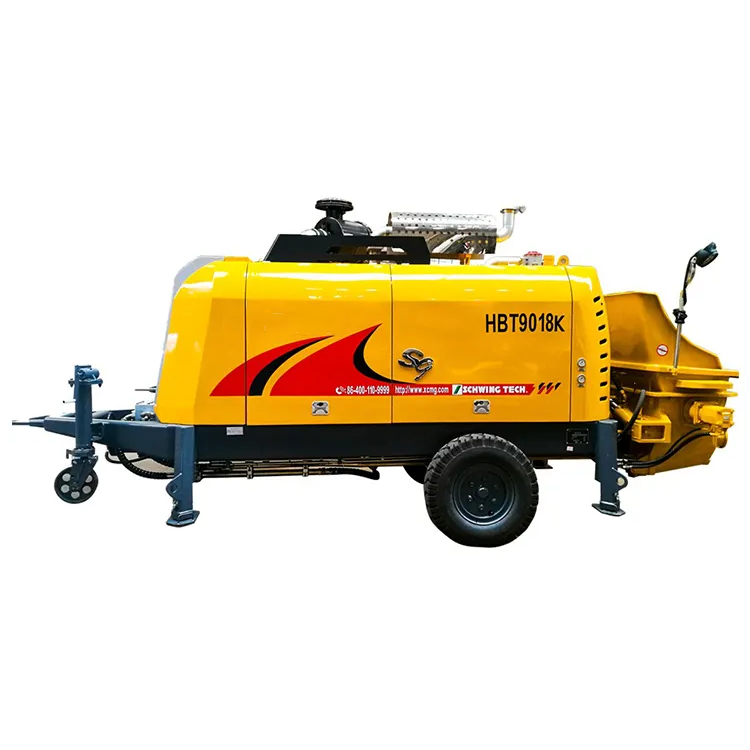

The HBT9018K trailer-mounted concrete pump is a modern construction equipment used for continuous concrete pouring construction. It has outstanding advantages such as high reliability, easy maintenance, and low operating costs.
Product Advantage
1,By comprehensively incorporating Schwing switch-over control technology, the extraction and control of switch-over signal is totally done by hydraulic pressure, avoiding the unreliability brought by frequent electrical contact and harsh environment and reducing customers' later maintenance cost.
2,By adopting exclusive invariable reversing buffering technology in the industry, the pump displacement keeps unchanged during pumping and reversing and the main system unloads in low pressure, which thoroughly avoid such problems as long reversing time, great reversing impact and low service life of pump caused by frequent change of displacement during traditional reversing.
3,The use of equivalent bending moment design ensures uniform force, reliable sealing and greatly prolongs the service life of bearing ring, spectacle wear plate and cutting ring. The feature of unilateral wear makes the theoretical service life of rock valve once higher than that of S-valve.
4,The machine adopts the controller with color display, which can dynamically display and record various working parameters in real-time; main control functions are all finished directly by the controller, which reduces the use level of relay; and meanwhile with it, many intelligent control functions can be realized.
5,Piston change is easy, convenient and time-saving. Traditional piston needs to be changed by repeatedly mounting and dismounting linkage and pumping at low speed.
6,The system ensures the cleanness of hydraulic oil and thus generates higher operational reliability of hydraulic system, pump and other hydraulic elements.
Technical Parameters
| Description |
Unit |
Parameter value |
| Overall performance |
Overall dimensions |
mm |
6482×2100×2886 |
| Total curb mass |
kg |
7400 |
| Concrete delivery value |
m3/h |
115/60 |
| Max. output pressure |
Mpa |
18 |
| Pulling speed |
km/h |
Three-level road 8km/h |
| Road above two-level 16km/h |
| Delivery distance(vertical/horizontal) |
m |
250/1000 |
| Hopper capacity/filling height |
m3/mm |
0.6/1370 |
| Concrete slump range |
mm |
80-230 |
| Concrete delivery cylinder diameter/stroke |
mm |
230/1600 |
| Power system |
Main motor (diesel engine) |
Model |
BF6M1013 |
| Rated power |
kw/r/min |
186/2100 |
| Manufacturer |
DEUTZ |
| Hydraulic system |
Type |
Open type |
| Pressure of hydraulic system |
Mpa |
32 |
| Main oil pump |
Model and type |
280 |
| Rated working flow |
L/min |
560 |
| Manufacturer |
KAWASAKI |
| Pumping oil cylinder diameter /stroke |
mm |
170/1600 |
| Capacity of hydraulic oil tank |
L |
600 |
| Mixing system |
Large torque at low speed |
Product Uses

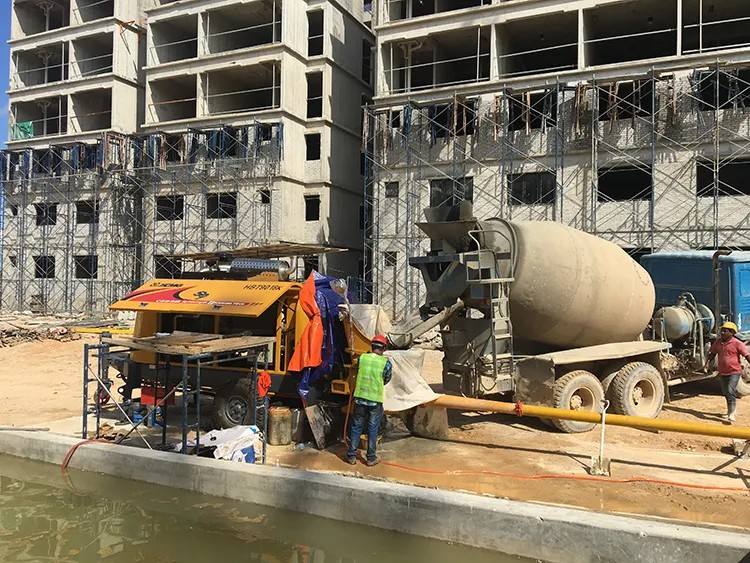

Large-scale construction projects: such as high-rise buildings, bridges, tunnels, etc., require long-distance, high-volume concrete delivery.
Long-distance or high-altitude pumping: concrete is pumped through pipes to hard-to-reach construction areas.
Continuous operation: suitable for large-scale pouring, such as foundations, floor slabs, etc., to improve efficiency.
Narrow or complex sites: trailer pumps are highly mobile and can be flexibly deployed in confined spaces.
Product Operate Guide
Pre-operation check: Ensure that the oil level of the equipment and pipe connections are normal to prevent slurry leakage or blockages.
Standardized start-up: First pump mortar to lubricate the pipes, then transport concrete to protect the equipment and improve efficiency.
Control pumping speed: Adjust the pressure according to construction requirements to prevent pipe blockages or concrete segregation.
Regular maintenance: Clean the pipes promptly after construction and check wear parts to extend the service life of the equipment.
