XC958E
| Availability: | |
|---|---|
| Quantity: | |

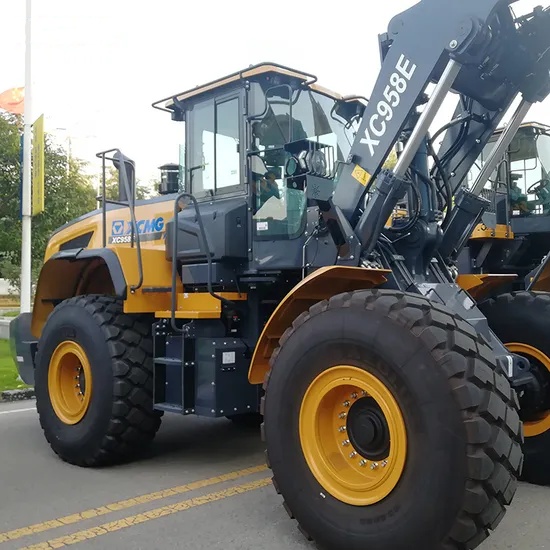

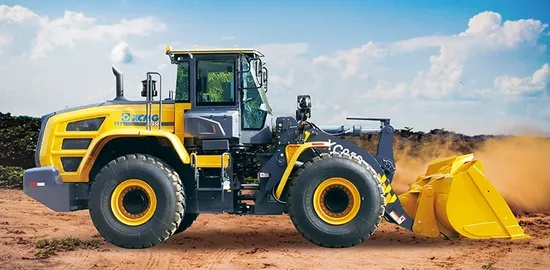

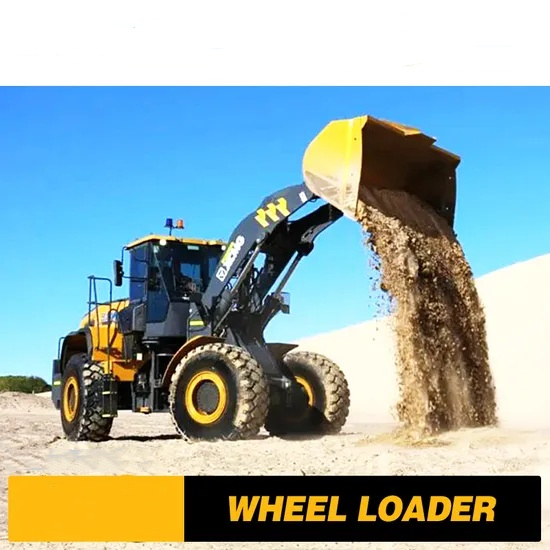

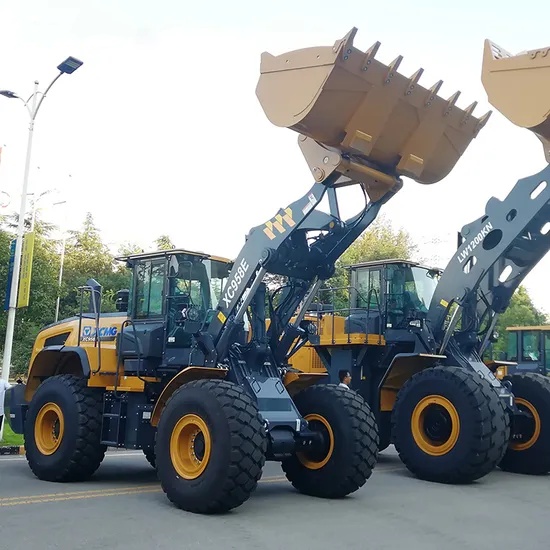

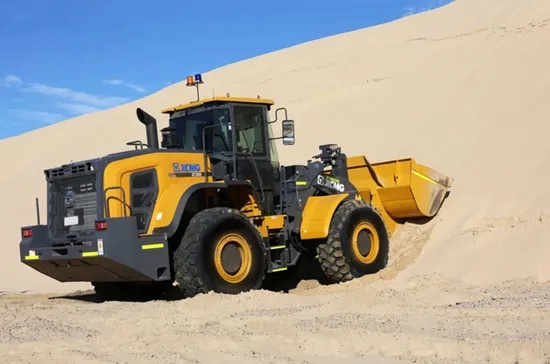

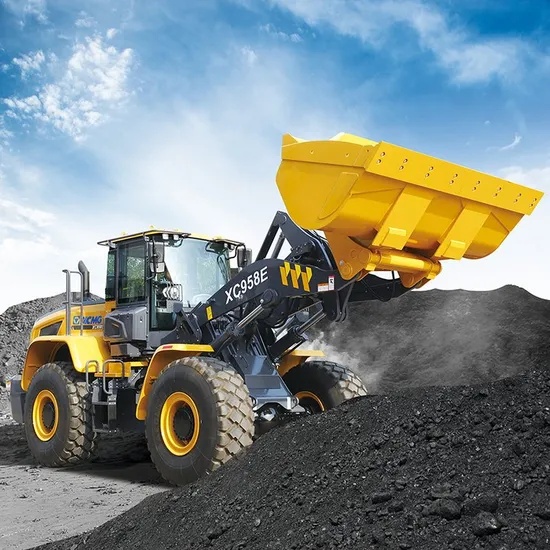

The XC958E is a large-scale heavy-duty wheel loader that embodies the advanced manufacturing strength of China’s construction machinery industry. It integrates superior power performance, outstanding operational stability, high working efficiency and intelligent control technology, serving as a core flagship equipment for end-users to cope with severe and complex working conditions, maximize operational productivity and optimize investment returns. Adopting a durable and high-load oriented design concept, this loader is capable of delivering consistent, robust and stable working output even in extremely harsh construction environments.
Equipped with a large-displacement high-torque engine and upgraded reinforced working mechanisms, the machine delivers top-tier breakout force and traction within the industry. It can effortlessly penetrate and load ore stockpiles and high-resistance material piles, fully adapting to high-intensity heavy-load operation scenarios.
Key structural components and full transmission systems are specially optimized and strengthened for long-term heavy-load impact and frequent start-stop operation. The whole machine features extended service life, ultra-low failure rate and high operational availability, effectively reducing equipment downtime and maintenance costs for users.
Fitted with advanced constant-pressure variable hydraulic system and intelligent power adaptive matching technology, the equipment realizes perfect balance between strong dynamic performance and low energy consumption. It effectively cuts down comprehensive fuel consumption while ensuring continuous and efficient operation, achieving excellent energy-saving and cost-reducing effects.
The fully upgraded cab provides a superior operating environment with optimized ergonomic design, reaching industry-first operational comfort and controllability. Built-in intelligent equipment management system lowers drivers’ operational fatigue and realizes refined equipment management, greatly improving overall construction and management efficiency.
Item | Unit | Parameters |
|---|---|---|
Rated operating load | kg | 5500 |
Rated bucket capacity | m³ | 3.1 |
Operating mass | kg | 19600 |
Dumping height | mm | 3100 |
Dumping reach | mm | 1100 |
Wheelbase | mm | 3350 |
Tread | mm | 2760 |
Overall machine dimension (L*W*H) | mm | 8600*3000*3505 |
Bucket width | mm | 3000 |
Maximum breakout force | KN | 175 |
Maximum traction force | KN | 165 |
Minimum turning radius over tyres | mm | 5695 |
Gradeability | ° | 28 |
Engine rated power | kw | 168 |
Braking distance at 32 km/h | m | <12.5 |
The XC958E heavy-duty loader features strong adaptability and wide applicability, covering multiple heavy-load construction scenarios:
Large Open-pit Mines: Suitable for heavy-duty loading and transportation operations of raw coal, metal ores and other bulk materials in open-pit coal mines and metal mines.
Sand and Gravel Yards: Used for loading, unloading and handling of heavy stone materials, gravel aggregates and other bulk materials in large-scale stockyards.
Port Terminals: Adapted for bulk cargo loading and unloading operations for large cargo ships at ports and waterfront terminals.
Large Infrastructure Projects: Ideal for massive earthwork and stonework construction in hydropower dam projects, railway and highway infrastructure engineering.
Steel Industry Sites: Capable of handling heavy materials including iron ore powder, coal powder, scrap steel and other industrial materials for steel enterprises.
Operators must fasten the safety belt strictly after boarding the machine. After startup, run the engine at idle speed or low-load low-speed state for 5 to 10 minutes to fully warm up the transmission system and hydraulic system. Extended warm-up is required in low-temperature and cold environments to ensure stable machine performance.
V-type Operation Method: As a standard and high-efficiency operation mode, align the machine with the material pile, insert smoothly into the material stack, and coordinate the boom lifting and bucket rotation to fully fill the bucket. Then reverse and turn the machine to transport materials to the designated unloading position.
Smooth Material Insertion: Give full play to the machine’s strong lifting power to realize steady insertion into material piles, instead of relying on high-speed impact to avoid equipment loss.
Low-posture Transportation: During material transfer, keep the bucket at a standard transportation height (40-50 cm above the ground) to lower the center of gravity and ensure driving stability.
Safe Unloading Operation: When unloading materials onto large trucks, keep real-time communication with truck drivers (via walkie-talkies or other tools) to eliminate potential safety hazards and ensure standardized unloading work.
