XGS58K
| Availability: | |
|---|---|
| Quantity: | |

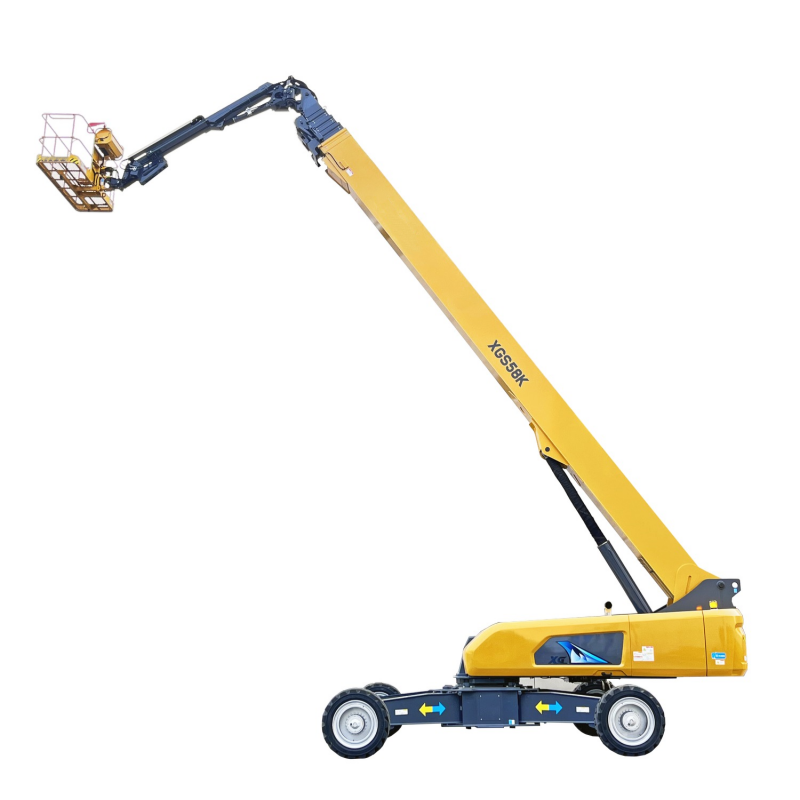

The XGS58K is a heavy-duty diesel-powered telescopic boom lift designed for ultra-high altitude aerial operations. It boasts a maximum working height of 58.6m, maximum horizontal outreach of 24.4m, and dual load capacities of 230kg (unrestricted) and 450kg (limited). Equipped with X-type heavy-duty axle, multi-mode four-wheel steering and 360° continuous turntable rotation, this machine delivers outstanding stability, flexible maneuverability and reliable performance. It is a premium solution for high-rise construction, petrochemical projects, large venue maintenance and other demanding heavy-duty working scenarios.
Ultra High Working Performance: 58.6m maximum working height and 24.4m outreach meet the requirements of super high-altitude and long-distance operations.
Dual Load Design: 230kg unrestricted load and 450kg limited load adapt to different material and personnel carrying needs.
Multi-mode 4-Wheel Steering: Supports two-wheel steering, four-wheel steering and crab steering, ensuring great flexibility in narrow working sites.
Strong Terrain Adaptability: 4-wheel drive and 45% gradeability enable stable driving on muddy, gravel and sloped roads.
Reliable Hydraulic System: Advanced load-sensing hydraulic system ensures smooth boom movement and energy-efficient operation.
Full Rotation Capability: 360° continuous turntable rotation plus 160° platform swing realizes all-round positioning without blind spots.
Comprehensive Safety Protection: Built-in overload protection, tilt alarm, real-time load monitoring and emergency power unit for safe operation.
Robust & Durable Structure: Heavy-duty chassis and optimized structural design reduce maintenance frequency, suitable for long-term intensive use.
Item | Unit | XGS58K |
|---|---|---|
Max. Working Height | m | 58.6 |
Max. Platform Height | m | 56.6 |
Max. Horizontal Outreach | m | 24.4 |
Rated Load Capacity | kg | 230 (unlimited) / 450 (limited) |
Platform Dimension | mm | 2400 × 900 × 1100 |
Overall Dimension (Stowed) | mm | 19450 × 2490 × 3070 |
Total Weight | kg | 27900 |
Power Source | - | Diesel Engine |
Travel Speed (Stowed / Extended) | km/h | 4.5 / 0.5 |
Max. Gradeability | % | 45 |
Turntable Rotation Angle | ° | 360° Continuous |
Platform Swing Angle | ° | 160 |
Boom Luffing Range | ° | -1 ~ +80 |
Min. Turning Radius (2WS / 4WS) | m | 9.5 / 6.6 |
Ground Clearance | mm | 250 |
High-rise Construction: Exterior wall construction, glass curtain wall installation and steel structure erection for high buildings.
Petrochemical & Energy Industry: Regular inspection, pipeline maintenance and equipment repair for refineries, power plants and chemical plants.
Large Public Venues: Roof maintenance, lighting and electromechanical equipment installation for stadiums, airports and exhibition centers.
Municipal & Traffic Engineering: Bridge detection, street lamp maintenance and traffic facilities installation.
Heavy Industry & Shipbuilding: Large equipment maintenance, workshop construction and hull related high-altitude operations.
Check the liquid level of diesel fuel, engine oil and hydraulic oil, and confirm no liquid leakage.
Inspect tires for normal pressure and surface damage, and fasten all wheel bolts.
Check safety guardrails, platform door locks, limit switches and emergency stop devices.
Test the battery and emergency power unit to guarantee normal operation.
Start the diesel engine and wait for the completion of system self-check and stable idling.
Drive the machine to a firm and flat working area, then engage the parking brake and fix the wheels.
Operate the control levers slowly to adjust the luffing, extension and rotation of the boom to the target position.
Fine-tune the platform angle for accurate positioning, and never exceed the rated load.
After finishing work, retract the boom completely and lower the platform, then turn off the engine and take away the key.
Strictly follow the load standard: 230kg unrestricted or 450kg limited. Maximum 2 persons are allowed on the platform.
Operate only on solid ground. The ground slope shall not exceed 5 degrees during working.
Stop all operations immediately when wind speed exceeds 12.5m/s.
Operators must wear safety helmets, safety harnesses and anti-slip shoes.
Carry out regular inspection on safety sensors, limit devices and hydraulic components.
A: The 230kg mode is unrestricted, which allows the machine to reach the full maximum outreach. The 450kg mode is load-limited with shortened outreach for safety. You can select the mode according to your actual working demands.
A: The average fuel consumption is 12 to 15 liters per hour, varying with working loads. The standard fuel tank capacity is about 200 liters, supporting long-time continuous work.
A: Yes. Equipped with 4-wheel drive, X-type axle and 250mm ground clearance, it features 45% gradeability and runs stably on mud, gravel and uneven roads.
A: It is equipped with emergency stop button, overload protection, tilt alarm, full-range safety sensors and emergency power unit. The EPU can lower the platform safely in case of engine failure.
A: Yes. The stowed dimension is compact and compatible with standard low-bed trailers. The overall height is controlled within 3.1m, which simplifies road transportation and reduces logistics costs.
A: The whole machine enjoys a warranty of 12 months or 2000 working hours, whichever comes first. Core components are covered by extended warranty. We provide global after-sales and technical support services.
