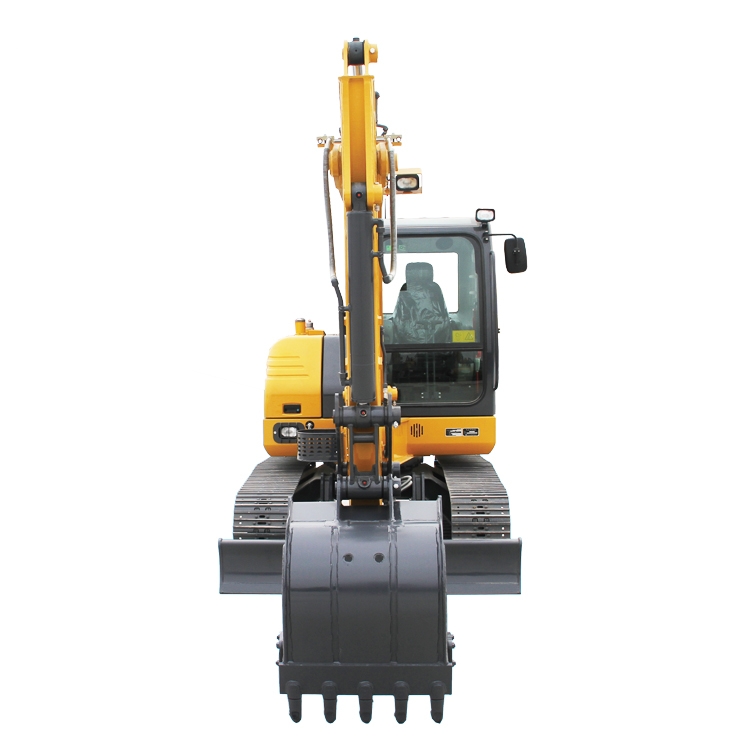

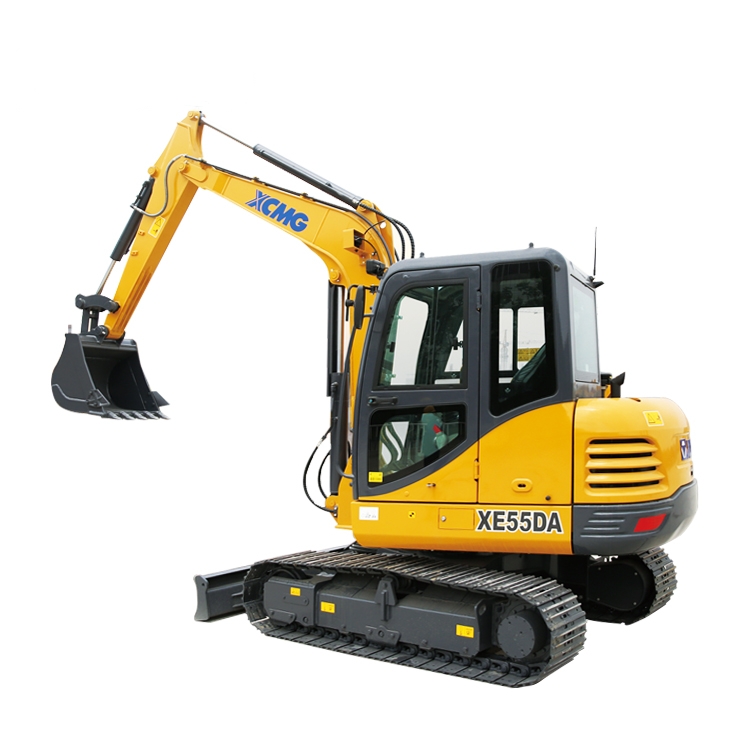

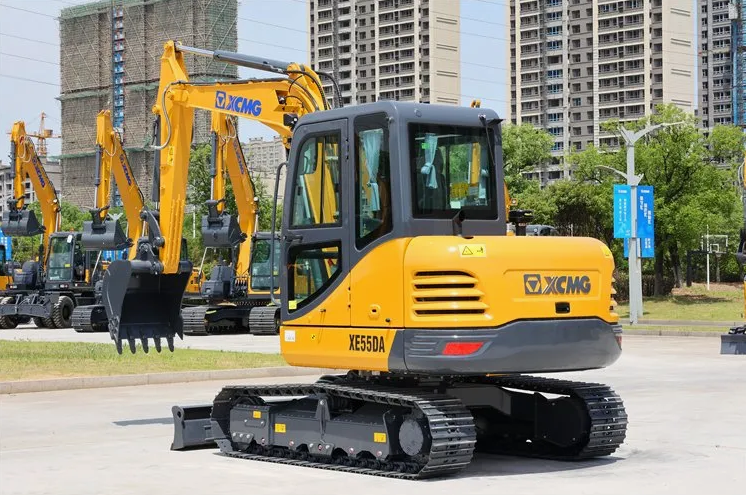

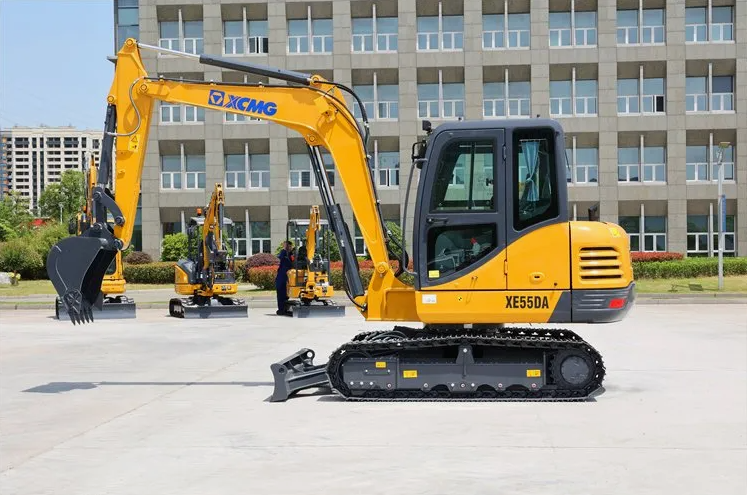

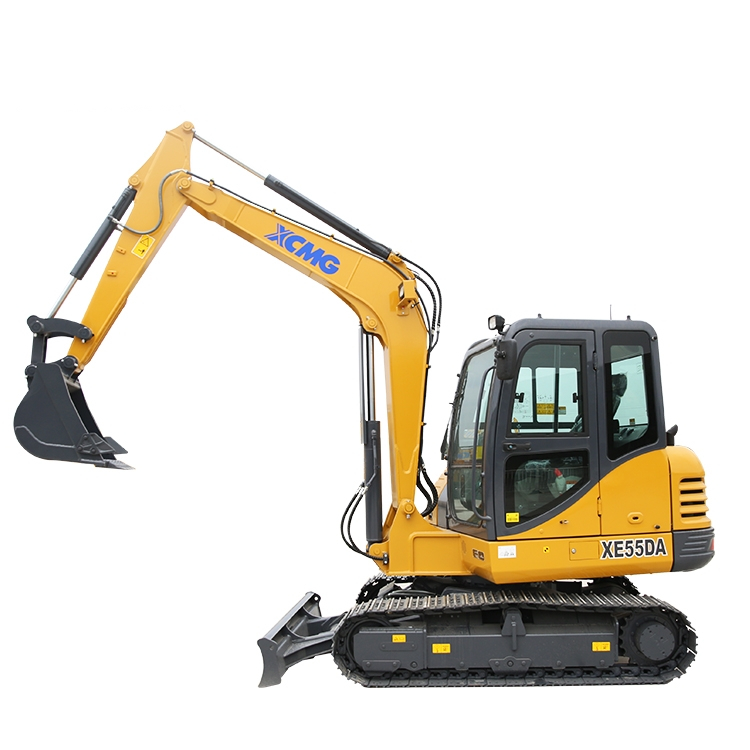

Product Introduction
The excavator with short-tail design can apply to the narrow work conditions. The engine powertrain is featured with stable torque output, low fuel consumption and low noise. The load hydraulic sensitive system allows for improved maneuverability of compound actions, faster response speed, accurate control and small impact.
Strengthen the local area of boom and arm bearing high stress, and meanwhile adjust the structure, disperse stress and improve the service life; standard new-type bucket and reduced bucket depth make unloading quicker and faster.It is easy to achieve fine work such as flat land.
Product Advantage
1.More energy efficient and environmental protection
Adopt new type environmental protection engine which has the features of low speed, large torque, low fuel consumption, high operating efficiency, reliability and durability. Adopt large displacement main pump with large low and high pressure-withstanding value, which can guarantee that the machine has smooth operation and high digging efficiency.
2.More reliable and durable
Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
3.More comfortable and safe
Humanized detail design, all the control components inside the cab are arranged scientifically and reasonably according to ergonomics theory. Cup holder, standby power, magazine bag, storage box and other humanized configurations are added to improve the convenience and comfort of operation to the most extent.
Technical Parameters
| Model | Unit | XE55DA |
| Operating weight(without dozer blade) | Kg | 5750 |
| Bucket capacity | m³ | 0.21 |
| Engine | Engine Model | / | V2607 |
| No. of cylinders | / | 4 |
| Rated power/speed | kw/rpm | 35/2200 |
| Maximum torque/speed | N.m | 171.5/1300 |
| Displacement | L | 2.615 |
| Main performance | Travel speed(H/L) | km/h | 4.2/2.2 |
| Rotating speed | r/min | 10 |
| Gradeability | ° | ≤35 |
| Ground pressure | kPa | 31 |
| Bucket digging force | kN | 48.3 |
| Arm digging force | kN | 32.5 |
| Maximum tractive force | kN | 50.5 |
| Rated flow of main pump | L/min | 150 |
| Main safety valve pressure | MPa | 24.5 |
| Travel system pressure | MPa | 24 |
| Swing system pressure | MPa | 23 |
| Pilot system pressure | MPa | 3.5 |
| Oil Capacity | Fuel tank capacity | L | 110 |
| Hydraulic tank capacity | L | 85 |
| Engine oil capacity | L | 9 |
| Appearance size | Overall length | mm | 5860 |
| Overall width | mm | 1920 |
| Overall height | mm | 2585 |
| Width of platform | mm | 1780 |
| Track length | mm | 2540 |
| Total width of chassis | mm | 1920 |
| Track gauge | mm | 1500 |
| Counterweight clearance | mm | 700 |
| ground clearance | mm | 385 |
| Working range | Max. digging height | mm | 5630 |
| Max. dumping height | mm | 3945 |
| Max. digging depth | mm | 3830 |
| Max. vertical wall digging depth | mm | 2680 |
| Max. digging reach | mm | 6130 |
| Min. swing radius | mm | 2460 |
Product Uses
1. Municipal and Road Maintenance
The XE55DA is ideal for a variety of precision tasks in urban environments, such as small-scale earthmoving, municipal construction, road repair, concrete breaking, and cable laying. Its compact chassis and tracked design enable it to maneuver and operate flexibly in narrow streets and crowded construction sites, effectively minimizing disruption to surrounding traffic and the environment.
2. Agricultural Water Conservancy and Landscape Engineering
In agricultural water conservancy projects, the XE55DA is commonly used for agricultural water conservancy construction, landscape cultivation, and river dredging. Its stable hydraulic system and precise control performance ensure efficient operation in applications requiring precise maneuvering, helping to improve agricultural drainage and irrigation systems or shape and maintain landscape features.
Product Operate Guide
First, familiarize yourself with its intelligent power control system and switch flexibly between high-efficiency and energy-saving modes according to operating conditions. Maintain smooth and precise movements during operation to fully leverage its flexibility and maneuverability. Make good use of quick connectors to easily replace attachments such as breakers and grapples, enabling multi-functional use of a single machine. Regularly inspect the filter and track tension, and keep the equipment clean.
FAQ
1. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
2. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
3. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
4. IS THE HYDRAULIC OIL BLACKENED WITH A BURNT SMELL?
Oil has oxidized and degraded at high temperatures. Replace the oil and investigate the cause of high system temperatures (e.g., internal leaks, overflow).
5. SOLENOID VALVE FAILS TO OPERATE?
Check electrical circuit: fuse, wiring, connector. Then inspect coil for burnout. Finally, verify valve spool is not stuck.
6. SYSTEM PRESSURE CANNOT BE INCREASED?
Main safety valve or related pressure valve spool stuck in open position, pressure adjustment spring failure, or pump adjustment mechanism malfunction.
