XGA26K/XGA26K1
| Availability: | |
|---|---|
| Quantity: | |

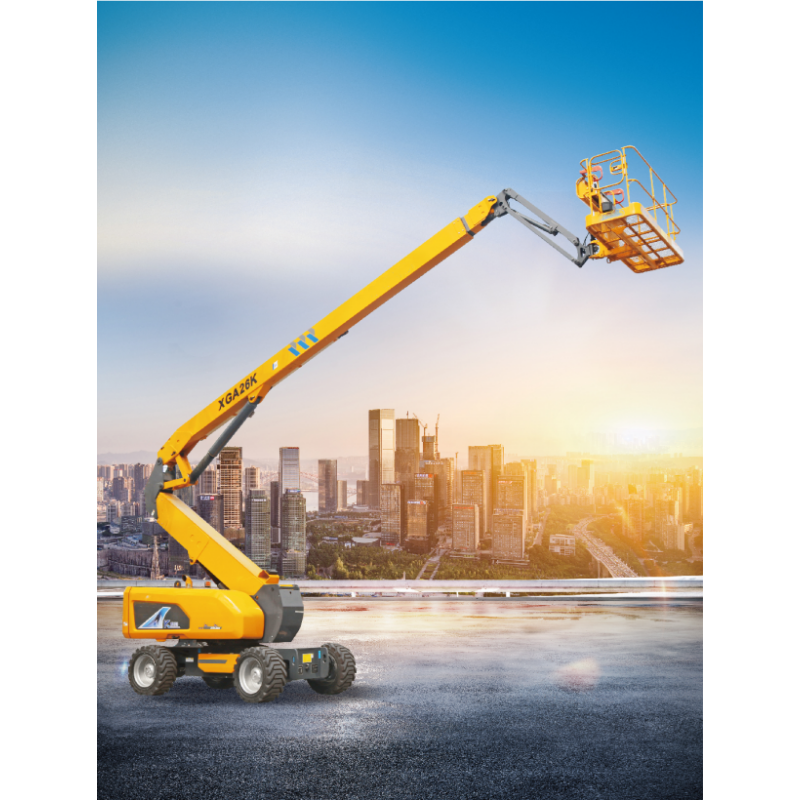

XGA26K is a heavy-duty diesel-powered self-propelled articulated boom lift for high-altitude outdoor operations. It features a maximum working height of 26m, maximum horizontal outreach of 12.2m, and dual load capacities of 256kg (unrestricted) and 350kg (limited). Equipped with flexible multi-joint boom and reliable diesel power system, it delivers strong terrain adaptability and stable performance. This model is well-suited for construction, municipal engineering, industrial maintenance and other complex outdoor working environments.
XGA26K1 is an upgraded version of XGA26K diesel articulated boom lift. It retains the classic boom structure and core performance, with optimized overall layout and upgraded chassis configuration. It also supports 256kg / 350kg dual load modes and reaches 26m maximum working height. With improved maneuverability and structural durability, it adapts to harsher working conditions and long-duration intensive operations, serving diverse outdoor high-altitude projects.
Dual Load Design: 256kg standard load and 350kg heavy load modes to meet different demands of personnel and tools.
Flexible Articulated Boom: Multi-section boom easily bypasses obstacles and operates at complex working angles.
Powerful Diesel Drive: Continuous long-hour operation without frequent charging, ideal for all-day outdoor work.
Superior Trafficability: 45% gradeability ensures stable travel on sloped, muddy and gravel roads.
360° Continuous Rotation: Full-range turntable rotation enables flexible positioning without blind spots.
Smooth Hydraulic Control: Steady boom movement and simple operation enhance working comfort.
Complete Safety System: Built-in overload protection, tilt alarm and emergency lowering device for full safety guarantee.
Durable Structure: Heavy-duty chassis and wear-resistant components reduce maintenance frequency.
XGA26K: Compact stowed size, cost-effective transportation, mature and stable configuration for general outdoor projects.
XGA26K1: Optimized chassis and reinforced structural parts, better shock resistance and longer service life; improved steering flexibility for narrow job sites.
Item | Unit | XGA26K | XGA26K1 |
|---|---|---|---|
Max. Working Height | m | 26 | 26 |
Max. Platform Height | m | 24 | 24 |
Max. Horizontal Outreach | m | 12.2 | 12.2 |
Rated Load Capacity | kg | 256 (Unlimited) / 350 (Limited) | 256 (Unlimited) / 350 (Limited) |
Platform Dimension | mm | 1420 × 720 × 1100 | 1420 × 720 × 1100 |
Overall Dimension (Stowed) | mm | 8980 × 2280 × 2350 | 9020 × 2280 × 2380 |
Total Weight | kg | 9800 | 10100 |
Power Source | - | Diesel Engine | Diesel Engine |
Travel Speed (Stowed / Extended) | km/h | 5.2 / 0.8 | 5.2 / 0.8 |
Max. Gradeability | % | 45 | 45 |
Turntable Rotation Angle | ° | 360° Continuous | 360° Continuous |
Platform Swing Angle | ° | 180 | 180 |
Ground Clearance | mm | 200 | 205 |
Building Construction: Exterior wall renovation, steel structure installation and overhead construction work.
Municipal Engineering: Street lamp repair, traffic facility maintenance and landscape trimming.
Industrial Plants: Production equipment inspection, pipeline maintenance and high-level cleaning.
Large Public Venues: Exterior maintenance and electromechanical installation for stadiums, airports and exhibition centers.
Rental Business: Versatile aerial equipment for various temporary outdoor engineering projects.
XGA26K: Preferred for conventional construction, municipal routine maintenance and general rental projects.
XGA26K1: Recommended for harsh working sites, frequent shift operations and long-term intensive use.
Check diesel fuel, engine oil and hydraulic oil levels, and confirm no liquid leakage.
Inspect tire pressure, surface condition and tightness of all wheel bolts.
Check safety guardrails, platform door, limit switches and emergency stop button.
Test alarm system and emergency lowering device to ensure normal operation.
Start the diesel engine and wait for system self-check and stable idling.
Drive the machine to a firm and flat area, then engage the parking brake.
Operate control levers slowly to lift, extend and rotate the boom to the target position.
Adjust the platform angle for accurate positioning and strictly follow load limits.
After work completion, fully retract and lower the boom, then shut down the engine.
Do not exceed the rated load; select proper load mode according to working requirements.
Operate only on solid ground. The ground slope shall not exceed 5 degrees during operation.
Stop all operations immediately when wind speed exceeds 12.5m/s.
Operators must wear safety helmets and safety harnesses during high-altitude work.
Conduct regular inspection on all safety devices and hydraulic parts.
A: 256kg is the unrestricted mode that supports full maximum outreach. 350kg is the heavy-load mode with limited outreach for operational safety. Choose the mode based on actual working needs.
A: The average fuel consumption is 7–9 liters per hour under normal working conditions. The large-capacity fuel tank supports long-time continuous operation.
A: XGA26K1 adopts reinforced chassis and upgraded components, featuring better durability, shock resistance and steering flexibility. XGA26K is cost-effective for conventional working scenarios. Their main working parameters are the same.
A: Yes. Both models have 45% gradeability and excellent passability, which can work stably on muddy, gravel and sloped outdoor roads.
A: Both are fitted with overload protection, tilt alarm, emergency stop and emergency lowering system to fully protect operators and equipment.
A: Both models have compact stowed dimensions, compatible with standard trucks and containers for easy transportation.
