Product Description

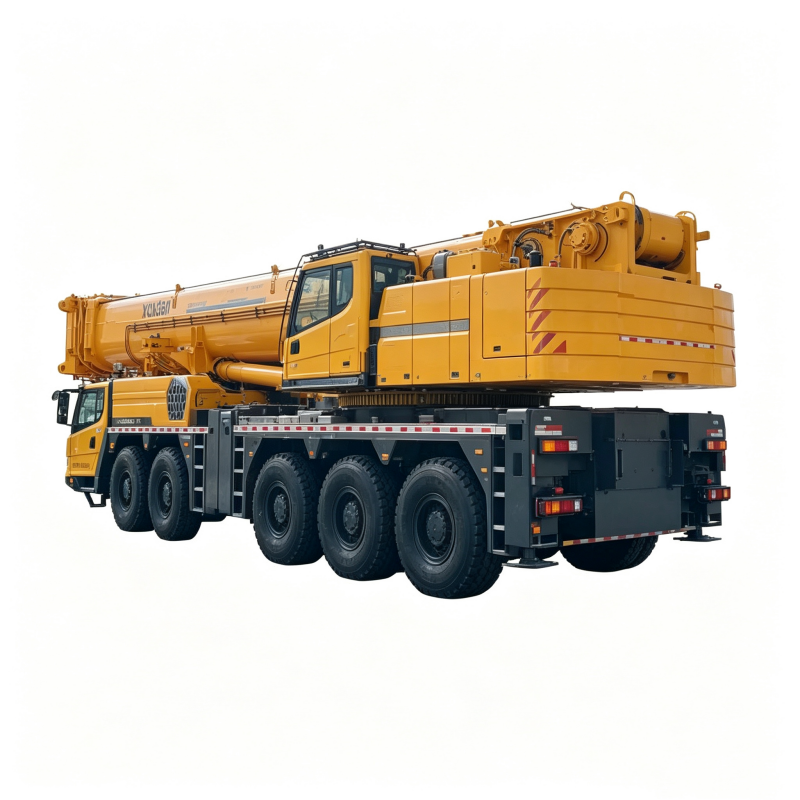

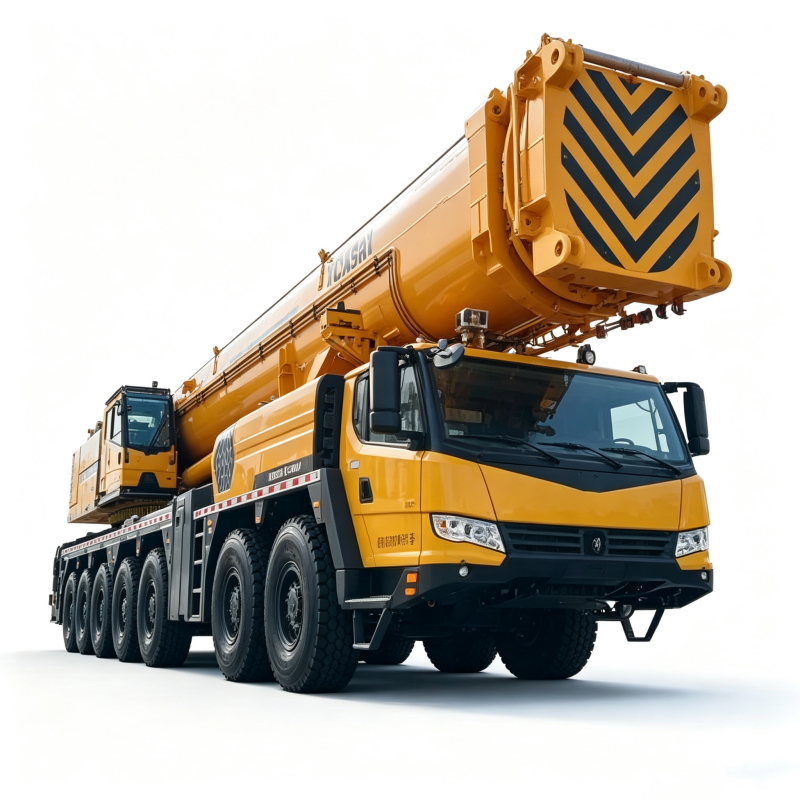

XCA500L8‑1 all‑terrain crane is engineered for diversified and space‑limited heavy‑lifting construction sites. Its 8‑segment U‑profile 93.1 m telescopic main boom delivers excellent rigidity and powerful lifting performance at long radius and high working height. Three sets of outrigger span selections, multiple superlift spread‑angle modes and 1.8 m position‑adjustable 120‑ton counterweight greatly expand site adaptability, solving hoisting challenges on narrow urban construction zones. Dual‑engine independent power layout separates power supply for chassis travelling and upper‑body hoisting work, improving fuel‑use economy and output efficiency. Six‑axle multi‑mode steering all‑terrain chassis offers strong off‑road passability on muddy, sloped and uneven ground. The machine can travel short‑haul with full main boom, superlift, 90‑ton hook, counterweight base and complete outrigger kits without exceeding transport width limit, drastically reducing disassembly‑assembly workload before relocation. Integrated intelligent safety control system covers load‑moment monitoring, overload interlock, fault self‑diagnosis, together with full‑function wireless remote control for outriggers, superlift and counterweight operations. Spacious panoramic operator cabin with ergonomic layout ensures comfortable long‑shift heavy‑duty operation. Major attachments maintain good interchangeability with adjacent‑tonnage XCMG cranes to lower spare‑parts investment cost.
Product Advantages
Excellent Heavy‑lifting Performance:
Rated 500‑ton lifting capacity; 8‑section 93.1 m U‑shaped main boom, max lifting moment 12000 kN·m, max lifting height up to 131 m, covers massive high‑altitude heavy‑load working conditions.
Strong Site Adaptability:
Three‑mode outrigger span combinations, multi‑angle superlift configurations and 1.8 m position‑adjustable 120‑t counterweight, perfectly fit narrow‑space urban construction scenarios.
Dual‑engine Energy‑saving Layout:
Independent power units for chassis and superstructure, optimizes power output for travelling and hoisting respectively, reduces comprehensive fuel consumption.
Powerful Heavy‑load Transfer Capacity:
Supports short‑distance transit carrying full main boom, superlift assembly, hook and full outriggers without over‑width; minimizes disassembly‑assembly time for site relocation.
Superior All‑terrain Mobility:
Six‑axle multi‑steering chassis, strong climbing capacity and rough‑ground passing performance for complicated job‑site road conditions.
Intelligent Wireless Operation & Full Safety Protection:
Wireless remote control for superlift, counterweight and outriggers; real‑time load‑moment monitoring, overload cut‑off and fault self‑diagnosis guarantee whole‑process operation safety.
High Parts Interchangeability:
Hooks, counterweight blocks, lattice jib and other key attachments share compatibility with XCMG adjacent‑tonnage cranes, cutting procurement and maintenance cost.
Technical Parameters Table
Item | Specification |
Model | XCA500L8‑1 |
Type | All‑Terrain Crane |
Rated Lifting Capacity | 500 Ton |
Max Lifting Moment | 12000 kN·m |
Main Boom | 8‑section U‑shaped telescopic boom, 93.1 m |
Max Lifting Height(Main Boom + Jib) | 131 m |
Power Configuration | Dual‑engine, independent power for chassis & superstructure |
Chassis | 6‑axle all‑terrain multi‑mode steering chassis |
Counterweight | 120 t position‑adjustable counterweight (1.8 m travel range) |
Core Feature | 3‑mode outrigger span, multi‑angle superlift, heavy‑load short‑haul transfer |
Control System | Intelligent load‑moment monitoring, full‑function wireless remote control |
Note: Replace with official factory full‑data sheet for precise project quotation.
Product Applications
‑ Power transmission tower erection and cross‑line hoisting
‑ Bridge component hoisting, erection and maintenance
‑ Petrochemical & steel‑plant heavy‑equipment installation & overhaul
‑ High‑rise building large steel‑structure installation
‑ Wind‑farm auxiliary hoisting and wind‑turbine maintenance
‑ Large‑scale urban infrastructure construction
‑ Heavy machinery relocation and emergency rescue projects
FAQ
Q1: What is the model and rated lifting capacity of this crane?
A: XCA500L8‑1, XCMG 500‑ton heavy‑duty six‑axle all‑terrain crane, maximum lifting moment reaches 12000 kN·m.
Q2: What are the core highlights of XCA500L8‑1?
A: It features 93.1 m eight‑section U‑shaped main boom, position‑adjustable 120‑ton counterweight, three‑kind outrigger span options, dual‑engine energy‑saving system and heavy‑load short‑haul transfer capability without over‑width. Full‑function wireless remote control improves site working efficiency greatly.
Q3: Can you supply brand‑new or used machines?
A: We mainly supply brand‑new XCA500L8‑1 all‑terrain crane. Used units are available subject to stock; please send inquiry for stock status and quotation.
Q4: What trade terms and lead time do you support?
A: FOB, CIF, CFR are acceptable. Lead time depends on stock and production schedule, please submit your inquiry for latest delivery arrangement.
Q5: What after‑sales services can be provided?
A: Complete operation‑maintenance manuals, remote technical consultation, spare‑parts supply and video‑based technical guidance. Overseas on‑site service is negotiable.
A: Yes. Lattice jib, different counterweight combinations, superlift assemblies and other attachments can be selected according to your actual hoisting‑project requirements.
Q7: What advantages does all‑terrain crane compare with truck crane?
A: All‑terrain crane adopts multi‑axle all‑wheel‑steering chassis with superior off‑road capability. It can travel and operate on uneven, muddy construction sites while maintaining high lifting performance, more suitable for complex large‑scale projects with high‑altitude heavy‑load requirements.
