XGA26
| Availability: | |
|---|---|
| Quantity: | |

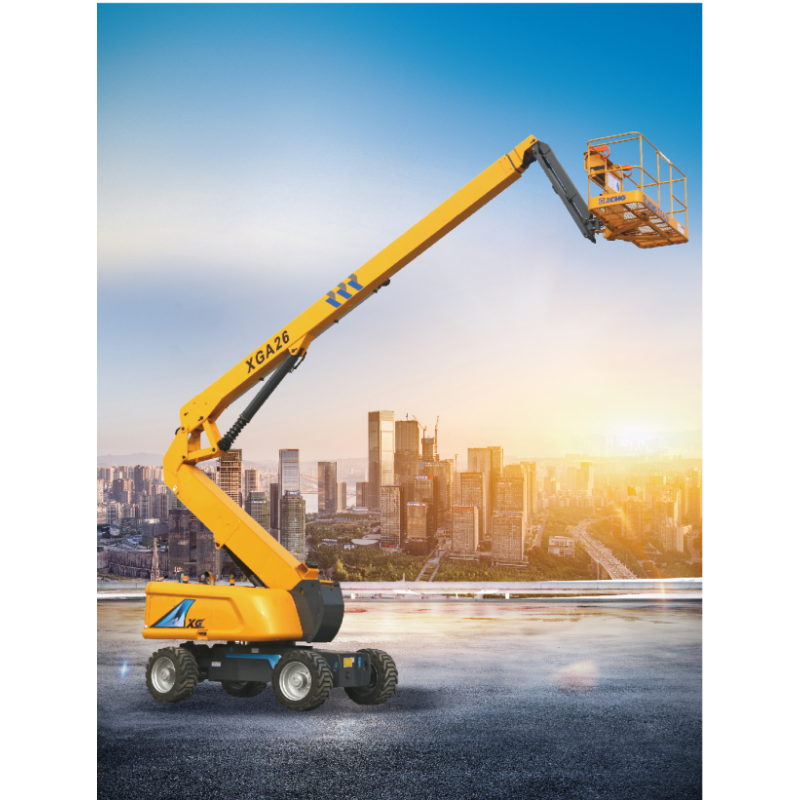

The XGA26 is a high-performance electric self-propelled articulated boom lift, specially developed to meet the demands of complex and diverse high-altitude operation scenarios. This equipment boasts a maximum working height of 26 meters, a maximum horizontal outreach of 12.2 meters, and a standard rated load of 227 kilograms. Powered by a full electric drive system, it delivers zero exhaust emissions and ultra-low noise operation, achieving eco-friendly and comfortable working conditions. Equipped with an articulated boom mechanism and zero tail swing design, the lift features outstanding maneuverability, enabling flexible operation in narrow spaces and effective avoidance of on-site obstacles. It is a versatile aerial work solution applicable to indoor maintenance, commercial project servicing, building renovation, and a wide range of outdoor high-altitude construction tasks.
Zero Tail Swing Design: The turntable rotates without any rear body overhang, completely eliminating collision risks in narrow, cramped, and enclosed working environments, ensuring safe operation in limited-space construction scenarios.
Highly Flexible Articulated Boom: The multi-joint boom structure supports adjustable working angles in all directions, which can flexibly bypass various on-site barriers and adapt to complex and changeable construction working conditions.
Pure Electric Eco-Friendly Operation: Adopting all-electric power output, the machine produces no exhaust pollutants and operates with low noise, perfectly matching the construction requirements of indoor venues, urban core areas, and environmentally protected construction sites.
Superior Terrain Adaptability: With a 45% maximum gradeability, the equipment can achieve stable driving and reliable operation on inclined roads and uneven ground surfaces, adapting to diverse site terrains.
Optimized Compact Structure: The whole machine presents a compact folded state, which simplifies on-site transfer, saves storage space, and effectively reduces equipment transportation costs for users.
Stable and Reliable Hydraulic System: The precision hydraulic control system ensures smooth and stable stretching, retracting and lifting movements of the boom, with simple and intuitive operation logic and low operation difficulty.
Comprehensive Safety Protection Configuration: Integrated with overload protection function, tilt early warning system and emergency lowering device, it builds a full-dimensional safety protection mechanism to eliminate potential operational risks.
Low Whole-Life Operation Cost: The electric power supply mode replaces traditional fuel power, greatly cutting daily operating energy consumption costs, while the equipment features a simple structure and convenient routine maintenance, reducing later maintenance investment.
Item | Unit | XGA26 Parameter Value |
|---|---|---|
Max. Working Height | m | 26 |
Max. Platform Height | m | 24 |
Max. Horizontal Outreach | m | 12.2 |
Rated Platform Load | kg | 227 |
Platform Dimension | mm | 1420 × 720 × 1100 |
Overall Dimension (Stowed State) | mm | 8950 × 1800 × 2260 |
Total Machine Weight | kg | 9100 |
Power Supply Type | - | Electric Battery |
Travel Speed (Stowed / Extended) | km/h | 4.0 / 0.7 |
Max. Gradeability | % | 45 |
Turntable Rotation Range | ° | 360° Continuous Rotation |
Platform Swing Angle | ° | 180 |
Minimum Ground Clearance | mm | 190 |
Tail Swing Situation | - | Zero Tail Swing |
Indoor Maintenance Projects: Suitable for high-altitude cleaning, daily equipment inspection, indoor wall and space renovation operations in factories, commercial hotels, shopping malls and other indoor venues.
Commercial Venue Construction: Ideal for roof repair and maintenance, indoor and outdoor lighting fixture replacement, advertising board installation and other high-altitude work in exhibition centers, theaters, stadiums and other public commercial venues.
Building Renovation & Construction: Widely used in exterior wall renovation and painting, pipeline laying and installation, and auxiliary high-altitude construction operations in various building projects.
Municipal Engineering Operations: Applicable to urban street lamp maintenance and replacement, landscape tree pruning, and daily maintenance of roadside public facilities and municipal supporting equipment.
Warehouse & Logistics Industry: Used for high-altitude inspection, maintenance and cleaning of high-level storage shelves and warehouse supporting facilities in large logistics warehouses and storage bases.
1. Check the remaining battery power to ensure sufficient electric quantity to support continuous and stable operation of the equipment.
2. Inspect the tire pressure and tire surface integrity of the whole machine, and confirm that all wheel fixing bolts are tightly fastened without looseness.
3. Verify the hydraulic oil level is within the standard range and check the whole hydraulic pipeline and components for oil leakage.
4. Test the safety guardrails, platform access door, emergency stop button and acousto-optic alarm device to ensure all safety components function normally.
1. Turn on the main power switch of the equipment, and wait for the system to complete automatic self-inspection to confirm no system faults.
2. Drive the lift to a solid, flat and stable ground, and firmly engage the parking brake to fix the equipment position.
3. Gently operate the control lever to control the lifting, extension and rotary movement of the boom, and adjust it to the preset working position accurately.
4. Fine-tune the working platform to complete positioning, and strictly abide by the rated load standard to avoid overload operation.
5. After completing all high-altitude operations, fully retract and lower the boom to the stowed state, then cut off the main power supply of the equipment.
1. The equipment shall not be operated beyond the rated load of 227kg, and only one operator is allowed to work on the platform at the same time.
2. The equipment is only allowed to operate on solid and flat ground, with the working ground slope not exceeding 5 degrees.
3. All lifting and high-altitude operations must be stopped immediately when the on-site wind speed exceeds 12.5m/s.
4. Operators must wear standard safety helmets and safety harnesses throughout the whole high-altitude operation process.
5. Conduct regular inspection and maintenance on the safety protection components and hydraulic system parts to ensure stable equipment performance.
Q1: Is the XGA26 applicable for indoor operation?
A1: Yes. This lift adopts full-electric driving, featuring zero emission and low noise, which will not cause pollution and noise interference to indoor environments. Meanwhile, the zero tail swing design avoids space collision, making it highly adaptable to narrow indoor working spaces.
Q2: What is the continuous working duration after a full charge?
A2: Under standard working conditions, the equipment can work continuously for 5 to 7 hours. The full charging time of the battery is about 8 hours.
Q3: What is the definition of zero tail swing?
A3: The zero tail swing means that the turntable will not produce any outward overhang beyond the machine body during 360° rotation, which effectively avoids collision with walls, columns and other surrounding obstacles on site.
Q4: Can the equipment drive on sloped roads?
A4: Yes. The machine is equipped with 45% high gradeability, which can realize stable driving and normal operation on conventional sloped roads and rough uneven ground.
Q5: What safety configurations does the XGA26 have?
A5: This model is equipped with multiple safety protection systems including overload protection device, tilt early warning alarm, emergency stop function and emergency lowering system, providing all-round safety guarantee for on-site operation.
Q6: What is the equipment warranty policy?
A6: The whole machine enjoys a 12-month or 2000-working-hour warranty (whichever comes first). We provide professional global after-sales service and technical support to solve user equipment problems in a timely manner.
