XG1008HA
| Availability: | |
|---|---|
| Quantity: | |

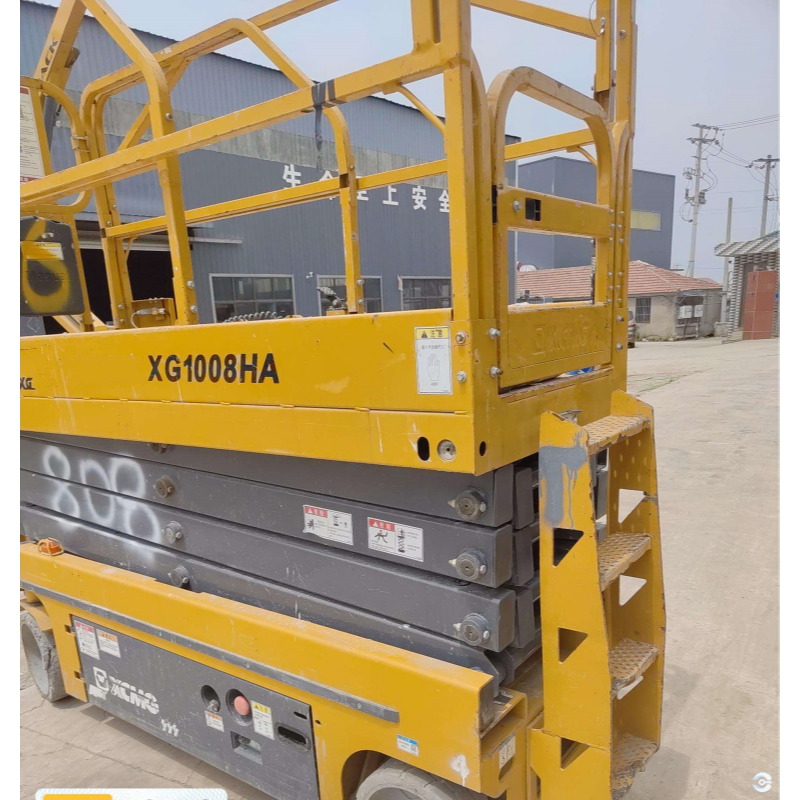

The XG1008HA is an AC electric self-propelled scissor lift developed for medium-height aerial work applications. It features a maximum working height of 9.8 meters and a rated load capacity of 230 kilograms. Equipped with a stable AC power supply system and a newly reinforced all-steel scissor frame, the equipment operates quietly with zero exhaust emissions, achieving eco-friendly performance. Fitted with wear-resistant solid tires and a full set of safety configurations, it perfectly adapts to various indoor working scenarios and supports construction operations on gentle outdoor grounds. With CE certification and stable and reliable performance, this lift is widely applied in site maintenance, commercial supporting services and light renovation projects, serving as an optimal solution for medium and low-altitude aerial work.
Stable AC Power Supply System: Adopting a combined AC and battery auxiliary power supply mode, it delivers stable and balanced power output, supports long-duration continuous operation, features low operating noise and zero pollution emissions, and fully meets green construction standards.
High-Strength and Durable Body Structure: The upgraded and reinforced scissor support structure paired with a heavy-duty body design greatly enhances overall equipment stability and deformation resistance. It effectively extends the service life and adapts to high-frequency operation scenarios.
Flexible and Convenient Operation: The compact body structure and sensitive steering performance allow the equipment to easily pass through standard doors, commercial elevators and narrow aisles. It offers high site adaptability and unobstructed indoor transfer.
Excellent Site Adaptability: Equipped with reinforced solid anti-slip tires with outstanding ground grip performance, the tires are damage-resistant and require minimal frequent maintenance, enabling stable operation on flat grounds and slightly undulating road surfaces.
Comprehensive Safety Protection System: The whole machine is equipped with multiple safety devices including overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip working platforms, which comprehensively eliminate aerial work risks and ensure construction safety.
Expandable Working Space: Featured with a retractable auxiliary working platform, it can expand the operating area on demand, effectively increasing the aerial working space, adapting to multi-person and multi-condition operation requirements, and improving overall working flexibility.
Low Maintenance and Operation Cost: The optimized overall structural design and high-quality original core components reduce failure rates significantly, lowering the difficulty and workload of daily inspection and maintenance.
Item | Specification |
Model | XG1008HA |
Max. Working Height | 9.8 m |
Max. Platform Height | 7.8 m |
Rated Load Capacity | 230 kg |
Extended Platform Load Capacity | 115 kg |
Platform Size (L × W) | 1670 × 740 mm |
Extended Platform Length | 0.9 m |
Folded Overall Dimension (L × W × H) | 2120 × 810 × 2250 mm |
Total Weight | 1700 kg |
Outer Turning Radius | 1.75 m |
Ground Clearance (Raised / Stowed) | 20 mm / 70 mm |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 18 ~ 35 s |
Lowering Time | 28 ~ 38 s |
Power System | AC Power + 24V Battery |
Certification | CE |
Building Maintenance: Suitable for ceiling cleaning, air conditioner maintenance, pipeline upkeep and electrical maintenance in office buildings and residential buildings.
Commercial Venue Maintenance: Adaptable for lamp replacement, sign installation and interior layout adjustment in shopping malls, hotels and exhibition centers.
Light Indoor Construction: Widely used for indoor wall painting, circuit wiring, wall renovation, soft decoration and other interior renovation works.
Light Outdoor Operation: Capable of exterior wall maintenance, street lamp repair and small-scale outdoor construction on flat and solid outdoor grounds.
Event and Exhibition Setup: Meets temporary aerial work demands such as stage assembly, banner hanging and equipment installation for exhibitions, conferences and various events.
1. Check the AC power connection status, battery power level, tire condition and hydraulic oil level to ensure all working conditions are normal.
2. Inspect safety guardrails, telescopic platform and all locking components to confirm firm installation without looseness or faults.
3. Test the emergency stop button, tilt alarm device and automatic pothole protection system to ensure all safety functions respond normally.
4. Remove all obstacles in the working area and confirm the working ground is flat and solid to meet equipment operation requirements.
1. Turn the equipment key switch to the ON gear to activate the whole machine power supply.
2. Control the equipment to move forward and backward via the joystick. The travel speed will be automatically limited when the platform is raised to ensure operation safety.
3. Steer smoothly during driving and operation; sharp turning is prohibited. Aerial operation on slopes steeper than 25% is forbidden.
1. Press the lift button to raise the working platform, and release the button to stop lifting immediately.
2. Press the lower button to descend the platform. Ensure no personnel stay and no obstacles exist under the platform during descent.
3. Extend the auxiliary platform only after the main platform is fully lifted. Never exceed the rated load capacity during operation.
1. Overload operation is strictly prohibited: the maximum load of the main platform is 230kg, and the maximum load of the extended auxiliary platform is 115kg.
2. Do not drive or transfer the equipment on slopes steeper than 25% when the platform is raised.
3. Operators must wear safety harnesses standardly during aerial work and strictly abide by aerial operation regulations.
4. Fully lower the platform and retract the extended auxiliary platform before equipment transfer and movement to ensure the machine is fully folded and stored.
1. Fully lower the working platform and retract the extended auxiliary platform after operation.
2. Turn off the equipment key switch and cut off the main power supply to avoid no-load power consumption.
3. Clean dust and sundries on the equipment surface, comprehensively check bolt tightness and component integrity, and eliminate potential faults in a timely manner.
4. Charge the battery in time after use, and store the equipment in a dry, ventilated, flat and stable place when idle.
Q1: What is the maximum working height of the XG1008HA lift?
A: The maximum working height of the equipment is 9.8 meters, and the maximum platform height from the ground is 7.8 meters.
Q2: What power supply mode does this equipment adopt?
A: The equipment adopts a combined power supply mode of AC power and 24V battery, which ensures stable power supply and supports long-duration continuous operation.
Q3: Is the equipment available for outdoor operation?
A: It supports light-duty outdoor operation on flat and solid grounds. Operation in heavy rain, strong wind and complex rugged outdoor sites is forbidden to avoid equipment faults and potential safety hazards.
Q4: What is the maximum load capacity of the extended platform?
A: The rated maximum load capacity of the telescopic extended auxiliary platform is 115kg.
Q5: How many operators can work on the platform at most?
A: The platform allows a maximum of 2 operators to work simultaneously, and the total weight of personnel and tools shall not exceed the rated load of 230kg.
Q6: What safety protection functions are equipped on this scissor lift?
A: The whole machine is equipped with multiple safety protection functions including overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip working platform, which fully guarantee the safety of aerial operation.
