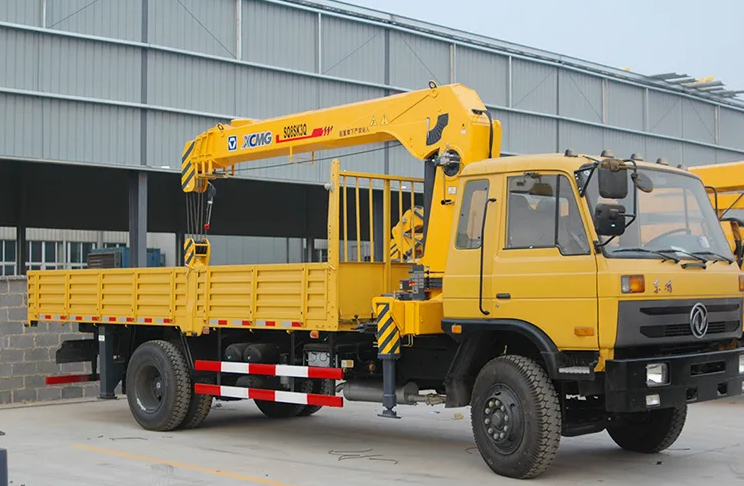

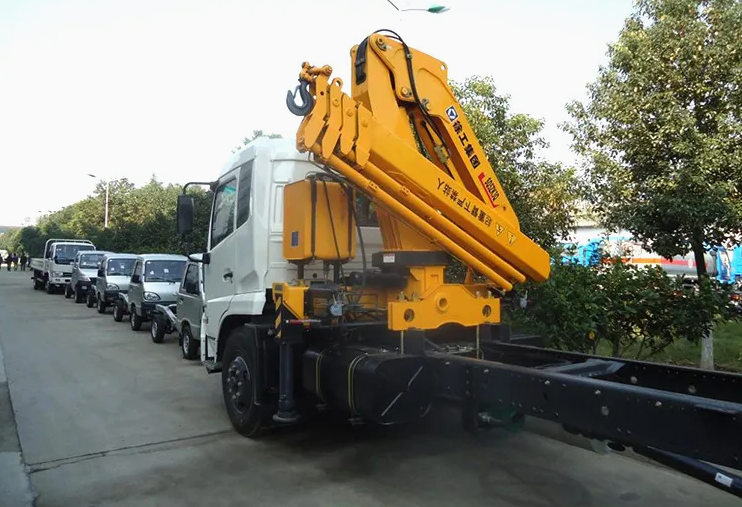

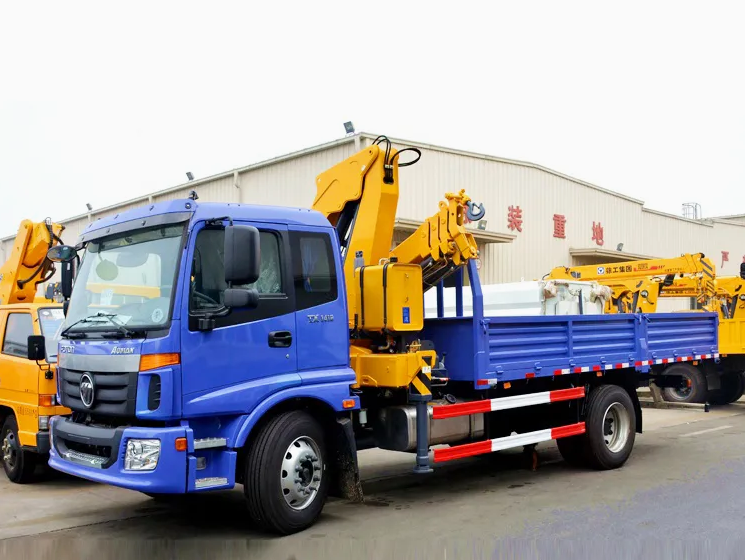

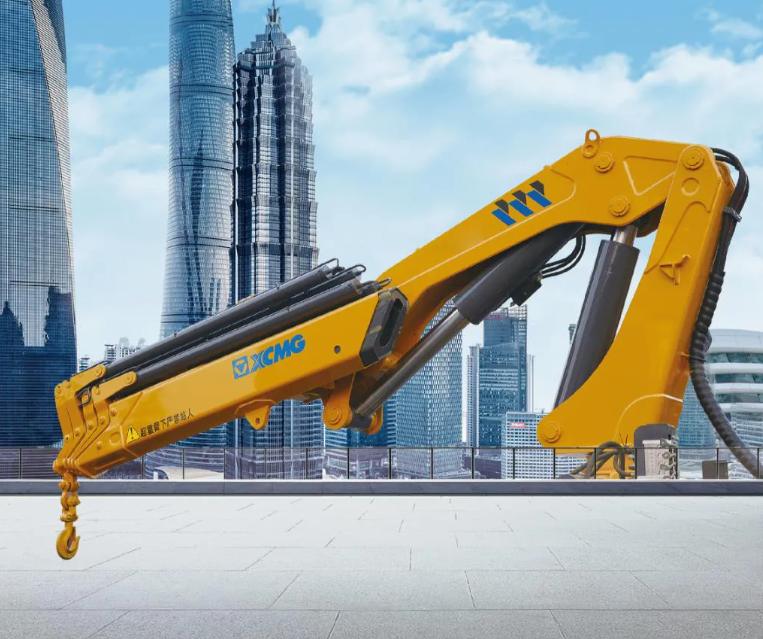

Product Introduction
This machine prioritizes safety, constructed from high-strength steel and equipped with multiple safety protection measures to effectively reduce the risk of misoperation and enhance operational safety. Its optimized hydraulic system consumes less energy while delivering smooth and reliable operation.
Product Advantage
1, advanced R & D and analysis means to ensure design reliability.
2, four-link mechanism, lifting capacity stronger.
3, flange telescopic arm connection structure.
4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions.
5, hexagonal boom technology, good for neutral, cross-section bending ability.
6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bears the additional force
Technical Parameters
| Item | Unit | SQ5ZK3Q |
| Max Lifting Capacity | kg | 5000 |
| Max Lifting Moment | t.m | 10.5 |
| Recommend Power | kw | 18 |
| Max Oil Flow of Hydraulic System | L/min | 25 |
| Max Pressure of Hydraulic System | Mpa | 28 |
| Oil Tank Capacity | L | 90 |
| Crance Weight | kg | 2117 |
| Installation Space | mm | 1050 |
| Rotation Angle | ° | 360°All Rotaion |
Product Uses
1. Construction and Municipal Engineering
This crane is suitable for construction sites and municipal projects, effectively handling the lifting and transport of building materials such as precast slabs and reinforcing bars. Its compact dimensions and radius enable flexible operation in confined workspaces, making it ideal for urban construction and environments with limited space.
2. Logistics Warehousing and Port Terminals
In logistics yards, warehousing centers, and port terminals, this equipment facilitates cargo loading/unloading, material handling, and stacking operations. Its excellent maneuverability and compatibility with various attachments enable adaptation to diverse lifting tasks and specialized working conditions.
3. Factory and Equipment Maintenance
In factory workshops, this crane facilitates heavy-load lifting during equipment installation, maintenance, and repairs. Constructed with premium materials and advanced manufacturing techniques, it delivers high reliability and durability for stable, long-term operation in harsh environments and demanding conditions.
4. Specialized Conditions and Emergency Operations
Equipped with multiple operational safety protections and an optimized hydraulic system, this crane also handles emergency rescue scenarios or specialized tasks requiring elevated safety standards.
Product Operate Guide
Operators of the SQ5ZK3Q truck-mounted crane must be certified. Before operation, ensure outriggers are fully extended on solid, level ground. Strictly consult the load chart provided with the equipment to ensure weight and reach remain within safe limits. Hydraulic controls must be operated smoothly and steadily. Lifting loads over personnel is strictly prohibited; maintain safe distances from power lines. Regularly inspect wire ropes and hooks.
FAQ
1. HOW TO PREVENT ROLLOVER ACCIDENTS?
Understand the equipment's stability range, avoid lateral operation on slopes, monitor load center position, and use safety devices.
2. HOW TO REPLACE THE HYDRAULIC OIL FILTER ELEMENT?
Shut down and relieve pressure, clean around the filter housing, remove using specialized tools, install new filter element while ensuring seal ring alignment.
3. HOW TO ADDRESS ABNORMAL TIRE WEAR?
Check and adjust tire pressure and alignment parameters. Balance the wheel hub. Avoid overloading and sudden acceleration/braking.
4. WHAT SHOULD BE NOTED WHEN ADJUSTING TRACKS?
Adjust on level ground. Maintain proper tension. Regularly inspect track pins and bushings for wear.
5. HOW TO REPLACE THE ENGINE BELT?
Release the tensioner, remove the old belt, install the new belt and adjust tension, check pulley alignment.
6. WHAT SHOULD BE NOTED WHEN REPAIRING THE BRAKE SYSTEM?
Use specialized tools, disassemble in sequence, replace worn components, adjust clearance after installation, and perform testing.
