Product Introduction

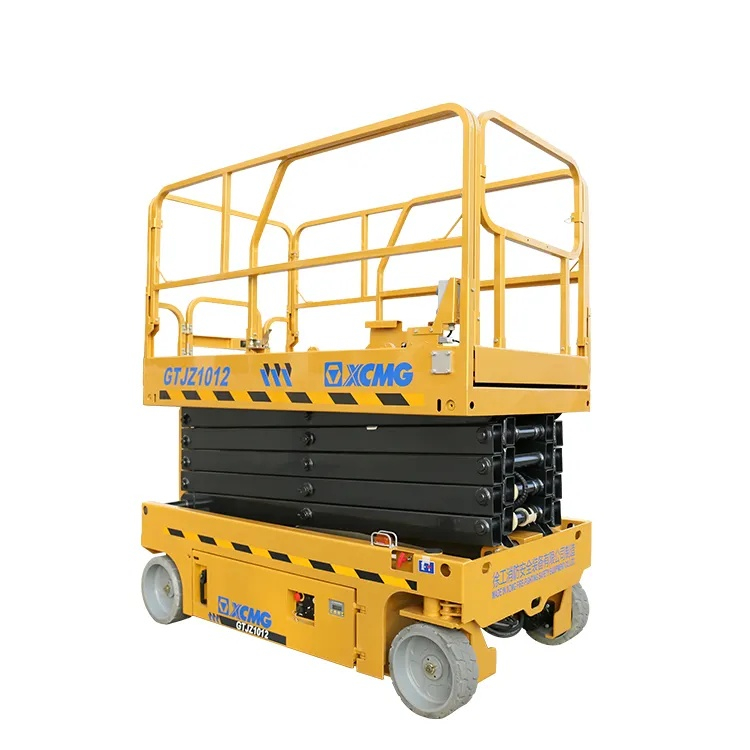

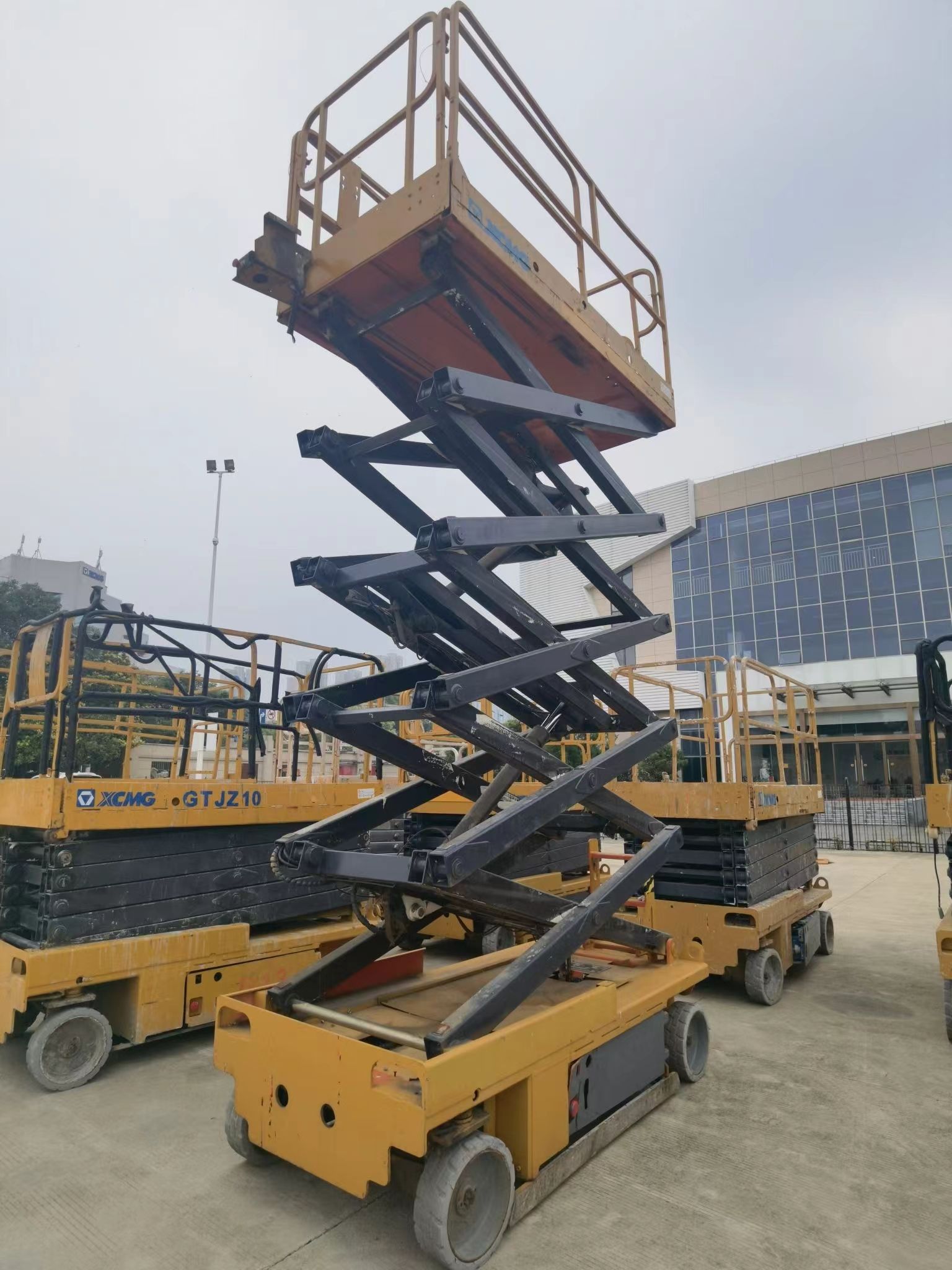

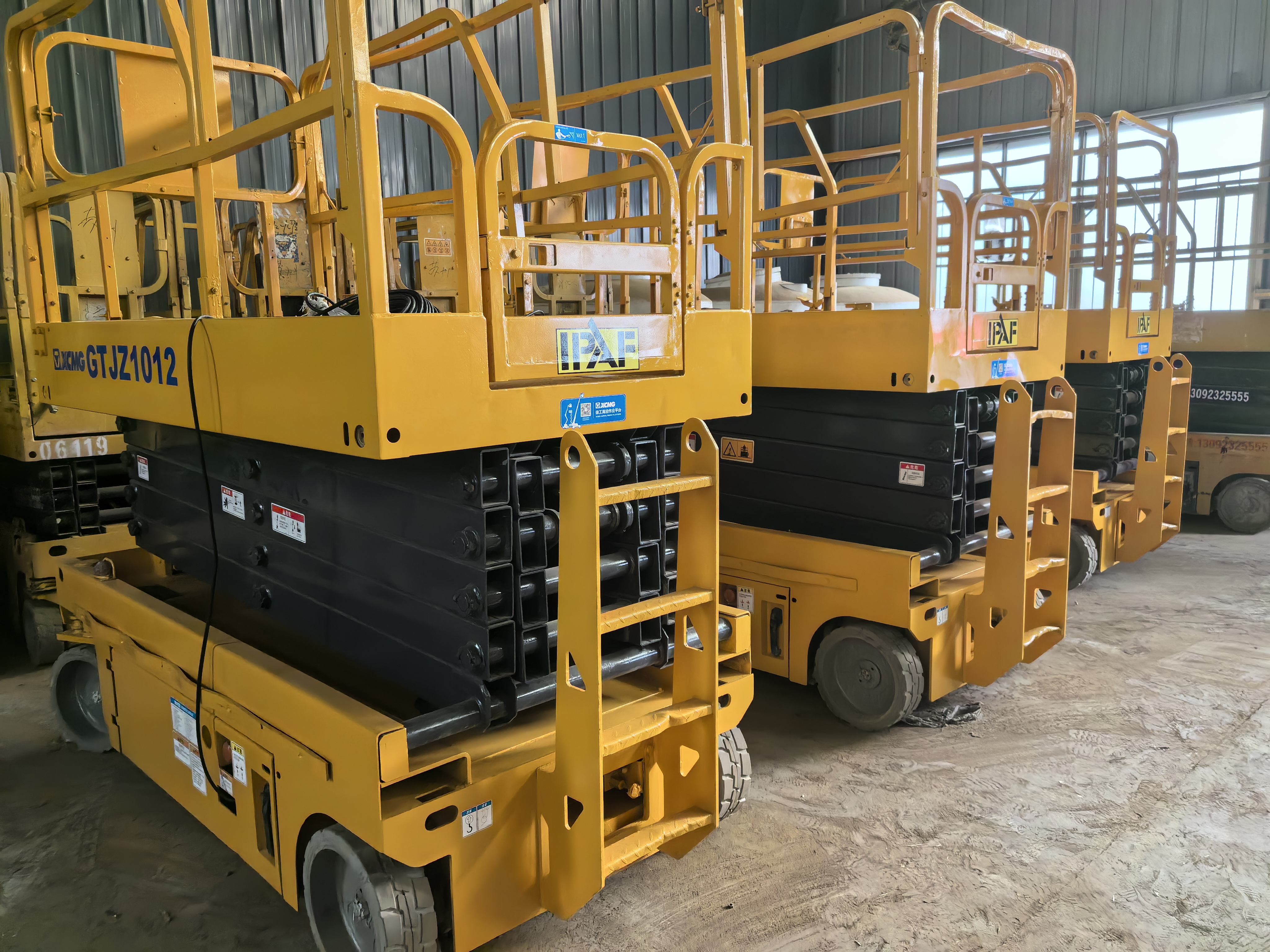

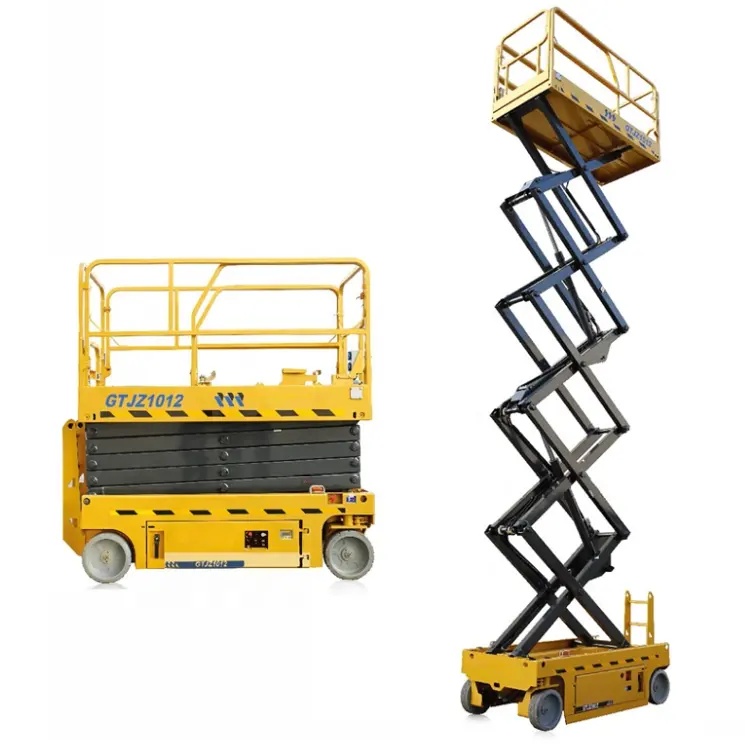

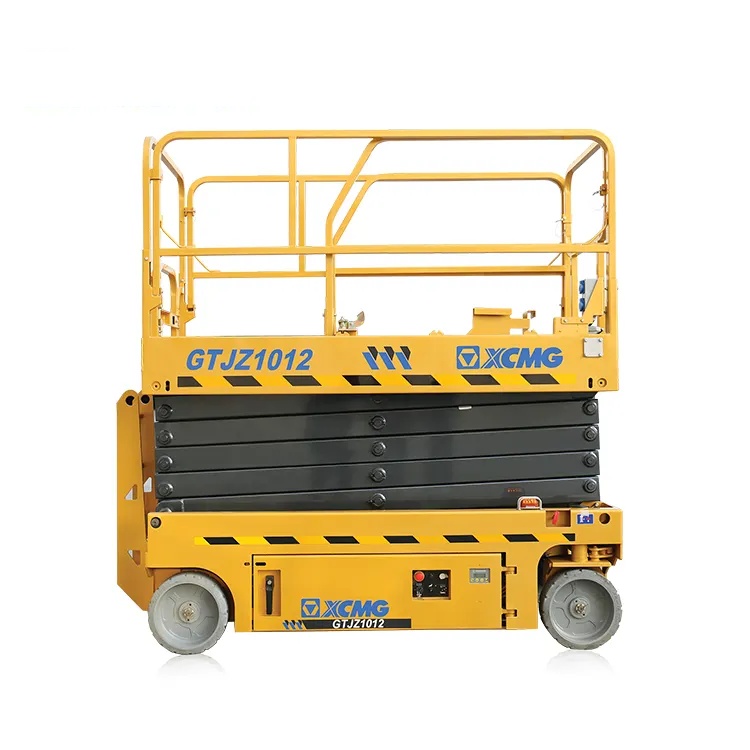

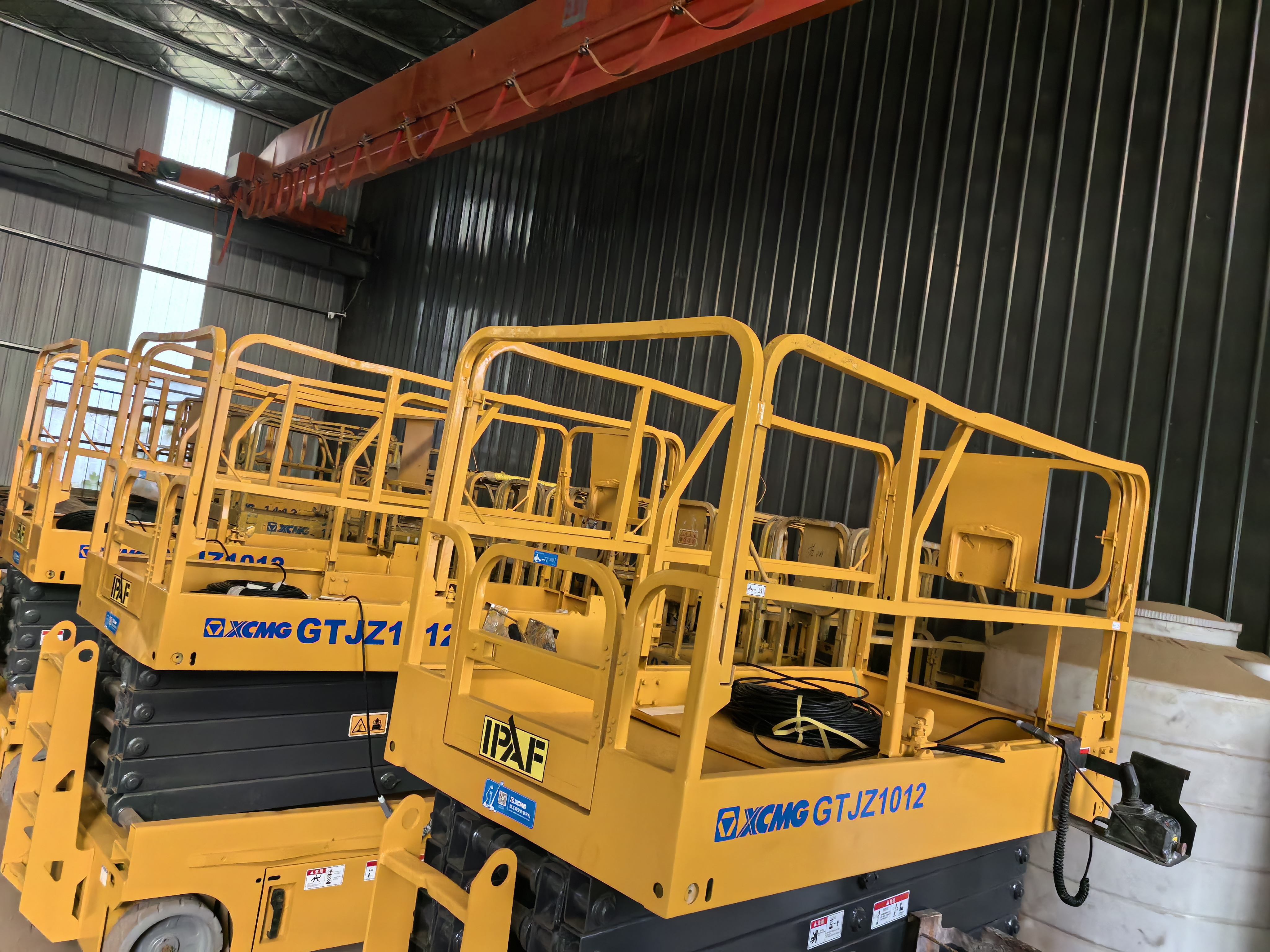

GTJZ1012 is a large and highly efficient electric scissor lift aerial work platform with a maximum working height of 10 meters. It is specially designed for scenarios such as the construction of large venues, maintenance of industrial plants, and warehousing and logistics that require high-altitude and heavy-load operations. It is a flagship product for aerial work.
Product Advantage
(1) Convenient transportation and stable operationScalable assistant expansion platform has bigger operation space and foldable rail makes transportation displacement more convenient. Industry-leading automatic hole protection system and tread widening design achieve that you can operate freely even at uneven ground.
(2) Environmental construction and convenient servicePure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
(3) General and modular designA set of booms are added, achieving rapid vehicle model extension, ensuring general design of parts and components and realizing more convenient customer repair and maintenance.
Technical Parameters
| Description | Unit | Parameter value |
| Overall length | mm | 2485 |
|
| Overall width | mm | 1170 |
| Overall Height(Guardrail folding) | mm | 2472(1908) |
| Wheel Base | mm | 1877 |
| Maximum Working Height | m | 12 |
| Maximum Platform Height | m | 10 |
| Maximum Load Capacity | kg | 320 |
| Extension Platform Load | kg | 115 |
| Platform Size | mm | 2276×1120 |
| Platform Extension Length | mm | 900 |
| Lifting Speed of Working Platform | s | 56 |
| Falling Speed of Working Platform | s | 43 |
| Total Weight | kg | 2940 |
| Travel Speed (High Speed) | km/h | 3.5 |
| Travel Speed (low Speed) | Km/h | 0.8 |
| Max. Travel Platform Height | m | 10 |
| Minimum Turning Radius | m | 0 |
| Minimum Ground Clearance (Pot Hole Protector Rises/Falls) | mm | 100/20 |
| Maximum Grade Ability | % | 25 |
| Tire Specification |
| 38.1cm×12.7cm |
| Battery | V/(Ah) | 4×6(240) |
| Charger | A | 30 |
| Warning Angle of Inclination | ° | 1.5 |
| ° | 3 |
Product Uses
• Large industrial plants: steel structure installation, equipment maintenance, pipeline laying
• Warehousing and logistics center: High-rack storage and retrieval, lighting system maintenance
• Decoration and maintenance of large commercial venues: airports, stadiums and theaters
• Construction: Exterior wall construction and installation work for medium and low-rise buildings
Product Operate Guide
1. Power startup: Insert the key and turn it to the "ON" position. Observe that there are no fault alarms on the control panel (pay special attention to the load display returning to zero).
2. Mode Selection:
◦ Platform mode: Operated through the platform console (main mode)
◦ Ground mode: Operated with a dedicated remote control (authorization required for activation)
3. Basic Operations:
◦ Movement: Slowly push the proportional handle, and the device will accelerate continuously (maximum speed ≤6km/h)
◦ Lifting: Operate the lifting handle to lift and lower smoothly. Sudden start and stop are strictly prohibited
◦ Turning: Pay attention to the swing radius at the tail of the equipment and maintain a safe distance
FAQ
1.What power does the equipment use?How long is the battery life?
A: It adopts a 48V AC drive system. After a full charge, the battery life is approximately 8 to 10 hours (depending on the load and operating frequency).
2.How to switch between platform and ground operations?
A: Switch via the console key switch
• Platform mode: Turn the key to the "Platform" position
• Ground mode: A dedicated remote control (optional accessory) is required.
3.What should I do if the equipment has a "tilt alarm" and cannot be raised or lowered?
A: Indicates that the ground slope exceeds the limit (> 3°) :
1. Move the equipment to a level ground immediately
2. Press the "Reset" button on the console to clear the alarm
4.What safety protection devices does the equipment have?
A: Equipped with multiple protections
• Dual emergency stop buttons (platform + chassis)
• Tilt alarm system (automatically locked when > 3°)
• Manual emergency descent device
• Reinforced pit protection rail
Real-time load monitoring system (automatic locking in case of overload
5.How to land safely in case of a sudden power outage?
A: Follow these steps
Tighten the manual pump valve clockwise
2. Press the handle repeatedly until the platform touches the ground
6.What should I do if there is an abnormal noise when the equipment is moving?
A: Stop the machine immediately for inspection
1. Remove foreign objects entangled around the wheel axle
2. Check if the tires are damaged or underinflated
