XM200
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

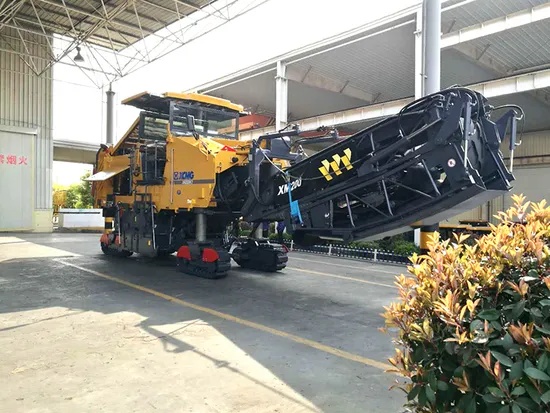

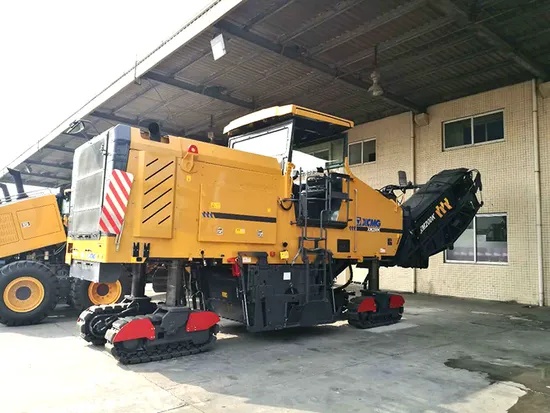

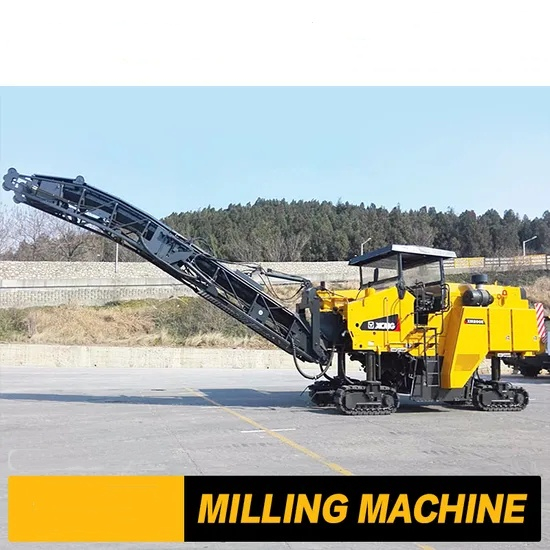

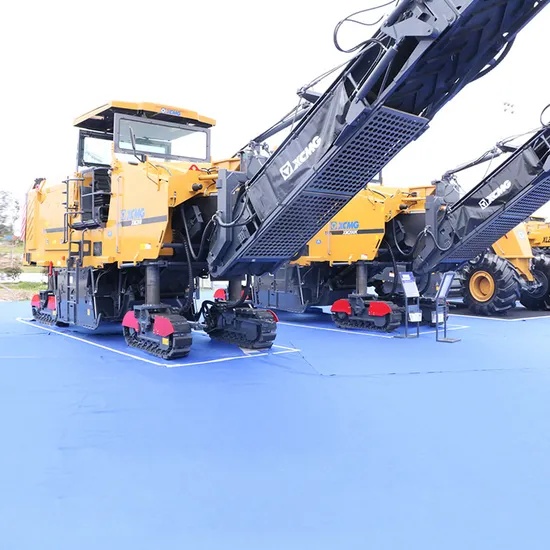

The XM200 is a medium-sized crawler road milling machine. The "200" in its model number usually indicates that its standard milling width is 2000mm (2 meters). This product is a core piece of equipment in asphalt pavement maintenance and renovation projects. It enjoys a high reputation in the market for its efficient working capacity, reliable performance and good cost performance.
Product Advantage
1. The anti-torsion chassis is made of high strength material and steel plates, can resist deformation under various load and terrain conditions.
2. Four crawlers are independently driven by hydraulic motors. All speed regulation can be operated on the control console at both sides of the driver.
3. Automatic power regulator can let the engine load automatically finish matching between milling power and driving power.
4. The power of diesel engine is transmitted through the clutch and power conveyor belt to the reducer of milling rotor, in order to provide the biggest milling power.
5. The milling machine is equipped with a set of accurate automatic vertical control device to control the milling depth.
6. The spacious central channel- type operating console is equipped with two seats on the right and left respectively, and the vision in front of the machine is wide, for the convenience of observing conveying device and interval on both sides of milling rotor edges.
Technical Parameters
| Item | Unit | XM200 | |
| Maximum milling width | mm | 2000 | |
| Maximum milling depth | mm | 320 | |
| Milling wheel | Tool spacing | mm | 15 |
| Number of tools | 162 | ||
| Milling wheel diameter (with tool) | mm | 980 | |
| Milling wheel maximum inclination | ° | 5 | |
| Diesel engines | Cooling method | Water cooling | |
| Model | DHP13 | ||
| Number of cylinders | 6 | ||
| Rated power | kw | 390 | |
| Engine speed | rpm | 2100 | |
| Fuel consumption: full load | l/h | 103 | |
| Speed/grade ability | Working speed | m/min | 0-34 |
| Walking speed | km/h | 0-5 | |
| Theoretical Gradeability (Working Blocks) | % | 60% | |
| Ground clearance | 320 | ||
| Weight / load | Shipping weight | kg | 30000 |
| Working weight | kg | 34000 | |
| Track device | Front track | mm | 1720×300×620 |
| Rear crawler | mm | 1720×300×620 | |
| Box volume | Fuel tank | L | 1400 |
| Hydraulic tank | L | 400 | |
| Water tank | L | 3400 | |
| Electrical system | V | 24 | |
| Conveyor belt device | Aggregate conveyor belt width | mm | 800 |
| Discharging conveyor width | mm | 800 | |
| Conveyor belt conveying capacity | ≤m3/h | 330 | |
| Shipping dimensions | Machinery (length×width×height) | mm | 7650×2580×3000 |
| Belt conveyor (length × width × height) | mm | 8060×1150×1500 | |
Product Uses

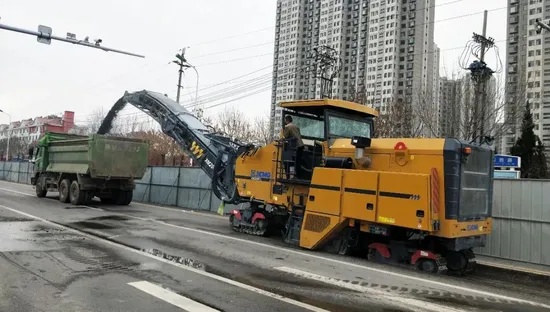

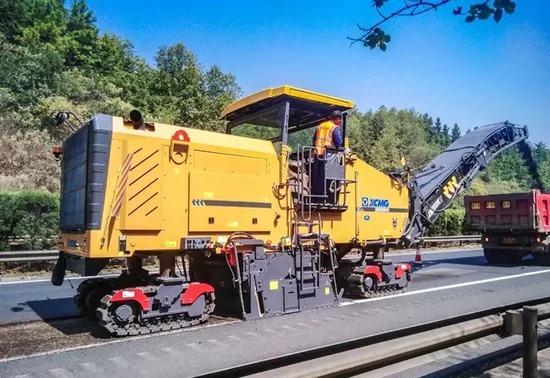

1. Asphalt pavement maintenance and renovation
The XM200 efficiently removes ruts, cracks, and other damaged layers. The precise hydraulic control system ensures milling accuracy.
2. Grooving and roughening of cement pavement
Specialized fine-cutting blades provide precise milling, effectively enhancing the bond between new and old pavement layers. The automatic leveling system ensures consistent groove depth, extending the service life of the overlay layer.
3. Stabilized Base Layer Regeneration Treatment
High-torque rotors effortlessly break down thick stabilized base layers, while an integrated water spraying system effectively suppresses dust. Milling material can be directly reused via on-site cold regeneration equipment, achieving zero-waste construction.
Product Operate Guide
Milling Preparation:
Check the wear of the cutter head (replace if wear exceeds 15%)
Preset the milling depth and calibrate the automatic leveling system
Efficient Operation:
Maintain a constant milling speed
Activate the water sprinkler dust suppression system in a timely manner
Safety Regulations:
Set up warning signs in the work area
Only leave the machine after the rotor has completely stopped
Lock the vehicle stability device when working on slopes
Smart Maintenance:
Lubricate the drive chain every 8 hours
Clean the material accumulation belt daily
Use the onboard diagnostic system to predict potential issues
