Product Introduction

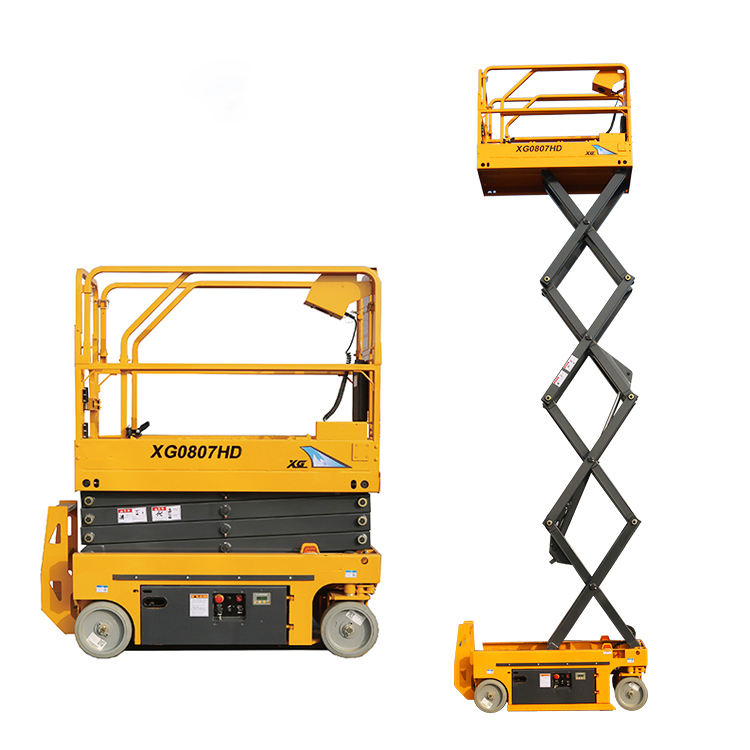

XG0807HD-Li is a heavy-duty self-propelled electric scissor lift powered by high-performance lithium battery. It delivers a maximum working height of 7.8m and a rated load of 230kg. Featuring compact body, solid tires and robust all-steel scissor structure, this model runs with low noise and zero emissions. Adopting advanced lithium power system, it enjoys longer working time and faster charging. With complete safety configurations and CE certification, it is suitable for indoor and light outdoor aerial jobs in construction, warehouse management and facility maintenance.
Product Advantages
Lithium Battery Power: Fast charging, ultra-long continuous working time, high cycle life and low self-discharge rate.
Heavy-duty & Stable Structure: Reinforced scissor frame and solid tires, excellent stability on flat and slightly uneven ground.
Compact & Flexible: Narrow body and flexible steering, easy to pass through standard doors, elevators and narrow aisles.
Full Safety Protection: Equipped with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform.
Extendable Platform: 0.9m extended deck expands working area, improving operation convenience.
Low Maintenance: Simple structure and durable components, nearly maintenance-free for lithium battery, greatly reducing daily service cost.
Eco-friendly Operation: Electric drive with no exhaust and low noise, friendly to all working environments.
Product Specification Table
Item | Specification |
Model | XG0807HD-Li |
Max. Working Height | 7.8 m |
Max. Platform Height | 5.8 m |
Rated Load Capacity | 230 kg |
Extended Platform Load | 115 kg |
Platform Size (L × W) | 1670 × 740 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (L×W×H, Folded) | 1900 × 810 × 2160 mm |
Total Weight | 1470 kg |
Inner Turning Radius | 0 m |
Outer Turning Radius | 1.75 m |
Ground Clearance | 20 mm (Raised) / 70 mm (Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 13 ~ 30 s |
Lowering Time | 25 ~ 35 s |
Battery Type | Lithium Battery |
Charging Time | 2 ~ 3 hours |
Continuous Working Time | 8 ~ 10 hours |
Certification | CE |
Application Scenarios
Construction Sites: Interior decoration, wall painting, electrical wiring and pipeline installation.
Warehouse & Logistics: Inventory inspection, shelf assembly and lighting maintenance in narrow aisles.
Commercial Places: Lamp replacement, sign installation and ceiling cleaning in malls, hotels and exhibition halls.
Building Maintenance: Daily repair and upkeep for office buildings, apartments and public facilities.
Light Outdoor Work: Facade maintenance, street lamp repair and simple engineering work on flat ground.
Event Layout: Stage setup, banner hanging and equipment installation for exhibitions and conferences.
Operation Guide
1 Pre-operation Inspection
Check battery power, tire condition and hydraulic oil level.
Examine safety railings, extendable platform and locking pins to ensure firm connection.
Test emergency stop, tilt alarm and pothole protection devices for normal operation.
Remove ground obstacles and confirm the working surface is flat and solid.
2 Driving Operation
Turn the key switch to ON to start the machine.
Control forward and backward movement via joystick. Speed will be limited when the platform is raised.
Steer gently. Do not make sharp turns or drive on slopes over 25% during elevated work.
3 Lifting & Lowering
Press the lift button to raise the platform; release to stop.
Press the lower button to descend. Keep the area below clear of people and obstacles.
Extend the auxiliary platform only after the main platform is fully lifted. Do not exceed the rated load.
4 Safety Regulations
Never overload: 230kg for main platform and 115kg for extended platform.
It is prohibited to travel on steep slopes while the platform is elevated.
Operators must wear safety harness when working at height.
Fully lower the platform before moving the lift to another position.
5 Shutdown & Maintenance
Lower the platform completely and retract the extended deck.
Turn off the key switch and cut off the power.
Clean the machine and check for loose parts or damage.
Charge the battery timely after use. For long-term storage, keep battery power at around 80%.
Store the machine in a dry and ventilated area.
FAQ
Q1: What is the maximum working height of XG0807HD-Li?
A: The maximum working height is 7.8m, and the maximum platform height is 5.8m.
Q2: What are the advantages of its lithium battery?
A: It features fast charging, long continuous working time, long service life and almost no daily maintenance.
Q3: Can this lift be used outdoors?
A: Yes, it can work for light outdoor tasks on flat solid ground. Avoid heavy rain, strong wind and rough terrain.
A: The extended platform can hold up to 115kg. Overload is strictly forbidden.
Q5: How long does it take to fully charge the battery?
A: It only takes 2 to 3 hours for a full charge.
Q6: What safety systems does this machine have?
A: It is fitted with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform.
