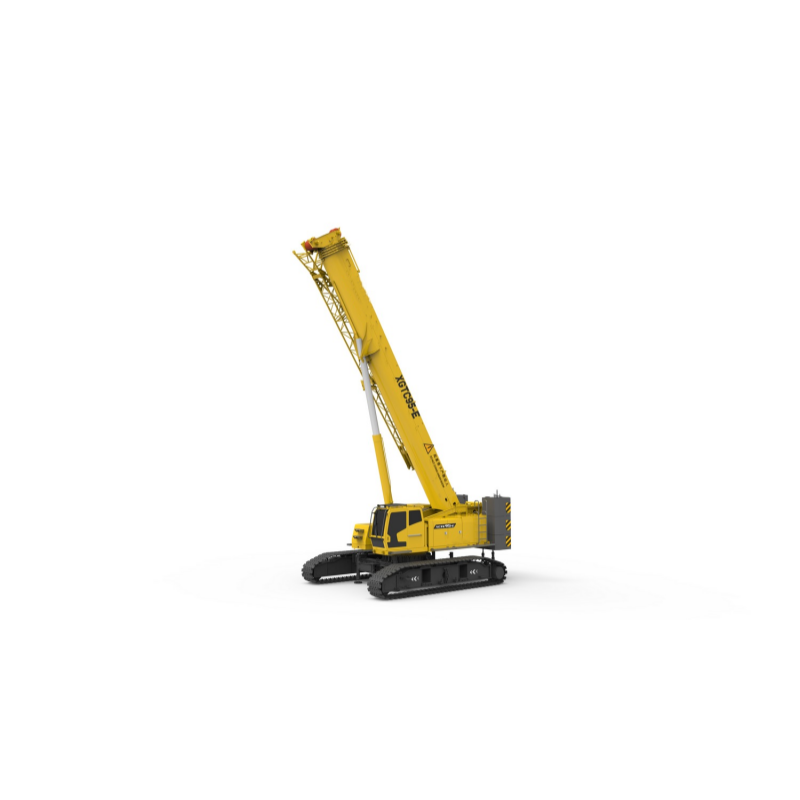

Product Description
The XGTC95-E electric telescopic boom crawler crane is a brand-new green and intelligent lifting equipment tailored for low-carbon and energy-saving construction scenarios. Different from traditional fuel cranes, this model adopts a mature permanent magnet synchronous electric drive system, which eliminates fuel consumption, exhaust emissions and engine maintenance costs, realizing full green operation and meeting global environmental protection and low-carbon construction standards.
The whole machine is built with high-strength structural steel, paired with an optimized load-sensitive hydraulic system, achieving smooth, stable and precise lifting, slewing and traveling operations. The 5-section telescopic main boom features a flexible stretching range from 13.3m to 52m, matched with a 2-stage fixed jib, forming a maximum working height of 69.5m, which fully covers medium and high-altitude lifting operations in various engineering projects.
Designed for complex construction environments, the tracked undercarriage delivers ultra-low ground pressure and strong terrain adaptability, enabling stable operation on soft soil, muddy roads, slopes and limited-space construction sites without outriggers. The core self-assembly and self-disassembly function of counterweights and track beams is reserved, requiring no auxiliary crane for on-site assembly and disassembly, effectively reducing equipment rental costs and improving construction efficiency.
In terms of intelligent and safe configuration, the crane is equipped with a full set of intelligent monitoring systems, including real-time load moment detection, height limit protection, emergency stop device and automatic fault diagnosis function, which can effectively avoid overload and misoperation risks. Meanwhile, the upgraded silent cab with sound insulation and shock absorption design optimizes the operating environment and improves long-term working comfort for operators. It is widely applicable to new energy engineering, urban green construction, bridge installation, steel structure hoisting and other scenarios, becoming the preferred energy-saving and efficient lifting equipment for global engineering contractors.
Product Advantages
Green Electric Drive, Low Operation Cost
Adopts high-efficiency permanent magnet synchronous motor with zero exhaust emission, ultra-low noise and no fuel consumption. It avoids frequent engine maintenance of traditional fuel cranes, greatly reducing daily operation and maintenance costs, and complying with international low-carbon environmental protection standards.
Powerful Lifting & Wide Working Range
Max rated lifting capacity reaches 95 tons (main boom), with a maximum lifting moment of 3600kN·m. The 5-section U-shaped main boom (13.3m-52m) plus auxiliary jib realizes a maximum working height of 69.5m, covering diverse high-altitude and long-distance lifting tasks.
Strong Terrain Adaptability
Crawler traveling design with 45% super gradeability and ultra-low ground pressure. It can work stably on mud, sand, soft ground and uneven slopes without outriggers, perfectly adapting to harsh and complex construction sites.
Full Self-Dismantling, High Cost-Efficiency
Supports independent assembly and disassembly of counterweights and track beams without auxiliary cranes. The compact transport size (height <3.5m) realizes convenient transition, saves site preparation time and reduces construction auxiliary costs.
Intelligent Safety Protection System
Equipped with load moment limiter, height limit device, emergency stop system, real-time fault diagnosis and overload protection functions. Full-dimensional safety monitoring ensures stable and safe operation under heavy load and complex working conditions.
Comfortable & Humanized Operation
Upgraded silent sound-insulated cab with shock-absorbing structure and humanized operating handles. The optimized operating channel and intelligent display system reduce operation fatigue and improve construction efficiency.
Technical Parameters
Item | Unit | XGTC95-E |
Max Main Boom Lifting Capacity | t | 95 |
Max Jib Lifting Capacity | t | 6.5 |
Max Lifting Moment | kN·m | 3600 |
Main Boom Length | m | 13.3 - 52 (5 sections) |
Fixed Jib Length | m | 10.5 / 17.5 |
Max Lifting Height (Boom + Jib) | m | 69.5 |
Motor Rated Power | kW | 200 |
Max Gradeability | % | 45 |
Average Ground Pressure | MPa | 0.088 |
Whole Machine Weight | t | 92.4 |
Max Travel Speed | km/h | 1.5 |
Slewing Speed | r/min | 1.5 |
Main/Aux Hoist Max Rope Speed | m/min | 130 |
Transport Height | m | ＜3.5 |
Drive Type | - | Electric (Permanent Magnet Synchronous Motor) |
Product Applications
- Wind power project auxiliary hoisting and equipment installation
- Urban green low-carbon infrastructure construction
- Bridge engineering installation and component hoisting
- Steel structure factory building and prefab construction
- Foundation engineering and pile foundation construction
- Industrial park equipment installation and maintenance
- Mountainous and harsh terrain engineering projects
- Environmental protection and low-carbon standard construction projects
FAQ
Q1: What are the core advantages of XGTC95-E electric crawler crane compared with fuel cranes?
A: XGTC95-E adopts full electric drive, with zero emission, ultra-low noise and no fuel cost. It has fewer wearing parts, lower maintenance costs and longer service life, fully meeting global environmental protection and low-carbon construction requirements, which is more suitable for urban and green engineering projects.
Q2: Does XGTC95-E require an auxiliary crane for assembly and disassembly?
A: No auxiliary crane is needed. The machine supports self-dismantling and self-installation of counterweights and track beams. A single operator can complete on-site assembly and disassembly, saving a lot of auxiliary equipment costs and construction time.
Q3: Can this electric crane work on muddy and soft ground?
A: Yes. The tracked undercarriage provides ultra-low ground pressure of 0.088MPa and strong trafficability. It can work stably on mud, soft soil, slopes and other harsh terrain without outriggers.
Q4: What safety systems does the XGTC95-E crane equip?
A: It is equipped with a complete set of safety devices including load moment limiter, height limit switch, emergency stop system, automatic fault diagnosis, overload protection and travel warning device, ensuring full-process safe operation.
Q5: What is the warranty and after-sales service?
A: We provide 1-year full machine warranty and 1.5-year warranty for core motor and hydraulic components. Global after-sales support, spare parts supply and technical guidance are available.
Q6: Is customized configuration available?
A: Yes. Optional configurations include auxiliary jib, multi-specification hooks, low-temperature start-up system and centralized lubrication system to meet different project and regional construction needs.
