XG1412HD-Li
| Availability: | |
|---|---|
| Quantity: | |

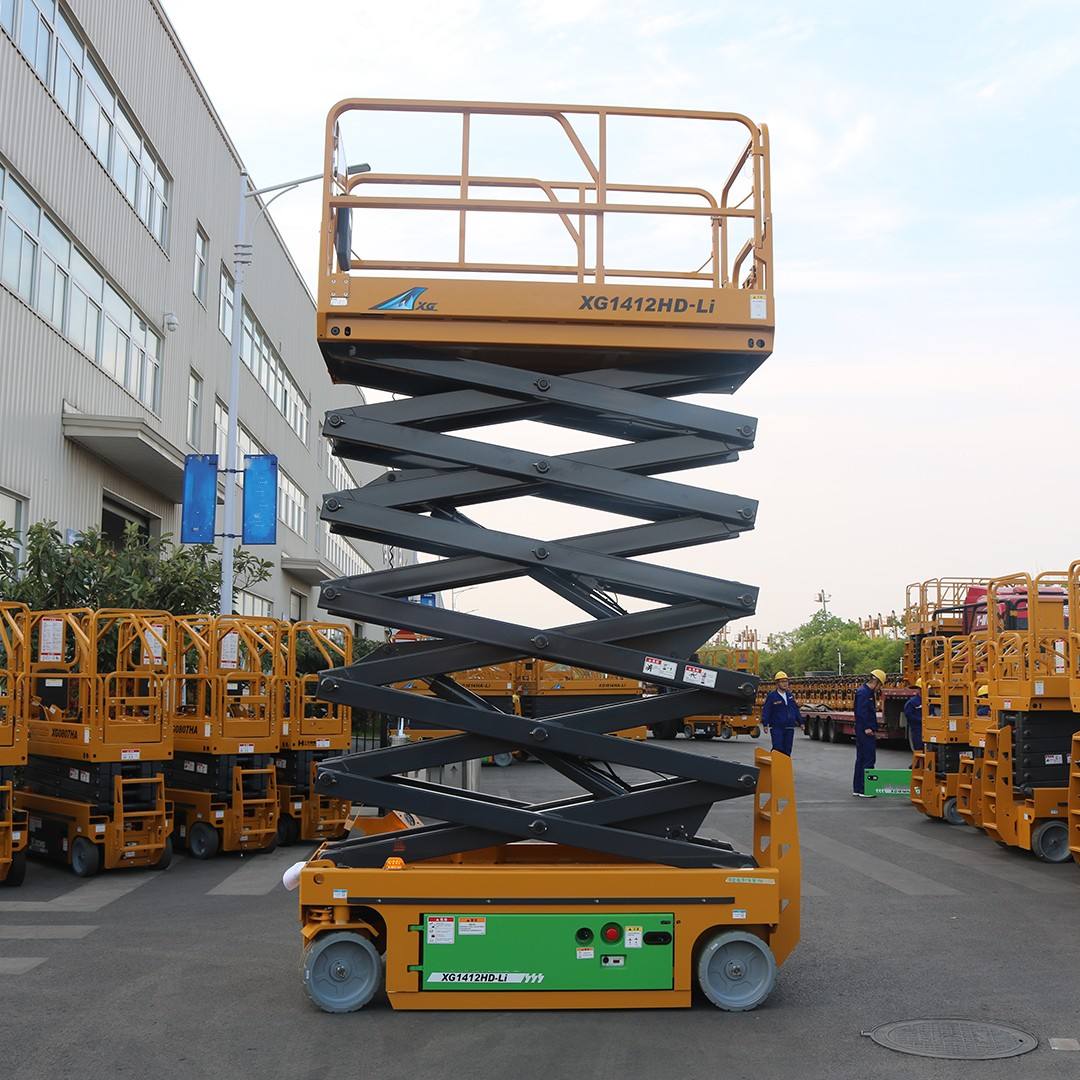

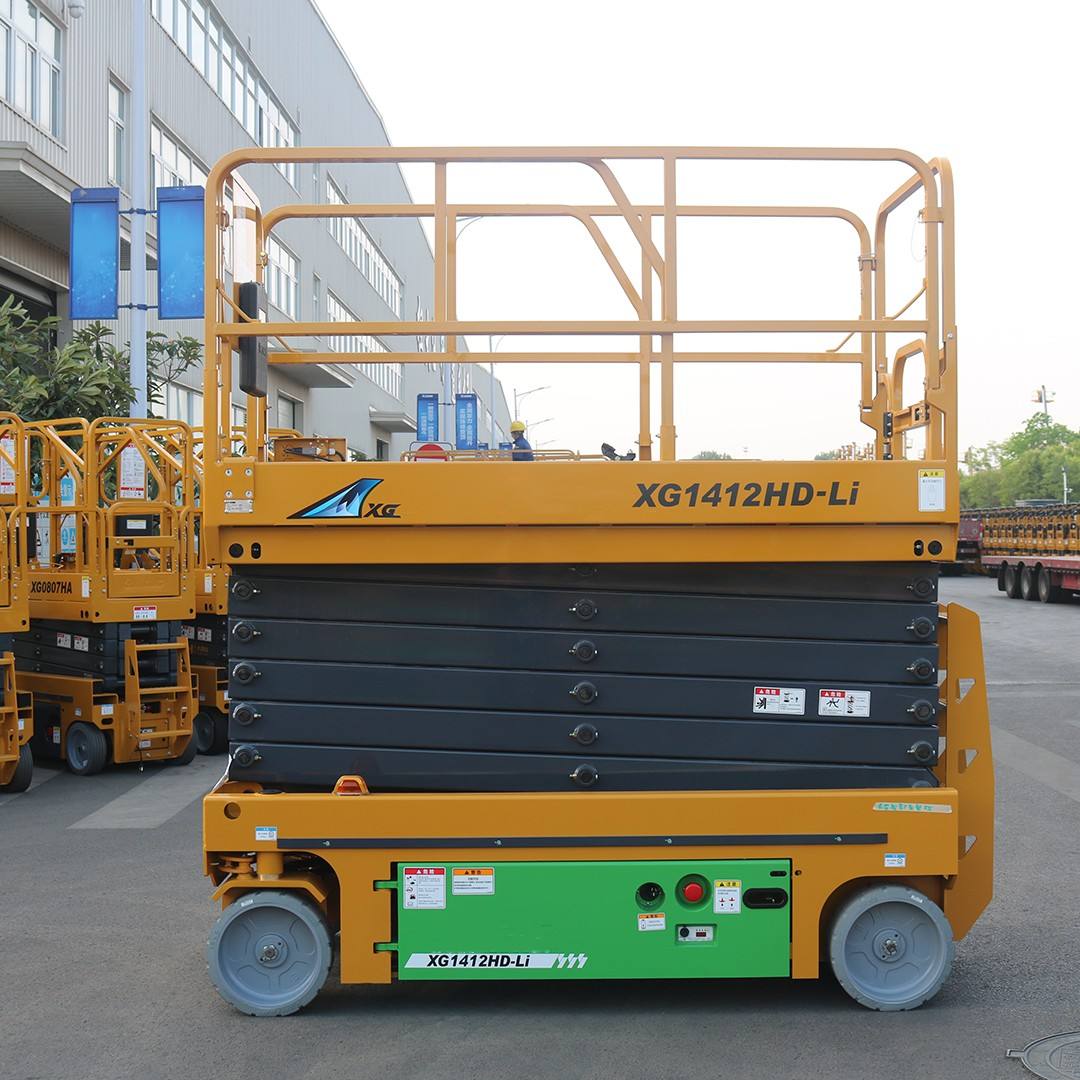

The XG1412HD-Li is a heavy-duty self-propelled scissor lift powered by high-performance lithium batteries, designed for efficient and safe high-altitude operations. This model delivers a maximum working height of 15.8 meters and a standard rated load of 320 kilograms. Adopting reinforced steel structure and wear-resistant solid tires, the equipment boasts superior structural stability, adapting seamlessly to indoor operational scenarios and mild outdoor working conditions. With fast charging capability, long-duration continuous operation and low-maintenance structural design, the product has passed authoritative CE certification. It is widely applicable to high-altitude operation scenarios such as construction projects, warehouse logistics management, commercial venue maintenance and municipal engineering services.
Superior Working Height and Heavy Load Capacity: Equipped with a 15.8-meter maximum working height and 320-kilogram rated load capacity, the equipment fully meets diverse high-altitude lifting and heavy-duty operation requirements for engineering and daily maintenance work.
Reinforced Heavy-Duty Structural Frame: The thickened integral steel frame and enhanced scissor arm structure greatly improve overall structural rigidity and mechanical stability, effectively extending the equipment’s service life and reducing structural failure risks.
High-Quality Lithium Battery Configuration: The matched lithium battery pack supports fast charging, long-hour continuous operation and more than 1000 charge-discharge cycles, ensuring stable and reliable long-term cyclic use of the equipment.
Zero Daily Fluid Maintenance Design: Eliminates the need for regular electrolyte inspection and replacement required by traditional battery equipment, significantly reducing daily maintenance labor intensity and operational costs.
Excellent Terrain Adaptability: Equipped with high-abrasion solid tires, the equipment can travel stably on flat grounds and slightly undulating pavements, delivering reliable terrain adaptability for complex on-site environments.
Flexible and Agile Mobility: Featuring a compact body structure and flexible steering system, the equipment can easily pass through standard door openings, elevator carriages and narrow passageways, with strong on-site accessibility.
Comprehensive Safety Protection System: Integrated with multiple safety configurations including overload protection device, tilt angle alarm system, emergency stop switch, automatic pit protection mechanism and anti-slip working platform, realizing full-process operational safety monitoring.
Expandable Working Platform: The extendable auxiliary platform effectively expands the operating area for staff and tools, optimizing operational space and greatly improving overall high-altitude working efficiency.
Green and Low-Noise Operation: Adopting full-electric driving mode, the equipment produces zero exhaust emissions and low operating noise, supporting long-term uninterrupted environmental-friendly operations for indoor and closed spaces.
Item | Detailed Specification |
|---|---|
Equipment Model | XG1412HD-Li |
Maximum Working Height | 15.8 m |
Maximum Platform Height | 13.8 m |
Rated Main Platform Load | 320 kg |
Extended Platform Load Capacity | 120 kg |
Main Platform Dimension (L × W) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Folded Overall Dimension (L×W×H) | 2850 × 810 × 2520 mm |
Total Equipment Weight | 2220 kg |
Outer Turning Radius | 1.8 m |
Ground Clearance (Raised / Stowed) | 22 mm / 72 mm |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 28 ~ 48 s |
Lowering Time | 35 ~ 48 s |
Power Supply Type | Lithium Battery |
Full Charging Duration | 2 ~ 3 h |
Continuous Working Duration | 8 ~ 10 h |
Certification Standard | CE |
Construction Engineering Sites: Suitable for indoor and outdoor building decoration, wall painting and finishing, electrical wiring layout, pipeline installation and other high-altitude construction operations.
Warehouse and Logistics Industry: Applied to high shelf daily maintenance, inventory inspection, warehouse lighting system overhaul and high-altitude handling auxiliary work.
Commercial Venues: Ideal for ceiling cleaning and maintenance, lighting lamp replacement, billboard and display frame installation in shopping malls, hotels, exhibition centers and other public commercial spaces.
Building Daily Maintenance: Used for regular inspection, repair and maintenance of high-rise office buildings, residential apartments and public infrastructure facilities.
Municipal Engineering Works: Adaptable for street lamp maintenance and replacement, traffic sign installation and debugging, urban landscape greening pruning and other municipal daily operations.
Event Operation and Layout: Capable of stage assembly and disassembly, banner hanging, professional equipment arrangement and debugging for large-scale exhibitions, performances and various public activities.
Check the remaining power of the lithium battery, tire wear condition and hydraulic oil volume to ensure all components are in normal state.
Inspect the firmness of safety guardrails, telescopic platform and locking pins to confirm all structural parts are assembled in place and stably fixed.
Test the emergency stop function, tilt alarm system and automatic anti-pothole device to guarantee all safety protection mechanisms respond sensitively and effectively.
Clean up obstacles in the operation area, confirm the working ground is flat, solid and the ground slope is within the safe allowable range.
Turn the key switch to the ON gear to start the whole equipment system.
Control the forward and backward movement of the equipment through the operating joystick; the travelling speed will be automatically limited when the platform is lifted to a high altitude.
Operate the steering system gently during movement. Avoid sharp steering operations and driving on slopes exceeding 25% during high-altitude operation.
Press and hold the lifting button to raise the working platform, and release the button to suspend the lifting operation in real time.
Press the lowering button to descend the platform. Ensure no personnel or obstacles exist in the ground clearance area below the platform during the whole lowering process.
The auxiliary telescopic platform can only be stretched after the main platform is completely lifted. It is strictly prohibited to exceed the specified load limit of the extended platform during use.
Overload operation is strictly forbidden: the maximum load of the main platform is 320kg, and the maximum load of the extended platform is 120kg.
Do not drive or operate the equipment on a slope with a gradient higher than 25% when the platform is in the lifted state.
Operators must wear qualified safety harnesses and complete protective equipment during all high-altitude operations.
The platform must be fully lowered and the telescopic deck retracted before moving the equipment to a new working position.
Lower the working platform completely and retract the extended auxiliary deck to the initial folded state.
Turn off the equipment key switch and cut off the power supply to complete system shutdown.
Clean the surface of the whole equipment, and check all connecting fittings and core components for looseness, damage or abnormal wear.
Charge the equipment in a timely manner after daily use. For long-term idle storage, maintain the battery power at about 80% to protect battery activity.
Store the scissor lift in a dry, ventilated and flat indoor environment to avoid long-term exposure to harsh outdoor conditions.
Q1: What is the maximum working height of the XG1412HD-Li scissor lift?
A: This equipment features a maximum working height of 15.8 meters, with a maximum pure platform height of 13.8 meters, meeting most medium and high-altitude operation needs.
Q2: Is this lifting equipment available for outdoor operations?
A: Yes, it supports mild outdoor working scenarios on flat or slightly uneven ground. It is forbidden to operate the equipment in heavy rain, strong wind and rugged complex terrain to ensure operational safety.
Q3: What is the load limit of the extended platform?
A: The telescopic auxiliary platform has a maximum bearing capacity of 120 kilograms, and any overload use is strictly prohibited.
Q4: How long does it take to fully charge the lithium battery?
A: The equipment only needs 2 to 3 hours to complete full charging, with fast charging efficiency and short standby waiting time.
Q5: What safety protection configurations are equipped on the equipment?
A: The machine is fully equipped with overload protection system, tilt angle alarm device, emergency stop switch, automatic pit protection mechanism and anti-slip working platform, realizing multi-dimensional safety protection.
Q6: What is the continuous working time of the equipment with a full battery?
A: A fully charged battery supports 8 to 10 hours of continuous operation, and the specific working duration will be slightly affected by actual load weight and on-site working environment.
