ZL50GN
| Quantity: | |
|---|---|
| Overall dimensions | Overall length (bucket on the ground) | 8165 mm |
| Overall width | 2850 mm | |
| Bucket width | 3016 mm | |
| Overall height | 3485 mm | |
| Wheel base | 3300 mm | |
| Tread | 2250 mm | |
| Min. ground clearance | 450 mm | |
| Specification | Rated capacity | 5000 kg |
| Bucket volume | 2.5 m3 (Bucket for rock) | |
| 3 m3 (Standard bucket) | ||
| 3.5 m3 (Bucket for light material) | ||
| 4 m3 (Bucket for light material) | ||
| Operating weight | 17500kg±300kg | |
| Traveling speeds | ForwardⅠ/Reverse Ⅰ | 0~11.5/0~16.5 km/h |
| Forward Ⅱ/Reverse Ⅱ | 0~38 km/h | |
| Forward Ⅲ/Reverse Ⅲ | ||
| Forward Ⅳ/Reverse Ⅳ | ||
| Max. tractive force | 165±5kN | |
| Max. climbing gradient | 30 º | |
| Max. dumping angle | 45 º | |
| Max. dumping height | ≥3100 mm (main cutting edge) | |
| Dumping reach | ≥1100 mm (main cutting edge) | |
| Dumping angle of bucket | ≥45 º | |
| Max. Breakout force | Breakout force of bucket | 170 KN |
| Breakout force of lifting | 134 KN | |
| Maximum digging depth | 40 mm (the bucket bottom is level) | |
| Lifting time of boom | ≤6 s | |
| Total cycling time | ≤11 s | |
| Min. Turning radius | Outside of the bucket | 7300 mm |
| Center of the tyre | 6400 mm | |
| Turning angle of the chassis | 35 º | |
| Oscillating angle of the rear axle | ±12 º |
| provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand. | ||||||
| Engine | Model | WD10G220E11 | WD10G220E23 | 6CTAA8.3-C | SC11CB220G2 | SC8DK220G3 |
| Rated power | 162kW | 162kW | 153kW | 162kW | 162 kW | |
| Rated speed | 2200r/min | 2001r/min | 2200r/min | 2200r/min | 2200r/min | |
| Max. torque | ≥850N.m | 900 N.m | ≥991 N.m | 850 N.m | 920 N.m | |
| Speed | 1400~1600r/min | 1300~1500r/min | 1400r/min | 1300r/min | 1400~1600r/min | |
| Rated fuel consumption ratio | ≤238g/kW.h | ≤210g/kW.h | ≤241g/kW.h | 230±5%g/kW.h | 220±5%g/kW.h | |

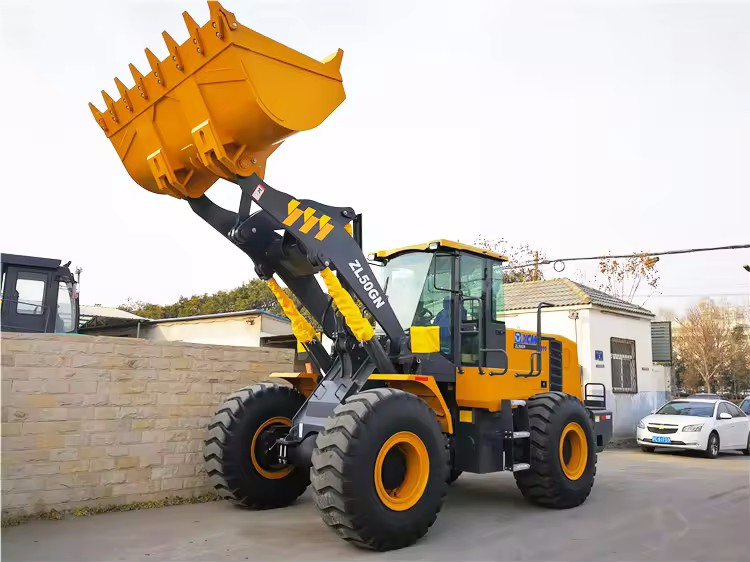

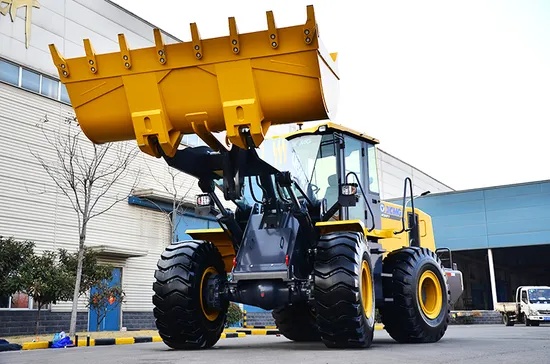

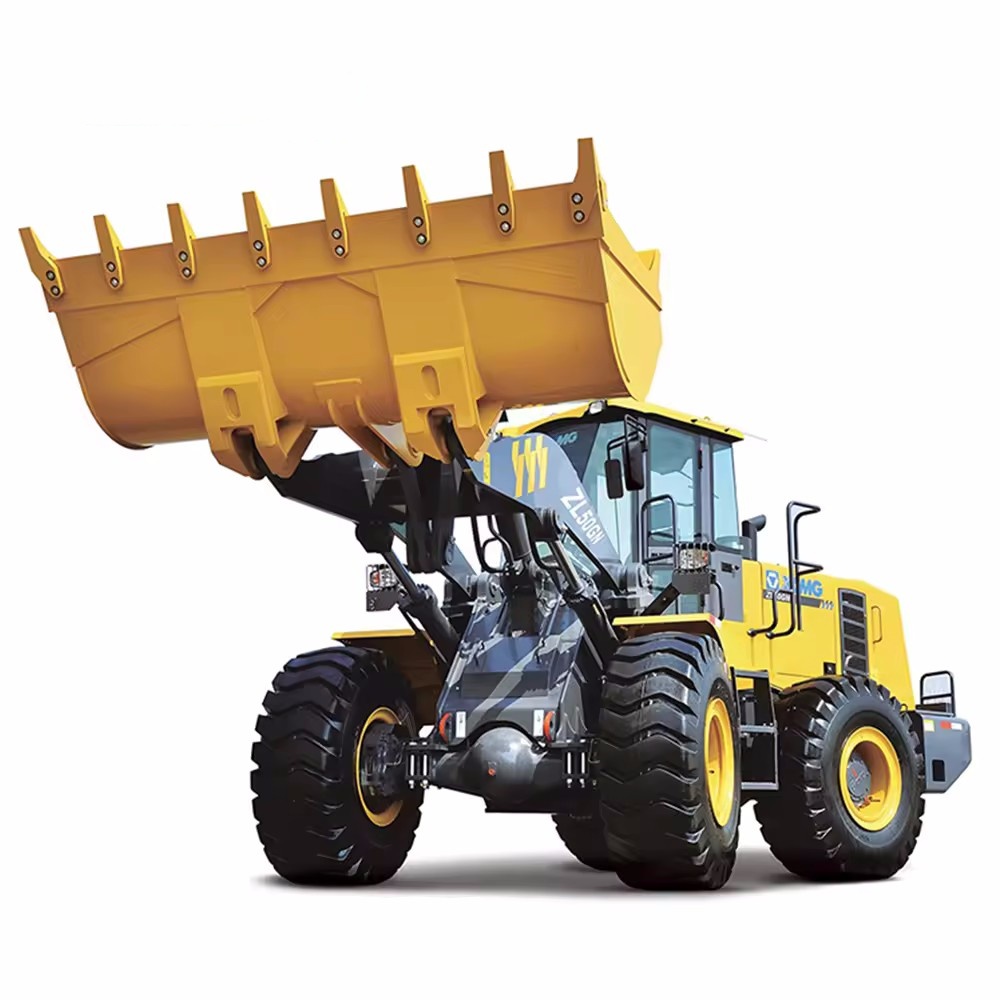

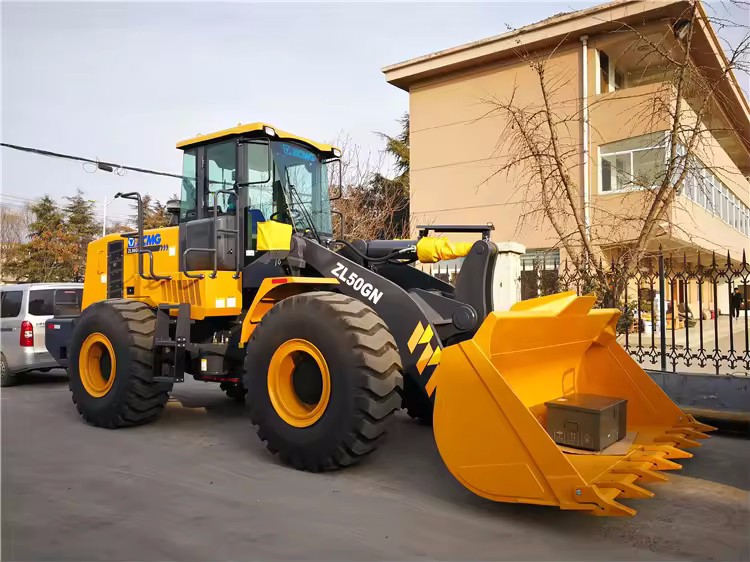

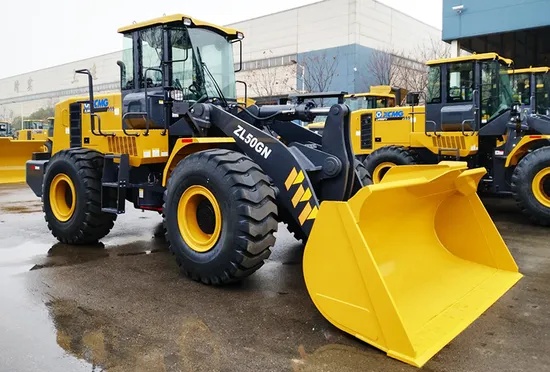

The ZL50GN Wheel Loader delivers a 5,000 kg rated load and 2.5-4.5 m³ bucket capacity, driven by a 162 kw high-torque diesel engine. It features 170 kn breakout force and 160 kn traction force, with overall dimensions of 8225×3016×3515 mm for balanced stability and maneuverability. The extended wheelbase and centered hinge structure further enhance operational stability during heavy loading.
Heavy-Duty Performance: With a lifting capacity of ≥7,500 kg and 3.5 m dumping height, it easily handles heavy, dense materials like iron ore and construction waste.
Low Consumption: A patented energy-saving transmission system reduces fuel use by 18% compared to similar models, lowering long-term operational costs.
Versatility: Supports over 8 types of attachments (snowplows, pallet forks, grass grapplers, and more), adapting to landscaping, snow removal, and material handling tasks.
Ideal for port cargo handling, where the efficient movement of various goods is crucial. This solution is also well - suited for coal logistics operations, ensuring the smooth flow of coal from mines to end - users. Moreover, it is perfect for large - scale construction projects, which often require the handling of massive amounts of construction materials.
In addition to these, it is highly appropriate for aggregate yards, where aggregates like sand, gravel, and crushed stone need to be managed and transported effectively. It also serves well in bulk material transportation within industrial zones, facilitating the movement of raw materials and semi - finished products among different industrial facilities.
Q: What is the minimum turning radius?
A: Its optimized design reduces the minimum turning radius to 5.8 m, minimizing tire wear and improving maneuverability in tight spaces.
Q: How long is the delivery time for this model?
A: In-stock units ship within 7 working days; custom configurations (e.g., special attachments, paint colors) require 30 days for production and delivery.
Start the engine：
Sit on the seat, adjust it to a comfortable position and fasten your seat belt.
Place the transmission lever in the "neutral (N)" position.
Press the accelerator pedal slightly.
Turn the key to start the engine and observe whether all the indications on the dashboard are normal. The vehicle can only be driven when the barometer reaches the specified value.
Machine Walking and Operation：
Start: Sound the horn as a warning and operate slowly and steadily.
Standard operating method: Adopt the "V-shaped operating method". The machine moves forward towards the material pile, inserts it, scoops up the material, then reverses, turns towards the direction of the carrying vehicle to move forward and lift and unload the material.
Loading operation: The bucket should be inserted horizontally or slightly downward into the material pile, and at the same time, it should be coordinated with the boom and bucket rotation movements.
Unloading operation: Lift the boom to an appropriate height, then flip the transfer hopper forward to unload all the materials. The movement should be smooth to minimize impact.
