2872279Z 860121204
| Availability: | |
|---|---|
| Quantity: | |

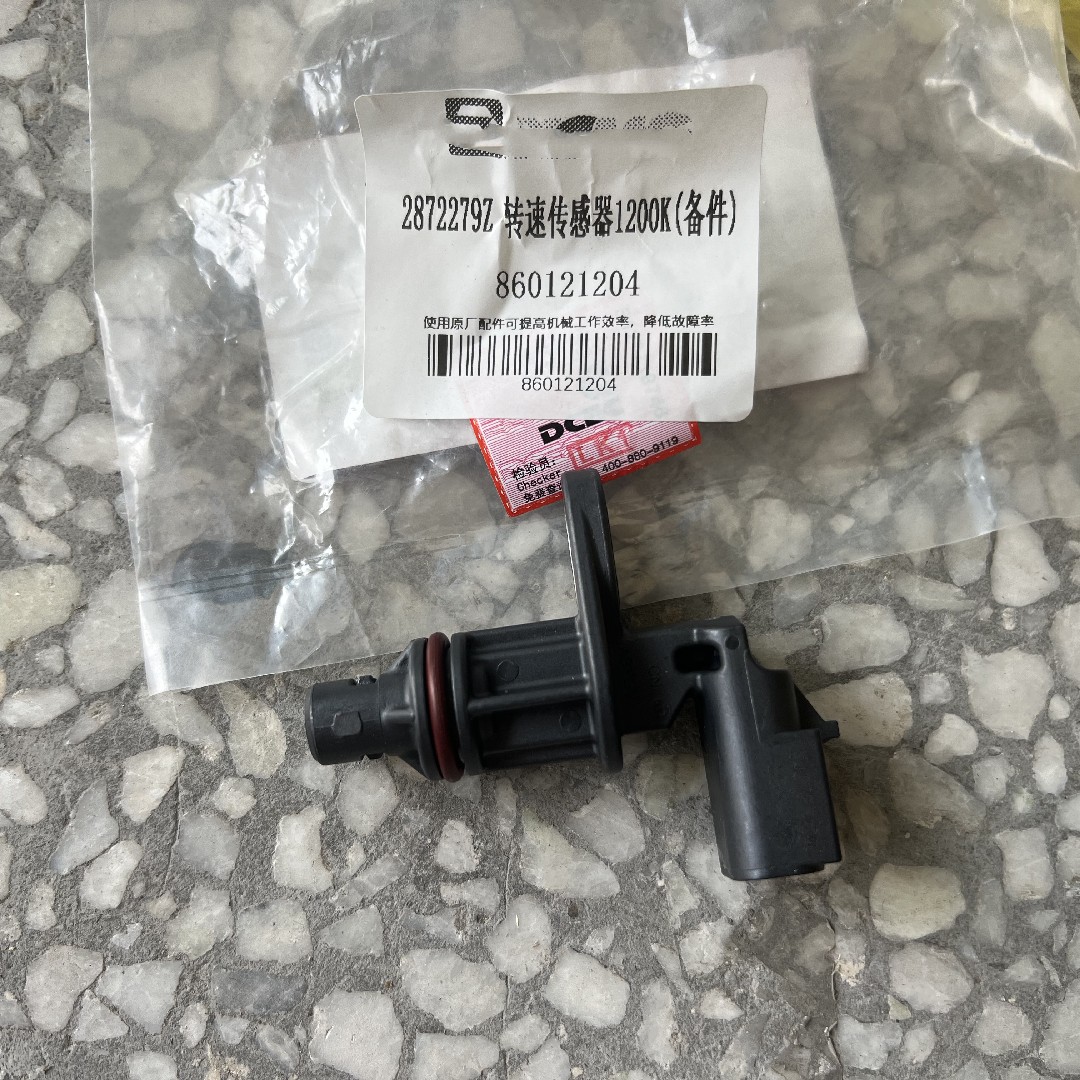

The 2872279Z 1200K Speed Sensor, with part number 860121204, is a high-precision measuring component specifically developed for XCMG XE2000 mining crawler excavators. As a core part of the excavator’s engine and transmission control system, it adopts advanced sensing technology to real-time detect the rotational speed of key components such as the engine crankshaft and transmission shaft, convert the mechanical rotational speed into stable electrical signals, and transmit them to the vehicle’s electronic control unit (ECU). This sensor ensures the ECU accurately monitors the operating state of the excavator, adjusts the engine power output and transmission gear in real time, prevents overload or stall faults, and provides reliable support for the safe, efficient and stable operation of the XE2000 mining excavator in harsh working conditions. It is a 100% new genuine spare part that perfectly matches the original equipment specifications.
High Measurement Accuracy: Adopts high-sensitivity inductive or Hall-effect sensing technology, with small measurement error, stable signal output, and accurate capture of rotational speed changes even at low or high speeds, ensuring the ECU obtains real and reliable data.
Strong Environmental Adaptability: Designed for harsh mining environments, it has excellent dustproof, waterproof, shockproof and high-temperature resistance performance, with a protection grade up to IP65, which can work stably in dusty, humid, high-vibration and extreme temperature (-40℃ ~ +120℃) environments.
Perfect Compatibility: Strictly manufactured in accordance with the original factory standards of XCMG XE2000 mining excavator, the size, interface and electrical parameters are completely consistent with the original parts, supporting direct replacement without any modification or adjustment.
Long Service Life: Made of high-strength wear-resistant alloy and high-temperature resistant electronic components, with precision manufacturing process, strong corrosion resistance and wear resistance, low failure rate, reducing the frequency of replacement and maintenance costs, and coming with a 3-month warranty.
Fast Signal Response: The internal circuit is optimized and designed, with fast signal conversion speed, which can quickly feed back the rotational speed change to the ECU, ensuring the excavator’s control system responds in a timely manner and avoids equipment failure caused by delayed signal transmission.
Easy Installation & Maintenance: Compact structure, lightweight design, clear wiring marks, simple and quick installation and replacement; daily maintenance only needs regular cleaning of the sensing surface, which is convenient and labor-saving.
Item | Specification |
|---|---|
Part Number | 860121204 |
Product Model | 2872279Z 1200K Speed Sensor |
Product Type | Rotational Speed Sensor (Engine/Transmission Speed Detection) |
Applicable Equipment | XCMG XE2000 Mining Crawler Excavator |
Sensing Principle | Hall-effect / Inductive Sensing |
Working Voltage | DC 24V (Standard Vehicle Electrical System Voltage) |
Measurement Range | 0 ~ 3000 RPM |
Signal Output | Pulse Signal (0-5V / 0-12V, Digital Signal) |
Working Temperature | -40℃ ~ +120℃ |
Protection Grade | IP65 (Dustproof, Waterproof, Shockproof) |
Material | High-Strength Alloy + High-Temperature Resistant Plastic + Copper Alloy Sensing Element |
Installation Type | Threaded / Flange Installation (Consistent with Original Parts) |
Warranty Period | 3 Months |
The 2872279Z 1200K Speed Sensor 860121204 is mainly used in the rotational speed monitoring system of XCMG XE2000 mining crawler excavators, focusing on detecting the rotational speed of the engine crankshaft, transmission shaft and other key components, and is suitable for various harsh mining and engineering operation scenarios, including but not limited to:
Open-pit Mining Operations: It is used to monitor the engine speed of the XE2000 excavator during ore mining, loading and transportation, ensuring the engine operates in the optimal speed range, improving mining efficiency and reducing fuel consumption.
Underground Mining Scenarios: Adapt to low-light, dusty, humid and high-vibration underground working environments, stably detect the rotational speed signal, avoid equipment failure caused by speed abnormality, and ensure the safety of underground operation personnel and equipment.
Heavy-Duty Earthwork Construction: Applicable to the XE2000 excavator in large-scale earthmoving, digging, leveling and other operations in mining areas, highways, railway construction sites, ensuring the stable operation of the engine and transmission system under heavy load conditions.
Long-Term Continuous Operation: With excellent high-temperature resistance and fatigue resistance, it can work continuously for a long time in the harsh working environment of mining sites, ensuring the long-term stable operation of the excavator without frequent failure replacement.
Before installation, cut off the excavator’s power supply and engine, and wait for the engine and related components to cool down completely to avoid electric shock or scalding accidents.
Check the part number (860121204) and model (2872279Z 1200K) to confirm that it matches the XE2000 mining excavator, and check whether the sensor surface is intact, without damage, deformation or contamination of the sensing head.
Find the installation position of the original speed sensor (usually near the engine crankshaft or transmission shaft), gently remove the old sensor by disconnecting the wiring and unscrewing the fixing screws, and clean the installation interface and surrounding dirt to avoid affecting the installation and signal transmission.
Align the sensor with the installation interface, screw the fixing screws evenly (do not over-tighten to avoid thread damage), and ensure that the sensing head is aligned with the detected component (gear or shaft) and the gap meets the manufacturer’s requirements (usually 0.5-2mm) to avoid signal loss or error.
Connect the sensor wiring to the excavator’s electrical system according to the wiring marks (red for positive, black for ground, signal wire for signal output), ensure the wiring is firm and correct, and use shielded cables to minimize electromagnetic interference.
After installation, restore the power supply, start the engine, test whether the speed display on the excavator’s instrument panel is normal, and check whether there is abnormal noise or signal interruption to confirm that the sensor works normally.
Daily Maintenance: Regularly clean the sensor surface and sensing head to remove dust, oil stains and metal debris; check the wiring tightness and whether the sensor is loose, and tighten it in time if there is any problem; avoid strong impact or collision on the sensor to prevent internal component damage.
If the sensor fails (such as abnormal speed display, no signal output, or instrument alarm), stop using it immediately, cut off the power supply, check the wiring and installation gap first, and replace it with a new sensor of the same model if the fault cannot be eliminated.
Q: Which excavator model is the 2872279Z 1200K Speed Sensor 860121204 suitable for?
A: It is specially designed and produced for XCMG XE2000 mining crawler excavators, and the specifications are completely consistent with the original parts, which can be directly matched and used.
Q: What is the working principle of this speed sensor?
A: It adopts Hall-effect or inductive sensing principle. When the detected component (gear or shaft) rotates, the sensor detects the change of magnetic field or inductance, converts it into a pulse electrical signal, and transmits it to the excavator’s ECU for speed monitoring and control.
Q: Can it be directly replaced with the original speed sensor of the XE2000 excavator?
A: Yes, it is manufactured in strict accordance with the original factory standards, with the same size, interface and electrical parameters as the original sensor, and can be directly replaced without any modification or adjustment.
Q: What are the common causes of sensor failure?
A: Common causes include loose wiring or poor contact, contamination or damage of the sensing head, excessive installation gap, electromagnetic interference, long-term high-temperature and high-vibration environment leading to internal component aging, and oil pollution.
Q: How to judge whether the speed sensor is damaged?
A: The main manifestations are: abnormal speed display on the excavator’s instrument panel (too high, too low or no display), engine stall or overload alarm, unstable transmission gear shifting, and no pulse signal output detected by the test instrument.
Q: What is the delivery time and warranty period of this sensor?
A: We have sufficient stock, and the delivery time is 1-5 days; the product comes with a 3-month warranty, and we provide after-sales service for global customers.
