Product Description

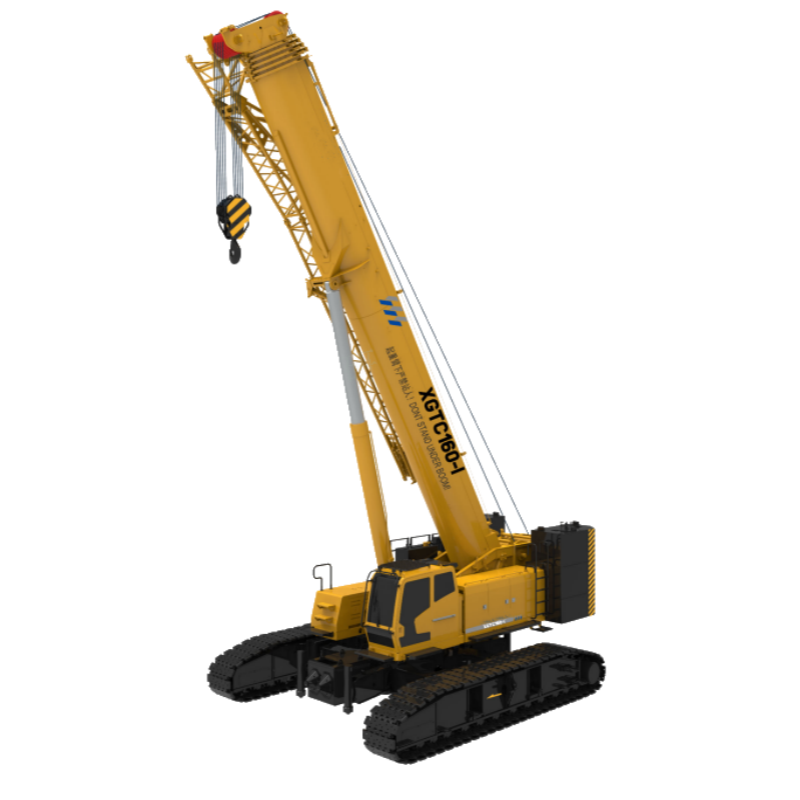

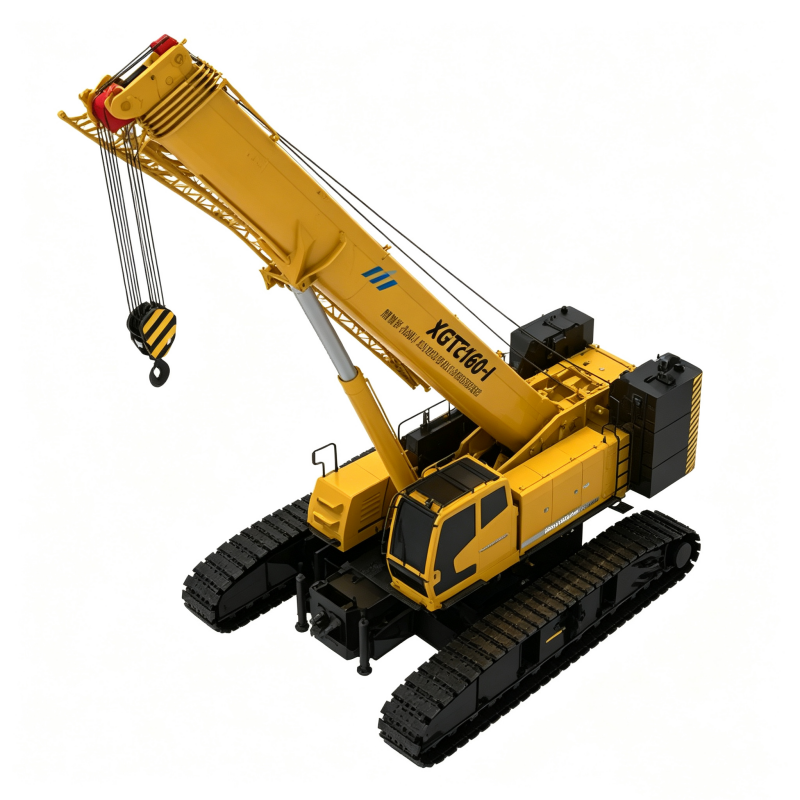

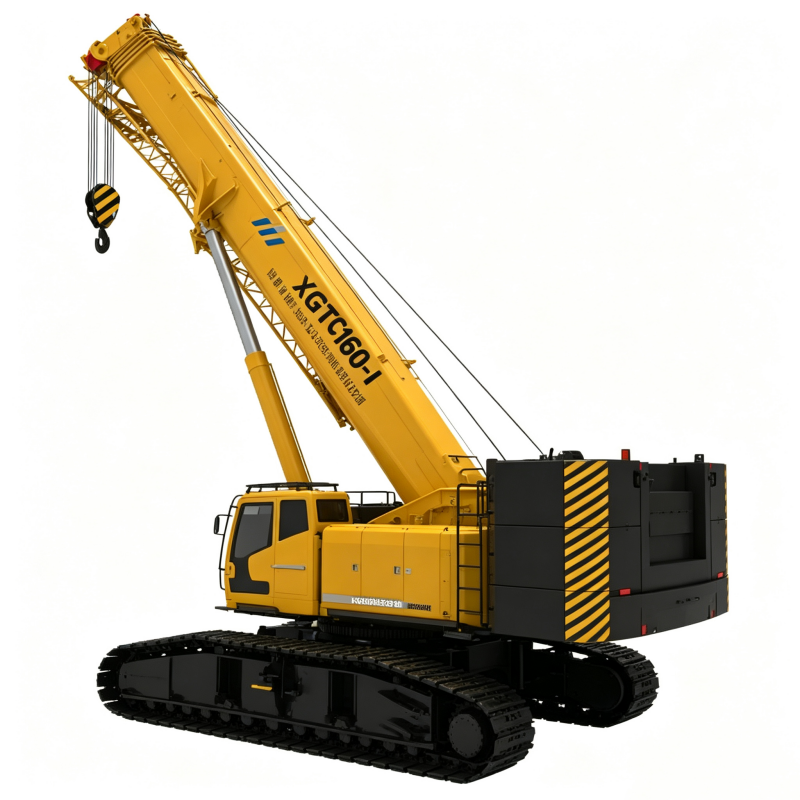

The XGTC160-I hydraulic telescopic boom crawler crane is an upgraded heavy-duty lifting equipment tailored for modern large-scale and high-standard construction scenarios. Unlike traditional lattice boom crawler cranes that require time-consuming manual assembly, this model adopts a full hydraulic telescopic boom design, supporting fast, automatic extension and retraction. It simplifies on-site operation procedures, greatly improves construction efficiency, and adapts to frequent site transition and multi-task continuous hoisting work.
Key load-bearing components including the boom, turntable, and chassis are manufactured with high-strength low-alloy steel, featuring excellent pressure resistance, anti-fatigue performance, and long service life, fully adapting to long-term heavy-load and high-intensity operation. Equipped with an advanced load-sensitive hydraulic system and imported core hydraulic parts, the machine achieves smooth, shock-free, and highly precise lifting, slewing, and traveling control. The intelligent hydraulic matching technology ensures stable power output under different working loads, effectively improving hoisting accuracy and overall construction safety.
The reinforced integral crawler undercarriage optimizes ground contact area, realizing ultra-low ground pressure and superior terrain adaptability. It can work stably in harsh environments such as mountainous areas, wetlands, muddy roads, and rugged construction sites, breaking the working limits of traditional wheeled cranes. The independent self-dismantling function for counterweights and track beams is a standout advantage of the XGTC160-I. The whole machine can be assembled, disassembled, and transported without auxiliary cranes, significantly reducing auxiliary equipment rental costs and shortening project construction cycles.
In terms of intelligent safety configuration, the XGTC160-I is equipped with a full set of intelligent monitoring and protection systems, including real-time load moment detection, height and amplitude limit protection, overload protection, emergency stop device, and automatic fault diagnosis system, achieving full-process operational safety monitoring. The humanized luxury cab is fitted with a high-definition intelligent display and ergonomic operating handles, providing a comfortable operating environment and reducing long-term working fatigue. With reliable performance and strong applicability, it is the preferred heavy lifting equipment for global large infrastructure, wind power new energy, petrochemical, and industrial construction projects.
Product Advantages
Premium Heavy-Duty Lifting Performance
Rated with a maximum lifting capacity of 160 tons and a large lifting moment of 5800kN·m, the XGTC160-I easily handles various heavy-load hoisting tasks. The 6-section high-strength telescopic main boom features flexible stretching strokes, paired with optional auxiliary jib to reach a maximum 82m lifting height and 58m working radius, fully covering high-altitude, long-distance, and large-scale hoisting operations.
Outstanding All-Terrain Adaptability
Adopts reinforced heavy-duty crawler traveling structure with a maximum gradeability of 45% and ultra-low ground pressure of 0.092MPa. It operates stably on soft soil, muddy roads, slopes, and uneven rugged sites without outriggers, perfectly adapting to various harsh and complex construction environments that traditional cranes cannot handle.
Full Self-Dismantling Design & High Construction Efficiency
Supports independent self-assembly and self-disassembly of counterweights and track beams without auxiliary cranes. The integrated compact transportation design simplifies site transition and reduces transportation difficulty. It saves a large amount of auxiliary equipment costs and shortens on-site preparation time, greatly improving overall project construction efficiency.
Stable & Precise Intelligent Hydraulic System
Equipped with imported high-quality hydraulic core components and load-sensitive control technology. The system features fast response, low operating impact, and precise positioning, realizing smooth lifting, slewing and traveling actions. Intelligent power matching automatically adjusts power output according to load changes, reducing energy consumption while ensuring stable operation.
Comprehensive Intelligent Safety Protection
Comes with a complete multi-dimensional safety protection system, including load moment limiter, height & amplitude limit device, overload protection system, emergency stop device, real-time fault self-diagnosis and travel warning system. Full-process intelligent monitoring effectively avoids overload, misoperation and potential safety hazards, ensuring safe and reliable operation under heavy-load and complex working conditions.
Durable Structure & Low Maintenance Cost
Key structural parts adopt high-strength wear-resistant and corrosion-resistant alloy materials, with strong anti-fatigue performance and long service life. The modular integrated design simplifies daily maintenance, inspection and parts replacement procedures, effectively reducing later operation and maintenance costs and improving equipment utilization rate.
Technical Parameters
Item | Unit | XGTC160-I |
Max Rated Lifting Capacity (Main Boom) | t | 160 |
Max Lifting Moment | kN·m | 5800 |
Main Boom Sections / Length Range | m | 6 Sections / 15.5 - 64 |
Max Lifting Height (Boom + Jib) | m | 82 |
Max Working Radius | m | 58 |
Rated Engine Power | kW | 268 |
Max Gradeability | % | 45 |
Average Ground Pressure | MPa | 0.092 |
Total Machine Weight | t | 158 |
Max Travel Speed | km/h | 1.8 |
Slewing Speed | r/min | 1.3 |
Main Hoist Maximum Rope Speed | m/min | 135 |
Product Applications
- Onshore & offshore wind power project installation and auxiliary hoisting
- Large-scale bridge construction, bridge girder and bridge pier installation
- Super high-rise building and large steel structure hoisting
- Municipal infrastructure and urban renewal engineering
- Petrochemical, chemical and industrial plant equipment installation
- Mountainous, wetland and complex rugged terrain construction
- Prefabricated building heavy component integral lifting
- Large foundation engineering, pile foundation and terminal construction projects
FAQ
Q1: What are the core advantages of XGTC160-I telescopic crawler crane over lattice boom cranes?
A: The XGTC160-I adopts full hydraulic telescopic boom design with automatic fast extension and retraction, requiring no manual boom assembly. It features faster site setup, simpler operation and more convenient cross-site transition, perfectly suitable for frequent mobile hoisting tasks and short-cycle engineering projects, with far higher comprehensive construction efficiency than traditional lattice boom cranes.
Q2: Does the XGTC160-I require an auxiliary crane for assembly and disassembly?
A: No auxiliary crane is required. This model is equipped with a complete self-dismantling system for counterweights and track beams. A single operator can complete independent on-site assembly, disassembly and equipment transition, effectively saving auxiliary equipment rental costs and shortening project construction cycles.
Q3: Can the XGTC160-I work on muddy, soft and sloped ground?
A: Yes. The heavy-duty crawler undercarriage provides ultra-low ground pressure and strong off-road trafficability. It can work stably on muddy roads, soft soil foundations, steep slopes and other harsh terrains without outriggers, adapting to all kinds of complex construction environments.
Q4: What safety protection systems does the XGTC160-I configure?
A: It is equipped with a full set of professional safety devices, including load moment limiter, height & amplitude limit protection, automatic overload protection, emergency stop system, real-time fault diagnosis system and travel warning device. Full-process intelligent monitoring ensures zero safety hazards during heavy-load and high-altitude operation.
Q5: What optional configurations are available for customization?
A: We support diversified customized configurations, including auxiliary jib, multi-specification lifting hooks, low-temperature cold start system, automatic centralized lubrication system and intelligent remote monitoring system, to meet the construction demands of different regions and diverse engineering projects.
Q6: What is your after-sales service and warranty policy?
A: We provide 1-year full machine warranty and 1.5-year warranty for core engine and hydraulic components. We offer global professional technical support, spare parts supply, remote fault diagnosis and on-site after-sales service to ensure long-term stable operation of equipment.
