XE135B
| Quantity: | |
|---|---|
|
Description
|
Unit
|
Parameter value
|
||
|
Operating weight
|
Kg
|
13000
|
||
|
Bucket capacity
|
m³
|
0.4-0.52
|
||
|
Engine
|
Model
|
/
|
ISUZU BB-4BG1TRP
|
|
|
No. of cylinders
|
/
|
4
|
||
|
Output power
|
kw/rpm
|
72.7/2200
|
||
|
torque/speed
|
N.m
|
337.6/1600
|
||
|
Displacement
|
L
|
4.329
|
||
|
Main performance
|
Travel speed（H/L)
|
km/h
|
5.16/3.03
|
|
|
Rotating speed
|
r/min
|
12.3
|
||
|
Gradeability
|
°
|
≤35
|
||
|
Ground pressure
|
kPa
|
42
|
||
|
Bucket digging force
|
kN
|
85
|
||
|
Arm crowd force
|
kN
|
65
|
||
|
Maximum traction
|
kN
|
134
|
||
|
Hydraulic system
|
Main pump
|
/
|
2
|
|
|
Rated flow of main pump
|
L/min
|
2×123
|
||
|
Pressure of prime valve
|
MPa
|
31.4/34.3
|
||
|
Pressure of travel system
|
MPa
|
34.3
|
||
|
Pressure of swing system
|
MPa
|
25
|
||
|
Pressure of pilot system
|
MPa
|
3.9
|
||
|
Oil Capacity
|
Fuel tank capacity
|
L
|
250
|
|
|
Hydraulic tank capacity
|
L
|
130
|
||
|
Engine oil capacity
|
L
|
14
|
||
|
Appearance size
|
Overall length
|
mm
|
7770
|
|
|
Overall width
|
mm
|
2512
|
||
|
Overall height
|
mm
|
2880
|
||
|
Width of platform
|
mm
|
2512
|
||
|
Length of crawler
|
mm
|
3660
|
||
|
Overall width of chassis
|
mm
|
2490
|
||
|
Width of crawler
|
mm
|
500
|
||
|
Track length on ground
|
mm
|
2910
|
||
|
Crawler gauge
|
mm
|
1990
|
||
|
Clearance under counterweight
|
mm
|
964
|
||
|
Min. ground clearance
|
mm
|
478
|
||
|
Min. tail swing radius
|
mm
|
1805
|
||
|
Working scope
|
Max. digging height
|
mm
|
8641
|
|
|
Max. dumping height
|
mm
|
6181
|
||
|
Max. digging depth
|
mm
|
5538
|
||
|
Max. vertical wall digging depth
|
mm
|
4727
|
||
|
Max. digging reach
|
mm
|
8296
|
||
|
Min. swing radius
|
mm
|
2335
|
||

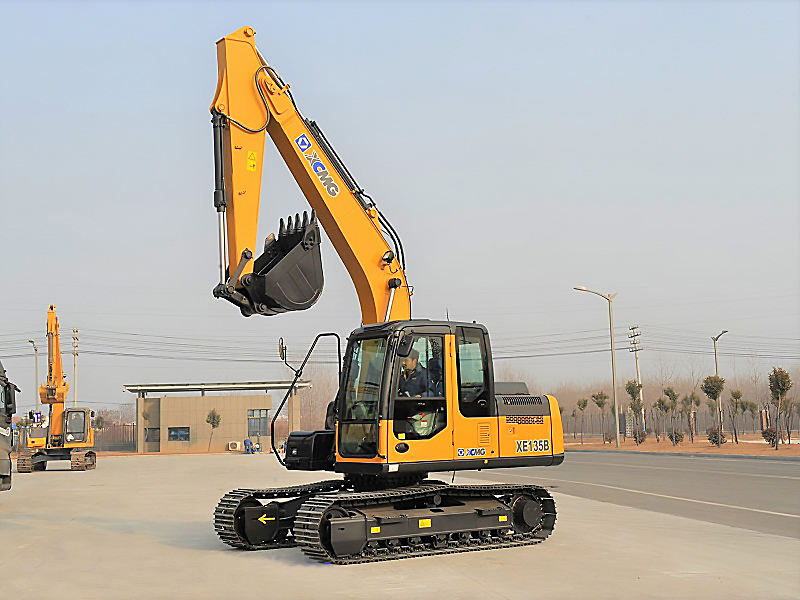

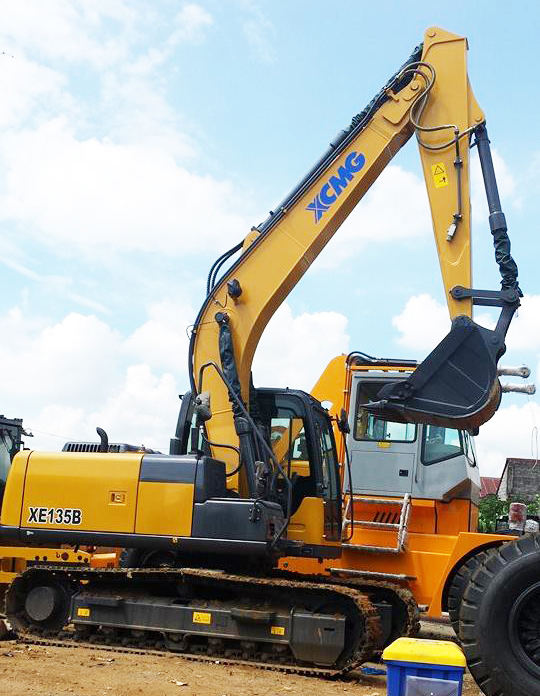

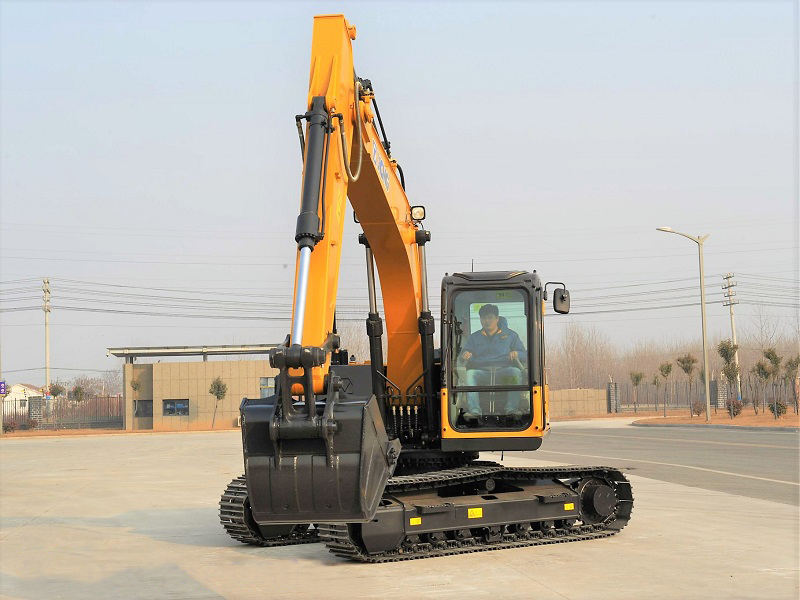

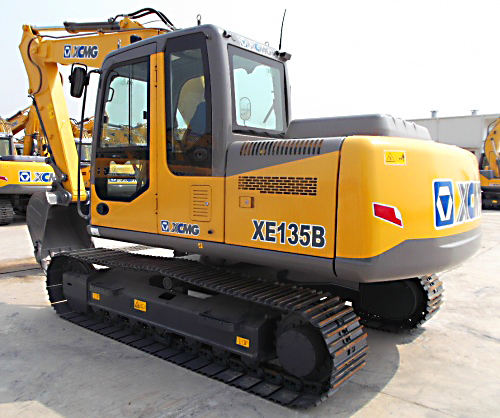

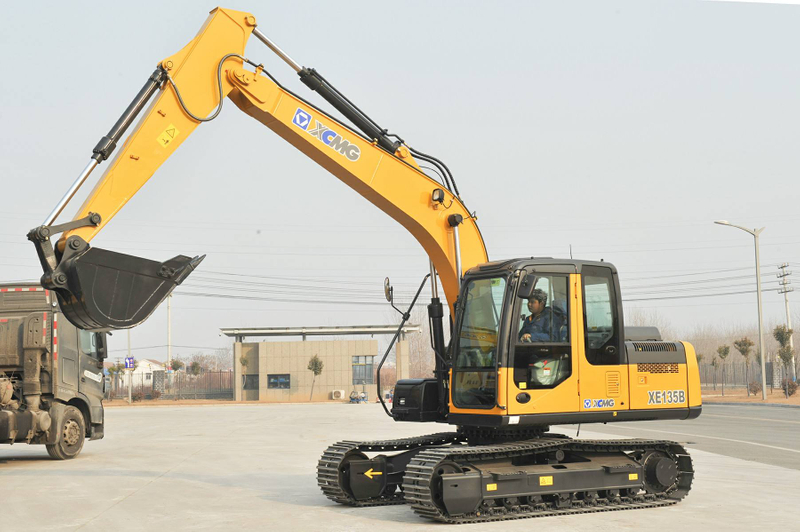

The XE135B Hydraulic Crawler Excavator features an operating weight of 13,800 kg and is powered by an Isuzu BB-4BG1TRP engine delivering 69.6 kw / 2,200 rpm (or an optional 72.7 kw version). Equipped with a 0.4-0.52 m³ bucket capacity, it achieves 85 kn bucket digging force and 65 kn arm digging force, with a maximum digging radius of 8,296 mm and digging depth of 5,538 mm. Its independently engineered intelligent control system supports simultaneous multi-task operations, ensuring versatile performance across scenarios.
Superior Performance: Boasts industry-leading breakout force (15%-20% higher than industry peers) and 134 kn maximum tractive force, easily handling complex terrain and heavy loads.
Energy Efficiency: Adopts domestically advanced hydraulic distribution technology, reducing fuel consumption by up to 12% while maintaining high productivity.
Stability: Optimized axle load distribution and 35° gradeability ensure safe operation on uneven ground, with ground pressure as low as 42 kpa to minimize surface damage.
Q: What is the maintenance cycle for the hydraulic system?
A: Recommended inspection every 500 operating hours; hydraulic oil replacement is required every 2,000 operating hours to ensure system longevity.
Q: Can it handle rocky terrain?
A: Yes—its high-strength manganese steel bucket and reinforced hinge points resist abrasion, ensuring durability even in harsh rocky conditions.
