Product Introduction

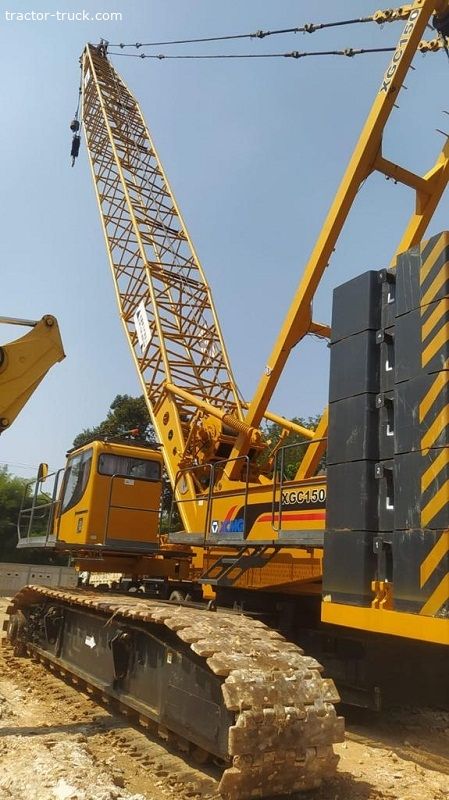

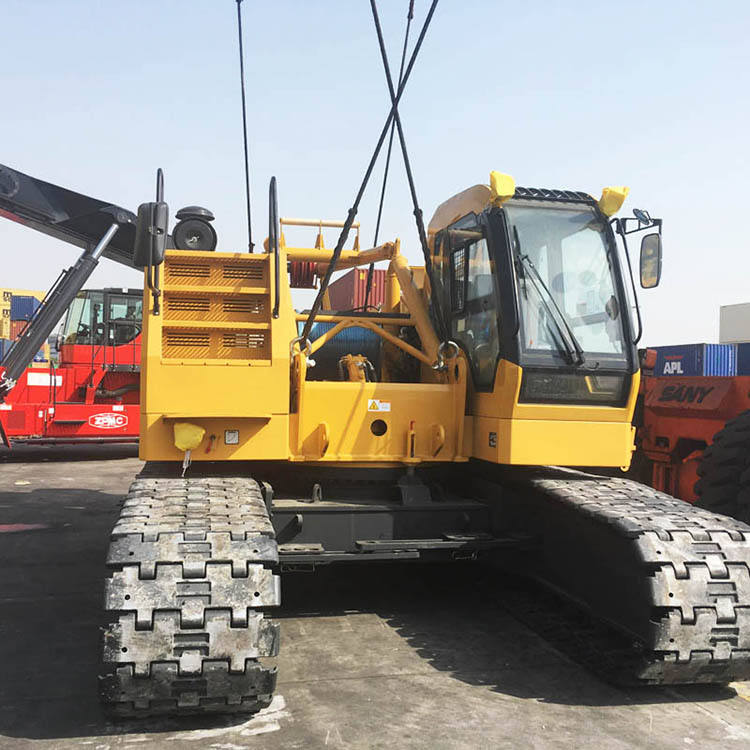

The XGC150 prioritizes efficient operation and safety reliability. It features full self-dismantling and reassembly capabilities, with a maximum single-piece transport weight capped at 37 tons and maximum transport dimensions of 11.0×3.0×3.3 meters, enabling convenient relocation and effectively reducing dismantling, reassembly, and transportation costs. Its main winch achieves a maximum rope speed of 110 m/min and a slewing speed of 1.5 r/min, delivering high operational efficiency. Inheriting XCMG's legacy of high safety and reliability, this crane actively applies and promotes new technologies. It features a high degree of component standardization, series production, and interchangeability, delivering outstanding value for money.
Product Advantage
1. High lifting performance Boom max. lifting capacity/radius 150t/5m，boom max. load moment 927.4t.m. Fixed jib max. lifting capacity 24t.
2. Optimized design of transport and assembly/ disassembly
* Fully equipped self-assembly/disassembly system (Optional) can easily achieve: rear counterweight self assembly/disassembly, track frame self-assembly/disassembly, and boom base self-assembly/disassembly.
* Largest single unit transport weight is controlled within 30t, transport width not more than 3m, so as to meet the transport requirement of global accessibility.

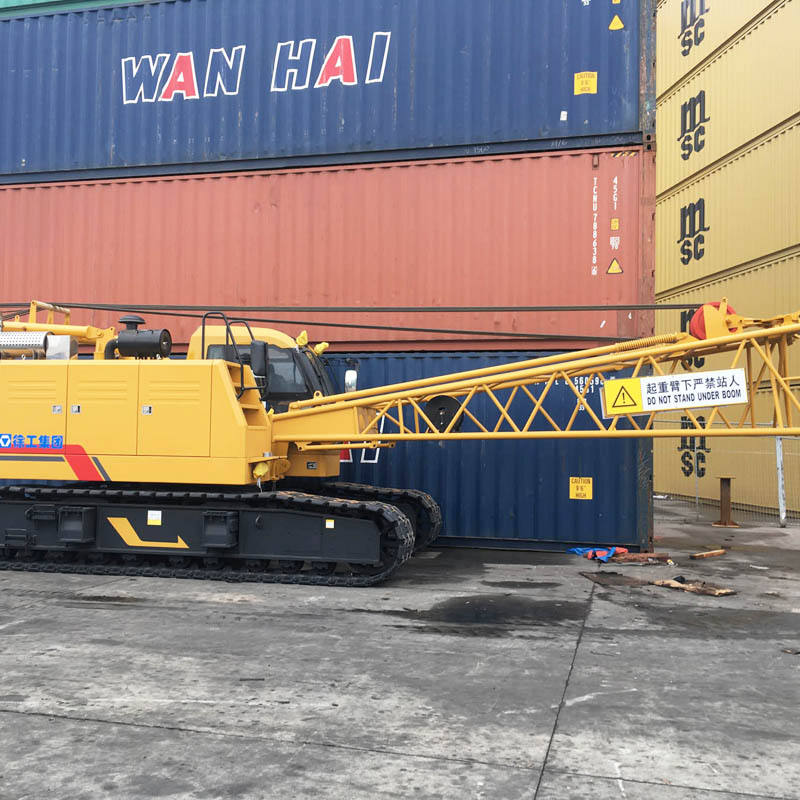

* Fixed jib can be three-piece integrated transport, and transport design of inserted boom sections, maximize the use of transport space, and save transport costs.
3. More optimized structural design
* Superstructure is a large box-type structural design, with heavy load bearing capacity, light weight, and good rigidity.
* Auxiliary hoisting winch is placed in boom base, with relaxed arrangement for turntable, easy maintenance.
Technical Parameters
| Item | Unit | XGC150 |
| Max. rated lifting capacity for boom | (t) | 150 |
| Max. rated lifting capacity for fixed jib | (t) | 24 |
| Max. load moment | (t.m) | 927.4 |
| Max. rated lifting capacity for boom single top | (t) | 13 |
| Boom length | (m) | 18~81 |
| Boom luffing angle | (°) | 30~80 |
| Fixed jib length | (m) | 13~31 |
| Max. dimension of single unit in transport state (L×W×H) | (m) | 11.0×3.0×3.3 |
| Fixed jib offset angle | (°) | 15,30 |
| Max. single line speed for hoist mechanism | (m/min) | 110 |
| Max. single line speed for boom luffing mechanism | (m/min) | 2×32 |
| Max. slewing speed | (r/min) | 1.5 |
| Max. travel speed | (km/h) | 1.3 |
| Grade ability | (%) | 30 |
| Mean ground pressure | (MPa) | 0.102 |
| Model | - | SC9DK280G3 |
| Engine power | (kW) | 206 |
| Emission | - | National III |
| Overall crane mass | (t) | 154 (main hook, all counterweights, 18m boom) |
| Max. mass of single unit in transport state | (t) | 37 |
Product Uses
1. Construction and Municipal Engineering
This crane is suitable for large-scale urban shopping mall construction, building projects, and municipal infrastructure development. Its ease of disassembly, transportation, and flexible operational configurations enable agile maneuvering in space-constrained urban environments.
2. Mining and Quarry Operations
This crane handles the lifting of large rocks and ore in mining quarries. With a 150-ton lifting capacity and stable operation on complex terrain, it meets heavy-load hoisting demands in these environments, though strict adherence to safety protocols is essential.
3. Petrochemical and Power Engineering Construction

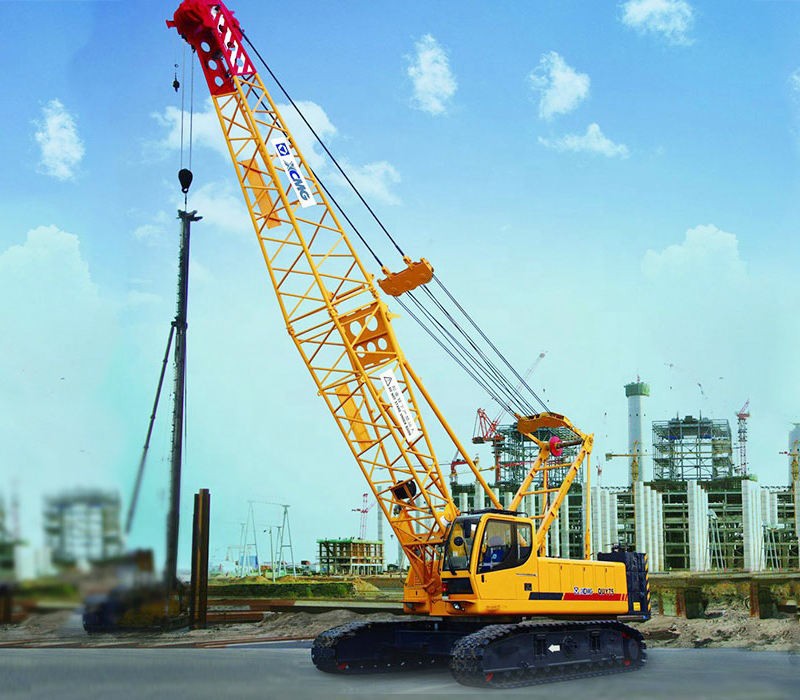

In petrochemical projects and power plant construction, the XGC150 excels at hoisting large equipment and tanks. Its mature, reliable systems and comprehensive safety features ensure compliance with stringent lifting safety and precision requirements in these sectors.
4. Port and Bridge Construction
This crane is also frequently deployed in port development and large-scale bridge construction. Its transport width ≤3m and single-piece weight ≤29t comply with global transportation requirements, while its low ground pressure makes it highly suitable for complex environments like port trestle construction.
5. Water Conservancy and Resource Exploration
The XGC150 further serves agricultural infrastructure development, water conservancy projects, and resource exploration/construction in sectors like steel, non-ferrous metals, and coal mining. Its broad applicability and robust lifting capacity address diverse operational demands.
Product Operate Guide
Operating the XGC150 requires a valid Special Equipment Operator Certificate. Before operation, thoroughly inspect the equipment condition to ensure the wire rope, crawler tracks, and safety devices are in good working order. Maintain smooth and precise movements during operation while constantly monitoring the surrounding environment. Never pass loads over personnel. Conduct regular inspections and maintenance of the hydraulic system. After completing work, retract the boom to a safe position and disconnect the power supply.
FAQ
1. CAN EQUIPMENT BE PRIVATELY MODIFIED OR RETROFITTED?
Unauthorized modifications are strictly prohibited, especially alterations involving safety, hydraulic, or electrical systems. Consult XCMG technicians for any modifications; failure to do so may cause accidents and void the warranty.
2. HOW CAN FUEL CONSUMPTION BE REDUCED?
Avoid unnecessary idling, operate smoothly, perform regular maintenance, and select appropriate power modes based on working conditions.
3. WHAT REGULATIONS APPLY TO EQUIPMENT NOISE AND EMISSIONS?
Equipment must comply with local noise and emission regulations. Modifying or removing exhaust aftertreatment devices is strictly prohibited.
4. WHAT REQUIREMENTS APPLY WHEN OPERATING IN FLAMMABLE OR EXPLOSIVE ENVIRONMENTS?
Use explosion-proof equipment with specially treated exhaust and electrical systems to prevent spark generation.
5. HOW SHOULD ELECTRICAL SYSTEMS BE PROTECTED DURING MACHINE CLEANING?
Avoid direct high-pressure water jet washing of electrical components such as the cab interior, sensors, wiring harness connectors, fuse boxes, and ECUs to prevent short circuits.
6. DO WIRE ROPES, SLINGS, AND OTHER RIGGING REQUIRE DAILY INSPECTION?
Yes. Inspect before each use. Immediately scrap and replace any items showing broken wires, deformation, wear, corrosion, or other defects.
