Product Introduction

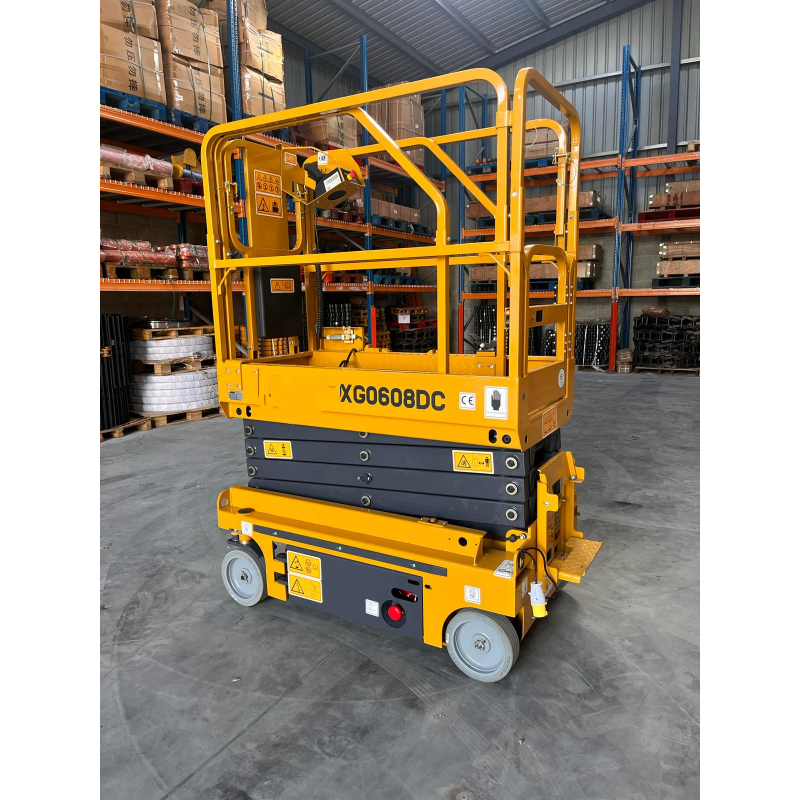

XG0608DC is a compact self-propelled DC electric scissor lift, designed for low-to-medium height aerial operations. Featuring a maximum working height of 6.6m and 240kg rated load, it adopts a narrow body design and pure electric drive with low noise and zero emissions. Flexible to operate in narrow aisles and confined spaces, this aerial work platform is widely applied for indoor maintenance, warehousing, retail and light indoor construction work. It comes with complete safety configurations and reliable performance, meeting CE safety standards for global use.
Product Advantages
Super Compact Structure: Slim body design, easy to pass through standard doors, elevators and narrow passages, highly flexible for space-limited sites.
DC Electric Drive: Zero exhaust emission, low running noise, energy-saving and eco-friendly, suitable for long-time indoor operation.
Full Safety Protection: Equipped with overload protection, tilt alarm, emergency stop button, automatic pothole protection and anti-slip platform, ensuring operation safety.
Stable & Efficient Operation: Fast lifting and lowering speed, smooth running. The extendable platform expands working area flexibly.
Easy Maintenance: Robust all-steel scissor structure, durable components and simple structure, greatly reducing daily maintenance costs.
Solid Performance: Good gradeability and stable traveling performance, adaptable to most flat working grounds.
Product Specification Table
Item | Specification |
Model | XG0608DC |
Max. Working Height | 6.6 m |
Max. Platform Height | 4.6 m |
Rated Load Capacity | 240 kg |
Extended Platform Load | 100 kg |
Platform Size (L × W) | 1370 × 700 mm |
Extended Platform Length | 0.6 m |
Overall Dimension (L × W × H) | 1882 × 760 × 2020 mm (Folded) |
Total Weight | 1150 kg |
Inner Turning Radius | 0.4 m |
Outer Turning Radius | 1.55 m |
Ground Clearance | 24 mm (Raised) / 65 mm (Stowed) |
Travel Speed (Lowered / Raised) | 4.0 km/h / 0.5 km/h |
Gradeability | 25% |
Lifting Time | 30 s |
Lowering Time | 22 s |
Battery | 24V, 85Ah |
Certification | CE |
Application Scenarios
Warehouse & Logistics: Inventory checking, shelf installation and maintenance, lighting repair in narrow warehouse aisles.
Building & Facility Maintenance: Indoor wall repair, ceiling cleaning, air conditioner and pipeline maintenance for office buildings, apartments and public buildings.
Commercial Places: Lamp replacement, decoration arrangement, sign installation in supermarkets, shopping malls, hotels and exhibition halls.
Light Interior Construction: Electrical wiring, interior decoration, wall painting and other indoor renovation works.
Event Arrangement: Stage setup, banner hanging and equipment installation for exhibitions, conferences and temporary activities.
Operation Guide
1 Pre-operation Inspection
Check battery power, tire condition and hydraulic oil level to ensure normal status.
Examine safety railings, platform extension and connecting pins for firmness.
Test emergency stop, tilt alarm and pothole protection devices to confirm normal function.
Clear obstacles on the working ground and ensure the ground is flat and solid.
2 Driving Operation
Turn the key switch to ON to start the machine.
Operate the joystick to control forward and backward movement. Driving speed will be limited when the platform is lifted.
Operate the steering wheel gently; avoid sharp turns or driving on slopes when the platform is raised.
3 Lifting & Lowering
Press the lift button to raise the platform; release the button to stop lifting.
Press the lower button to descend. Keep the area below clear of people and obstacles during descending.
Extend the auxiliary platform only after the main platform is fully lifted. Do not exceed the limited load of the extended part.
4 Safety Regulations
Do not overload the platform. Max load is 240kg for main platform and 100kg for extended platform.
It is forbidden to drive the machine on slopes over 25% or uneven ground while the platform is elevated.
Operators shall wear safety harness when working at height.
Always fully lower the platform before moving the lift to another position.
5 Shutdown & Daily Maintenance
Fully lower the platform and retract the extended deck.
Turn off the key switch and cut off the power supply.
Clean the machine surface and check for loose parts or abnormal damage.
Charge the battery in time after use, and store the machine in a dry and ventilated place.
FAQ
Q1: What is the maximum working height of XG0608DC?
A: The maximum working height is 6.6m, and the maximum platform height is 4.6m.
Q2: Can this scissor lift work outdoors?
A: It is mainly designed for indoor use. It can be used for short-time light outdoor work on flat ground. Please stop working in heavy rain, strong wind or uneven terrain.
Q3: How long can the battery work after being fully charged?
A: A full charge supports about 4-6 hours of continuous operation, subject to working load and site conditions.
Q4: What is the width of the whole machine?
A: The overall width is 760mm, which can pass through most standard doors and narrow spaces.
Q5: Are professional operation certificates required?
A: Operators must receive professional safety training and be familiar with this operation manual before use.
Q6: What safety features does this machine have?
A: It is equipped with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform surface.
