Product Description

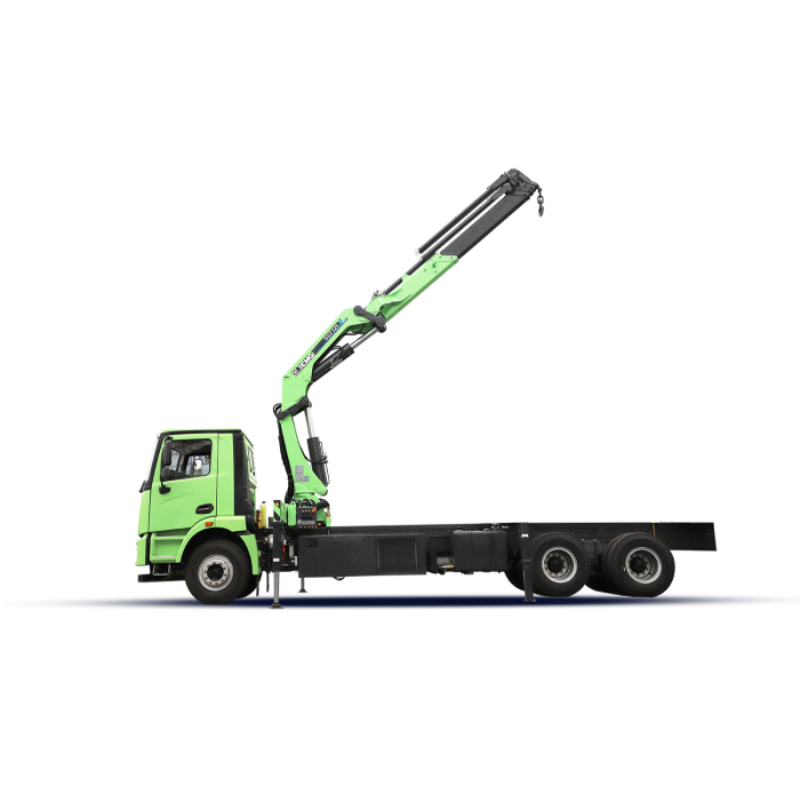

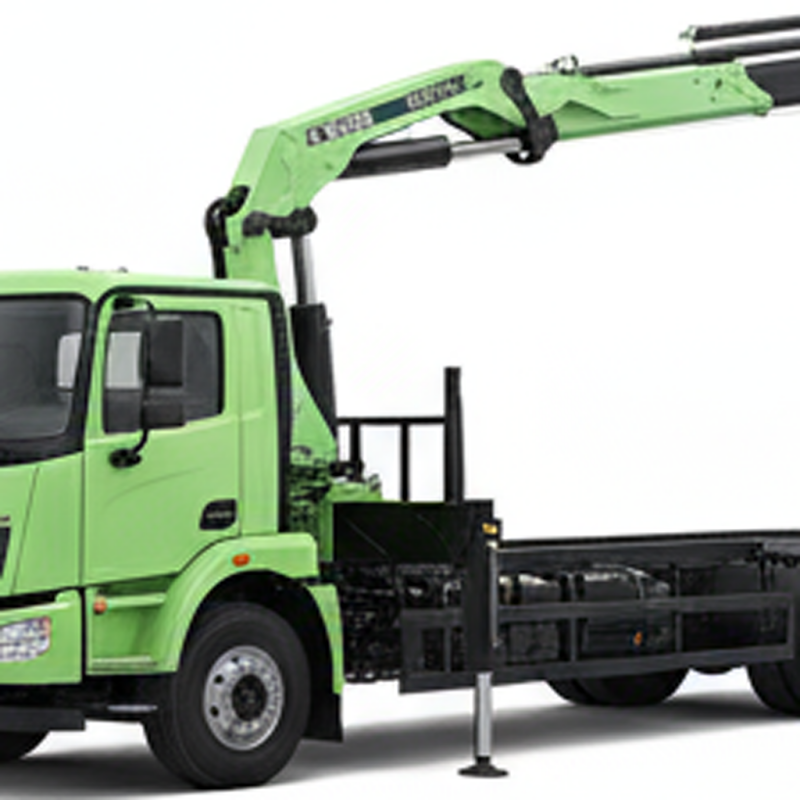

SQZ325 hydraulic folding boom crane is a newly upgraded articulated loader crane, optimized for urban and narrow working environments. Adopting high-strength integral steel boom with hexagonal cross-section structure, the crane features strong torsion resistance and structural stability during heavy-load operation. The unique 15° reverse angle design of inner and outer boom adapts to various low-height working conditions that telescopic cranes cannot handle.
Equipped with dual rack cylinder driving system, the SQZ325 achieves smooth, steady and precise slewing and boom movement with low vibration and high positioning accuracy. The full 360° continuous rotation design eliminates operation dead angles, greatly improving working flexibility in narrow streets, indoor warehouses and dense construction sites. Matched with dual-span outriggers, the whole machine owns ultra-high overall stability during full-load lifting.
This folding boom crane supports flexible installation on multiple mainstream truck chassis. It is equipped with mature hydraulic components and standardized circuit design, featuring low failure rate and convenient daily maintenance. Optional wireless remote control, multi-functional grabbing accessories and customized configurations can meet diversified commercial and engineering lifting demands for global customers.
Product Advantages
Professional Folding Boom Structure:
Articulated folding arm design saves vehicle top space, no height limit for driving, perfectly adapting to low-clearance and narrow working sites such as urban roads and indoor warehouses.
Superior Structural Stability:
High-rigidity hexagonal boom section and precision welding technology enhance anti-bending and anti-torsion capacity, ensuring stable operation under full load.
Dual Rack Cylinder Drive System:
Independent dual hydraulic cylinder driving provides stronger power, more uniform stress and smoother 360° slewing performance with higher operation accuracy.
Low Space Adaptability:
15° reverse angle boom design breaks the limitation of traditional cranes, realizing effective hoisting in ultra-low and narrow working scenarios.
High Safety & Stability:
Equipped with dual-span large-stance outriggers to expand supporting area, effectively preventing machine tilting and greatly improving overall operation safety.
Mature & Durable Hydraulic System:
Optimized hydraulic circuit and high-quality core accessories ensure fast response, stable power output, low energy consumption and long service life.
Flexible & Multi-scenario Application:
Compact body and flexible operation mode make it suitable for urban municipal maintenance, logistics handling and complex field engineering with strong site adaptability.
Easy Maintenance & Customization:
Standardized component layout simplifies daily inspection and maintenance; remote control and functional accessories are optional for personalized configuration.
Technical Parameters
Item | Specification |
Model | SQZ325 |
Crane Type | Folding Boom / Articulated Boom Truck Mounted Crane |
Rated Lifting Torque | 325 kN·m |
Boom Feature | Hexagonal Section, 15° Reverse Angle Design |
Driving Mode | Dual Rack Hydraulic Cylinder Drive |
Rotation Range | 360° Continuous Full Rotation |
Outrigger Type | Dual-span Large Stance Hydraulic Outriggers |
Control Mode | Manual Hydraulic Control / Wireless Remote Control (Optional) |
Applicable Chassis | 6×4 / 8×4 Heavy-duty Truck Chassis |
Optional Accessories | Wireless Remote Controller, Timber Grapple, Lifting Hook, Auxiliary Support |
Product Applications
Urban Municipal Engineering:
Street light replacement, traffic guardrail installation, urban greening maintenance and narrow road construction lifting.

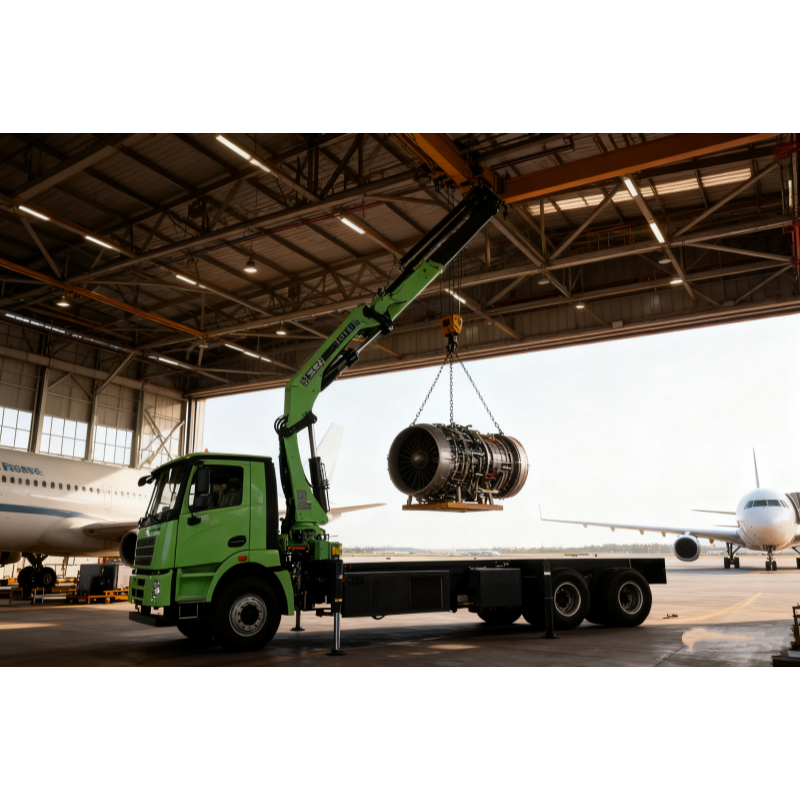

Logistics & Warehouse Handling:
Indoor and outdoor cargo loading/unloading, container handling and short-distance material transshipment with space limitation.
Road & Bridge Maintenance:
Highway facility maintenance, bridge accessory replacement and roadside engineering rescue operations.
Power & Communication Works:
Electric pole erection, cable maintenance and communication equipment installation in dense urban areas.
Building & Renovation Engineering:
Indoor construction hoisting, old building renovation and narrow-site material handling.
Field Rescue & Emergency Works:
Road obstacle clearance, equipment rescue and temporary hoisting in complex urban environments.
FAQ
Q1: What is the biggest advantage of SQZ325 folding boom crane compared with telescopic cranes?
A: The core advantage is the folding boom structure and low-clearance adaptation. It saves installation space, has no driving height limitation, and can work normally in ultra-low and narrow sites where traditional telescopic cranes cannot operate, with more flexible working angles.
Q2: Does the SQZ325 crane support 360° full rotation?
A: Yes. Equipped with dual rack cylinder driving system, the crane realizes 360° continuous unlimited rotation without dead angles, ensuring all-round flexible operation for complex working conditions.
Q3: What truck chassis is compatible with this folding crane?
A: The SQZ325 is suitable for 6×4 and 8×4 mainstream heavy-duty truck chassis. We can provide professional chassis matching solutions according to your local road regulations and actual working scenarios.
Q4: Is wireless remote control available for upgrade?
A: Sure. The standard configuration is manual hydraulic operation. Wireless remote control system is optional to realize remote precise control, improving operation convenience and safety.
Q5: What is the delivery time and warranty policy?
A: The delivery time for standard model is 20–35 working days after deposit. We provide 12 months factory warranty, lifelong technical support and cost-price spare parts supply.
Q6: Can I customize accessories and appearance?
A: Full customization is supported. You can customize body paint color, install timber grapples, reinforced outriggers and other auxiliary accessories to meet personalized working needs.
