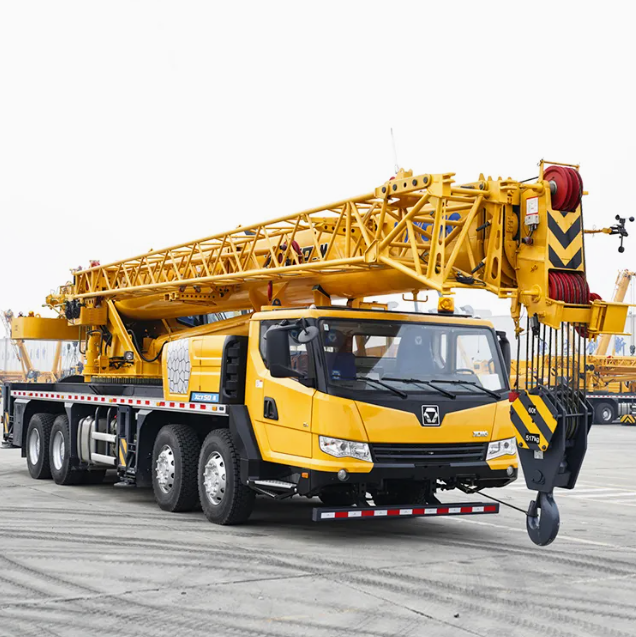

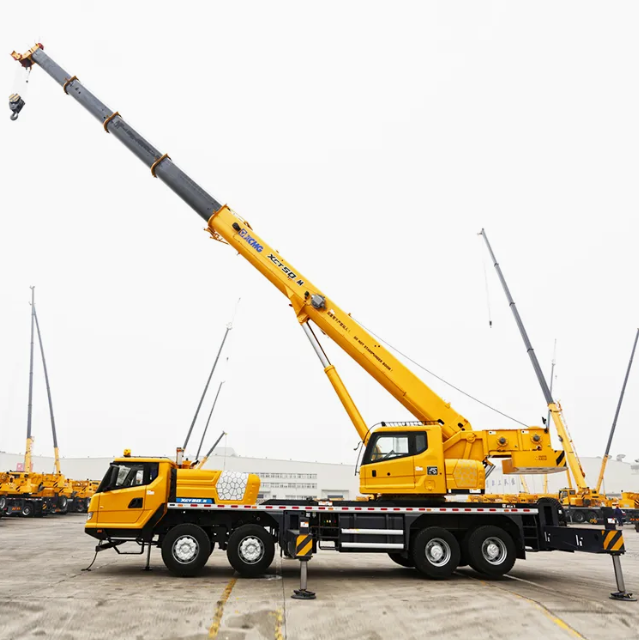

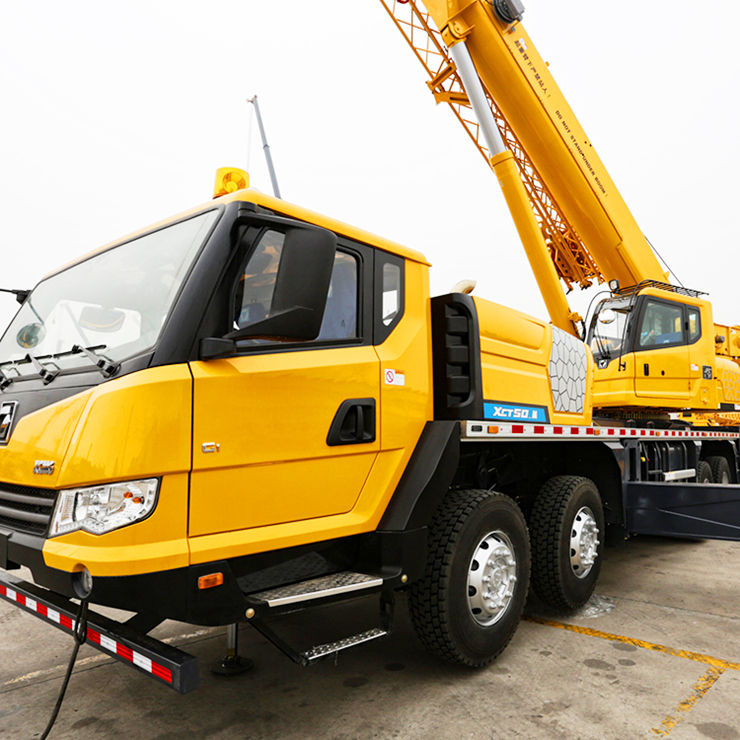

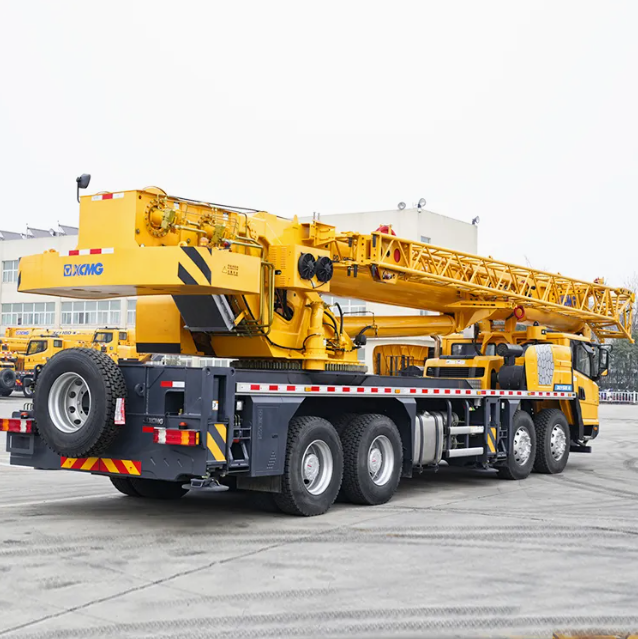

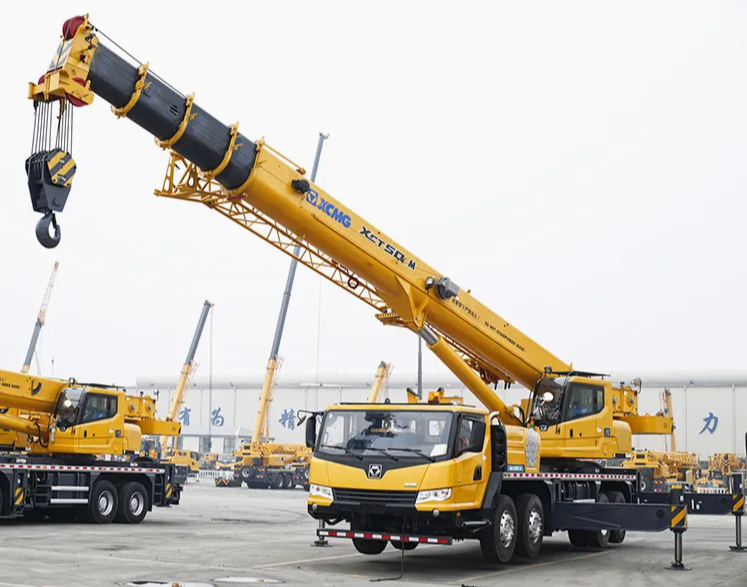

XCT50_Y
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
This crane prioritizes reliability in demanding environments, featuring a high-temperature resistant design that enables continuous operation without shutdown at ambient temperatures up to 60°C. It employs a low-speed, high-torque power drive system that not only boosts power performance by 15% but also reduces fuel consumption during travel by 12%. Additionally, it inherits the G Series' advanced intelligent controls and ergonomic design, delivering a safer and more comfortable operating experience.
Product Advantage
1. 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 50 t; the max. lifting height is 59.5 m; all capacities take the lead in its class.
2. The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 45℃. The whole vehicle is also waterproof and corrosion resistant.The reliability and service life of parts are greatly improved.
3. Abundant configurations of operating methods and jib types can meet the requirements of different customers.
Technical Parameters
| Item | Unit | Parameter | |
| Dimensions (length x width x height) | mm | 14045×2790×3615 | |
| Total vehicle mass in travel configuration | kg | 40100 | |
| Axle load | 1st and 2nd axle | kg | 8500 |
| 3rd and 4th axle | kg | 11550 | |
| Engine rated power/rpm | kW/(r/min) | 247/2200 | |
| Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 | |
| Max. travel speed | km/h | 90 | |
| Min. turning diameter | m | 24 | |
| Min. ground clearance | mm | 260 | |
| Approach angle | ° | 19 | |
| Departure angle | ° | 13 | |
| Max. grade ability | % | 40 | |
| Fuel consumption per 100 km | L | 38 | |
| Max. total rated lifting capacity | t | 50 | |
| Min rated working radius | m | 3 | |
| Max. load moment | Base boom | kN.m | 2009 |
| Fully-extended boom | kN.m | 933 | |
| Outrigger span | Longitudinal | m | 6.1 |
| Lateral | m | 7.1 | |
| Hoist height | Base boom | m | 11.2 |
| Fully-extended boom | m | 43.3 | |
| Boom length | Base boom | m | 11.4 |
| Fully-extended boom | m | 43.5 | |
| Jib offset angle | ° | 0, 15, 30 | |
| Boom raising time | s | ≤40 | |
| Boom fully extending time | s | ≤90 | |
| Hoistin Hoisting speed (single line, 4th layer, no load) | Main winch | m/min | ≥128 |
| Auxiliary winch | m/min | ≥128 | |
Product Uses
1. Urban Construction and Municipal Engineering
The XCT50_Y is ideally suited for space-constrained operations such as urban construction sites, municipal pipeline networks, and renovation of older residential communities. Its compact and flexible design effectively adapts to urban working environments, enabling tasks like pipeline laying and small equipment hoisting while minimizing disruption to residents' daily lives and traffic flow.
2. Large-Scale Steel Structure Installation
This crane is widely used in steel structure construction for major projects. Its versatile boom configurations enable precise and efficient lifting, effectively meeting diverse steel structure installation requirements.
3. Industrial Sites and Energy Projects
The XCT50_Y facilitates equipment installation, inspection, and maintenance in complex industrial environments like petrochemical plants. Its reliable performance and precise control ensure safe, efficient hoisting and positioning of heavy equipment such as large reactors and tanks.
4. Port Terminals and Logistics Transfer
With its excellent maneuverability and easy relocation, the XCT50_Y is also suitable for material loading, unloading, and transshipment operations in ports, terminals, and logistics parks. It can swiftly switch between different workstations to meet diverse handling requirements.
5. Operations in Narrow or Complex Sites
The XCT50_Y adapts to confined spaces like urban alleys and factory compounds, performing equipment hoisting and maintenance tasks effectively.
Product Operate Guide

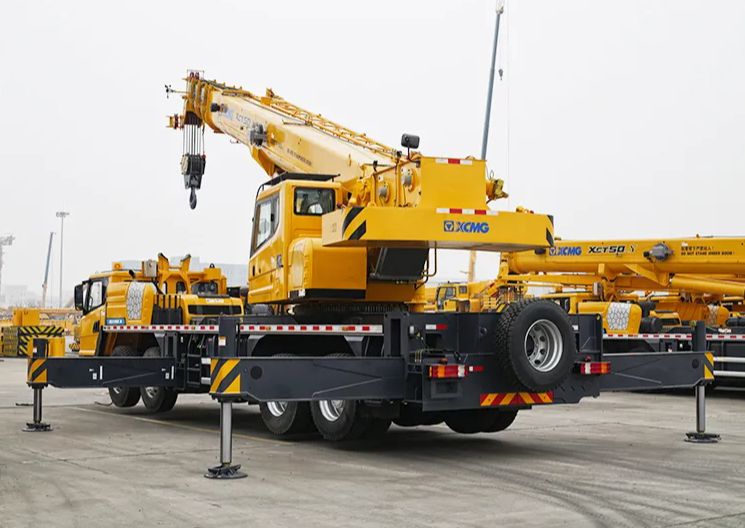

Before operation, check that the outriggers are fully extended and ensure the ground is solid. Keep the crane level during operation and never overload it. Extend and retract the boom smoothly, maintaining a safe distance from surrounding obstacles. Rotate slowly and steadily, avoiding abrupt stops or turns. Regularly inspect the wire rope for wear. After completing work, retract the boom, secure the hook, and maintain daily equipment maintenance records.
FAQ
1. IS THE GREASE FITTING ON THE EQUIPMENT CLOGGED WITH MUD AND SAND, PREVENTING GREASE INJECTION?
First, thoroughly clean the mud and sand from the fitting's exterior. Then, use a fine needle to clear the steel ball inside the fitting. Finally, attempt grease injection again.
2. DOES THE PISTON ROD SURFACE OF THE HYDRAULIC CYLINDER SHOW UNIFORM, SLIGHT WEAR WITH A SHINY APPEARANCE?
Normal. These are normal friction marks from contact with the guide sleeve seal.
3. THE CAN BUS SYSTEM FREQUENTLY REPORTS COMMUNICATION ERRORS?
Check if the 120-ohm termination resistor on the CAN bus is damaged or disconnected, or if water has entered the bus connector.
4. THE RESET SPRING FOR THE MULTI-WAY VALVE SPOOL FREQUENTLY BREAKS?
The spool is stuck due to contaminated oil. Forced operation by the operator causes the spring to overload and shear.
5. ABNORMALLY INTENSE VIBRATION FELT FROM THE CHASSIS DURING OPERATION?
Check if the engine and hydraulic pump vibration dampers are aged/failed, or if chassis mounting bolts are loose.
6. EQUIPMENT AUTOMATIC IDLE FUNCTION MALFUNCTIONING?
Check if the pilot pressure detection switch/sensor under the control lever is faulty, or if this function is disabled in the ECU.
