Product Introduction

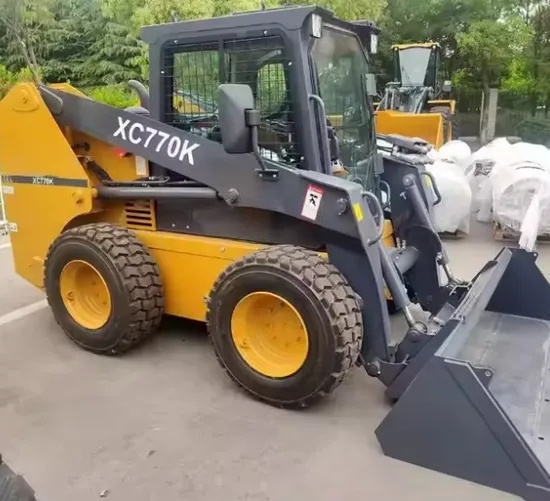

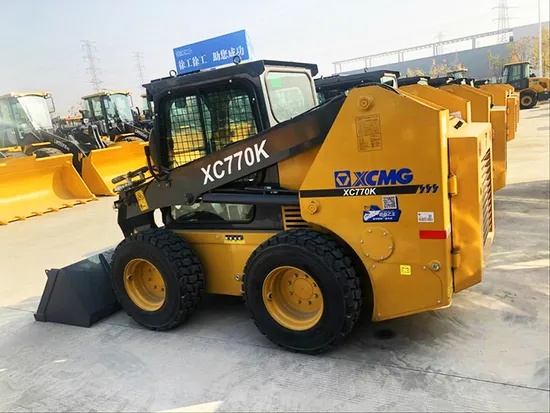

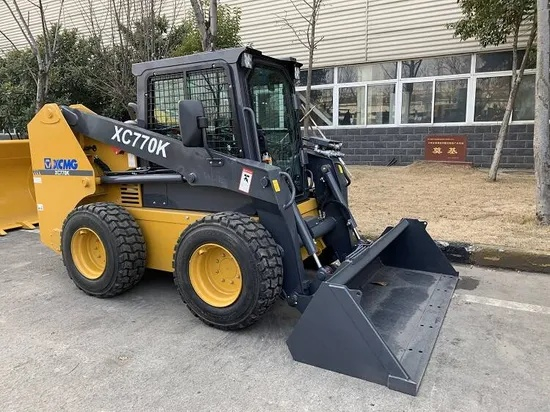

The XC770K is a "power type" skid steer loader designed to handle extremely heavy-load working conditions. It combines powerful performance, outstanding performance, top-notch comfort and reliable durability, making it an ideal choice for users who pursue production efficiency and value in high-intensity working environments.
Product Advantage
Larger rated load: typically around 3,250 kg or more.
Stronger breakout force: It can easily handle heavy tasks such as inserting material piles and breaking through hard ground.
Higher hydraulic flow: Provides abundant power for attachments that require large flow rates (such as large milling machines, harvesters, etc.).
Longer wheelbase and greater self-weight: Provide excellent stability and lifting capacity.
Technical Parameters
| Rated power | KW | 74.9 |
| Operating mass | KG | 3700 |
| Rated loading capacity | kg | 1250 |
| Dumping height | mm | 2450 |
| Dumping range | mm | 570 |
| Overall machine dimensions (L×W×H) | mm | 3750×2000×1960 |

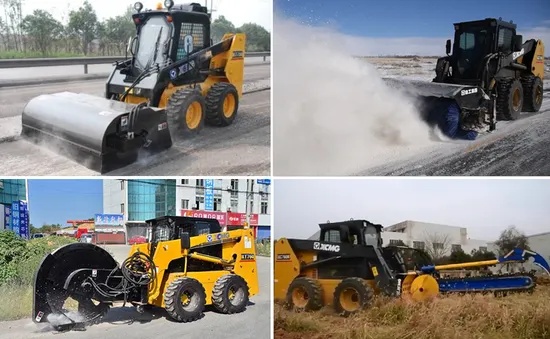

Product Uses
Large building materials markets and mixing plants: High-intensity material handling.
Mines and quarries: Site clearance and crushed stone treatment.
Port terminals: Bulk cargo clearance and transshipment.
Agriculture and animal husbandry: Feed handling, site cleaning.
Highway construction and maintenance: milling, crushing, material handling.
Municipal engineering: Snow removal and cleaning operations in winter.
Product Operate Guide
Startup and preheating：
Sit on the seat, adjust it to a comfortable position and fasten your seat belt.
Confirm that all control handles are in the "neutral" or "locked" state.
Turn the key to the "ON" position and observe the self-check of the dashboard indicator lights.
Start the engine and avoid stepping on the accelerator for a long time. In a low-temperature environment, a short period of idle preheating is allowed.
Machine walking and steering:
Smooth operation: Operate the handle slowly and steadily, avoiding sudden acceleration or turning, especially under heavy load.
In-place steering: Utilizing the reverse rotation of the wheels on both sides to achieve a very small radius of steering, but it must be done at a low speed.
Slope operation: Always keep the heavy-duty end of the machine (usually the engine end) facing the top of the slope when going up and down. It is strictly forbidden to turn on the slope.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
