Product Description

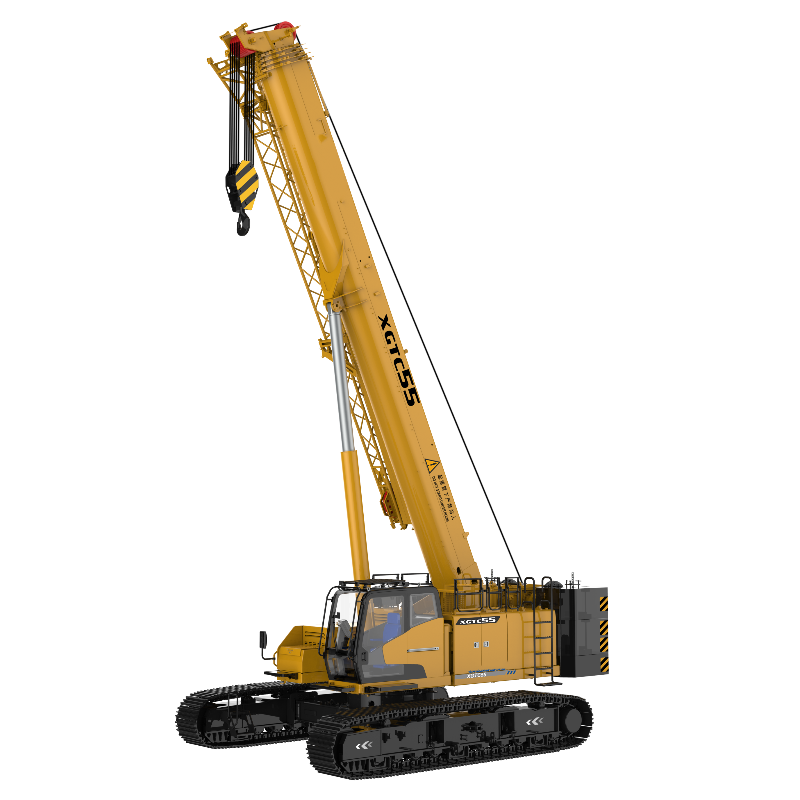

The XGTC55 telescopic crawler crane adopts heavy-duty tracked undercarriage with retractable wide track shoes. Extended tracks offer high stability while retracted width facilitates road transportation, delivering reliable mobility on muddy wetlands, soft ground and rugged terrain. The five-section high-strength U-type steel telescopic main boom ranges from 11.64m to 45.5m, with optional 9.5m or16m fixed jib, realizing a maximum comprehensive lifting height of 61.5m, perfectly suited for rebar cage hoisting in foundation works.
It is equipped with Weichai WP7G 199kW high-power diesel engine, matched with mature load-sensing hydraulic system to realize smooth compound movements of hoisting, slewing and luffing. 500L large capacity fuel tank extends continuous working time, and independent cooling system ensures stable performance under long-hour heavy load operation. The machine features graded counterweight design with self-dismantling function; auxiliary crane is not required for counterweight assembly and disassembly, saving construction and transfer cost. The panoramic operator cabin provides wide vision and ergonomic layout. Standard intelligent virtual wall protection plus full-set safety monitoring system tracks load, boom angle and working radius in real time. The whole machine can be transported by one flatbed truck for convenient cross-region relocation.
Product Advantages
Strong Lifting Performance：
Max rated lifting capacity 55 ton and 2117kN·m load moment, outstanding performance for rebar cage hoisting and heavy foundation construction.
Wide Working Range：
11.64~45.5m five-section telescopic main boom, optional 9.5/16m jib, max lifting height up to 61.5m for medium high-altitude hoisting.
Excellent All-terrain Mobility：
Retractable wide track chassis, stable walking and hoisting on muddy, soft and uneven construction sites.
Efficient Telescopic Boom Design：
Hydraulic telescopic boom, no manual assembly of boom sections on site, saving setup time compared with lattice boom crawler cranes.
Long Continuous Working Time：
500L large fuel tank + independent high-power cooling system, reliable continuous operation under heavy load for long shifts.
Self-dismantling Counterweight：
Counterweight self-assembly and disassembly system, no extra auxiliary crane needed, reduces site operation cost.
Intelligent Virtual Wall Safety System：
Virtual wall limiting function, automatically restrict working range to avoid collision, greatly improve safety in limited space.
Easy Transportation & Transfer：
Whole machine can be shipped with one flatbed truck, retractable crawler reduces transport width for highway delivery.
Comfortable Operation Cabin：
Panoramic wide view cabin, smooth hydraulic control for precise micro-operation and long-time continuous work.
Technical Parameters
Item | Unit | XGTC55 |
Max Rated Lifting Capacity (Main Boom) | t | 55 |
Rated Load Moment | kN·m | 2117 |
Main Boom Sections / Length | pcs/m | 5 / 11.64~45.5 |
Optional Fixed Auxiliary Jib | m | 9.5 /16 |
Max Comprehensive Lifting Height | m | 61.5 |
Engine Model | - | Weichai WP7G |
Rated Engine Power | kW | 199 |
Fuel Tank Volume | L | 500 |
Travel Speed | km/h | 0~2.2 |
Slewing Speed | r/min | 0~2.0 |
Warranty Period | - | 1 Year Whole Machine |
Product Applications
Rebar cage hoisting and deep foundation pit construction
Bridge installation, bridge component lifting and auxiliary construction
Foundation piling engineering
Large steel structure factory and workshop frame erection
Muddy, wetland and uneven complex terrain lifting tasks
Municipal large infrastructure projects
Power engineering and petrochemical auxiliary equipment installation
FAQ
Q1: What is the max lifting capacity and boom configuration of XGTC55?
A: Max rated lifting capacity is 55 ton under main boom working condition. It adopts 5-section 11.64~45.5m telescopic main boom, optional 9.5m or16m auxiliary jib, maximum lifting height reaches 61.5m, ideal for rebar cage hoisting.
Q2: What are the advantages of telescopic boom crawler crane compared with lattice boom crawler crane?
A: Hydraulic telescopic boom can extend and retract directly on site without manual assembly of boom segments, saving plenty of installation time. It combines truck crane flexibility and crawler crane off-road stability.
Q3: Can XGTC55 operate on muddy and soft construction ground?
A: Yes. Retractable wide track shoes deliver low ground pressure, ensuring stable walking and hoisting on soft, muddy and uneven terrain.
Q4: What engine is equipped on XGTC55?
A: It adopts Weichai WP7G 199kW diesel engine, stable power reserve for frequent heavy foundation construction work.
Q5: What is the function of virtual wall system?
A: Virtual wall function can automatically limit crane working range, prevent collision in narrow sites and improve operation safety.
Q6: Is the counterweight easy to disassemble?
A: Yes. It is fitted with counterweight self-dismantling system, no auxiliary crane required, greatly improving efficiency during site transfer.
Q7: What safety systems are equipped?
A: Load moment limiter, boom angle real-time monitoring, overload protection, anti-over-winding and multi safety interlock system to prevent operation risks.
Q8: What is your warranty policy and shipping method?
A: We provide 1-year whole machine warranty, global spare parts supply and professional overseas technical support. RORO ship, bulk carrier and flat rack container shipping are available.
