Product Introduction

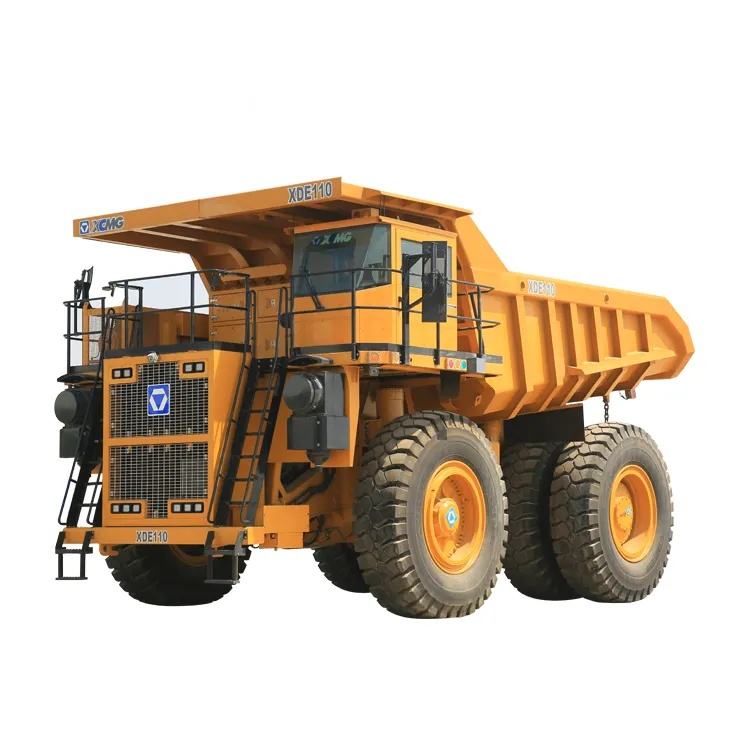

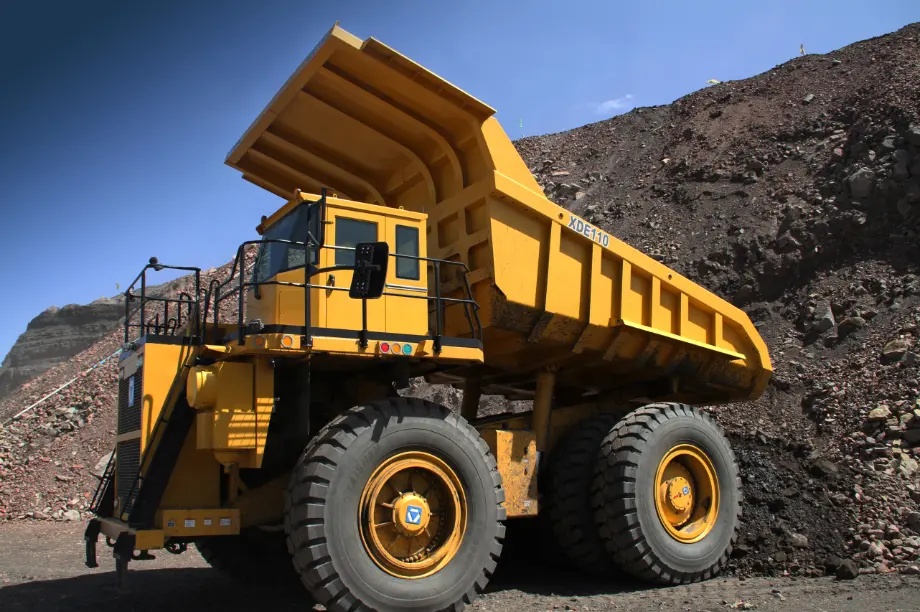

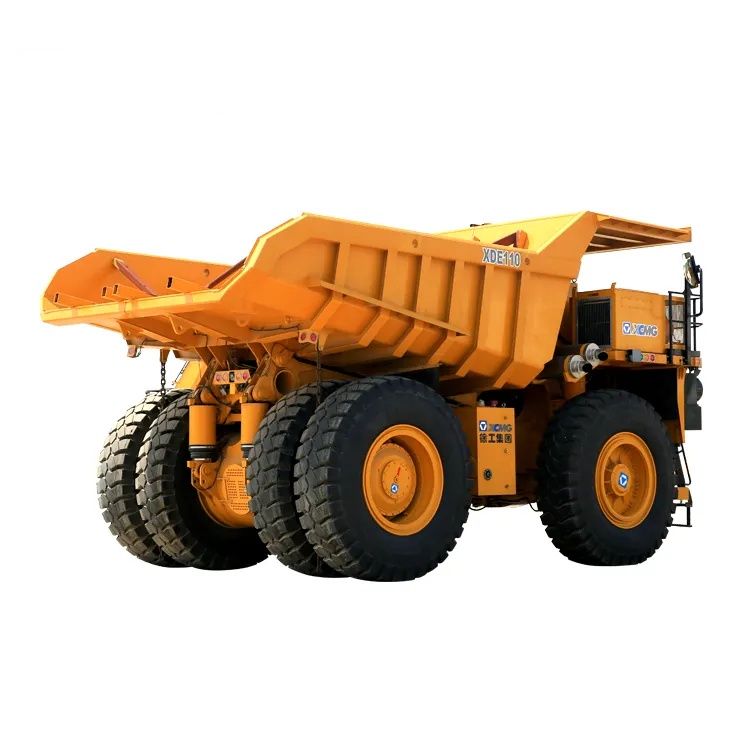

The XDE110 is a super-large rigid mining dump truck with a rated load capacity of 110 metric tons (110 tons). Its design objective is to provide efficient, reliable, economical and safe transportation solutions in extremely harsh mining environments, aiming to help customers reduce operating costs (TCO) and enhance the operational efficiency of mines.
Product Advantage
1.The engine:
High performance electronically controlled engine, powerful power, low speed and high torque, good fuel economy; The engine monitoring system can monitor the working condition of each cylinder in real time, extend the service life of the engine and reduce the service cost. MTU engine is optional.
2.Electric control system:
The new generation of electronic intelligent control system integrates vehicle management system, video image and data recording, effectively reduces fuel consumption, improves driving safety and facilitates vehicle management and maintenance. All LED lamps, green environmental protection, good shock resistance.
Technical Parameters
| Item | Unit | XDE110 |
| Performance parameters | Rated Payload | t | 110 |
| Empty Weight | kg | 80000 |
| Gross Vehicle Weight | kg | 190000 |
| Drive Style |
| 4x2 |
| Max. Speed | km/h | 55 |
| Max. Gradeability | % | 22 |
| Min. Turning Diameter | m | 22 |
| Overall dimension | mm | 10500*5800*5500 |
| Engine | Model |
| Cummins KTA38 |
| Rated Power/Speed | kW/rpm | 895/2100 |
| Max. Torque/Speed | Nm/rpm | 4678/1300 |
| Electric drive | Alternator |
| YJ116C |
| Traction Motor |
| YJ198A |
| Ratio |
| 29.38:1 |
| Tires | Standard Tire |
| 30.00R51 Tubeless, all-steel radial tires |
| Electrical | V | 24 |
Product Uses
Large open-pit coal mine
• Large-scale metal mines (such as iron mines and copper mines)
Earthwork transportation for large-scale water conservancy projects
Product Operate Guide
Professional training is required before operating the XDE110. Before starting, conduct a round-around inspection to ensure that there are no abnormalities in the tires, lights or structural components. When driving, fasten your seat belt, use the fly-by-wire control system to accelerate and decelerate smoothly, and make full use of the regenerative braking function. Overloading and speeding are strictly prohibited. Please keep a safe distance from the vehicle in front. When unloading, choose a flat and solid ground to ensure the stability of the vehicle body during lifting. Only when the cargo box is completely reset after unloading can the vehicle be driven. Regularly monitor the vehicle status through the on-board display screen and report for repair in a timely manner when an alarm is detected. Strict compliance with regulations is the key to safe and efficient operation.
FAQ
1.What kind of engine and transmission system does it use?
A: It is usually equipped with a Cummins QSK60 high-power diesel engine, adopting AC electric drive technology, with stepless speed change, making operation more convenient and power transmission more efficient.
2.In what environments is this car suitable for working?
A: Specifically designed for large open-pit coal mines, iron mines, copper mines and other metal mines as well as large-scale water conservancy earthwork projects, it can adapt to harsh working conditions with much dust and numerous slopes.
3.Is a special driver's license or training required to operate the XDE110?
A: Yes. To operate large-scale mining dump trucks, one must receive professional and systematic training provided by the mine and obtain the corresponding operation permit. A regular driver's license is not allowed to operate such special equipment.
4.What is "regenerative braking"? What are its benefits?
Regenerative braking is the process in which an electric drive vehicle, when going downhill or decelerating, converts the wheel-side motor into A generator, converting kinetic energy into electrical energy and recovering it. The benefits are: ① Significantly save fuel; ② Reduce the wear of traditional brakes and extend their service life; ③ Provide a smoother and more continuous braking effect.
5.What are the safety guarantee measures for vehicles?
A: Equipped with multiple security guarantees
Dual-circuit braking system (hydraulic braking + electric braking).
• Emergency braking system.
• Vehicle monitoring system (real-time monitoring of key parameters and alarm).
• ROPS/FOPS certified cab (anti-rollover/anti-falling object protection structure).
6.If a vehicle breaks down, how can it be diagnosed quickly?
A: The multi-functional display screen in the cab will provide detailed fault codes and early warning information. Technicians can quickly locate problems through these codes, significantly reducing the time for diagnosis and repair.
