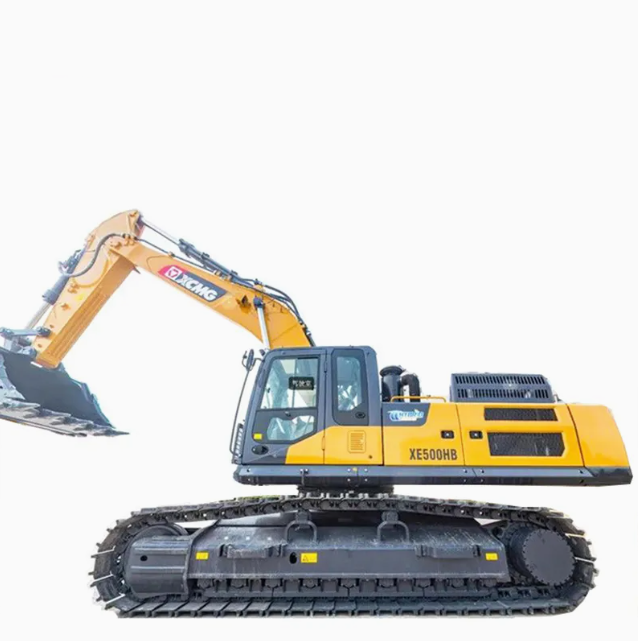

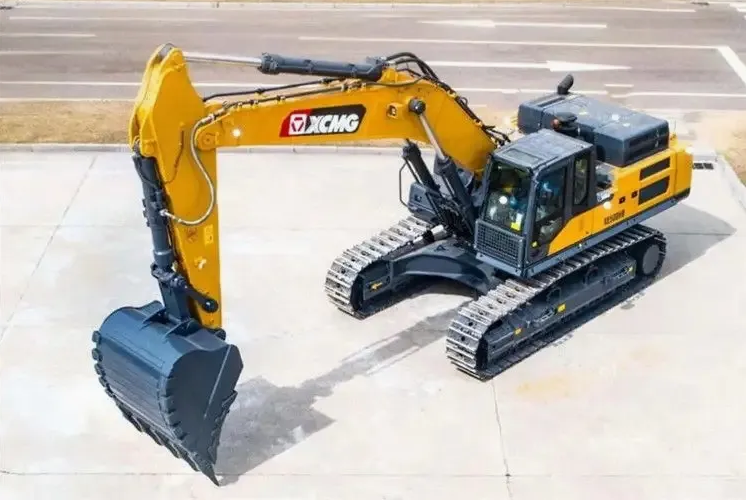

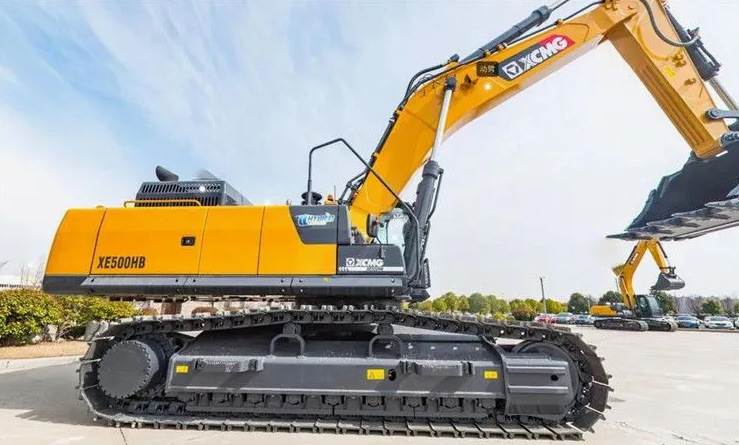

Product Introduction
The XE500HB excavator's accumulator-driven variable-displacement cooling motor with stepless speed regulation technology ensures optimal energy utilization. Equipped with dual-system automatic switching technology, the XE500HB guarantees normal operation under all working conditions. Stored hydraulic energy is prioritized to drive the cooling motor.
Product Advantage
The accumulator-driven variable-speed cooling fan motor with stepless speed regulation ensures optimal energy utilization.
Dual-system automatic switching technology guarantees normal operation of the excavator under all working conditions.
Stored hydraulic energy prioritizes driving the cooling fan motor.
Recovered energy is released independently without interfering with excavator operations, achieving 100% energy recovery utilization and over 17% energy savings.
The invention of auxiliary power unidirectional transmission technology eliminates energy waste from auxiliary motors running idle.
High-pressure, high-safety dual-row accumulators with ultra-large capacity store more energy and achieve a service life of 20,000 hours.
Technical Parameters
| Sales model | Unit | XE500HB |
| Operating weight | Kg | 48500 |
| Bucket capacity | m³ | 2.3-3.1 |
| Engine | Model | / | QSM11 |
| No. of cylinders | / | 6 |
| Output power | kw/rpm | 280/2000 |
| Maximum torque/speed | N.m/rpm | 1898/1300 |
| Displacement | L | 11 |
| Main performance | Travel speed | km/h | 5.4/3.2 |
| Swing speed | r/min | 9.2 |
| Gradeability | ° | 35 |
| Ground pressure | kPa | 85 |
| Bucket digging force | kN | 301 |
| Arm digging force | kN | 248 |
| Maximum traction | kN | 338 |
| Hydraulic system | Rated flow of main pump | L/min | 2×360 |
| Main safety valve pressure | MPa | 34.3/37 |
| Travel system pressure | MPa | 34.3 |
| Rotary system pressure | MPa | 31 |
| Pilot system pressure | MPa | 3.9 |
| Oil Capacity | Fuel tank capacity | L | 725 |
| Hydraulic tank capacity | L | 430 |
| Engine oil capacity | L | 38 |
| Appearance size | A Overall length | mm | 11805 |
| B Overall width | mm | 3572 |
| C Overall height | mm | 3890 |
| D Width of platform | mm | 3095 |
| E Track length | mm | 5470 |
| F Overall width of chassis | mm | 3572 |
| G Track width | mm | 600 |
| H Length to center of rollers | mm | 4407 |
| I Track gauge | mm | 2740 |
| J Counterweight clearance | mm | 1335 |
| K Min. ground clearance | mm | 518 |
| L Min. tail swing radius | mm | 3800 |
| M Track height | mm | 1225 |
| Working scope | A Max. digging height | mm | 9855 |
| B Max. dumping height | mm | 6890 |
| C Max. digging depth | mm | 7000 |
| D Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6900 |
| E Max. vertical wall digging depth | mm | 4500 |
| F Max. digging radius | mm | 10855 |
| G Min. swing radius | mm | 4580 |
| Standard configuration | Length of boom | mm | 6670 |
| Length of arm | mm | 2900 |
| Bucket capacity | m³ | 2.6 |
| Optional configuration | Length of boom | m³ | 7060 |
| Length of arm | m³ | 3380/2600/2400 |
| Bucket capacity | m³ | 2.3,2.5,3.1 |
Product Uses

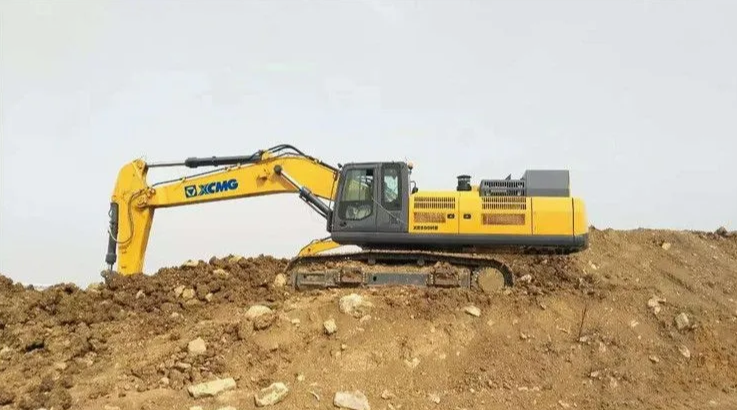

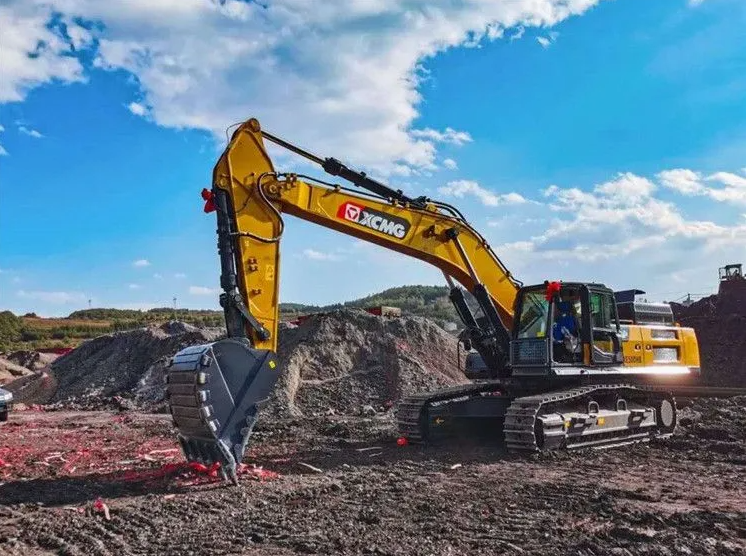

1. Open-Pit Mining and Medium-to-Large Quarry Operations
The XE500HB is the ideal choice for excavation tasks in open-pit mines and medium-to-large quarries. Its hybrid system (delivering over 17% energy savings and approximately 7 liters of fuel per hour) combined with robust digging power effectively handles demanding tasks like ore extraction, heavy-duty excavation, and material loading. This significantly reduces fuel consumption and operational costs in large-scale mining operations.
2. Large-Scale Infrastructure Development and Land Reclamation
In major infrastructure projects like port access roads and land reclamation, the XE500HB excels at earthmoving and material handling. Its high efficiency, energy savings, and reliability ensure construction schedules are met—particularly in high-stakes, time-sensitive projects like the Xiapu Sansha Port Access Road.
3. Energy- and Time-Sensitive Large-Scale Projects
For multi-billion-yuan projects like Evergrande Chongzuo Cultural Tourism and Wellness City, the XE500HB's fuel efficiency (easily saving over 100,000 yuan annually in fuel costs) and high-efficiency operation effectively control lifecycle operating costs. This meets the extreme demands for equipment availability and economic performance characteristic of such projects.
Product Operate Guide
Before operation, thoroughly inspect the hydraulic oil level and hybrid system status. After starting, idle for 3-5 minutes to allow the system to complete its self-check. During operation, prioritize the intelligent energy-saving mode and fully utilize the energy recovery system. Maintain steady operation during heavy-duty tasks, avoiding abrupt starts and stops. Regularly inspect the supercapacitor bank status and maintain the cooling system cleanliness. Clean the equipment promptly after operation, paying special attention to the cooling vents of the power battery pack. Conduct monthly dedicated maintenance on the hybrid system, strictly using the specified hydraulic oil. Always monitor the surrounding environment, paying particular attention to the operational status indicators of the hybrid system.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
3. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
4. DIM OR NO HEADLIGHT ILLUMINATION?
Check bulbs, sockets, related fuses, relays, wiring connections, and grounding.
5. HORN NOT SOUNDING OR PRODUCING A MUFFLED TONE?
Inspect the horn itself, horn relay, push-button switch, and wiring.
6. WINDSHIELD WIPERS NOT WORKING OR OPERATING AT ABNORMAL SPEEDS?
Check the wiper motor, linkage mechanism, fuses, control switch, and intermittent relay.
