Product Introduction

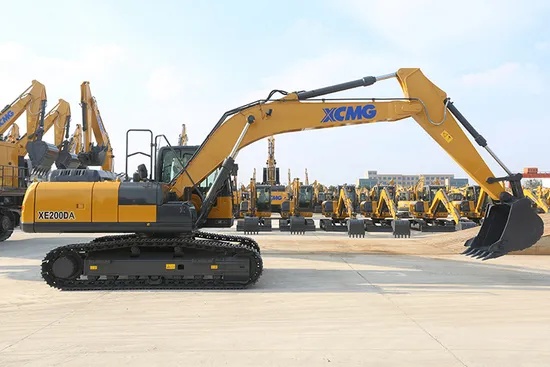

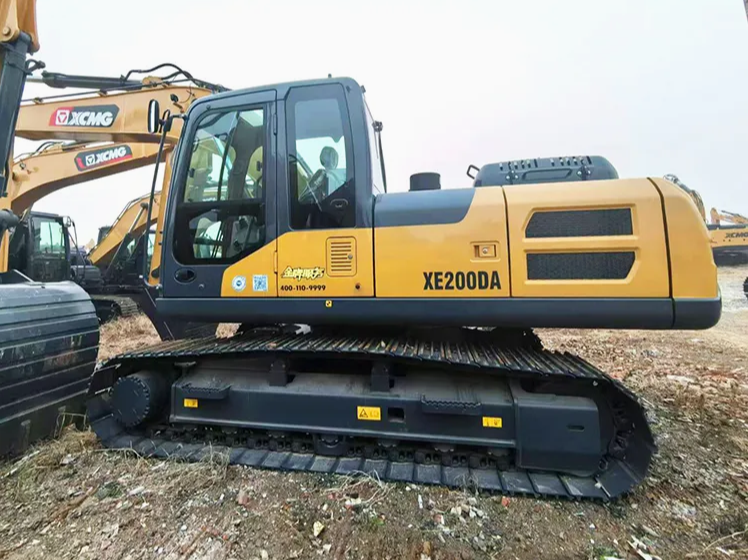

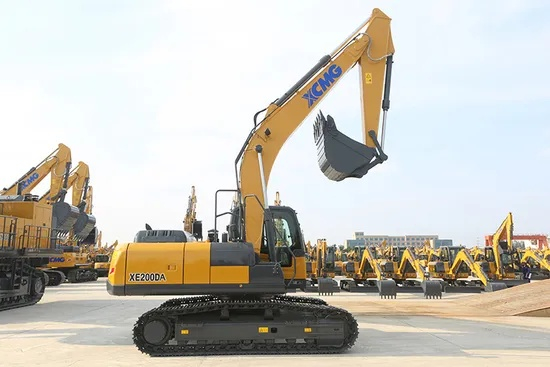

XE200DA hydraulic excavator is a new generation of product that has been cultivated for many years by drawing on the professional accumulation of international advanced technology . XE200DA hydraulic excavator is strong and powerful, and has features of high efficiency and low fuel consumption. It can be widely applied to farmland water conservancy, river dredging and municipal construction. It can also realize different operations such as excavating, crushing and dismantling, and has strong adaptability to working conditions.
Product Advantage
With customized power and fuel consumption characteristic curves, sufficient power and fuel consumption is low. The new type radiator with integral brazing technology and robot welding is equipped with a positive pressure degassing expansion tank to improve the service life of the pump, it can quickly remove the gas in the engine and the waterway, reduce rust, and meet the requirements of 50 °C environment.
The hydraulic system is continuously optimized and improved, and the coordination of the whole machine is better. It can be handy regardless of loading, squatting and leveling. The main pump corresponds to the engine setting pressure-flow curve to achieve perfect power matching and fully absorbs the output power of the engine. The operation is faster and 10% more efficient.
Technical Parameters
| Item | Unit | XE200DA |
| Operating weight | Kg | 21200 |
| Bucket capacity | m³ | 0.93~1.1 |
| Engine | Model | / | QSB7 |
| Rated power/speed | kw/rpm | 135/2050 |
| Maximum torque/speed | N.m | 740/1250 |
| Displacement | L | 6.7 |
| Main performance | Travel speed(H/L) | km/h | 5.3/2.9 |
| Swing speed | r/min | 11.6 |
| Gradeability | ° | ≤35 |
| Ground pressure | kPa | 46.9 |
| Bucket digging force | kN | 149 |
| Arm digging force | kN | 121 |
| Maximum tractive force | kN | 184 |
| Hydraulic system | Main pump | / | Two piston pumps |
| Rated flow of main pump | L/min | 2×209 |
| Main safety valve pressure | MPa | 34.3/37 |
| Travel system pressure | MPa | 34.3 |
| Swing system pressure | MPa | 28 |
| Pilot system pressure | MPa | 3.9 |
| Oil Capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 220 |
| Engine oil capacity | L | 24 |
| Appearance size | Overall length | mm | 9625 |
| Overall width | mm | 2910 |
| Overall height | mm | 3100 |
| Width of platform | mm | 2830 |
| Track length | mm | 4155 |
| Overall width of chassis | mm | 2890 |
| Track shoe width | mm | 600 |
| Length to center of rollers | mm | 3366 |
| Track gauge | mm | 2290 |
| Counterweight clearance | mm | 1050 |
| Min. ground clearance | mm | 486 |
| Min. tail swing radius | mm | 2890 |
| Track height | mm | 940 |
| Working scope | Max. digging height | mm | 9680 |
| Max. dumping height | mm | 6815 |
| Max. digging depth | mm | 6460 |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6275 |
| Max. vertical wall digging depth | mm | 5590 |
| Max. digging radius | mm | 9790 |
| Min. swing radius | mm | 3530 |
Product Uses
Agricultural and Rural Infrastructure Construction and Renovation
The XE200DA is ideally suited for farmland water conservancy projects (such as channel excavation and dredging, pond excavation), high-standard farmland renovation (including field consolidation and farm road maintenance), and village access road construction. Its compact body and reinforced, enlarged chassis design enable stable and agile maneuvering in narrow, rugged fields and farmland, while its low fuel consumption helps reduce construction costs.
2. Municipal and Construction Engineering
The XE60D plays a vital role in scenarios such as municipal pipeline laying, foundation excavation for buildings, and landscape renovation. Its optimized main valve system enhances coordinated movement, delivering rapid response and precise control. Combined with its compact frame, it excels in confined urban areas, residential complexes, and green belts, efficiently completing tasks like trench excavation, earthmoving, and planting hole digging.
3. Flexible Application with Multiple Attachments
The XE200DA can be equipped with optional attachments like bulldozer blades and hydraulic breakers to perform small-scale earthwork leveling, concrete breaking, and other tasks, achieving multi-purpose functionality and expanding its application range.
4. Environmental Beautification and Comprehensive Management
The XE200DA is frequently deployed for rural habitat improvement projects, including waste removal, drainage ditch rehabilitation, and rural road maintenance. Its high-efficiency operation and agile maneuverability adapt to complex rural environments, contributing to enhanced village aesthetics and overall community appearance.
Product Operate Guide
1. Preparation: Pre-check the excavator's fluid levels, fuel, hydraulic oil, and lubricant sufficiency to ensure the machine is in good condition.
2. Pre-Operation Procedures: Turn off the engine power switch, pull the manual shut-off switch, then activate the excavator's main power switch.
3. Engine Start-up: Adjust the control lever inside the cab to switch the control mode to “lever” mode. Then press the engine start button to start the excavator's engine.
4. System Check: After engine startup, wait for the machine's self-diagnostic cycle. Monitor all gauge indicator lights to confirm proper system operation.
5. Safety Inspection: Verify that cables, hoses, and other movable components are securely fastened. Ensure no loose or damaged parts exist.
6. Operator Setup: Adjust the seat, armrests, and footrests to your preferred position and height. Then adjust the mirrors to ensure clear visibility.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
3. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
4. ENGINE WON'T START (STARTER MOTOR DOESN'T TURN)?
A: First check if battery terminals are loose or corroded, if battery voltage is insufficient, if fuses are blown, and if the starter relay/magnetic switch is faulty.
5. ENGINE FAILS TO START (STARTER MOTOR TURNS BUT ENGINE DOES NOT CRANK)?
Focus on fuel system inspection: Check for depleted diesel fuel, air in the fuel line, clogged diesel fuel filter (coarse/fine), and proper operation of the manual fuel pump.
6. DIFFICULTY STARTING THE ENGINE IN COLD CONDITIONS?
Verify proper functioning of glow plugs or the intake air preheating system, and ensure use of diesel fuel with the appropriate cetane number for the current ambient temperature.
