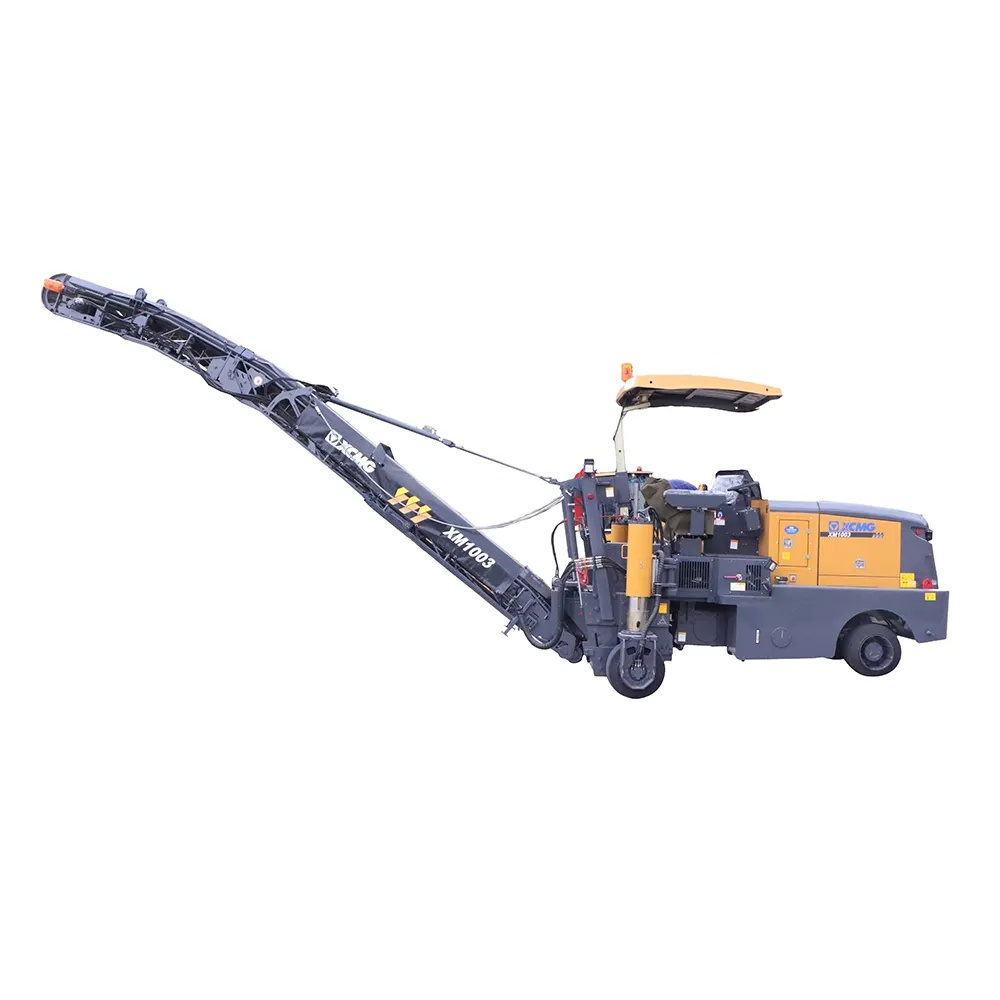

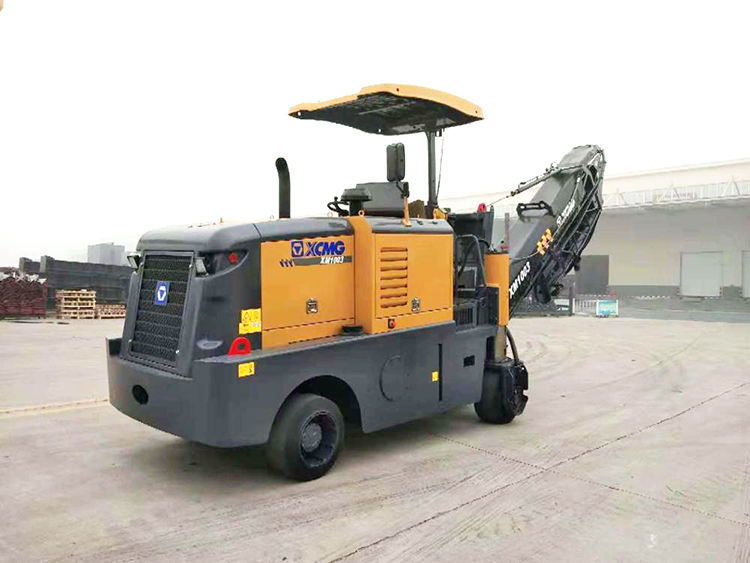

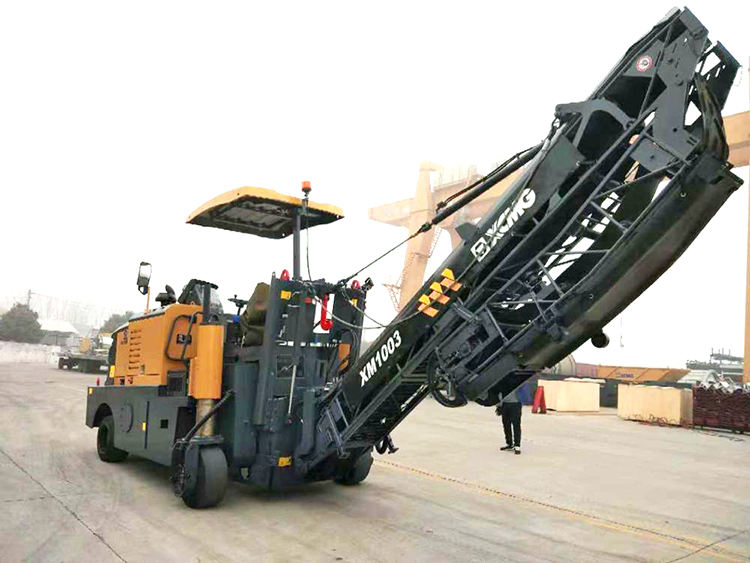

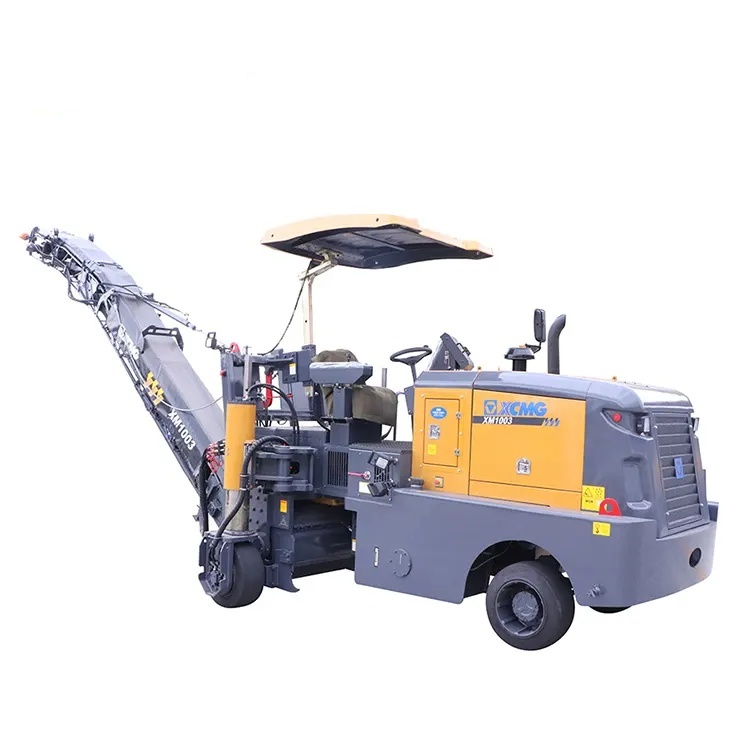

XM1003
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
This machine is powered by Shangchai 162kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth. The full-hydraulic four-wheel drive traveling system is applied to provide powerful traction force. The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load. The super-high capacity water tank and fuel tank (800L and 350L respectively) guarantee longer continuous working time and reduce the down time.
Product Advantage
The XM1003 milling machine integrates the advantages of high efficiency, precision and reliability. Equipped with a high-power engine and an efficient hydraulic system, it has strong milling capabilities and outstanding working efficiency. Full hydraulic four-wheel drive and multiple steering modes, highly maneuverable and flexible. Equipped with an intelligent leveling system, the milling depth control is precise and the flatness is excellent. The key structure is robust, and the core hydraulic components adopt international brands, ensuring high reliability and guaranteed availability. The whole machine is designed humanely, equipped with an intelligent diagnosis and efficient dust removal system. It is easy to maintain and meets the requirements of environmental protection construction. It is an ideal equipment for road maintenance.
Technical Parameters
| Item | Unit | XM1003 | |
| Milling drum | Milling drum Milling width | mm | 1000 |
| Milling depth | mm | 180 | |
| Tool spacing | mm | 18 | |
| Rotor diameter with tool | mm | 700 | |
| Engine | Rated power/speed | kW/rpm | 162/2200 |
| Displacement | L | 8.8 | |
| Rated power consumption | L | 36.7 | |
| Comprehensive fuel consumption | L | 12.3 | |
| Electrical system | V | 24 | |
| Box capacity | Box capacity Fuel tank | L | 350 |
| Hydraulic oil tank | L | 130 | |
| Water tank | L | 800 | |
| Driving performance | Driving performance Maximum operating speed | m/min | 40 |
| Maximum speed | km/h | 8 | |
| Theoretical climbing ability | % | 50 | |
| Ground clearance | mm | 180 | |
| Tire | Tire Tire Form Solid Rubber Tire | Rubber Tire | |
| Front tire size | mm | 645×300 | |
| Rear tire size | mm | 645×300 | |
| Milling material conveying | Milling material conveyor Belt width | mm | 400 |
| Theoretical feeding capacity | m3/h | 84 | |
| Transport size | Shipping Size Host Size (L×W×H) | mm | 4690×2500×3500 |
| Host size (right leg swings into the frame) (L×W×H) | mm | 4690×1950×3500 | |
| Folding conveyor size | mm | 8050×1070×980 | |
| Machine weight | Machine Quality Work | kg | 15600 |
| Front axle load (under working quality) | kg | 6700 | |
| Rear axle load (under working quality) | kg | 8900 | |
Product Uses
• Expressways: Repair of ruts, bumps, cracks and other diseases, as well as removal of road markings.
• National and provincial trunk roads: Large-scale milling and renovation of old road surfaces.
• Urban municipal roads: Manhole cover leveling, local pothole repair, and overall milling and paving.
• Airport: Runway de-gluing, surface roughening.
• Others: Maintenance and repair of asphalt pavements in squares, parking lots, etc.
Product Operate Guide
The XM1003 milling machine is easy and efficient to operate. Before starting the operation, it is necessary to check the cutter head, oil level and belt tension. After startup, set the milling depth and rotational speed through the control panel. During operation, the automatic leveling system is used to ensure the accuracy of the work, and the parameters on the instrument panel are constantly observed. When turning, flexibly switch between multiple modes to adapt to working conditions. Pay attention to evenly controlling the feed speed and avoid overloading. After the operation, the rotor should be cleaned in time and daily maintenance should be carried out. For detailed steps, please refer to the random operation manual.
FAQ
A: It is usually equipped with turbocharged diesel engines from well-known domestic brands (such as Weichai) or international brands (such as Cummins), with a power of approximately 199kW, which is powerful and reliable.
With its fully hydraulic four-wheel drive system, the XM1003 boasts powerful traction and climbing ability, with A maximum climbing slope of over 40%, making it capable of easily handling the slope requirements of various construction sites.
A: It mainly relies on a high-precision automatic leveling system. This system supports multiple reference methods (mechanical balance beam, ultrasonic, laser, etc.), can precisely control the milling depth and flatness, and ensure the construction quality.
A: Possible reasons include
The reference line or sensor of the automatic leveling system is improperly set or malfunctions.
The milling and planing cutter head is severely worn or missing too much.
The milling rotor speed does not match the forward speed (the speed is too fast).
The ground has severe undulations that exceed the compensation range of the leveling system.
A: Please check
• Water spray system: Check if the water pump is working, if the water tank is short of water, and if the nozzles are clogged.
• Dust collector: Check if the dust filter screen is clogged and it needs to be cleaned or replaced regularly.
A: There is no fixed time for the replacement cycle of the cutter head. It completely depends on the hardness of the material being milled, the milling volume and the ground conditions. The wear length of the cutter head should be inspected regularly. When the wear reaches the limit value (for specific values, please refer to the manual), it must be replaced in groups to protect the cutter seat and ensure the milling effect.
