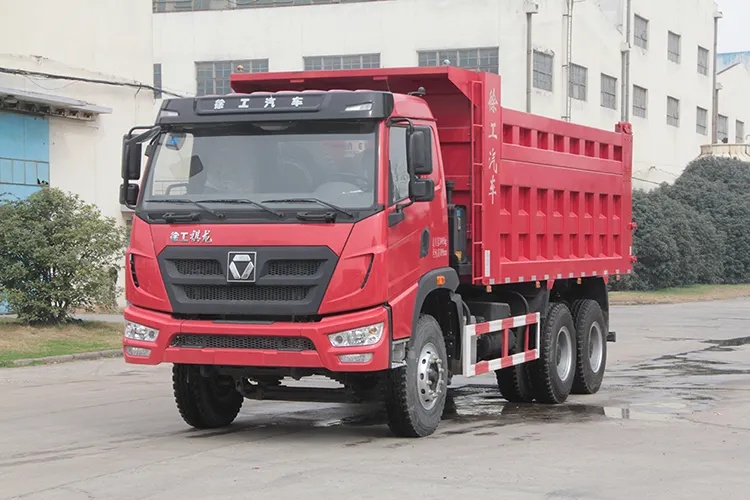

NXG3251D3KC
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

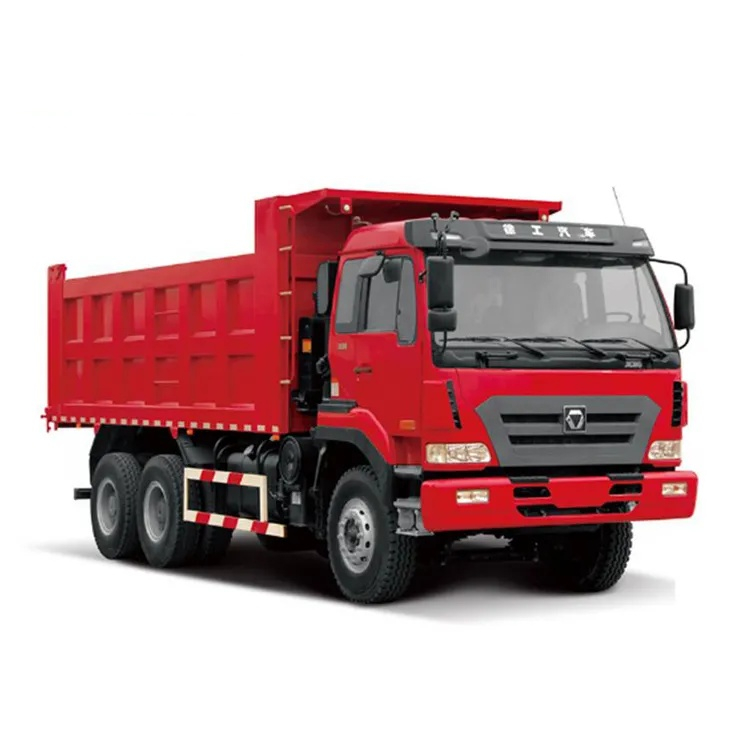

XG dump truck is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads. Based on the construction site and urban road driving, it has a series of products of heavy load type, composite type and urban construction slag type.This kind of product is characterized by strong power and efficient transportation, and has passed thousands of industrial verification experiment.After three years of practice and improvement, the power system, steering system and braking system have been comprehensively optimized and improved, which is more suitable for all kinds of heavy loads and complex working conditions.It has the obvious advantages of high bearing capacity, high reliability, high safety and high economy.
Product Advantage
Comfortable Driving, Pleasant Enjoyment
* Symmetrical, refined, excellent and ergonomic design, facilitates your driving operation; covering fttings adopt leather package, strong light absorption, no high-light points, reduce visual fatigue.
* Multi-functional configuration, large storage space; strictly control the gap and chromatism, meticulous work; silkstocking airbag seats.
Maximum Supporting capacity and practicability
* Golden power assembly-For the economic and reliabilit, reliable brands engine, Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power output are from 280hp to 420hp to achieve multi-working-condition.
* Modular designed chassis, neat arrangement highly universalizable. Meanwhile, the reliability and convenience of maintenance have been improved.
* HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide standard model, composite model, heavy model, super -duty model for your personal needs.
* The key part have been optimized by CAE and passed relative quality test, the reliability of vehicle can be guaranteed.
Technical Parameters
| Dimensions | ||
| Overall size(length x width x height) | mm | 8115x2495x3380 |
| Cargobody size (length x width x height) | mm | 5400x2300x1200 |
| Wheelbase | mm | 3650+1350 |
| Wheel tread (Front/Rear) | mm | 2057/1848 |
| Minimum ground clearance | mm | 290 |
| Weights | ||
| Kerb Mass | kg | 12400 |
| Gross vehicle weight | kg | 24995 |
| Axle loading capacity (Front/Rear) | kg | 6995/18000 |
| Payloading capacity | kg | 12400 |
| Performance | ||
| Maximum driving speed | km/h | 90 |
| Minimum turning circle | m | 16 |
| Maximum gradeability | % | 30 |
| Approach angle | ° | 26 |
| Departure angle | ° | 20 |
| Fuel consumption | L/ 100 km | 29 |
Product Uses
Building materials transportation and urban construction: It performs outstandingly in the medium and short-distance transportation of building materials such as sand and gravel, construction waste, and bricks. Its sturdy frame and strong load-bearing capacity can adapt to unpaved roads both inside and outside construction sites.
• Mining operations: In the on-site transportation of heavy objects such as ores and slag, its high reliability is a key advantage. The powerful engine and passability are sufficient to cope with the complex road conditions in the mining area.
• Infrastructure construction: Commonly used in large-scale infrastructure projects such as highways, railways, and water conservancy, it is responsible for the transportation of earthwork and stone materials.
Product Operate Guide
Start: Make sure the vehicle is in neutral and apply the handbrake. Turn the key to the "ON" position, wait for the dashboard self-check to complete, and then start the engine. Let the engine idle for a few minutes to warm it up.
• Driving operation:
This model is equipped with a FAST 9-speed transmission [citation:1, citation:3]. Shift gears skillfully, pay attention to the coordination of the accelerator and clutch, and avoid gear clinging.
While driving, pay close attention to the readings of water temperature, oil pressure, air pressure, etc. on the dashboard to ensure they are within the normal range.
FAQ
A1: This model is typically equipped with Weichai WP10H series or Cummins X series high-power engines that meet the National VI emission standards, combined with FAST multi-speed transmissions (such as 9-speed, 10-speed or 12-speed transmissions) and XCMG's self-made heavy-duty drive axles, forming a golden power chain. It features strong power, excellent climbing ability, and is suitable for complex working conditions.
A3: Yes. As a high-end intelligent dump truck, the NXG3251D3KC is equipped with XCMG's intelligent management system as standard. This system is integrated into the large-sized central control screen in the cab, which can realize functions such as vehicle status monitoring, fuel consumption management, fault diagnosis, blind spot monitoring, cargo box lifting alarm, driving record, and electronic fence, helping the fleet achieve refined management.
Safety: Equipped with ABS anti-lock braking system, exhaust braking, and hydraulic retarder (optional), it greatly enhances braking safety when going down long slopes. The cab meets the high-intensity collision standards.
Equipped with blind spot surveillance cameras to reduce blind spots in the field of vision.
Environmental friendliness: Meets the National VI (b) emission standards; Cargo boxes usually adopt U-shaped structures or rectangular sealed top covers, effectively preventing spillage and dust raising, and meeting urban environmental protection requirements.

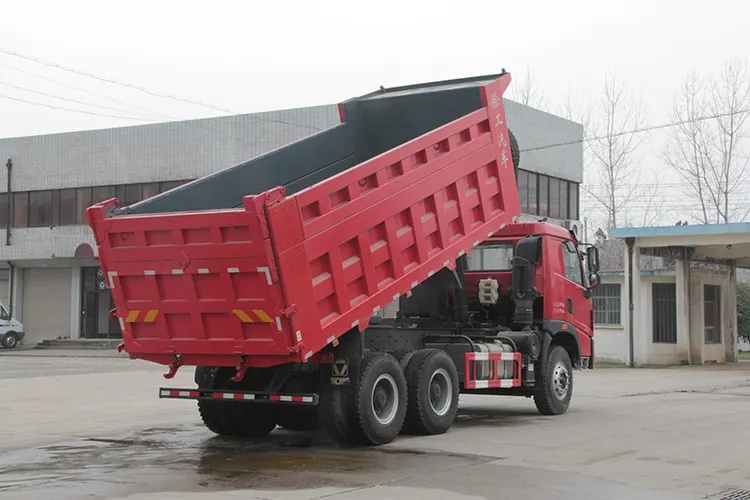

• Lifting conditions: The lifting operation must be carried out when the vehicle has come to a complete stop, the handbrake is tightly applied, and the transmission is in neutral.
• Lifting location: Choose a solid and flat ground. Avoid lifting on soft or sloping ground to prevent the vehicle from overturning.
• Overloading is strictly prohibited: Overloading can seriously damage the hydraulic components of the lifting system and the vehicle frame.
• Descent into position: After unloading is completed, it is essential to ensure that the cargo box is fully lowered to its original position and locked before driving.
• Exhaust brake: Used on long downhill slopes or when deceleration is required, it can serve as an auxiliary to the main braking system to reduce brake pad wear.
Note: Use with caution on slippery roads to prevent the drive wheels from locking up and skidding sideways.
• Hydraulic retarder: Offers more powerful, smoother and wear-free braking. There are usually multiple gears. Select the appropriate braking gear based on the slope and vehicle speed. Important: When using a retarder, the engine must remain running and the transmission gear must not be neutral.
