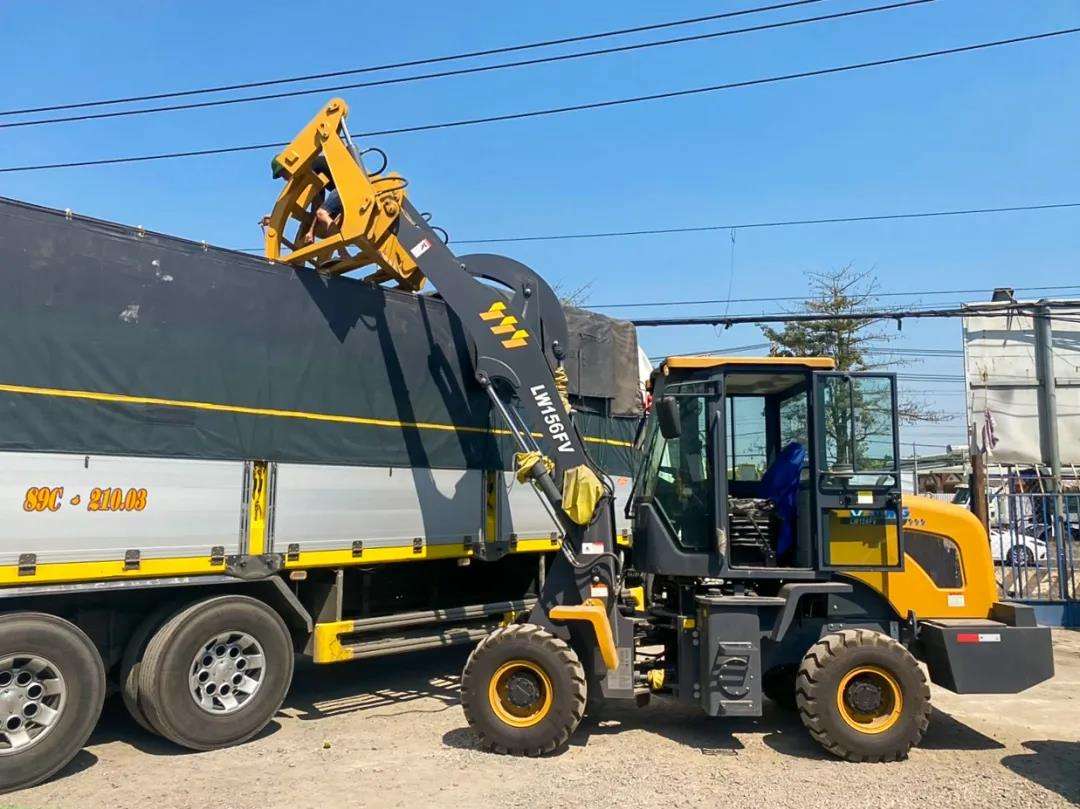

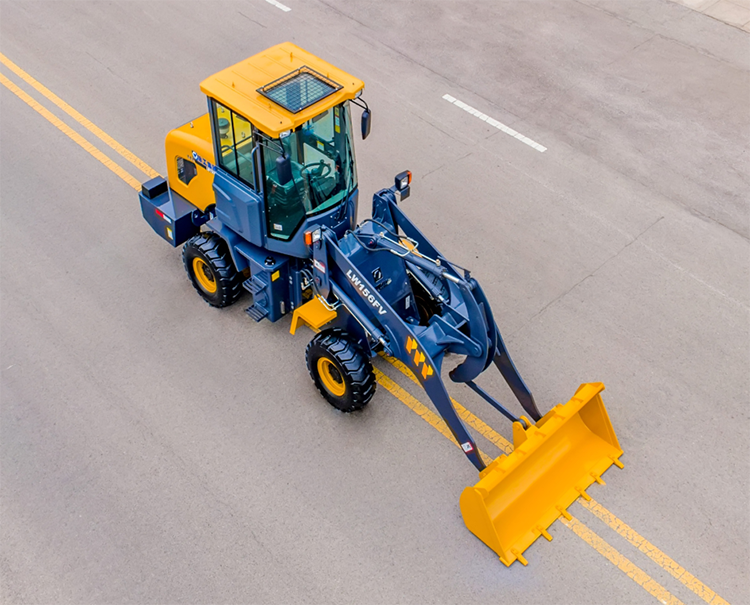

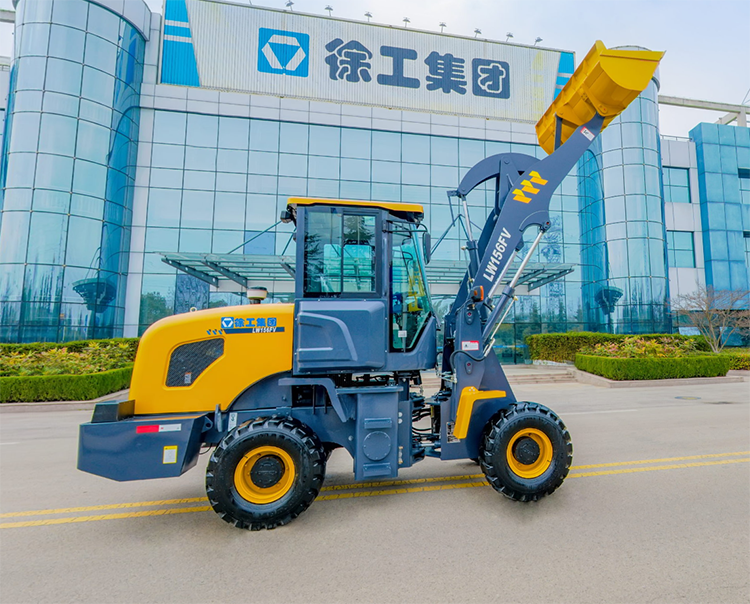

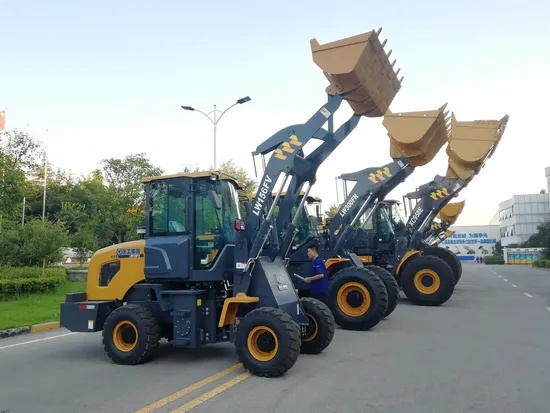

LW156FV
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The replacement period of the hydraulic oil is extended to be 2000h, which is far beyond the same industry level and greatly reduces the using cost. The replacement period of the hydraulic oil is extended to be 2000h, which is far beyond the same industry level and greatly reduces the using cost. The unloading height is more than 3m, which meets all kinds of operation. As the overall oil cylinder and pin is tempered and quenched, the hardness leads in the industry and its relability is high.
Product Advantage
Operation efficiency : the overall height of the machine is only 2.16 meters, leading the industry; The hydraulic oil replacement cycle has been extended to 2,000 hours, reducing the usage cost.
Youdaoplaceholder0 operating capacity : Rated bucket capacity 0.7 cubic meters, maximum unloading height up to 3.5 meters, suitable for various working conditions.

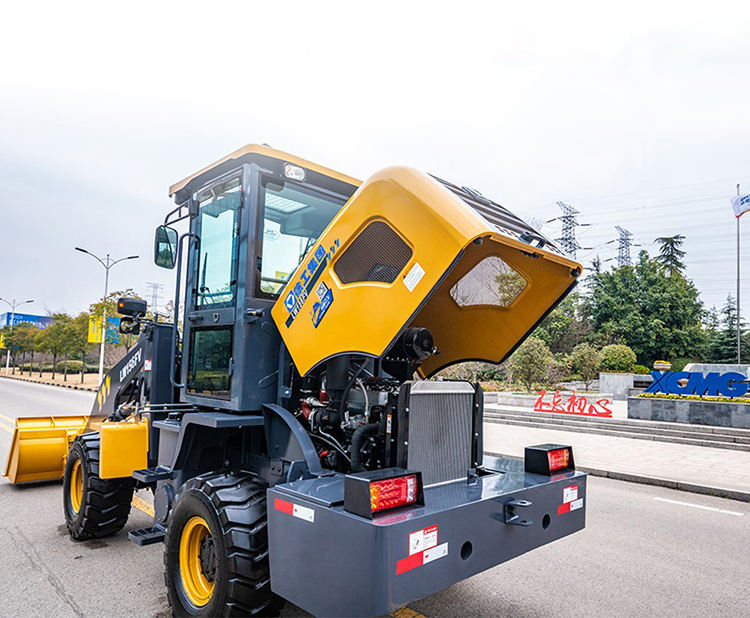

Youdaoplaceholder0 Comfort : Streamlined appearance, overall front-flipping hood design, spacious operating space and good field of vision.
Technical Parameters
| Item | Short boom | Standard boom | Long boom | Units | |
| Rated load | 1200 | 1100 | 1000 | kg | |
| Tipping load | 2400 | 2200 | 2000 | kg | |
| Unloading height | Bucket flat height | 3470 | 3740 | 3870 | mm |
| Standard | 3000 | 3300 | 3500 | mm | |
| Unloading distance | 785 | 830 | 1070 | mm | |
| Rated bucket capacity | 0.7 | m3 | |||
| Overall mass | 4450 | 4550 | 4650 | kg | |
| Wheel base | 2300 | mm | |||
| Tread | 1500 | mm | |||
| Maximum hoisted hinge pin height | 3730 | 3920 | 4190 | mm | |
| Maximum breakout force | 44 | kN | |||
| Maximum traction | 40 | ||||
| Boom hoisting time | 5.5 | s | |||
| Three items and time | 9 | s | |||
| Minimum turning radius (tire center) | 4620 | mm | |||
| Articulation angle | 35 | ° | |||
| Climbing capacity | 25 | ° | |||
| Minimum ground clearance | 260 | mm | |||
| Tire specification | 16/70-16 | - | |||
| Overall dimensions (length*width*height) | 5890*2060*2900 | 6140*2060*2900 | 6390*2060*2900 | mm | |
| Engine | Model | YN27GBZ | - | ||
| Rated power/speed | 55/2400 | kW/rpm | |||
| Driving speed | First positin (drive/back) | 8 | km/h | ||
| Second position (drive/back) | 20.5 | km/h | |||
Product Uses
The XG LW156FV series loaders are mainly used for general operations , suitable for construction sites, municipal engineering, port terminals and other scenarios, and can complete basic engineering tasks such as sand and gravel transportation and earthwork excavation.
Product Operate Guide
Start: Confirm the gear is neutral (N), pull the handbrake → Power on the key → Start the engine → Idle for preheating.
Walking: Release the handbrake → Select the forward (F) or reverse (R) gear → Slowly increase the throttle and walk.
Operation: Use the left-hand joystick to control the "lifting/lowering" of the boom and the "receiving/discharging" of the bucket.
Efficient operation method: Master the "V-shaped" operation cycle (no-load forward movement → insert into the material pile and collect the hopper → full load backward movement → full load forward movement and lift → unloading).
To stop the machine: Place the bucket flat on the ground → Shift the gear to neutral → apply the handbrake tightly → Let the engine idle and cool down before turning off.
