XCB-D100
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

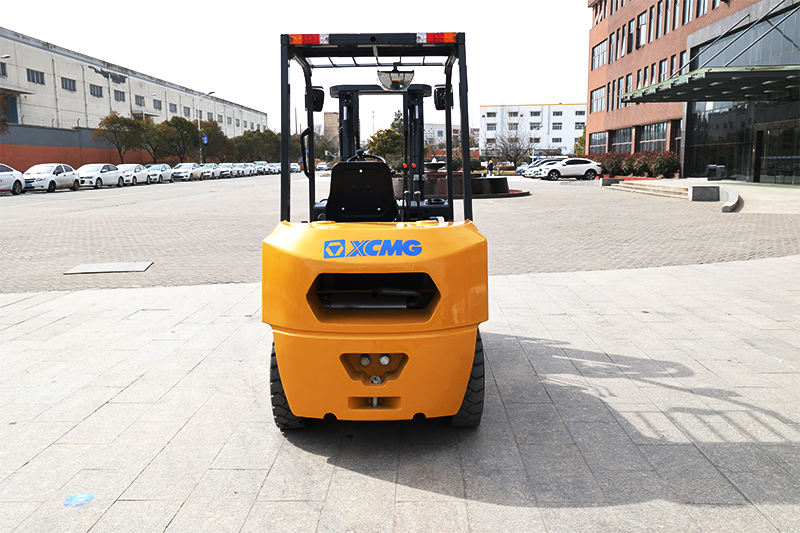

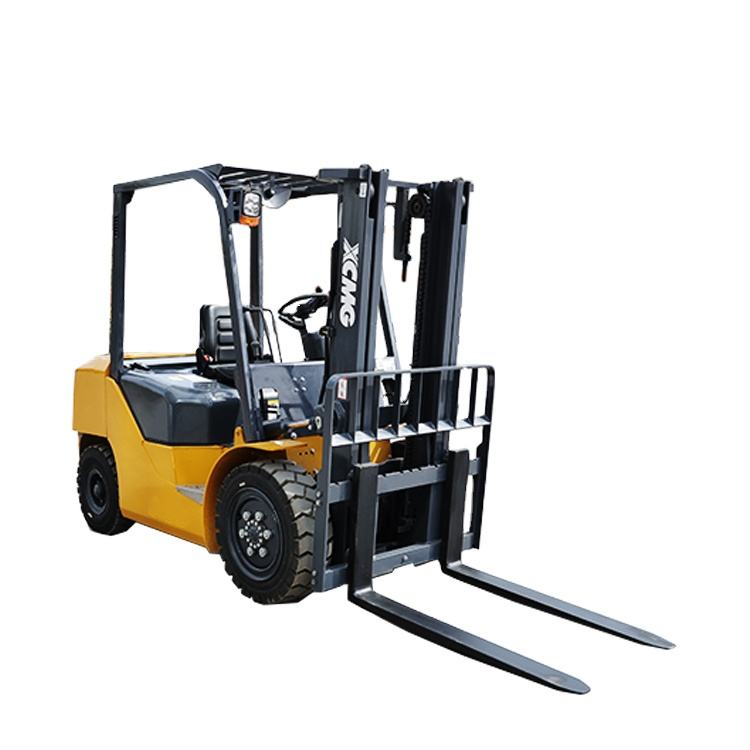

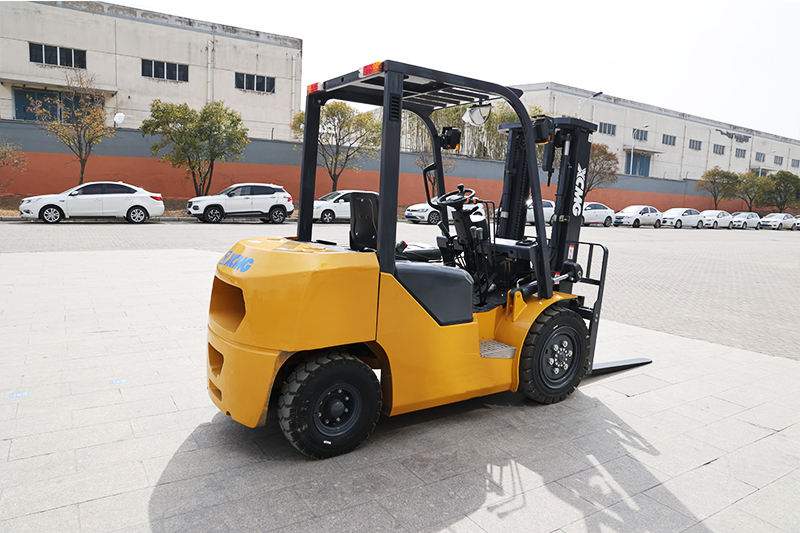

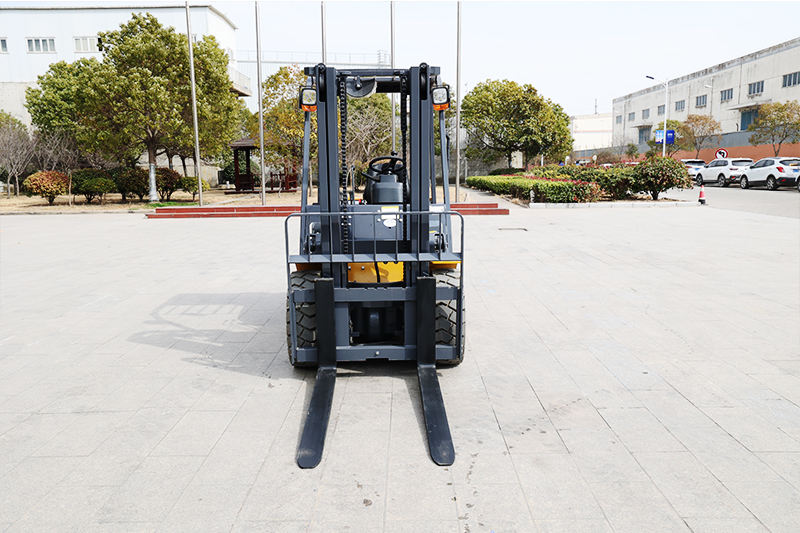

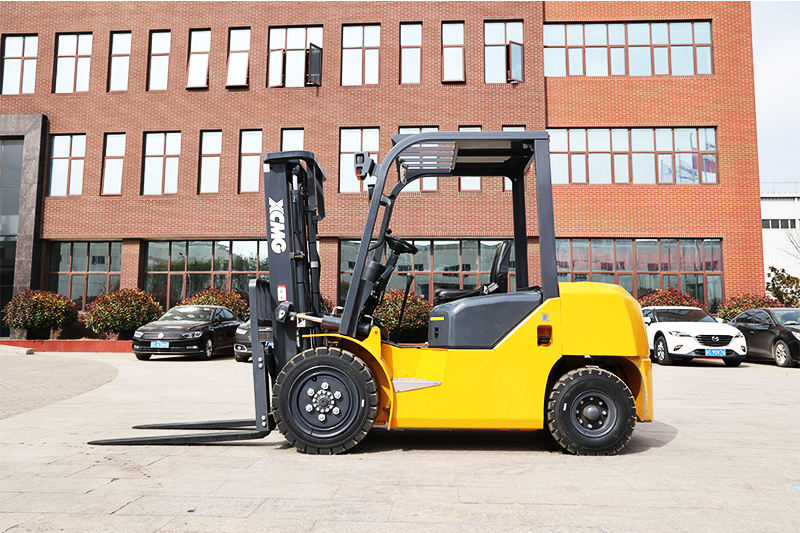

The XCB-D100 diesel forklift is a flagship product developed by XG based on its profound technical accumulation and deep understanding of heavy-load working conditions. It integrates power, reliability, safety and comfort. It not only significantly enhances users' operational efficiency, but also effectively reduces operating costs. It is a highly competitive and efficient solution in the field of heavy material handling.
Product Advantage
1. Powerful and efficient power system
◦ Engine: Usually equipped with high-performance diesel engines of well-known brands such as Cummins or Yuchai (YC6J), it meets the National III/National IV emission standards.
It has sufficient power reserve and high torque, and can demonstrate outstanding acceleration and climbing capabilities even under heavy load and climbing conditions.
Transmission system: Equipped with a power shift gearbox independently developed by XCMG, it features smooth and stable gear shifting, low shock, effortless operation, high transmission efficiency, and can effectively reduce the driver's labor intensity.
2. Excellent handling and stability
◦ Wide-field mast: The adoption of a wide-field mast design significantly reduces blind spots during operation and enhances work safety.
◦ Optimize the chassis structure: The reinforced frame and chassis design ensure the structural strength and stability of the entire vehicle under heavy loads, with excellent torsional and bending resistance performance.
◦ Precise hydraulic system: Load-sensing hydraulic system, easy to operate, sensitive in response, with good micro-motion performance, can achieve precise cargo control and smooth lifting and lowering.
Technical Parameters
| Model | - | XCB-D100 | XCB-D80 | XCB-D70 |
| Power Type | - | Diesel | Diesel | Diesel |
| Rated Load Capacity | Q(kg) | 10000 | 8000 | 7000 |
| Load Centre | C(mm) | 600 | 600 | 600 |
| Rated Lift Height | H3(mm) | 3000 | 3000 | 3000 |
| Fork Size (L×W×T) | mm | 1220×175×75 | 1220×170×75 | 1220×150×65 |
| Ground Clearance | H7(mm) | 320 | 230 | 230 |
| Overall Width | B1(mm) | 2245 | 1995 | 1995 |
| Overhead Guard Height | H5(mm) | 2560 | 2450 | 2450 |
| Turning Radius (Outside) | Wa(mm) | 3900 | 3550 | 3360 |
| Travel Speed (No /Full Load) | km/h | 30/24 | 30/26 | 30/26 |
| Lifting Speed (No/Full Load) | mm/sec | 410/390 | 550/450 | 550/450 |
| Total Weight | kg | 12450 | 10450 | 9450 |
| Battery | V/Ah | 24/80 | 24/80 | 24/80 |
| Engine Brand | - | MITSUBISHI | YANMAR | WEICHAI |
| Other Optional | - | Automatic transmission/2-Stage/3-Stage Full Free Wide View Mast | ||
Product Uses
Port terminals: Container unpacking, heavy equipment handling.
• Steel metallurgy: Handling and stacking of steel coils, plates and ingots.
• Heavy manufacturing: Transportation of large mechanical parts and molds.
• Railway freight: Loading and unloading of heavy goods within the station yard.
• Large-scale building materials logistics park: Handling of heavy items such as stone, cement products, and glass.
Product Operate Guide
1.After sitting down, fasten your seat belt.
2. Insert the key and turn it to the "ON" position to observe whether the self-check on the dashboard is normal.
3. Press the foot brake pedal and make sure the handbrake is pulled up.
4. Turn the key to the "START" position to start the engine.
The startup time should not exceed 10 seconds.
After starting the engine, let it run at idle speed (about 800-1000 rpm) for 5-10 minutes to preheat, especially in low-temperature environments. Preheating helps the engine and hydraulic system reach their best working condition and reduces wear.
FAQ
A: It is usually equipped with high-performance diesel engines from well-known domestic and foreign brands (such as Cummins and Yuchai), meeting the National III/National IV emission standards. Fuel consumption depends on the actual working conditions (such as load, road conditions, and operating habits), but this model adopts an efficient power system and hydraulic system, aiming to provide excellent fuel economy. For specific data, please refer to the official technical parameter table.
A: The standard lifting height is usually 3000mm (3 meters). However, XG can provide a variety of gantry options according to customer needs, with lifting heights reaching up to 4 meters, 5 meters or even 6 meters. Please confirm your requirements with the salesperson when purchasing.
A: Due to its powerful performance and heavy-duty design, it is highly suitable for outdoor or well-ventilated indoor locations such as ports, docks, steel mills, large building materials markets, railway stations, and heavy equipment manufacturing plants. It is not suitable for confined Spaces with strict restrictions on exhaust gas and noise.
A: Daily routine checks must be conducted, including:
• Inspect around the vehicle: tires, body structure, and for any leaks.
• Liquid level check: Engine oil, coolant, hydraulic oil, brake fluid.
• Functional tests: Lighting, horn, reversing alarm, braking performance.
• Operating system: Ensure that all joysticks function properly and return to their original positions.
A: There could be various possible reasons
1. Insufficient hydraulic oil or deteriorated oil quality.
2. The hydraulic oil filter is clogged.
3. There is internal leakage in the multi-way valve or cylinder.
4. The connecting rod mechanism needs to be adjusted.
A: You can follow these steps to troubleshoot
1. Circuit issues: Check if the battery power is sufficient (the display on the dashboard and the sound when starting are weak), and whether the terminals are loose or corroded.
2. Fuel line issue: Make sure there is fuel in the fuel tank and check if there is air in the fuel line (it needs to be drained).
3. Preheating system: In a low-temperature environment, the preheating plug may not function properly.
