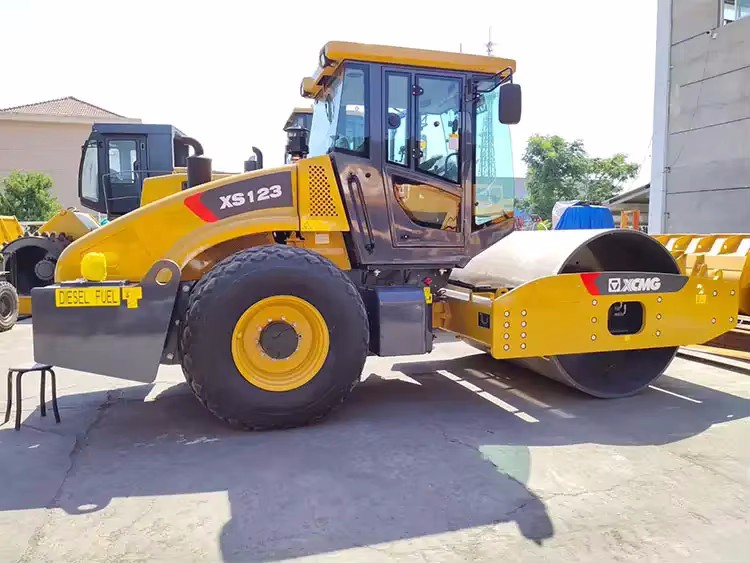

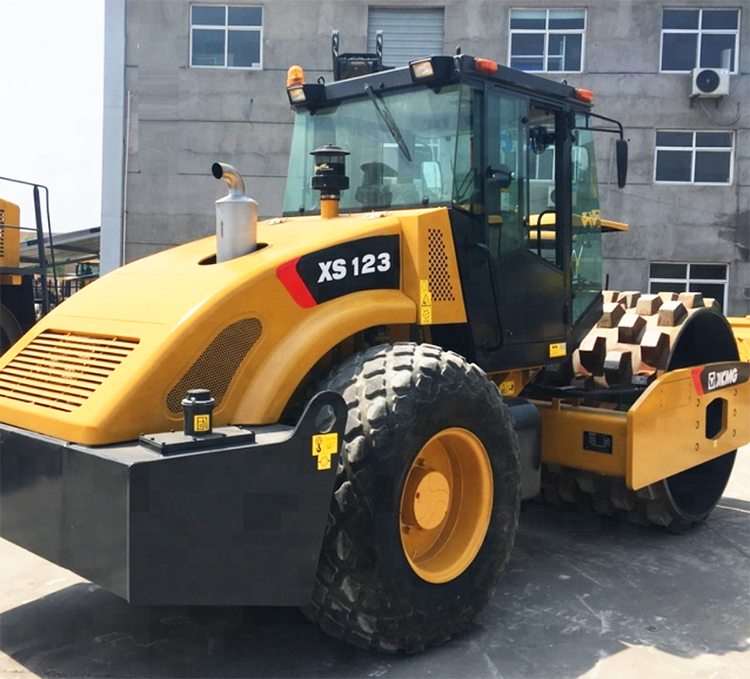

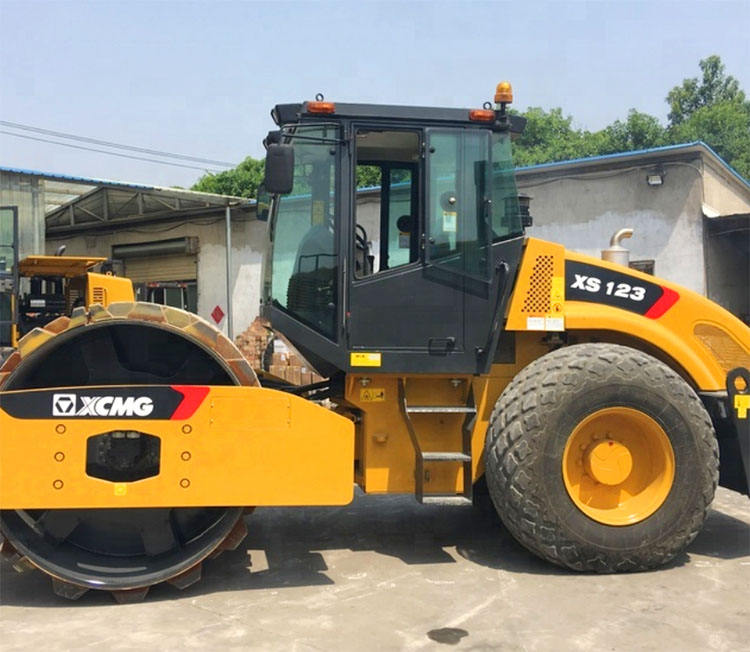

XS123
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
Adopt imported closed hydraulic drive system com- posed of variable displacement pump and motor to ensure better drive performance and gradeability. Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions. Braking system is made up with drive axle, wet type brakes at front drum speed reducer, and brake of closed hydraulic system. It owns travelling,parking, and emergency braking functions to ensure driving safety.
Product Advantage
Strong and efficient, with outstanding compaction
Super large excitation force: With an optimally designed vibration system, it provides a powerful excitation force, which can effectively act on the deep layer of the bedding, ensuring high density, reducing the number of rolling passes, and directly improving the operation efficiency.
Dual-frequency and dual-amplitude technology: It offers two vibration frequencies and amplitudes, high and low. Users can flexibly choose according to different paving materials (such as asphalt base, sand and gravel, rock fill, etc.) and thicknesses, achieving fine compaction from thick layers to thin layers, with multiple uses in one machine.
Large-mass steel wheels: With significant steel wheel mass and high linear pressure, they ensure the compaction effect of each rolling.
Classic transmission, reliable and durable
Mechanical transmission system: It adopts a durable mechanical transmission structure (engine → clutch → gearbox → drive axle), with mature technology, simple structure, convenient maintenance and low failure rate. It has stronger adaptability to oil products and usage environments, and is especially suitable for areas with harsh working conditions and limited maintenance conditions.
High-reliability chassis: Key components such as drive axles and gearboxes have all been reinforced in design, featuring strong load-bearing capacity and a long service life.
Technical Parameters
| Description | Unit | Parameter value | |
| Work weight | kg | 12000 | |
| Front wheel mass distribution | kg | 6700 | |
| Rear wheel mass distribution | kg | 5300 | |
| Static linear pressure | N/cm | 308 | |
| Vibration frequency | Hz | 30/35 | |
| Nominal amplitude | mm | 1.8/0.9 | |
| Exciting force | kN | 280/190 | |
| Speed range | km/h | 0-10.4 | |
| Wheelbase | mm | 3010 | |
| Compaction width | mm | 2130 | |
| Theoretical gradeability | % | 45 | |
| Minimum turning radius | mm | 6800 | |
| Vibratory drum diameter | mm | 1523 | |
| Minimum ground clearance | mm | 417 | |
| Engine | Rated speed | r/min | 2200 |
| Rated power | kW | 93 | |
| Dimensions | mm | 5940×2300×3150 | |
Product Uses
Subgrade compaction of expressways and railways
Compaction of the foundation layer of airport runways, ports and docks
The earthwork filling and compaction of DAMS and river embankments
Foundation leveling and compaction in industrial parks and large sites
Product Operate Guide
Before operating XS123, it is necessary to run around the machine to check the oil, fasteners and the cleanliness of the steel wheels. After starting the engine, let it idle for preheating. When driving, operate the clutch and shift gears smoothly. Vibration should be activated only after starting the vehicle. It is strictly prohibited to start the vibration on a hard road surface. Slow down when turning. Be cautious when working on large slopes. Before stopping the machine, let it idle to cool down, park properly and apply the handbrake tightly. Read the manual carefully. Safety comes first.
FAQ
A: As an economical and practical product, its cab is mainly designed to meet basic operational requirements. Usually equipped:
Mechanical suspension seats can alleviate some operational fatigue.
The wide field of vision facilitates the observation of the edge of the steel wheel and the working environment.
The basic functional layout, operation handles, instrument panels and other designs are intuitive. However, compared with more advanced fully hydraulic models, it will be relatively basic in terms of sealing performance, air conditioning systems, noise control, etc.
Lubrication system: Regularly inspect and add lubricating oil and grease, especially for key parts such as the bearings of the vibrating wheel and the hinge frame.
Engine: Regularly change the engine oil, oil filter and air filter to ensure the intake air is clean.
Hydraulic system: Check the oil level and cleanliness of the hydraulic oil, and replace the hydraulic oil and filter elements regularly.
Steel wheel maintenance: After operation, promptly clean the adhered materials on the steel wheel to prevent the accumulation of materials from hardening and affecting the flatness and roundness of the steel wheel.
Fasteners: Regularly check whether the bolts at key parts are loose.
Clutch-related issues: Mechanical transmission clutches are vulnerable parts. It is necessary to pay attention to standardized operation, avoid semi-engagement, and make regular adjustments.
Difficulty in starting: It is often related to the battery power, the starting motor or the diesel fuel line.
Abnormal vibration: Inspect the vibration pump, motor, sensor circuits, and the quality and quantity of the lubricating oil inside the steel wheel.
Weak walking: Check the clutch and transmission.
A: ① Starting must be carried out after the vehicle has started. Starting from a standstill is strictly prohibited. ② Slow down when turning. ③ When working on slopes, it should be carried out longitudinally. It is strictly prohibited to cross the slope for rolling. ④ Vibration is prohibited on hard roads (such as cement roads).
A: Check the oil (engine oil, hydraulic oil, vibrating wheel lubricating oil) daily, clean the adherents on the steel wheels, tighten key bolts, replace the filter element regularly and lubricate the bearings as per the manual.
