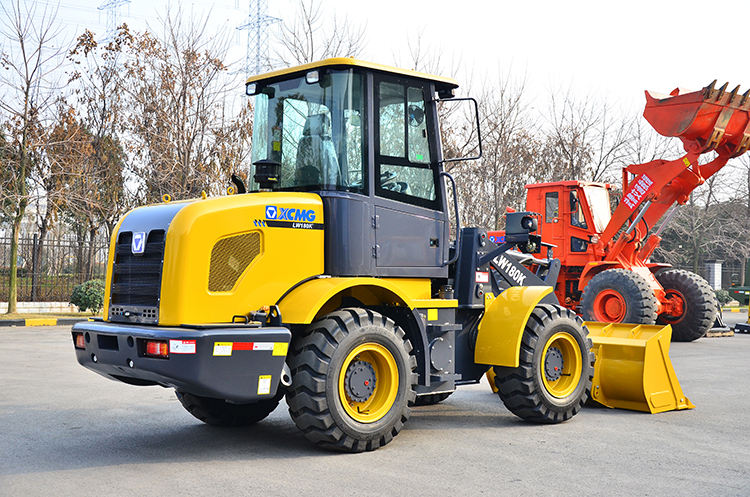

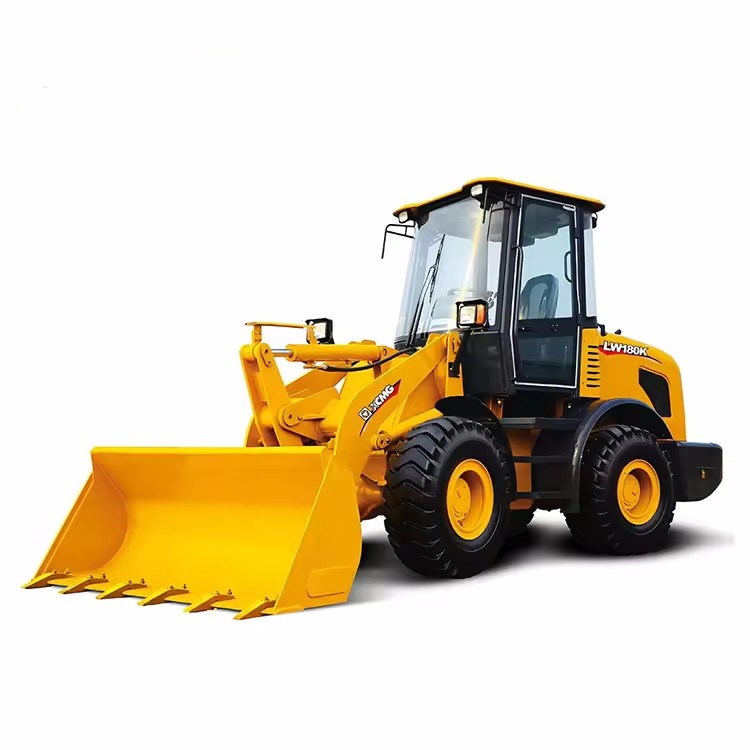

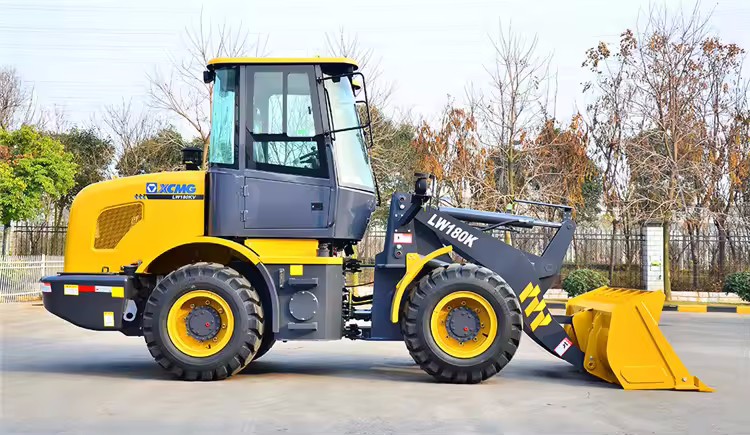

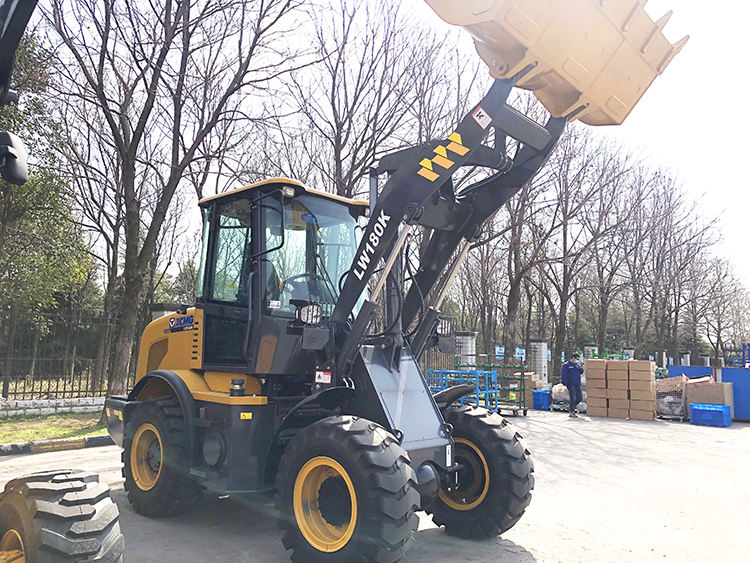

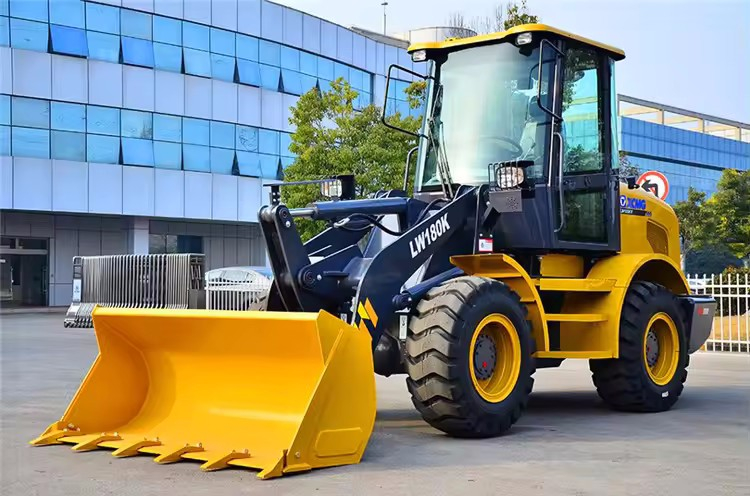

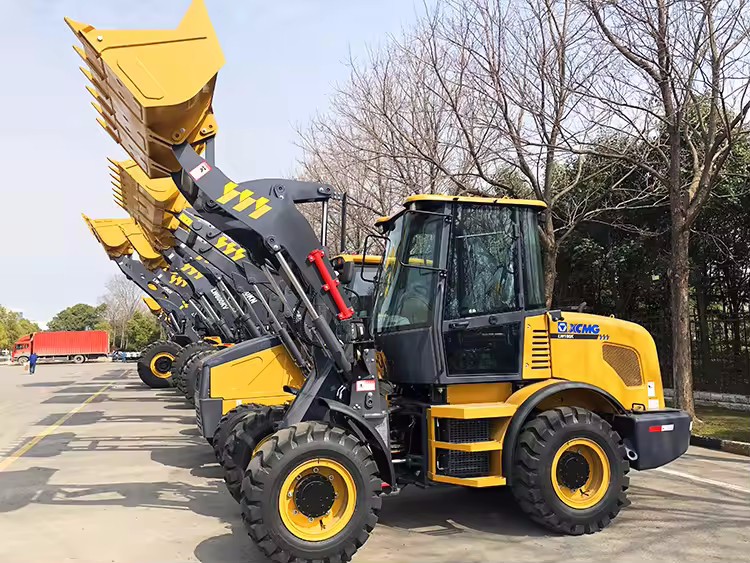

LW180K
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
Market positioning: A large, efficient and heavy-duty loader, it is the main model for earthwork and stonework operations, ore loading and unloading, and bulk material handling.
Core advantages: It can still maintain a high attendance rate, high operational efficiency and low operating costs under extremely harsh working conditions.
Typical applications
Mining: The loading and transportation of ores and mineral powders.
Large-scale engineering construction: Processing of building materials such as sand, gravel, cement and coal.
Port terminals: Loading and unloading of bulk cargo ships and stacking operations.
Steel enterprises: Cleaning and transportation of slag, scrap steel and coke.
Product Advantage
Power and Energy Efficiency: High-torque engine + intelligent electronically controlled transmission + APD micro-boost energy-saving system, strong power and fuel efficiency.
Structure and load-bearing capacity: Reinforced K series chassis, heavy-duty drive axle, self-locking differential, specially designed for heavy-duty mining conditions.
Work efficiency: Strong lifting force, short three-step time, and high work efficiency.
Comfort and Intelligence: Luxurious cab, pilot control, and intelligent monitoring system, providing an excellent experience.
Reliability and safety: Brand-name core components, ROPS/FOPS cab, triple braking, safe and reliable.
Convenient maintenance: Large-opening machine cover, centralized lubrication (optional), saving time and effort for maintenance.
Technical Parameters
| Description | Specification | Unit |
| Rated operating load | 1800 | Kg |
| Bucket capacity | 0.9-1.1 | m³ |
| Machine weight | 6000±200 | Kg |
| Dump clearance at maximum lift | 2560-2700 | mm |
| Reach at maximum lift | 865-970 | mm |
| Wheel base | 2300 | mm |
| Tread | 1550 | mm |
| Max.breakout force | 58±3 | KN |
| Hydraulic cycle time-raise | 5 | s |
| Total hydraulic cycle time | 8.5 | s |
| Min.turning radius over tyres | 4700±50 | mm |
| Articulation angle | 35 | ° |
| Gradeability | 28 | ° |
| Tyre size | 16/70-20 | |
| Overall machine dimension L*M*H | 5820*2060*2950 | mm |
| Model | YC4D80-T20 | |
| Rated Power/Speed | 58/2400 | Kw/rpm |
| Travel Speed(I-gear F/R) | 0-9/0-9 | km/h |
| Travel Speed(II-gear F/R) | 0-26/0-26 | km/h |
Product Uses
The LW180K is an 8-ton large wheel loader designed for heavy-duty and high-intensity operations. It is not an ordinary all-rounder, but a "power player" specially designed to take on the most demanding working conditions. Its core application can be summarized as: efficiently and reliably handling large quantities of heavy materials in harsh environments.
Product Operate Guide
Boarding and Preparation：
Make sure there are no people or obstacles around the equipment.
Clean the soles of your shoes, get in the car safely and fasten your seat belt.
Place all the control levers in the middle position (N position) and make sure the parking brake is engaged.
Start the engine：
Turn the key to the "ON" position, observe the LCD monitor for self-check, and confirm that there are no abnormal alarms.
Continue to turn the key to the "START" position to start the engine. The startup time should not be too long. If it fails to start on the first attempt, wait for 2 minutes and try again.
Idle preheating and warm-up:
After starting, let the engine idle at approximately 1000 rpm for 5 to 10 minutes.
It is particularly important to note that LW180K is a large-scale device with a large hydraulic system capacity. It is strictly prohibited to immediately rev the accelerator or engage in heavy-load operations after starting. It is necessary to wait for the coolant temperature and hydraulic oil temperature to rise to the normal working range (usually the oil temperature indicated on the monitor is above 40-50℃) to protect the engine and hydraulic system and extend their service life.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
