KAT1454
| Availability: | |
|---|---|
| Quantity: | |

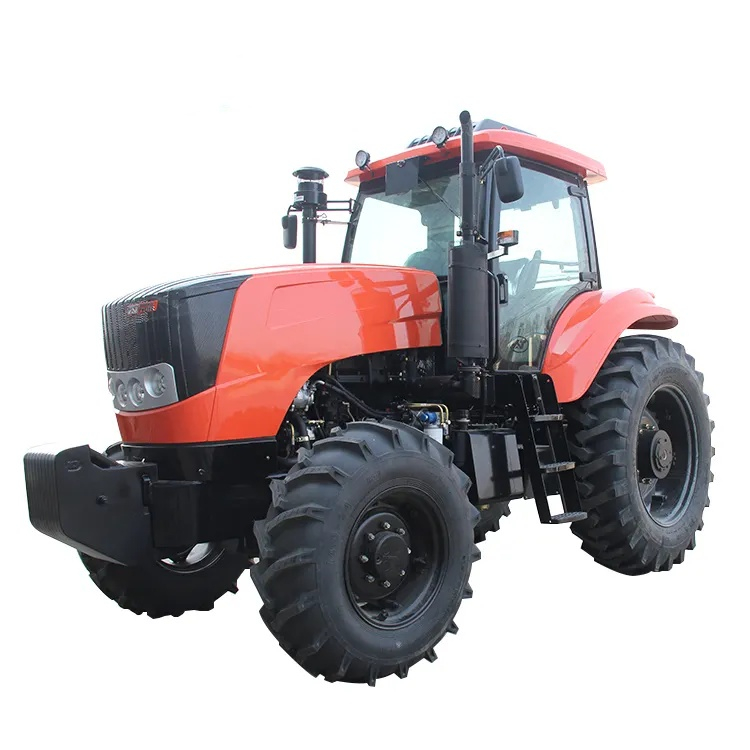

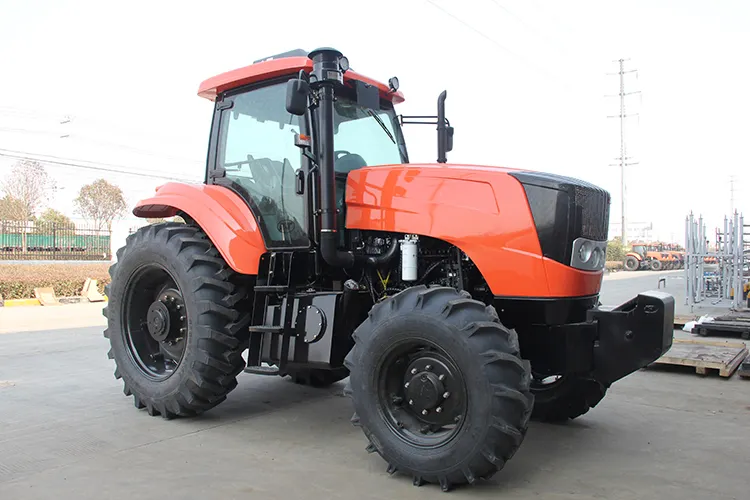

Product Introduction
Shangchai six cylinder engine ( with turbocharger)is designed with fully enclosed cab, air heater, 14+7 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure, imported front axle ,rear axle for engineering machinery, caliper disc brake, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III and the front balance weight is 400KG.
Product Advantage
1.Super powerful heart
Engine: Equipped with a high-pressure common rail, turbocharged and intercooled engine in collaboration with globally renowned brands such as Cummins and Weichai.
With a large displacement and extremely high torque reserve (usually over 35%), it provides continuous power under extreme heavy load conditions such as deep loosening and plowing. It has excellent fuel economy and meets the National IV emission standards.
2. Professional-level transmission system
◦ Transmission: Usually equipped with an 18+6 crawler or 24+24 synchronizer shift transmission.
The gear Settings are extremely rich, including low-speed crawling gears, with a wide speed range coverage. It can not only meet the requirements of high-speed transfer and transportation, but also perform ultra-low-speed precision operations (such as plastic film recovery, trenching, etc.), demonstrating extremely strong adaptability.
Rear axle: It adopts a reinforced heavy-duty drive axle with an extremely strong load-bearing capacity.
Equipped with multi-plate wet clutches, independently operated differential locks and hydraulic braking systems, it features high reliability and excellent braking performance.
3. Powerful chassis structure
The frame: It adopts a full-frame heavy-duty roll-formed frame, which has good structural rigidity, can withstand huge twisting and impact loads, and has a long service life.
◦ Front axle: Large-displacement cycloidal motor drives steering, providing strong steering force and easy, flexible operation.
Technical Parameters
| Item | Unit | KAT1454 | ||
| Net Power of Engine | kW(HP) | 107(145) | ||
| Driving Method | 4x4 | |||
| Dimension, Length/Width (tread) /Height (Cab Top) | mm | 5830/2420(Double tire3450)/3010 | ||
| Wheelbase | mm | 3080 | ||
| Wheelbase of Front Wheel | mm | 1888-2124 | ||
| Wheelbase of Rear Wheel | mm | 1952-2568 | ||
| Minimum Ground Clearances | mm | 450 | ||
| Minimum Steering Circle Radius | mm | 6900 | ||
| Minimum Working Weight | kg | 6700 | ||
| Front Counterweight | kg | 400 | ||
| Rated Traction Force | kN | 36 | ||
| Power Output Shaft | Model | Independent Rear-mounted | ||
| Standard RPM | r/min | 540/1000 | ||
| Maximum Lifting Force | kN | 31 | ||
| forward gear | Low RPM | The number of stalls | 7 | |
| Driving Speed | km/h | 2-16 | ||
| High RPM | The number of stalls | 7 | ||
| Driving Speed | km/h | 3-29 | ||
| Reverse Shift | The number of stalls | 7 | ||
| Driving Speed | km/h | 2-19 | ||
| Specification of Tire | Front Wheel | 14.9-26R1 | ||
| Rear Wheel | 18.4-38R1(Double tire) | |||
| Diesel Engine | Nominated Power/RPM | kW/r/min | 107/2200 | |
| Nominated Working Condition Fuel Oil Consumption Rate | g/kW·h | ≤223 | ||
Product Uses

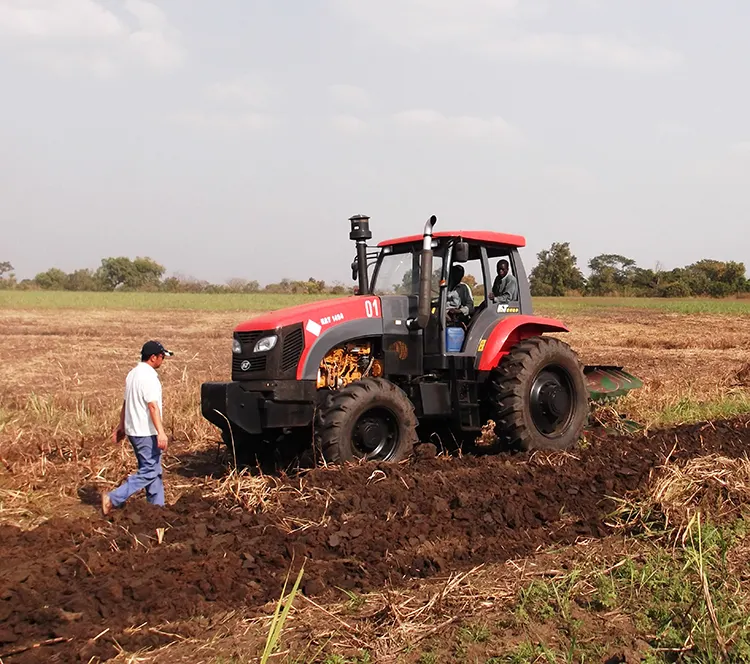

Ultra-deep loosening, deep plowing and heavy ploughing operations
• Large-scale combined land preparation machine compound operation
• Large-scale sowing and fertilization operations
Heavy-duty straw returning to the field and baling operations

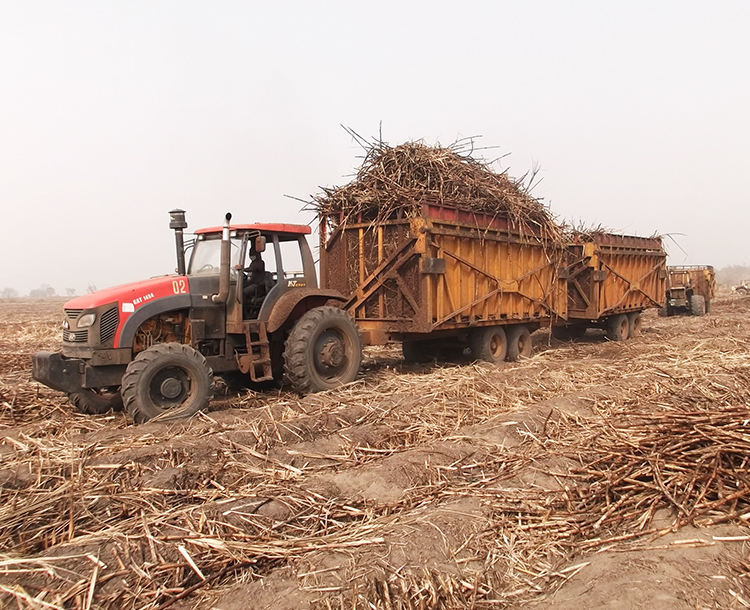

Traction and transportation operations on large farms
Product Operate Guide
The operation of the KAT1454 tractor emphasizes efficiency and humanization. Before starting, it is necessary to check the oil level, tire pressure and the tightness of key components.
This model is equipped with a standard luxury suspended cab, air conditioning and multi-functional display instruments, providing a comfortable working environment.
The core operation is hydraulic-assisted gear shifting (if equipped with a 24+24 synchronizer transmission), with a wide range of gear options and smooth gear shifting.
The hydraulic output valve (multiple groups) and the electrically controlled rear power output (PTO) (540/1000r/min with multiple speeds available) can be easily controlled through the handle, making it easy to match heavy agricultural tools.
During operation, a powerful hydraulic lifting system is utilized to attach Class III farm tools. The operation gear is reasonably selected based on the load to fully leverage its strong power of 145 horsepower.
On a daily basis, it is necessary to focus on maintaining the air filter and hydraulic oil filter element, and regularly check the tightness of the chassis bolts to ensure their super reliability.
Please note that for specific operations, please strictly follow the "User Manual" provided with the vehicle.
FAQ
A: It is usually equipped with an 18+6 crawler gear or a 24+24 synchronizer shift transmission. It has a wide range of gears, including an ultra-low-speed crawling gear, which can not only meet the requirements of high-speed transfer but also perform ultra-low-speed heavy-load operations such as plastic film recovery and precision sowing. It has very high adaptability and efficiency.
Class III suspension is the standard used in heavy-duty tractors. Its connection point size and lifting capacity are much larger than those of the common Class II suspension. The KAT1454 adopts a reinforced Class III suspension, which means it can be attached to heavier, wider and more extensive heavy-duty farm tools (such as large plows and deep loosening machines), and it has a huge lifting force and stable operation.
A: Usually, it is standardly equipped with three or more sets of hydraulic output valves (OCLS or LS systems). This means that it can simultaneously provide power for multiple hydraulic-driven farm tools, such as operating a reversible plough while controlling the hydraulic motor of a seeder, achieving complex compound operations and greatly enhancing efficiency.
A: It is equipped with a standard luxury panoramic cab, featuring a suspended shock absorption design that effectively isolates vibration and noise. Equipped with air conditioning, heating, audio systems and comfortable seats inside, it offers a car-like driving and riding experience, significantly reducing fatigue from long hours of work.
• Operation: The engine must be preheated before heavy-load operation.
Select gears reasonably based on soil resistance and farm tools to fully leverage its high-torque advantage and avoid long-term overloading and stalling.
• Maintenance: Due to the high intensity of the operation, the engine oil, hydraulic oil, gear oil and filters must be replaced strictly in accordance with the maintenance cycle. Focus on checking the tightness of the bolts in the chassis and suspension system as well as the tire pressure.
A: Specifically designed for the most demanding operations, such as deep loosening (with a depth exceeding 45cm), heavy plowing, large-scale combined land preparation, large-scale heavy-load sowing, and straw returning to the field, etc. It is an ideal choice for professional users engaged in large-scale farms, reclamation areas and cross-regional operations.
