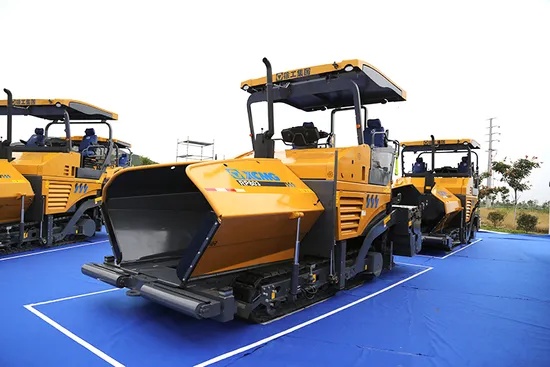

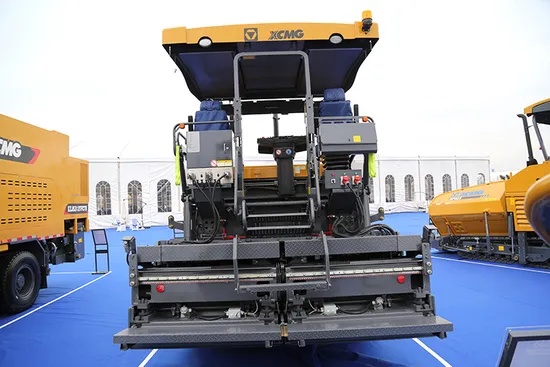

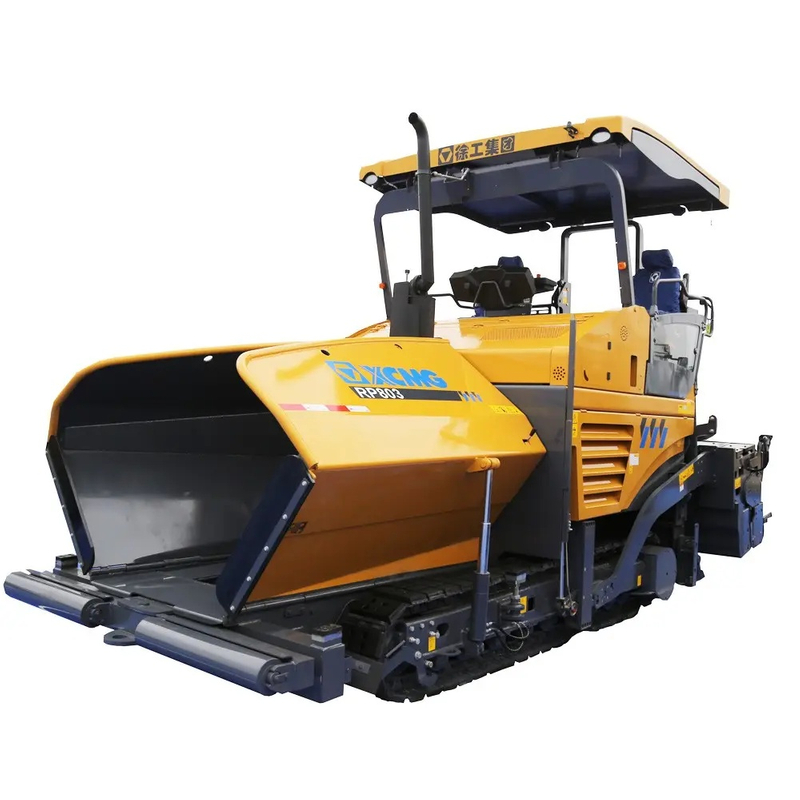

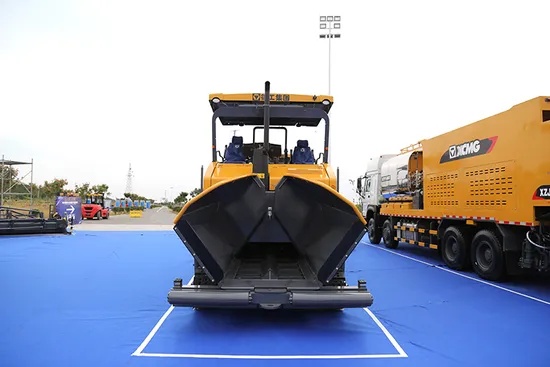

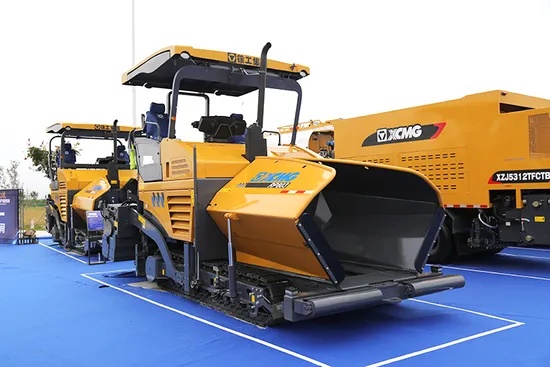

RP803
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
RP803 is positioned in the high-end market, integrating XG's advanced technologies in road construction machinery. It focuses on high reliability, high construction efficiency, high paving smoothness and high operational comfort.
Product Advantage
High construction quality: With a stable hydraulic system and an intelligent leveling system, it can easily achieve superior flatness and density.
High working efficiency: With an ultra-wide paving capacity of 8 meters, it significantly reduces construction joints and enhances overall working efficiency.
Comfortable and intelligent operation: The humanized cab and intelligent control system greatly reduce the labor intensity of the operator, making the construction more precise.
Durable and sturdy: The manufacturing process of XG brand and its reliable parts supply chain ensure the equipment's availability and long service life under harsh working conditions.
Comprehensive service guarantee: XG has a global sales and service network, which can provide timely technical support and spare parts supply.
Technical Parameters
| Item | RP803 |
| Dimension | 6680×3000×4000 |
| Weight | 19-23.7t |
| Driving speed | 0-3Km/h |
| Basic pave width | 3-8m |
| Maximum pave width | 8m |
| Maximum layer thickness | 350mm |
| Maximum paving speed | 20m/min |
| Hopper capacity | 14t |
| Maximum laydown rate | 600t/h |
| Rate power | 140/2000 kw/rpm |
Product Uses
High-grade highways: Asphalt surface layer and stabilized soil base layer paving for expressways, national and provincial roads.
Urban roads: Construction and maintenance of main urban roads, expressways and ring roads.
Construction of large-scale infrastructure: airport runways, ports, squares, parking lots and other large-scale flat areas.
Other projects: water conservancy DAMS, large industrial sites, etc.
Product Operate Guide
1. Start the engine
Make sure all personnel stay away from the machine and sound the horn as a warning.
Set the accelerator to the low-speed idle position, insert the key and start.
When starting cold, the engine preheating procedure should be followed.
2. Preheat the ironing plate
If hot asphalt mixture is to be laid, the screed must be preheated in advance (usually taking 20 to 40 minutes, adjusted according to the ambient temperature).
Start the heating system (gas or electric heating) and set the temperature within an appropriate range (usually matching the temperature of the mixture, approximately 140-160°C) to prevent the mixture from adhering to the base plate.
3. System Preheating
Let the engine run at medium idle speed for a period of time to heat up the hydraulic oil and circulate it to all working devices.
FAQ
A: The RP803 is typically equipped with high-power engines from well-known brands such as Cummins (approximately 170 horsepower), providing abundant power reserves to handle various working conditions, including full-load uphill paving. For high-altitude areas, the engine can be equipped with a high-altitude turbocharger to compensate for the power loss due to the increase in altitude and ensure the operational efficiency of the equipment in high-altitude regions. When making a purchase, you should clearly inform the salesperson of the construction altitude requirements.
A: The RP803 is a high-end model, and its flatness performance is extremely outstanding. Under the premise that the operator is proficient, the base treatment is good, and the supply of mixed materials is timely, combined with its precise hydraulic system, stable material conveying and distribution system, and intelligent leveling system (such as ultrasonic balance beam), the flatness of the paved surface layer can usually reach a high standard of within 3mm/3m straight ruler, meeting the construction requirements of high-grade highways.
A: The RP803 is fully functional. By replacing and adjusting the devices on the ironing plate (such as the vibrator), it can be used for paving:
Various asphalt mixtures (AC, SMA, Superpave, etc.)
Stabilized soil base materials (water-stabilized crushed stone, lime soil, etc.)
Other materials (graded crushed stones, RCC, etc.
A: Preheating is of vital importance. Improper preheating can lead to quality defects such as fuzzing and tearing.
• Sufficient time: Start preheating at least 20 to 40 minutes in advance.
• The temperature should be appropriate: The preheating temperature should be close to the temperature of the mixture (usually 140-160°C), and the temperature of the base plate can be detected by an infrared thermometer gun.
• Avoid overheating: It is strictly prohibited to leave the ironing plate in place for a long time at an extremely high temperature for baking, as this will cause deformation of the base plate and coking of the mixed materials.
A: The principle is "slow, even and continuous". The recommended speed range is 2 to 4 meters per minute. The specific speed should be adjusted according to the supply capacity of the mixture, the thickness of the spread and the follow-up speed of the compaction team. Never change the speed or stop the machine at will during the process, otherwise obvious indentations or waves will appear on the pavement.
The intelligent control system of RP803 will monitor the status of the equipment in real time. When an alarm occurs:
1.Immediately check the alarm information prompt on the control panel. It will clearly indicate the problem (such as "high hydraulic oil temperature", "low engine oil pressure").
2. Refer to the alarm code table in the random manual to understand the meaning of the alarm and the handling suggestions.
3. Take the red emergency alarm (usually accompanied by a continuous beeping of the buzzer) seriously and stop the machine immediately for inspection. The yellow alert alarm can be operated for a short period of time as appropriate, but it is necessary to investigate as soon as possible.
