Product Description

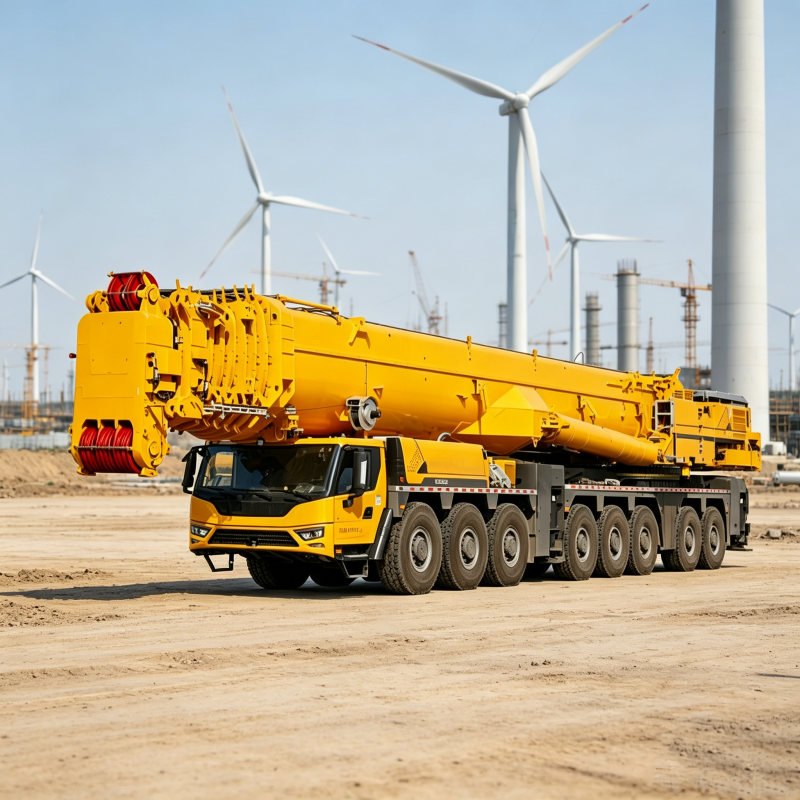

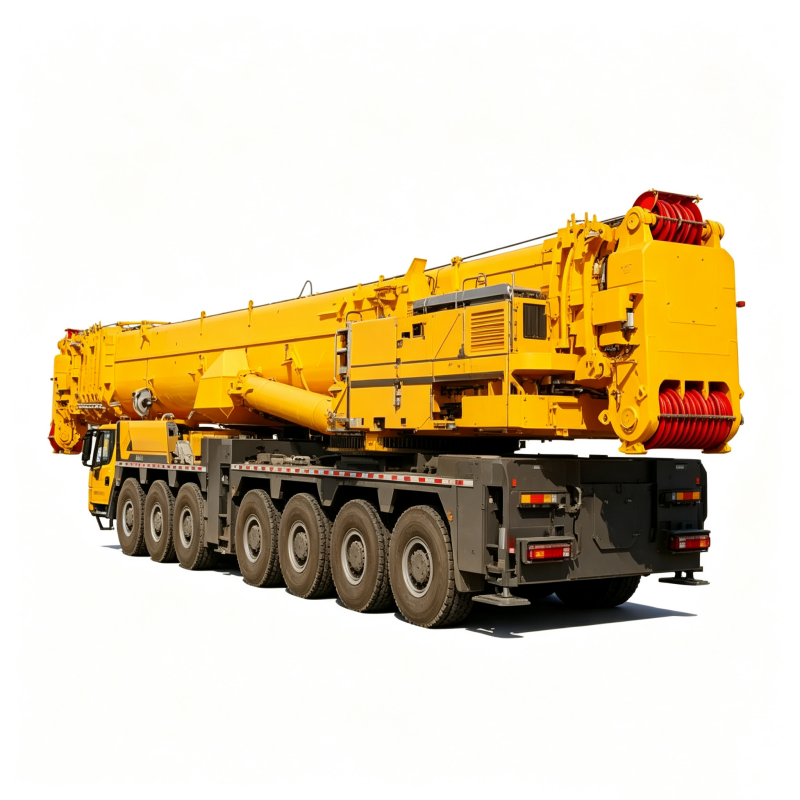

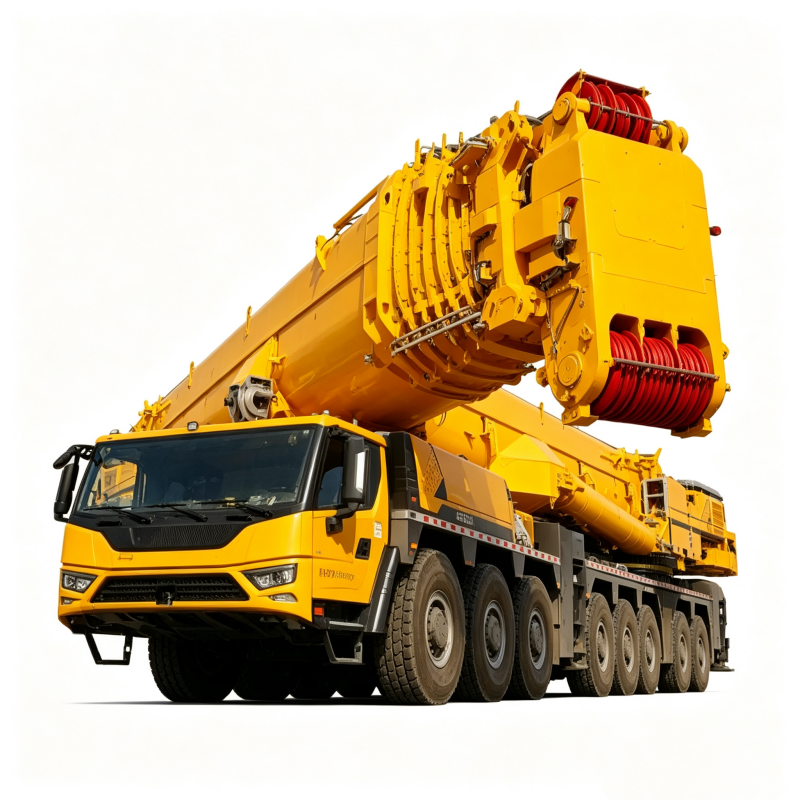

XCA1800G9‑1 all‑terrain crane delivers outstanding comprehensive performance for ultra‑heavy‑duty hoisting under mountainous, narrow‑space and complex construction sites. Its standard 7‑section 98.1 m main boom and optional 9‑section 125 m main boom, together with wind‑power dedicated jib, fully cover hybrid wind‑tower hoisting requirements up to 160 m hub height. Three outrigger span selections, three superlift spread angles and three counterweight displacement positions greatly improve adaptability for confined mountain wind‑farm and compact urban job‑sites. Adopting G2 electro‑hydraulic intelligent control platform and Weichai dual‑engine independent power layout, fuel consumption is reduced by over 30% compared with previous generations. The 9‑axle multi‑mode steering chassis provides flexible turning performance and strong off‑road passability on muddy and sloped ground. It supports multiple heavy‑load transit modes, travelling with full boom, superlift assembly and complete outriggers; main‑boom travelling height only 4.5 m and superlift‑equipped travelling height 4.6 m under low‑suspension setting, capable of passing most height‑restricted bridges and culverts, cutting transport flat‑bed quantity and transition cost significantly. The automatic luffing‑jib erection & retraction function completes jib deployment in one‑click, saving 30 minutes per setup‑and‑pack‑up cycle and raising working efficiency by more than 40%. Full‑function wireless remote control operates superlift, counterweight displacement and jib actions without frequent cabin entry‑exit. Intelligent safety suite integrates load‑moment monitoring, overload interlock, boom active‑deformation control and fault self‑diagnosis. Core attachments including hook blocks and counterweight segments maintain high interchangeability with XCMG XCA400‑XCA2000 series cranes to lower spare‑parts procurement and storage cost. Panoramic shock‑absorbing operator cabin offers ergonomic long‑shift heavy‑duty operating environment.
Product Advantages
Industry‑leading Hoisting Performance:
Rated 1800‑ton lifting capacity; standard 7‑section 98.1 m main boom, optional 9‑section 125 m ultra‑long main boom, matched with 100 m wind‑power jib, fully adapts to 160 m hybrid wind‑turbine installation and maintenance tasks.
Strong Complex‑site Adaptability:
Triple‑mode outrigger span, triple‑angle superlift configurations and 220‑t position‑adjustable counterweight; hundreds of working‑condition combinations fit narrow mountain wind‑farm and compact urban construction scenarios.
High‑efficiency Automatic Jib Operation:
Automatic luffing‑jib unfolding & retracting technology, one‑click completion of jib erection and retraction, greatly shortening pre‑operation preparation time and improving site efficiency by 40%+.
Optimized Heavy‑load Transfer Capacity:
Supports travelling with full boom, superlift assembly and complete outriggers; compact vehicle height passes most height‑limited culverts, reduces transport flat‑bed quantity and lowers comprehensive operating cost.
G2 Dual‑engine Energy‑saving System:
Independent power for chassis travelling and superstructure hoisting, advanced electro‑hydraulic control cuts comprehensive fuel consumption by over 30%.
Flexible 9‑axle Chassis Mobility:
Multi‑mode steering 9‑axle chassis, compact turning radius, strong gradeability and reliable off‑road performance for poor‑condition mountainous construction roads.
High‑cost‑saving Attachment Interchangeability:
Hooks and counterweight blocks are interchangeable with XCMG large‑tonnage crane series, decreasing procurement, transportation and maintenance expenses.
Full‑range Intelligent Safety Protection:
Boom active‑shape control, real‑time load‑moment monitoring, overload interlock, fault self‑diagnosis and full‑function wireless remote‑control improve operation safety & convenience.
Technical Parameters Table
Item | Specification |
Model | XCA1800G9‑1 |
Type | All‑Terrain Crane |
Rated Lifting Capacity | 1800 Ton |
Main Boom | Standard:7‑section U‑shaped telescopic boom,98.1 m Optional:9‑section 125 m |
Optional Wind‑power Jib | 28‑100 m dedicated wind‑power jib |
Max Combined Lifting Height | Up to 160 m (main boom + wind‑power jib) |
Power Configuration | Weichai Dual‑engine, independent power for chassis & superstructure G2 electro‑hydraulic control |
Chassis | 9‑axle multi‑mode steering all‑terrain chassis |
Travel Height | 4.5 m (with main boom);4.6 m (with superlift, low‑suspension mode) |
Counterweight | 220 t position‑adjustable combined counterweight |
Core Feature | Triple‑mode outrigger span, triple‑angle superlift automatic luffing jib erection, heavy‑load height‑limited‑passing transfer |
Control System | G2 intelligent control, boom active‑shape control full‑function wireless remote control |
Note: Please replace with official factory full‑data sheet for precise project quotation.
Product Applications
‑ On‑shore hybrid wind farm installation & 160‑meter wind‑turbine maintenance
‑ Petrochemical & chemical plant heavy‑equipment installation and overhaul
‑ Power transmission tower erection and cross‑line heavy hoisting
‑ Long‑span bridge component hoisting, erection and repair
‑ Super high‑rise building large steel‑structure installation
‑ Tower‑crane erection & dismantling for large‑scale building sites
‑ Heavy‑duty equipment relocation and large‑scale emergency rescue projects
FAQ
Q1: What is the model and rated lifting capacity of this crane?
A: XCA1800G9‑1, XCMG Qingfeng 2.0 G2‑generation 9‑axle 1800‑ton all‑terrain crane, specially optimized for hybrid wind‑tower hoisting.
Q2: What are the core highlights for XCA1800G9‑1?
A: It features 98.1 m standard main boom (optional 125 m 9‑section main boom), 100 m wind‑power jib for 160 m hybrid wind‑turbine jobs, automatic luffing‑jib erection‑retraction function, 220‑ton adjustable counterweight, triple‑mode outrigger & superlift assembly, Weichai dual‑engine G2 energy‑saving platform. It supports heavy‑load transfer with superlift fitted and passes height‑restricted culverts; full‑function wireless remote‑control greatly improves onsite working efficiency.
Q3: Can you supply brand‑new or used machines?
A: We mainly supply brand‑new XCA1800G9‑1 all‑terrain crane. Used units are available subject to stock; please send inquiry for stock status and quotation.
Q4: What trade terms and lead time do you support?
A: FOB, CIF, CFR terms are acceptable. Lead time depends on stock and production schedule, please submit your inquiry for latest delivery arrangement.
Q5: What after‑sales services can be provided?
A: Complete operation‑maintenance manuals, remote technical consultation, spare‑parts supply and video‑based technical guidance. Overseas on‑site service is negotiable.
A: Yes. Dedicated wind‑power jib, fixed jib, luffing jib, various counterweight combinations, multi‑spec hook blocks and other attachments can be selected according to your actual hoisting‑project requirements.
Q7: What advantages does all‑terrain crane compare with truck crane?
A: All‑terrain crane adopts multi‑axle multi‑wheel‑steering chassis with superior off‑road capability. It can travel and operate on uneven, muddy and mountainous construction sites while maintaining ultra‑heavy lifting performance, more suitable for large‑scale high‑altitude wind‑power and petrochemical heavy‑lifting projects.
