Product Introduction

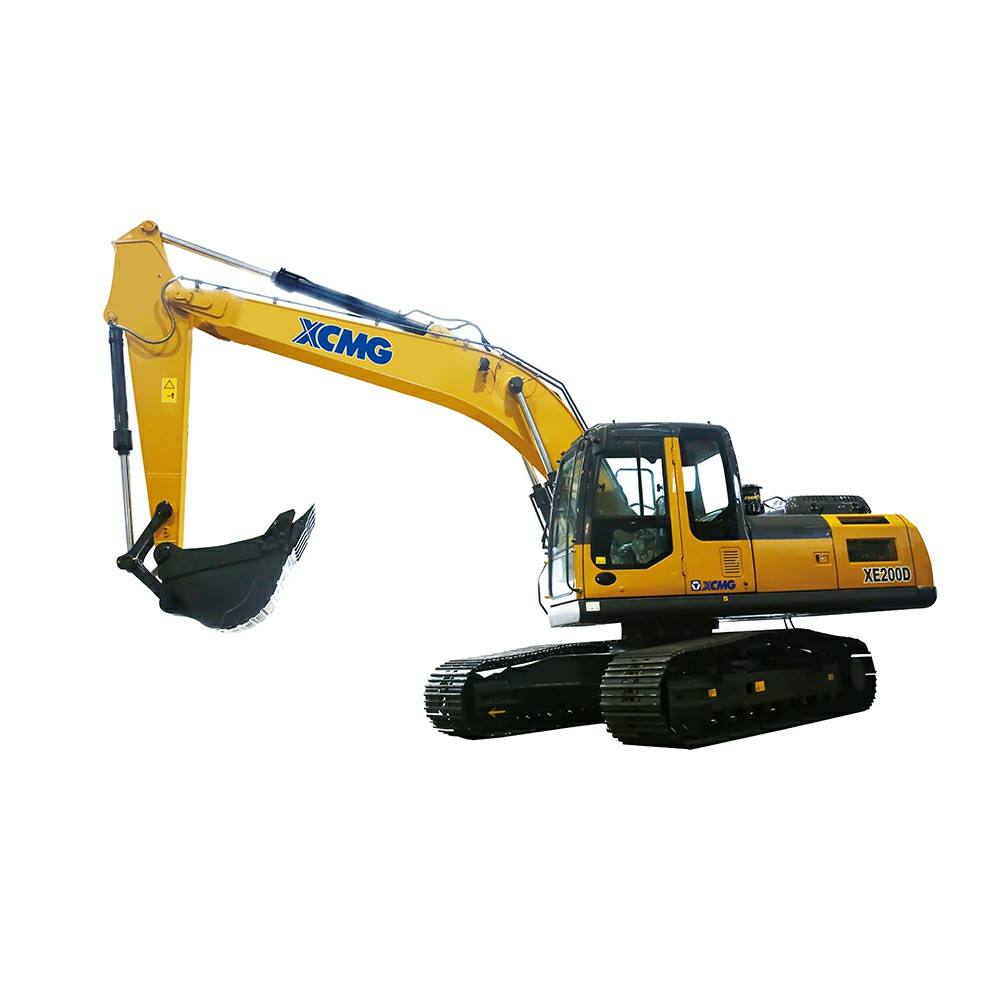

The XE200D excavator adopts more advanced power matching and hydraulic energy-saving control technology, which is highly efficient and fuel-efficient. It is equipped with a wide chassis and pilot buffering for more stable and comfortable operation. At the same time, the 200 chassis, turntable, and working device have been tested in the market and further optimized for higher reliability.
Product Advantage

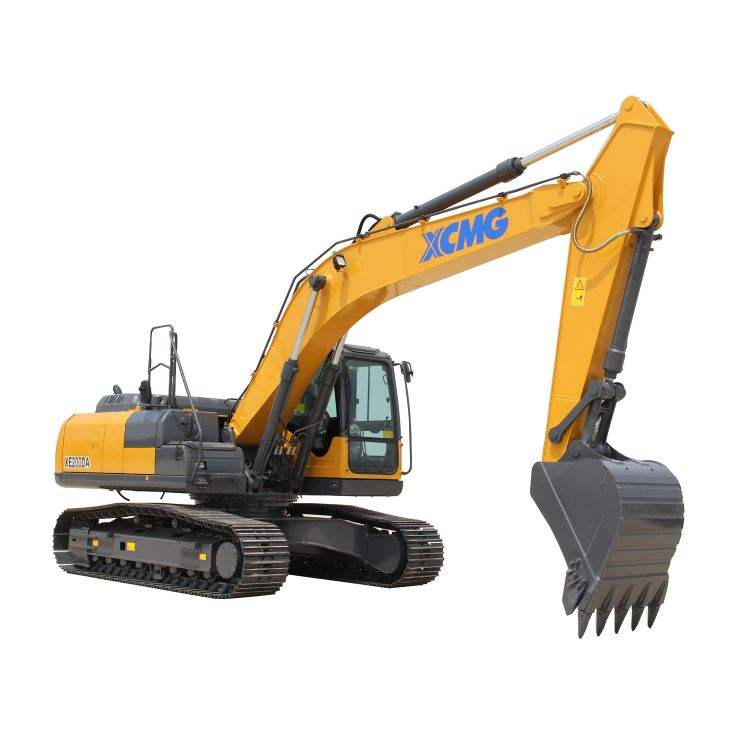

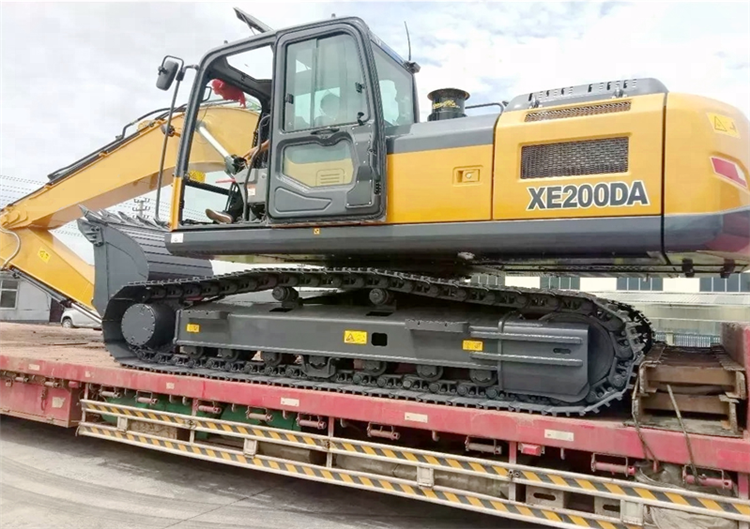

XE200DA adopts 135kW low-speed and high-torque engine. With customized power and fuel consumption characteristic curves, sufficient power and fuel consumption is low. The new type radiator with integral brazing technology and robot welding is equipped with a positive pressure degassing expansion tank to improve the service life of the pump, it can quickly remove the gas in the engine and the waterway, reduce rust, and meet the requirements of 50 °C environment.
The hydraulic system is continuously optimized and improved, and the coordination of the whole machine is better. It can be handy regardless of loading, squatting and leveling. The main pump corresponds to the engine setting pressure-flow curve to achieve perfect power matching and fully absorbs the output power of the engine. The operation is faster and 10% more efficient.
Technical Parameters
| Description | Unit | Parameter value |
| Operating weight | kg | 21500 |
| Bucket capacity | m³ | 0.9~1.1 |
| Engine | Model | Engine | QSB7 |
| No. of cylinders | --- | 6 |
| Output power | kW/ r/min | 135/2050 |
| torque/speed | N.m | 740/1250 |
| Displacement | L | 6.7 |
|
Main performance | Travel speed(H/L) | km/h | 5.3/2.9 |
| Gradeability | % | 70 |
| Rotary speed | r/min | 12.6 |
| Ground pressure | kPa | 46.3 |
| Bucket digging force | kN | 138 |
| Arm digging force | kN | 112 |
|
Hydraulic system | Main pump | -- | K3V112DT |
| Rated flow of main pump | L/min | 2×207 |
| Main safety valve pressure | MPa | 31.4/34.3 |
| Pressure of pilot system | MPa | 3.9 |
| Oil Capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 220 |
| Engine oil capacity | L | 19.5 |
|
Appearance size | Overall length | mm | 9625 |
| Overall width | mm | 2990 |
| Overall height | mm | 3100 |
| Width of platform | mm | 2830 |
| Length of crawler | mm | 4255 |
| Overall width of chassis | mm | 2990 |
| Width of crawler | mm | 600 |
| Wheel base of crawler | mm | 3460 |
| Crawler gauge | mm | 2390 |
| Clearance under counterweight | mm | 1050 |
| Min. ground clearance | mm | 476 |
| Min. rear-end swing radius | mm | 2890 |
|
Working scope | Max. digging height | mm | 9680 |
| Max. dumping height | mm | 6815 |
| Max. digging depth | mm | 6460 |
| Max. digging depth at the range of level 8 feet | mm | 6275 |
| Max. vertical wall digging depth | mm | 5590 |
| Max. digging reach | mm | 9790 |
| Min. swing radius | mm | 3530 |
Product Uses
1. Municipal and Urban Construction
The XE200D is ideal for urban foundation excavation, trench laying, and site leveling. Its optimized hydraulic system and excellent operational stability enable it to adapt to relatively narrow construction environments, making it an ideal choice for municipal roads and real estate development.
2. Agricultural Water Conservancy Construction
In agricultural water conservancy projects, the XE200D can be used for channel dredging, pond excavation, and farmland renovation. Its low fuel consumption and high efficiency help reduce operational costs, contributing to rural revitalization.
3. General Earthwork and Material Handling
The XE200D is capable of handling small to medium-sized earthwork projects, sand and gravel loading/unloading, and material cleanup tasks. With its strong digging force and reliable structural design, it ensures high operational efficiency under general working conditions.
4. Adaptability to Diverse Working Conditions
By replacing different attachments (such as a hydraulic breaker or grapple), the XE200D can be expanded for use in concrete breaking, material handling, and other special working conditions, achieving multi-functional use.
Product Operate Guide
Before starting, check the oil, hydraulic fluid, and coolant levels. Idle for 3-5 minutes to warm up. During operation: The left control lever controls movement, while the right control lever manages bucket/boom movements. Avoid sudden stops or turns, and maintain smooth operation. Equipped with a multi-functional attachment interface; when using attachments such as a hydraulic hammer, switch the hydraulic lines accordingly. Clean the equipment after use, park on level ground, and turn off the power. Regularly maintain filters and lubrication points, and ensure safety in the work environment.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. SENSOR READINGS INACCURATE OR NO SIGNAL?
First check the sensor's power supply, grounding, and signal wire connections for integrity; only then inspect the sensor itself.
5. DIM OR NO LIGHTING?
A: Inspect the bulb, socket, relevant fuses, relays, wiring connections, and grounding.
6. HORN NOT SOUNDING OR PRODUCING A MUFFLED SOUND?
Check the horn itself, horn relay, pushbutton switch, and wiring.
