Product Introduction

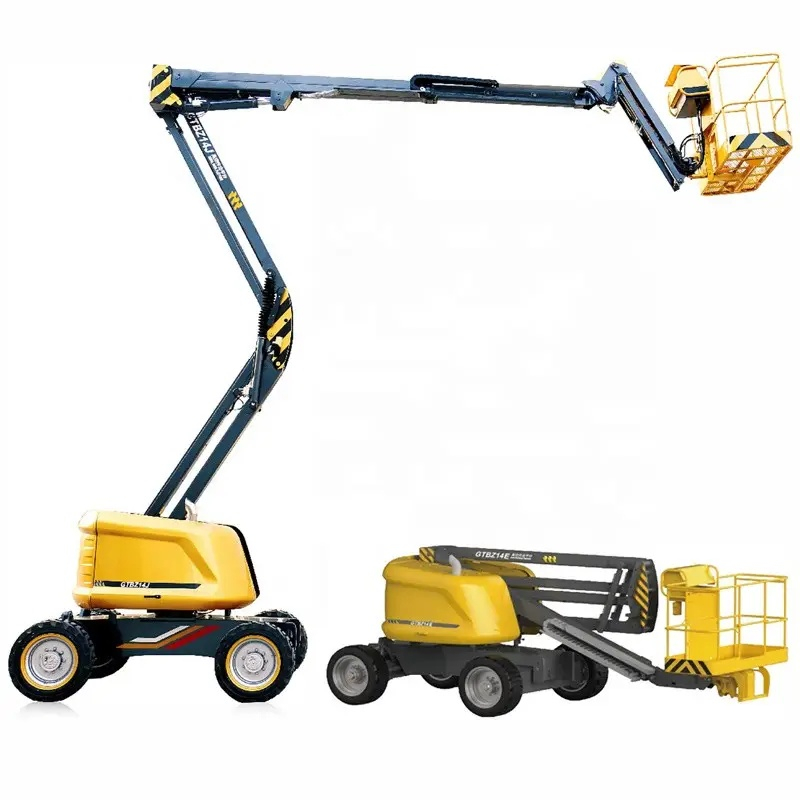

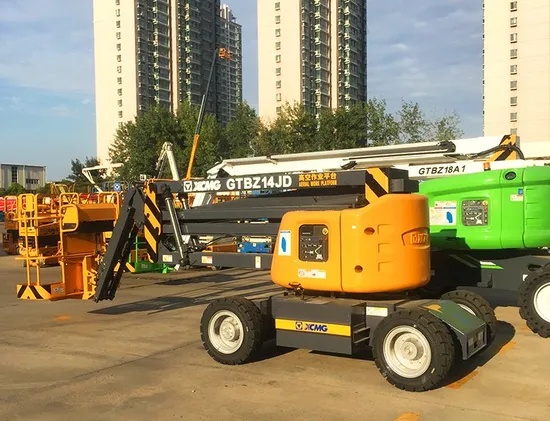

14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.
Product Advantage
(1) Flexibility and efficiency

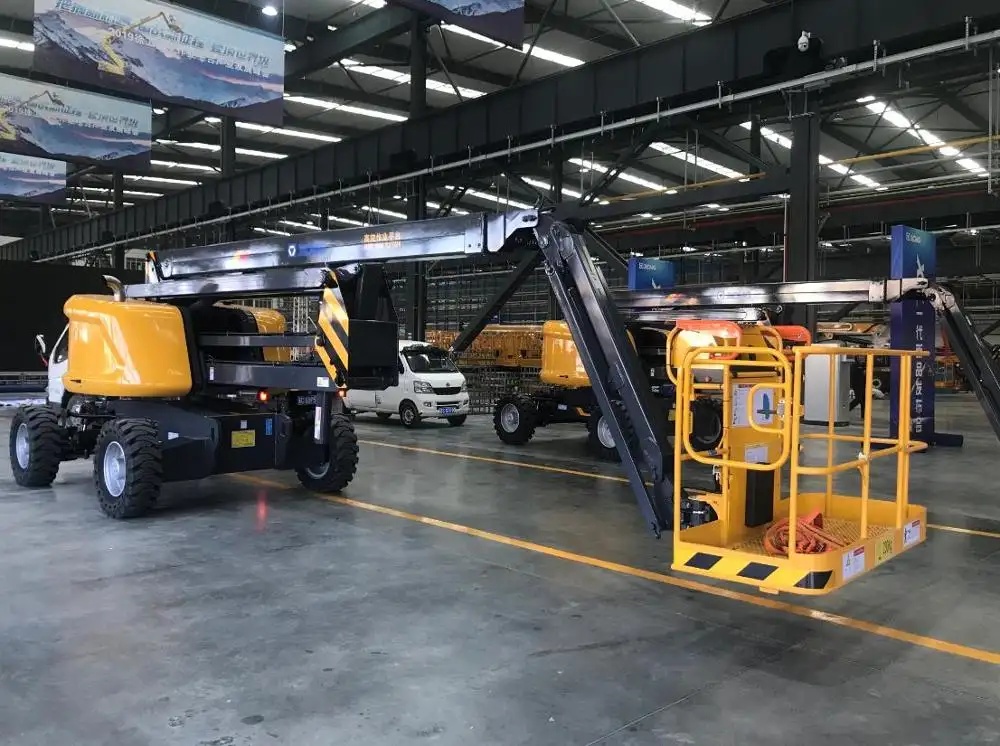

"Σ-type"double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range; Narrow-type rotary table with compact structure canachieve"zero tail wagging"and improve operation efficiency
(2) Super strong site adaptability

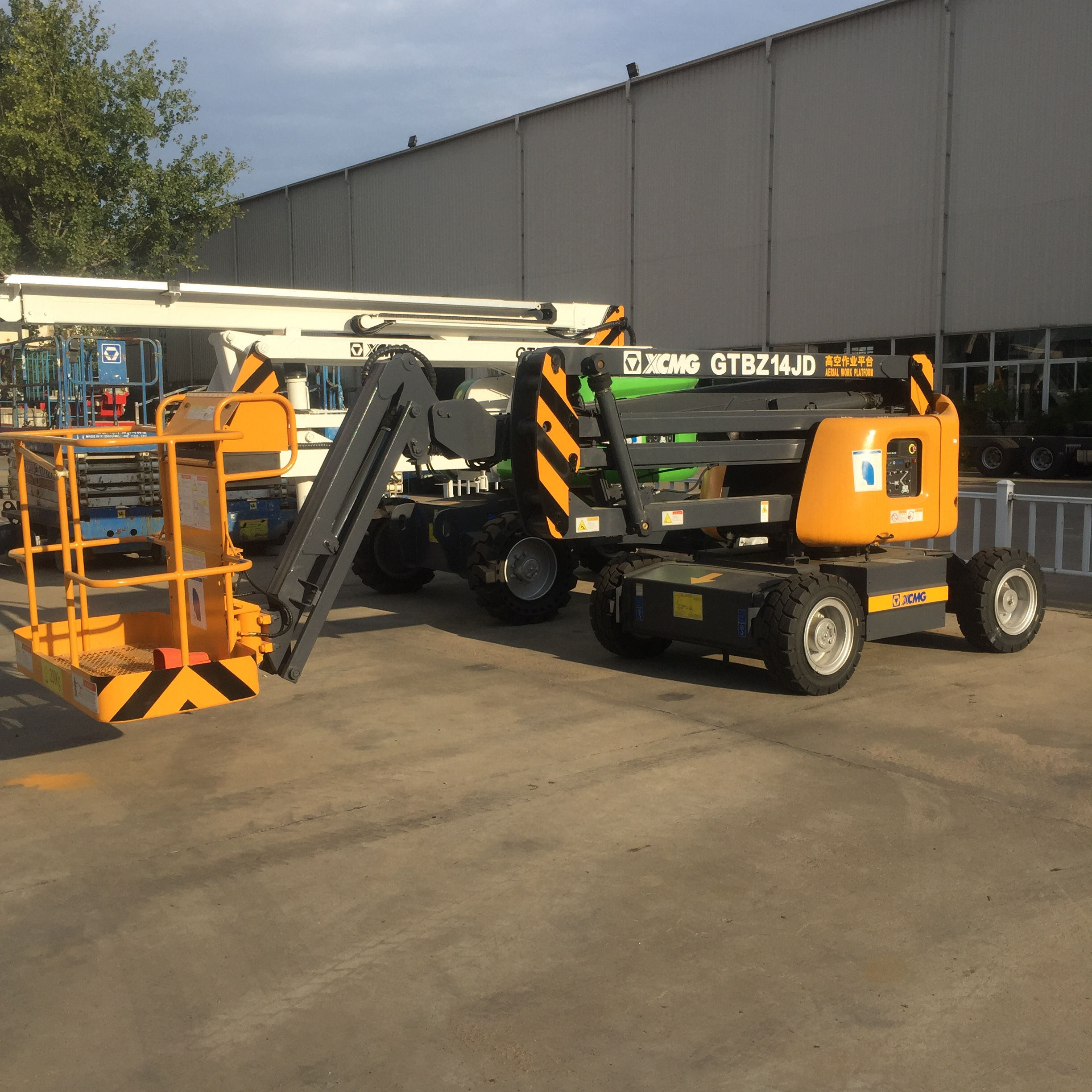

Cross-country type chassis,four-wheel drive system, pouring-type cross-country wide tyre,full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.
(3) Advanced performance, safety andreliability

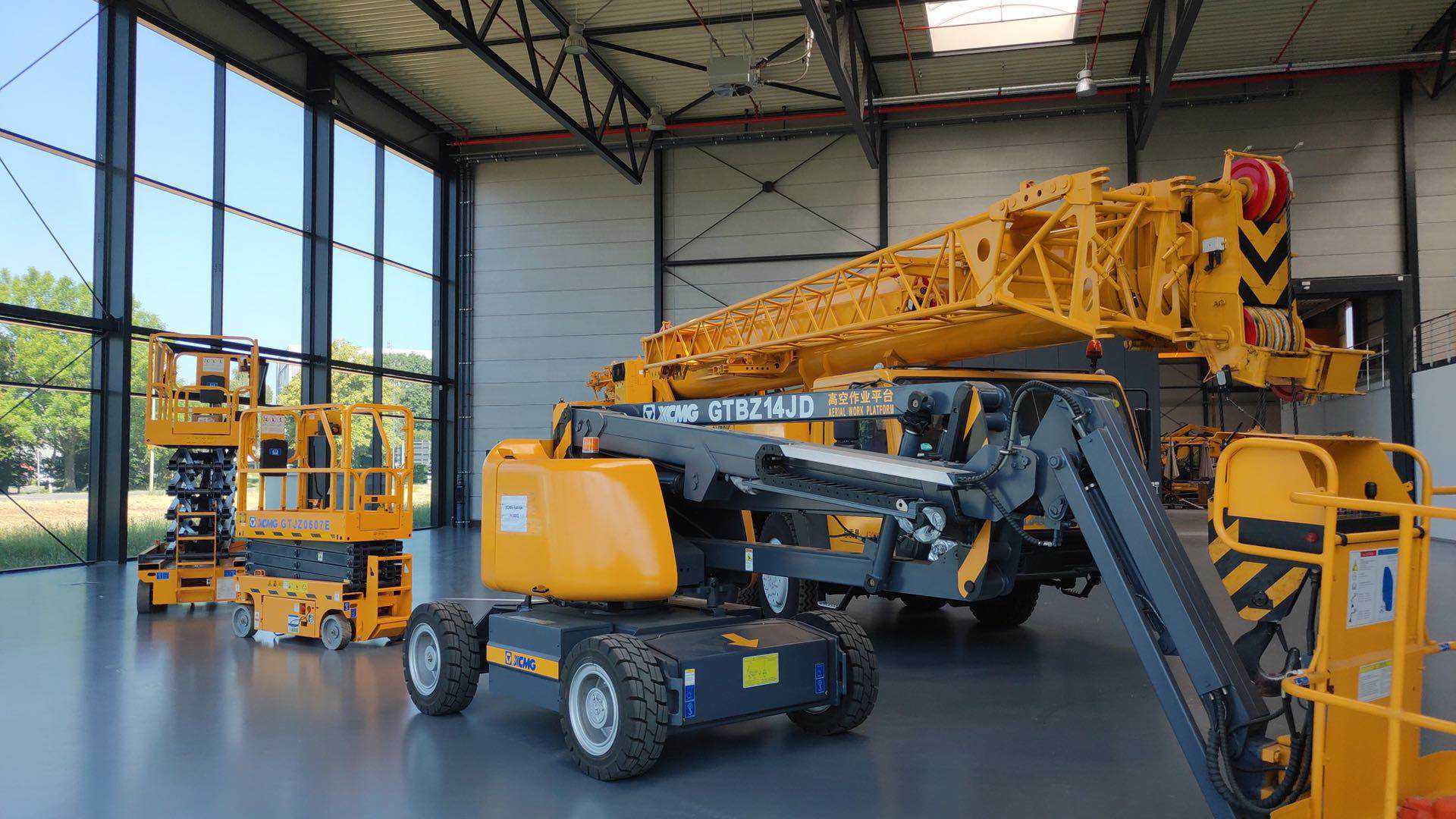

Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing,safety speed limit, flexibility start-stop technology, etc. are provided.
Technical Parameters
| Description | Unit | Parameter value |
| Overall length | mm | 6420 |
| Overall width | mm | 1750 |
| Overall Height | mm | 2000 |
| Overall dimension of work platform | mm | 1400×770×1150 |
| Maximum speed | km/h | 5.2 |
| Max. grade ability | % | ≥30 |
| Minimum outside turning radius | m | ≤3.2 |
| Ground clearance (center) | m | 0.21 |
| Wheel base | m | 2 |
| Total mass | kg | 6500 |
| Rated working height | m | 15.5 |
| Max. platform height | m | 13.8 |
| Max. working radius | m | 8 |
| Maximum span clearance height | m | 7.03 |
| Elevating range of No. 1 arm | ° | 0-60 |
| Elevating range of No. 2 arm | ° | -83 |
| Elevating angle of crank arm | ° | -140 |
| Platform swing angle | ° | 180 |
| Slewing angle |
| 360° discontinuous slewing |
| Gyration radius of turntable | m | 0.875 |
| Maximum mass | kg | 230 |
| Max. tail swing | m | 0 |
| Control system |
| 12V DC proportional control |
| Tire |
| 250-15 solid tire, 240/55 D17.5 optional, traceless tire can be selected |
| Power source |
| 420 Ah/48 V DC |
| Power unit |
| 4 kw/48 V DC |
| Auxiliary power unit |
| 2.2 kw/24 V DC |
| Walking motor |
| 3.3 kw/32 V AC |
Product Uses
• Commercial Complex Maintenance: Working height covers high-altitude cleaning and decoration tasks in shopping mall atriums, glass
Interior decoration: Ceiling, lighting fixtures, pipeline installation and maintenance for hotels, shopping malls, airports and stations.
• Factory maintenance: Installation, inspection and maintenance of production line equipment.
• Construction: Exterior wall construction, plastering, tiling, glass installation, etc. for low-rise buildings.
• Municipal engineering: Street lamp maintenance, garden pruning, signal light installation, etc.
• Warehousing and logistics: Maintenance of warehouse shelves, replacement of lighting fixtures, and installation of surveillance systems.
Product Operate Guide
Check the condition of the equipment and the environment before starting the work. After startup, the equipment's movements and movement can be operated through the proportional control handle on the platform control box or the ground remote control. Pay close attention to the load indication and strictly prohibit overloading. By taking advantage of its articulated arm feature to overcome obstacles, the electric drive ensures low noise and no pollution during indoor operations. Use the emergency descent device in an emergency. Be sure to follow safety regulations to ensure smooth operation.
FAQ
1.Is it fuel-powered or electric?
A: It is driven purely by electricity, with zero emissions and low noise, making it very suitable for indoor operations.
2.What unique mobile functions does it have?
A: It is equipped with four-wheel steering functions, including front-wheel steering, crab travel (oblique travel), and in-place steering modes, making it extremely agile in confined Spaces.
3.How long can a single charge last?
A: Battery life depends on usage intensity. It comes standard with a large-capacity battery and usually supports a full day of regular operations.
4.Does it support fast charging? How long does it take to charge?
A: Fast charging is supported. Please refer to the specific battery model manual for the full charging time. It usually takes several hours to fully charge.
5.What daily checks are needed?
A: Before daily work, a visual inspection should be conducted, including the structure, hydraulic system, battery power, tires, and the function of emergency devices (such as emergency descent), etc.
6.What should I do if the equipment shows a fault code?
A: The control panel will display a fault code. Please stop the operation immediately and conduct a preliminary investigation by referring to the fault code table in the manual, or contact a professional maintenance person.
