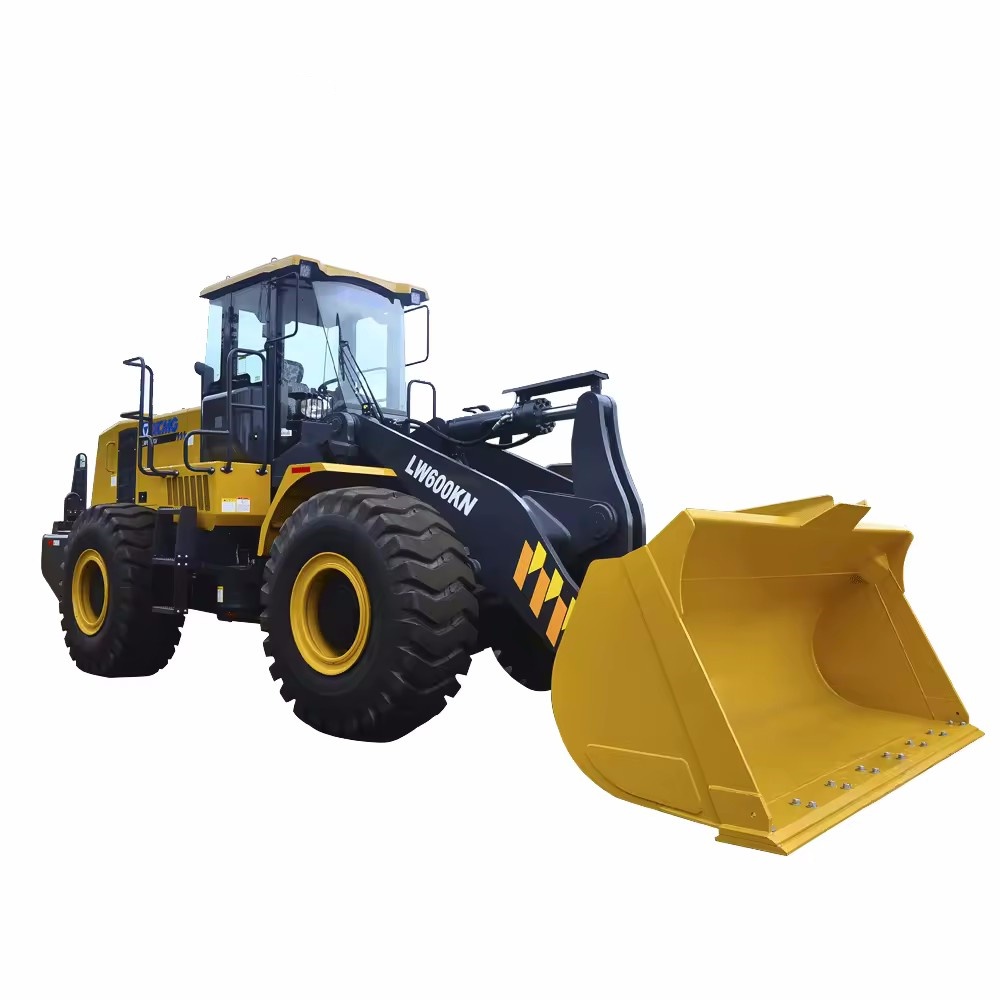

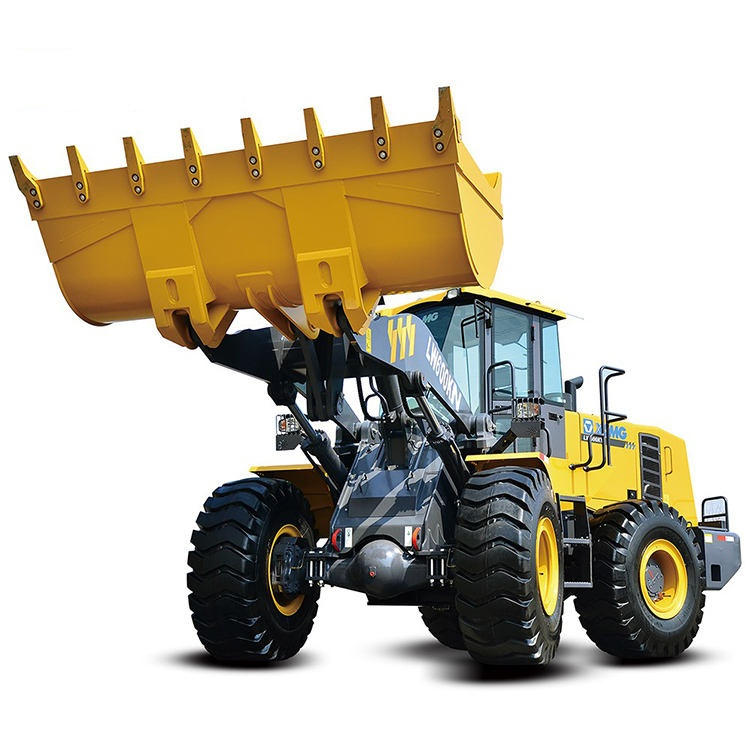

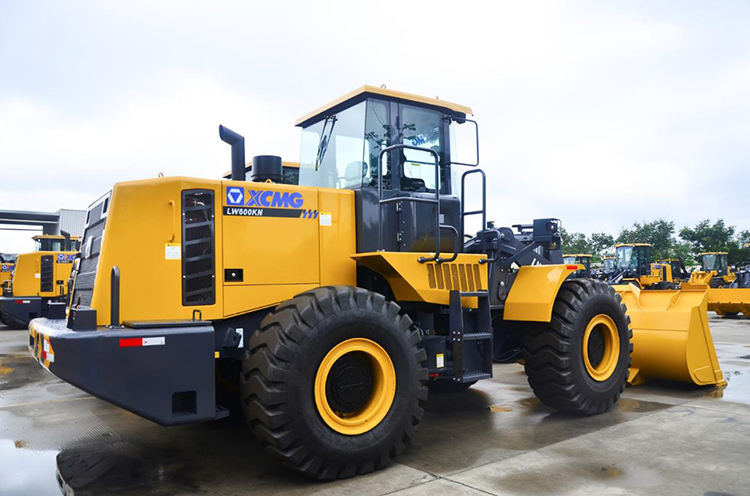

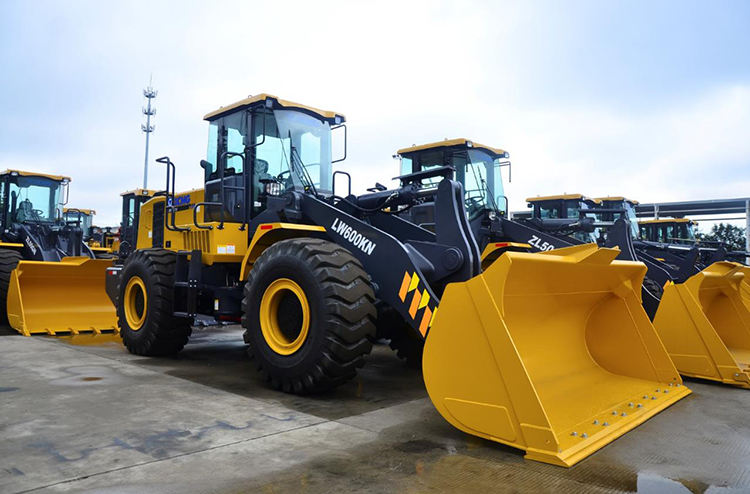

LW600KN
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The LW600KN is a large loader dedicated to heavy-duty working conditions, featuring powerful performance, high reliability and operational efficiency. It is mainly targeted at scenarios with extremely high requirements for equipment load-bearing capacity, excavation force and stability, such as large-scale mines, stone quarries, ports, steel mills, etc. It is the main equipment for large-scale handling and loading of earth, stone, ore, mineral powder and other materials.
Product Advantage
The LW600KN, with its heavy-duty design, powerful performance and high availability rate, has become a flagship product in the 6-ton class loader market. It perfectly inherits the "technologically leading and indestructible" genes of XG equipment, and can continuously meet users' demands for large-scale and high-efficiency equipment. It is a reliable choice for achieving efficient production under various heavy-load working conditions.
Technical Parameters
| Description | Unit | Parameter value |
| Rated operating load | kg | 6000 |
| Bucket capacity | m³ | 3.0~4.5 |
| Machine weight | kg | 20000±300 |
| Dump clearance at maximum lift | mm | 3170~3750 |
| Reach at maximum lift | mm | 1200~1360 |
| Wheel base | mm | 3350 |
| Tread | mm | 2265 |
| Max.breakout force | kN | 205 |
| Max.horse power | kN | 174 |
| Hydraulic cycle time-raise | s | ≤5.9 |
| Total hydraulic cycle time | s | ≤10.9 |
| Min. turning radius over tyres | mm | 6005 |
| Articulation angle | ° | 38 |
| Gradeability | ° | 28 |
| Tyre size | 23.5-25 | |
| Overall machine dimension L×W×H | mm | 8505×3220×3515 |
| Model | SC11CB240.1G2B | |
| Rated Power | kW | 178 |
| Fuel Tank | L | 250 |
| Hydraulic Tank | L | 210 |
| Travel Speed | km/h | 6-34 |
Product Uses

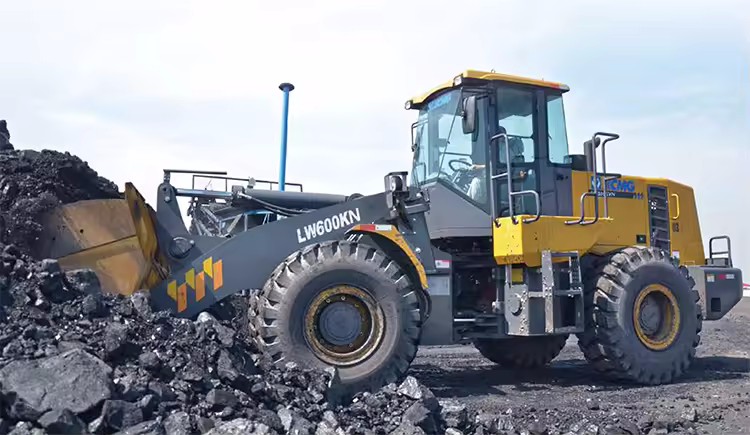

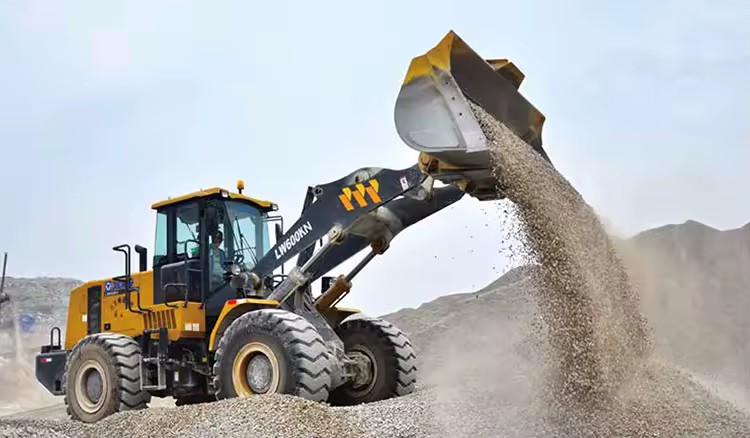

Large-scale mines: The specific gravity of materials is extremely high, wear is extremely severe, and the impact load is large
Port terminals: Long operation hours, continuous tasks, and strict requirements for efficiency
Steel plant: Harsh environment, sharp materials, high-temperature corrosion
Major projects: Tight schedules, heavy tasks, and equipment must not fail
Product Operate Guide
Start the engine:
Sit on your seat and fasten your seat belt.
Place the gearshift lever of the transmission in the "N" (neutral) position.
Make sure the handbrake is in the braking position.
Turn the key to the "ON" position, wait for a few seconds, and observe whether the indicator lights on the dashboard are normal (the fault light should be off).
Gently press the accelerator pedal and turn the key to the "START" position to start. Release the key immediately after starting.
Let the engine idle at 600-800 rpm for 5-10 minutes, especially in cold weather, so that the engine oil and hydraulic oil can warm up to the working temperature.
Turn off the engine:
Park the loader in a flat, solid and safe area.
Lay the bucket completely flat on the ground.
Place the gearshift lever in the "N" position and pull the handbrake tightly.
Let the engine idle for 2 to 3 minutes to cool down, especially after high-load operation.
Turn the key to the "OFF" position to turn off the engine and then remove the key.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
